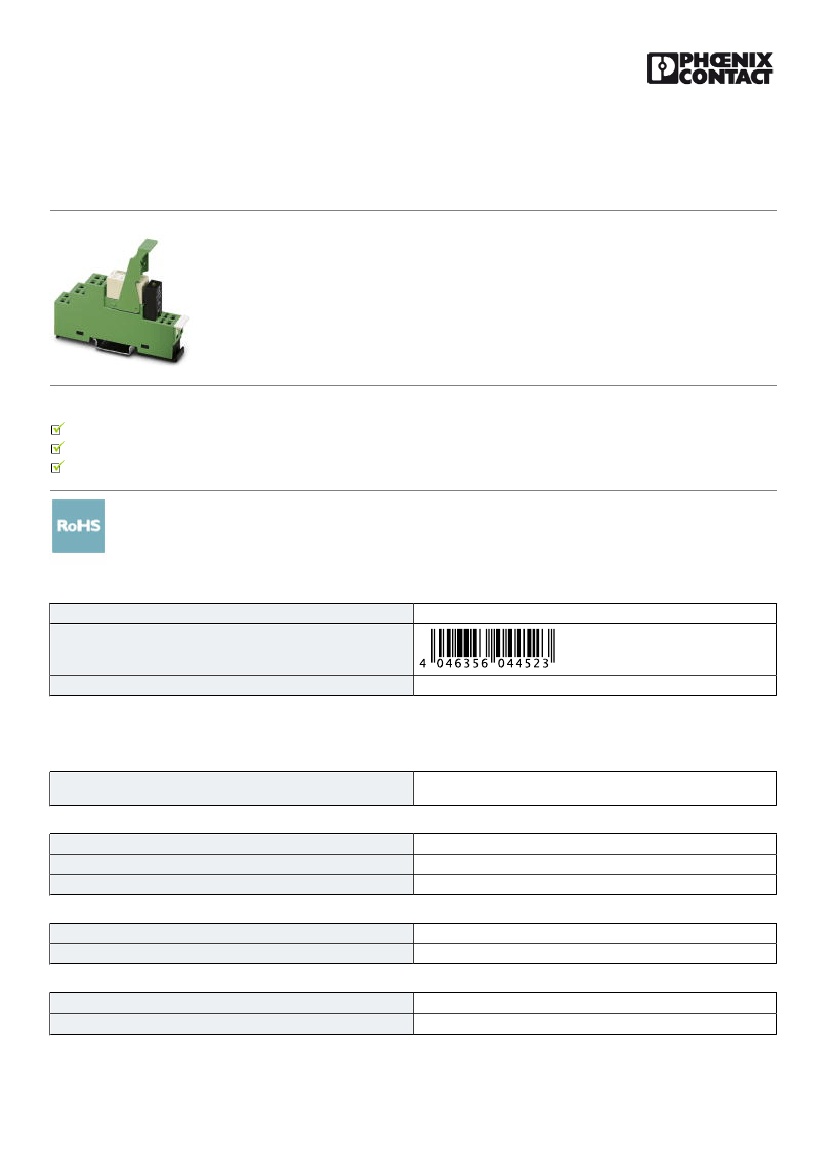

Relay Module - PR1-RSP3-LV-230AC/2X21AU - 2834630
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Preassembled relay modules with spring-cage connection, consisting of a relay base, miniature power relay
with hard gold-plated contacts, plug-in display/interference suppression module and retaining bracket. Input
voltage: 230 V AC, two PDTs, 8 A
Your advantages
Safe isolation between coil and contact side
Logical contact arrangement thanks to 1/3-level relay base
Operational reliability thanks to sealed relay
Key Commercial Data
Packing unit
GTIN
GTIN
4046356044523
5 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
16 mm
97 mm
72 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-25 °C ... 60 °C
-25 °C ... 85 °C
Coil side
Nominal input voltage U
N
Typical input current at U
N
230 V AC
6 mA (at 50 Hz)
11/05/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2834630
Relay Module - PR1-RSP3-LV-230AC/2X21AU - 2834630
Technical data
Coil side
5.5 mA (At 60 Hz)
Typical response time
Typical release time range
Protective circuit
Operating voltage display
Power dissipation for nominal condition
3 ms ... 12 ms
2 ms ... 22 ms
Varistor
Yellow LED
1.38 W
Contact side
Contact type
Type of switch contact
Contact material
Maximum switching voltage
Minimum switching voltage
Min. switching current
Maximum inrush current
Limiting continuous current
Interrupting rating (ohmic load) max.
2 PDT
Single contact
AgNi, hard gold-plated
30 V AC
36 V DC
100 mV (at 10 mA)
1 mA (at 24 V)
50 mA
50 mA
1.2 W (at 24 V DC)
General
Test voltage relay winding/relay contact
Test voltage relay contact/relay contact
Operating mode
Mechanical service life
Mounting position
Assembly instructions
4 kV (50 Hz, 1 min.)
2.5 kV (50 Hz, 1 min.)
100% operating factor
3x 10 cycles
any
In rows with zero spacing
7
Connection data input side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Coil side
Spring-cage connection
10 mm
0.2 mm² ... 1.5 mm²
0.2 mm² ... 1.5 mm²
24 ... 16
Standards and Regulations
Standards/regulations
Degree of pollution
Overvoltage category
IEC 60664
EN 50178
3
III
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
11/05/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/2834630
Relay Module - PR1-RSP3-LV-230AC/2X21AU - 2834630
Technical data
Environmental Product Compliance
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
12 22
14 24
2,8
2,6
2,4
Diagram
Coil voltage U/U
N
2,2
2
1,8
1,6
1,4
1,2
1
0,8
0,6
0
10
20
30
40
50
60
70
11 21
1
2
2
1
80
90
100
A1
A2
Ambient temperature [°C]
1
DC coils
2
AC coils
Operating voltage range of the relay
Diagram
20
10
Diagram
Switching current [A]
6
4
2
1
0,5
0,3
0,2
0,1
10
20
30
50
70
100
1
4
3
2
Reduction factor
200
300
1
0,9
0,8
0,7
0,6
0,5
0,4
0,3
1
0,9
0,8
0,7
0,6
0,5
0,4
0,3
0,2
1
2
3
4
AC, ohmic load
DC, ohmic load, contacts in series
DC, ohmic load
DC, L/R = 40 ms
Switching voltage [V]
COS
j
Interrupting rating
Service life reduction factor with various cos phi
11/05/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2834630
Relay Module - PR1-RSP3-LV-230AC/2X21AU - 2834630

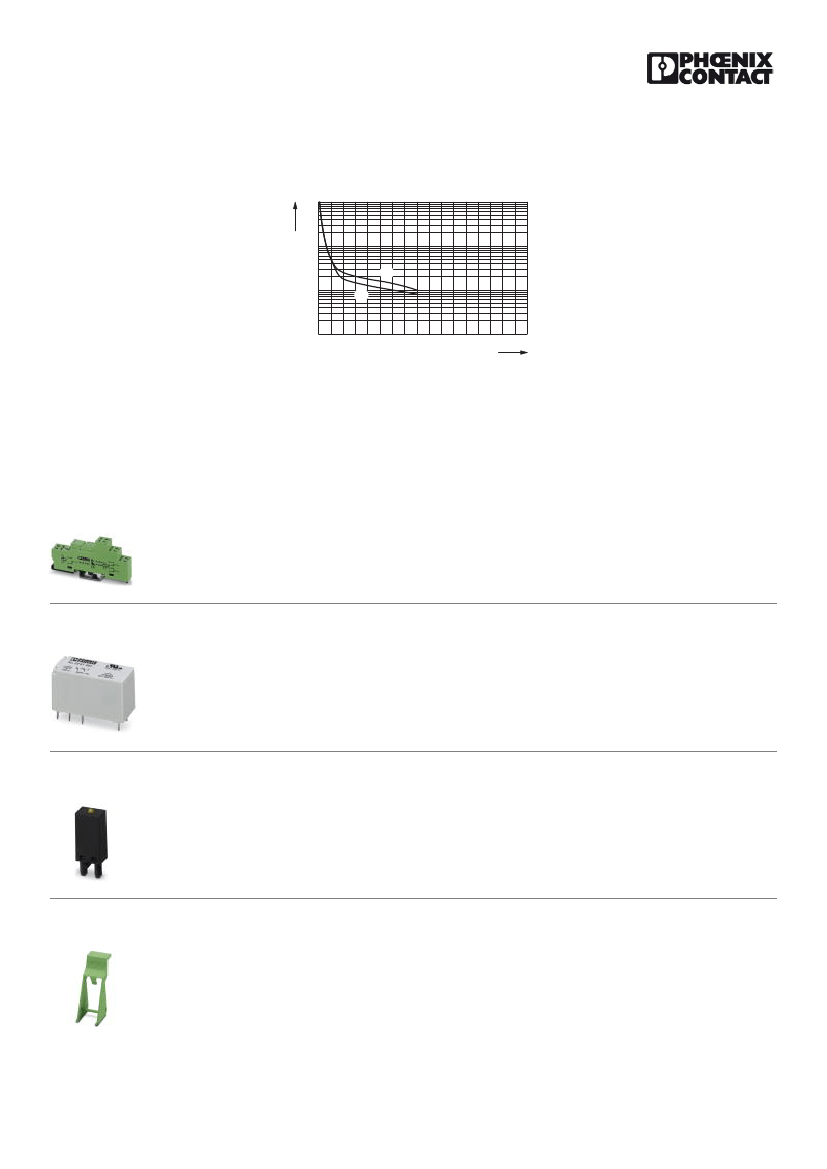

Diagram
10
7
Cycles
10
6
1
10
5
2
10
4
0 1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16
Switching current [A]
1
250 V AC, ohmic load (DC coils)
2
250 V AC, ohmic load (AC coils)
Electrical service life
Articles in set
Relay base - PR1-BSP3/2X21 - 2833534
Relay base PR1..., for miniature power relay or miniature switching relay with 1 or 2 PDT or solid-state relay of same
construction, 1/3 level design, spring-cage connections, connection facility for input/interference suppression modules
Single relay - REL-MR-230AC/21-21AU - 2961480
Plug-in miniature power relay, with multi-layer gold contact, 2 PDTs, input voltage 230 V AC
Plug-in module - LV-120-230AC/110DC - 2833738
Plug-in module, with varistor and yellow LED, input voltage: 120 ... 230 V AC / 110 V DC ±20 %
Retaining bracket - EL1-P16 - 2833547
Relay retaining bracket, with eject function and integrated equipment marking area (7.5 x 15 mm), to suit relay base
PR1, for 16 mm high miniature power relay and solid-state relay
11/05/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/2834630
Relay Module - PR1-RSP3-LV-230AC/2X21AU - 2834630
Articles in set
