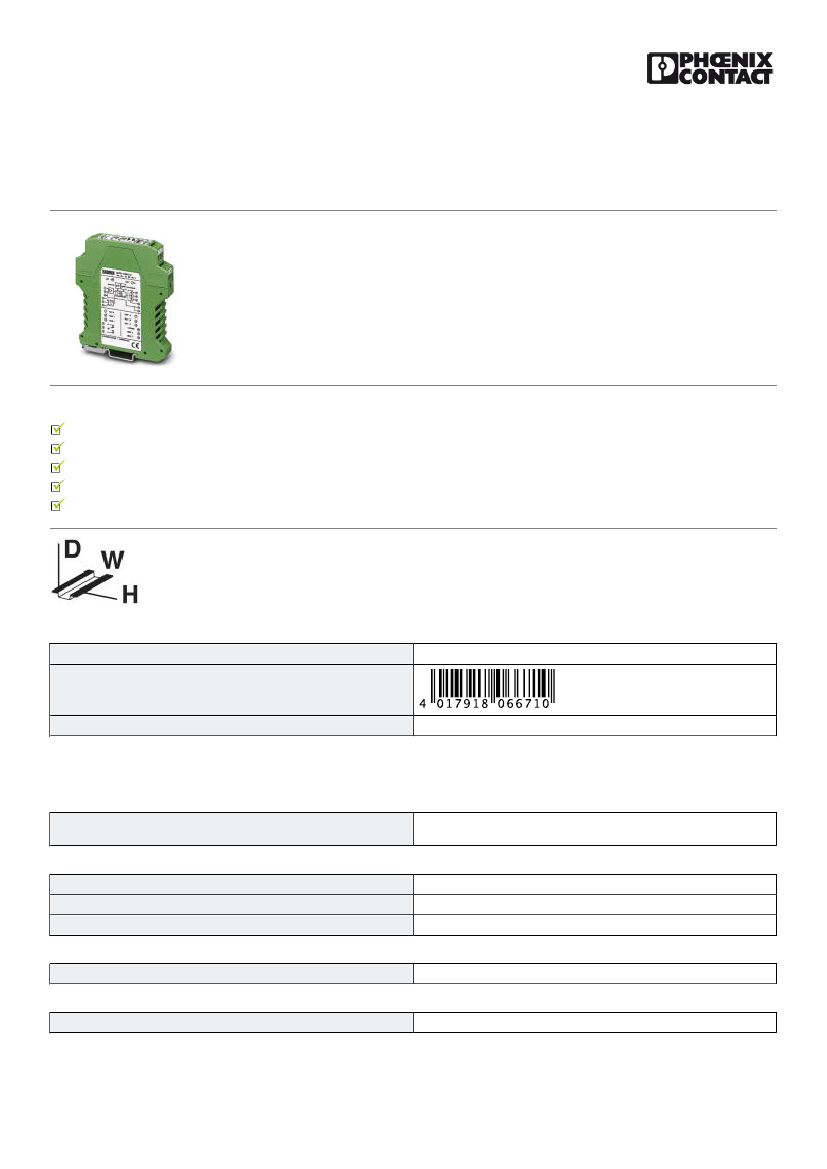

https://www.phoenixcontact.com/pi/products/2766465
Limit value switches - MCR-SWS-U - 2766465
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
MCR threshold value switches, with adjustable hysteresis and relay/transistor output, input signal 0..10 V
Your advantages
Adjustable hysteresis
Monitoring of three signal states
Relay/transistor output
Limit value indication
0 ... 10 V or 0 ... 20 mA input
Key Commercial Data
Packing unit
GTIN
GTIN
4017918066710
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
17.5 mm
99 mm
114.5 mm
Ambient conditions
Ambient temperature (operation)
-20 °C ... 65 °C
Input data
Description of the input
Voltage input
11/05/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2766465
Limit value switches - MCR-SWS-U - 2766465
Technical data
Input data
Voltage input signal
max. input voltage
Input resistance of voltage input
Min setting range of the voltage threshold value
Setting range of the hysteresis
Internal hysteresis
Setting option
0 V ... 10 V
11 V
≥ 100 kΩ
0 V ... 10 V
0.1 V ... 10 V (setting accuracy: ± 30 mV)
± 30 mV (around the lower/upper switching point)
Setting potentiometer, scaled 270° potentiometer
Switching output
Output name
Number of outputs
Output voltage range
Continuous load current
Output name
Contact type
Contact material
Maximum switching voltage
Max. switching current
Mechanical service life
Status display
Transistor output, pnp
3
20 V DC ... 30 V DC
100 mA
Relay output
1 PDT
AgNi 0,15 + HTV (hard gold-plated)
250 V AC (30 V DC)
2A
10 cycles
LED
7
Power supply
Supply voltage range
Max. current consumption
20 V DC ... 30 V DC
typ. 60 mA
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Screw thread
Pluggable screw connection
0.2 mm²
2.5 mm²
24
14
0.2 mm²
2.5 mm²
8 mm
M3
General
No. of channels
Maximum temperature coefficient
Step response (10-90%)
Color
Housing material
Mounting position
1
≤ 0.02 %/K
< 25 ms
green
Polyamide PA non-reinforced
any
11/05/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2766465
Limit value switches - MCR-SWS-U - 2766465
Technical data
General
Conformance
UL, USA/Canada
CE-compliant
UL 508 Recognized
Standards and Regulations
Connection in acc. with standard
Conformance
UL, USA/Canada
CUL
CE-compliant
UL 508 Recognized
Drawings
Dimensional drawing
99
17,5
Circuit diagram
IN
OUT
IN I/U
GND 1
GND 1
1
2
3
A B C
0
IN
7 OUT A
8 OUT B
9 OUT C
10
114,5
12
11
14
4
5
6
11
+ 24VDC
GND 2
12
GND 2
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/05/2018 Page 3 / 3
