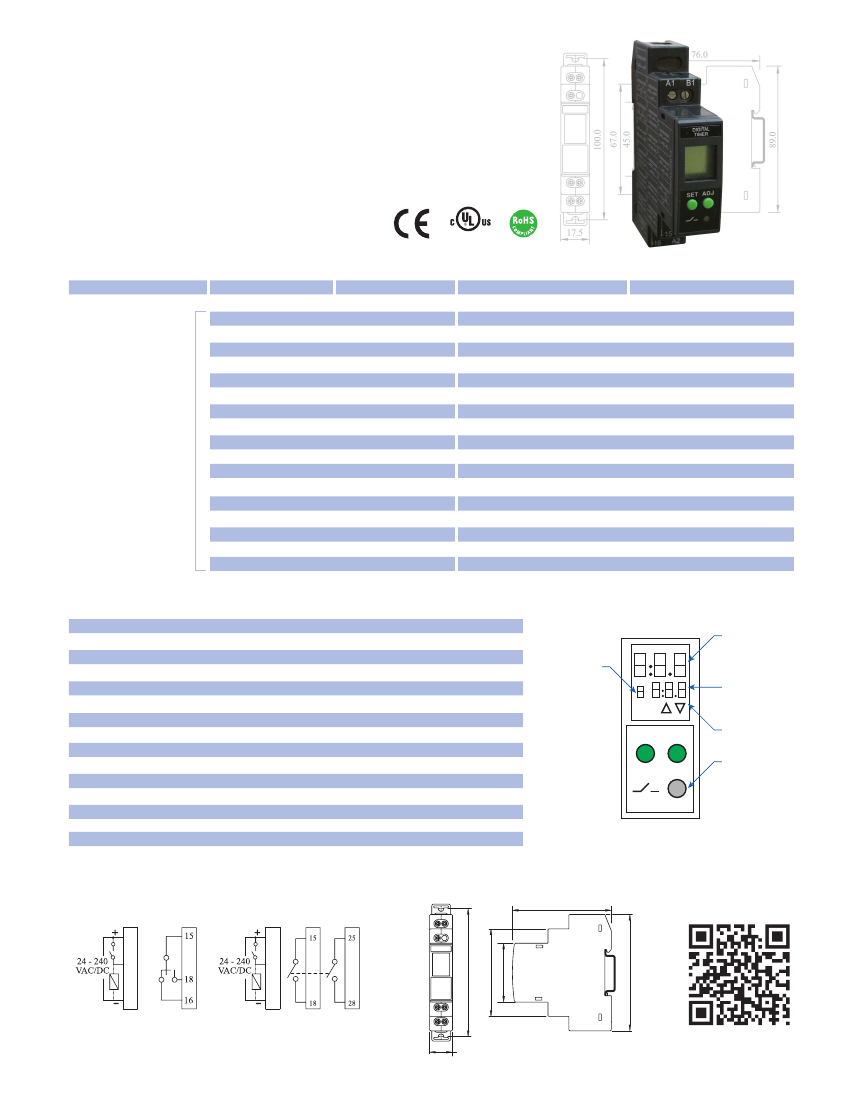

Altech Universal Digital Multi-Timer
Altech’s AMT-Series of Universal Digital Multi-Timers comprises 4
models featuring 8 or 18 timer functions to offer highest flexibility
in controlling operations. The time range is adjustable from 0.1s to
999h. An LCD display shows current Run time information.
Features
•
•
•
•
•
•
Multifunctional Timer (8 or 18 Functions)
Universal Voltage 24~265 VAC/ DC
Wide Time Range: 0.1s ~ 999h
3 Digit LCD Display for Preset Time and Run Time
DIN Rail Mounted
17.5mm Width
Digital Timers
Cat. No.
Output Contacts
No. of Timer Functions
AMT8-S1
1 C/O
8
AMT8-D2
2 NO
8
LISTED
E351145
AMT12-S1
1 C/O
18
AMT12-D2
2 NO
18
Functions /
[setting mode]
1) ON Delay
[A]
2) Cyclic OFF/ ON
[b]
3) Cyclic ON/ OFF
[C]
4) Signal ON/ OFF
[d]
5) Signal OFF Delay
[E]
6) Interval
[F]
7) Signal OFF/ ON
[G]
8) One Shot Output
[H]
Specifications
Supply Voltage
Power Consumption
Timing Range
Reset Time
Repeat Accuracy
Output Contact Rating
Electrical Life
Mechanical Life
AC-15 Rating
DC-13 Rating
Operating Temperature
Storage Temperature
Weight
Protection Enclosure
Protection Terminals
Torque
Terminal Wire Size
24 - 265 VAC/ DC (50, 60Hz)
10 VA max.
0.1s ~ 999h
200ms max.
+-0.5%
8A @ 240 VAC/ 24 VDC (resistive)
10,000 switching cycles
2,000,000 switching cycles
Rated Voltage (Ue): 125/ 240V, Rated Current (Ie): 3/1.5A
Rated Voltage (Ue): 125/ 250V, Rated Current (Ie): 2/0.22/0.1A
-10ºC ~ +55ºC (+14ºF ~ 131ºF)
-20ºC ~ +65ºC (-4ºF ~ 149ºF)
85g (0.14lb.)
IP30
IP20
0.40 Nm (3.5 lb.in.)
0.3-2.5 mm
2
(22-14 AWG)
1) ON Delay
[0]
2) Cyclic OFF/ ON
[1]
3) Cyclic ON/ OFF
[2]
4) Impulse on Energizing
[3]
5) Accumulative Delay on Signal
[4]
6) Accumulative Delay on Inverted Signal
[5]
7) Accumulative Impulse on Signal
[6]
8) Signal ON Delay
[7]
9) Inverted Signal ON Delay
[8]
10) Signal OFF Delay
[9]
11) Impulse ON/ OFF
[A]
12) Signal OFF/ ON
[b]
13) Leading Edge Impulse 1
[C]
14) Leading Edge Impulse 2
[d]
15) Trailing Edge Impulse 1
[E]
16) Trailing Edge Impulse 2
[F]
17) Delayed Impulse
[G]
18) Inverted Signal ON Delay 2
[H]
Run
Time
Setting
Mode
Preset
Time
Up
Down
LED Indication
for
Relay Status
HMS
SET ADJ
Connection Diagrams
A1
B1
A1
Dimensions
76.0 mm
Scan this
QR code for
more information.
67 mm
45 mm
A2
A2
AMT8-S1, AMT12-S1
AMT8-S2, AMT12-S2
17.5 mm
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
89 mm
B1
100 mm

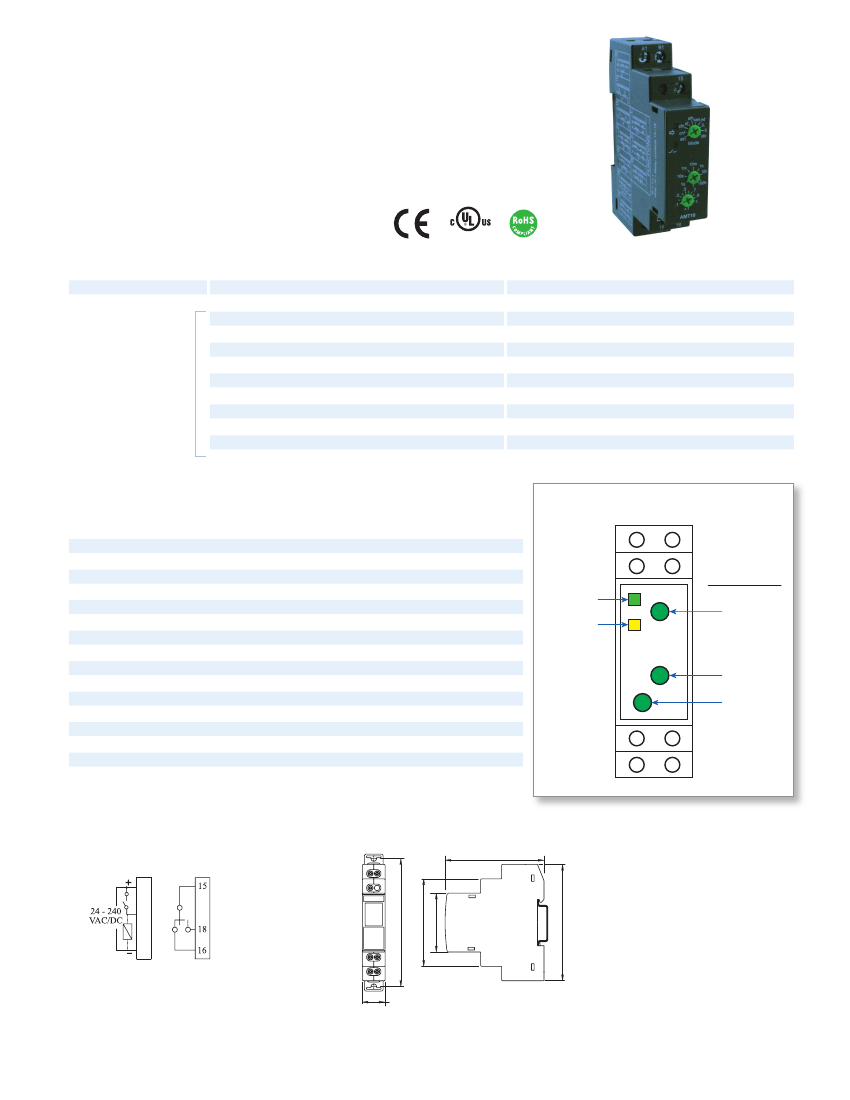

Altech Universal Multi-Timer
Altech’s Universal Multi-Timers comprises 2 models featuring 2 or 10 timing
functions to offer highest flexibility in controlling operations. The time
range is adjustable from 0.1s to 100h. Dials on the front make it easy to use.
Features
•
Multifunctional Timer (10 Functions)
•
Assymetric Timer (2 Functions)
•
Universal Voltage 12-265V AC/ DC
•
Wide Time Range: 0.1s ~ 100h
•
LED Indicator for Power and Relay Status
•
DIN Rail Mounted
•
17.5mm Width
Digital Timers
CAT. NO.
Output Contacts
No. of Timer Functions
LISTED
E351145
AMT10-S1
1 C/O
1) Signal ON Delay
2) Cyclic ON/ OFF
3) Cyclic OFF/ ON
4) Signal OFF Delay
5) Signal OFF/ ON
6) Accumulative Delay on Signal
7) Impulse ON/ OFF
8) Leading Edge Impulse
9) Trailing Edge Impulse
10) Leading Edge Bi-stable
AMTAS-S1
1 C/O
1) Assymetric ON/ OFF
2) Assymetric OFF/ ON
Functions
SPECIFICATIONS
Supply Voltage
Power Consumption
Timing Range
Reset Time
Repeat Accuracy
Output Contact Rating
Electrical Life
Mechanical Life
AC-15 Rating
DC-13 Rating
Operating Temperature
Storage Temperature
Weight
Protection Enclosure
Protection Terminals
Torque
Terminal Wire Size
12 - 265 VAC/ DC (50, 60Hz)
2 VA max.
0.1s ~ 100h
200ms max.
+1.0%
8A @ 240V AC / 5A@240V DC (resistive)
10,000 switching cycles
1,000,000 switching cycles
Rated Voltage (Ue): 125/ 240V, Rated Current (Ie): 3/1.5A
Rated Voltage (Ue): 125/ 250V, Rated Current (Ie): 2/0.22/0.1A
-10ºC ~ +60ºC (+14ºF ~ 131ºF)
-15ºC ~ +70ºC (-4ºF ~ 149ºF)
70g (0.14lb.)
IP30
IP20
0.60 Nm (6 lb.in.)
0.3-2.5 mm2 (18-10 AWG)
DISPLAY FUNCTIONS
Selection Dials
Green LED:
Power ON
Yellow LED:
Relay ON
+
+
+
Timing
Functions
Time Range
Set Time
CONNECTION DIAGRAMS
DIMENSIONS
65.0 mm
A1
100 mm
67 mm
45 mm
B1
85.0mm
A2
AMT10-S1, AMTAS-S1
17.5 mm
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

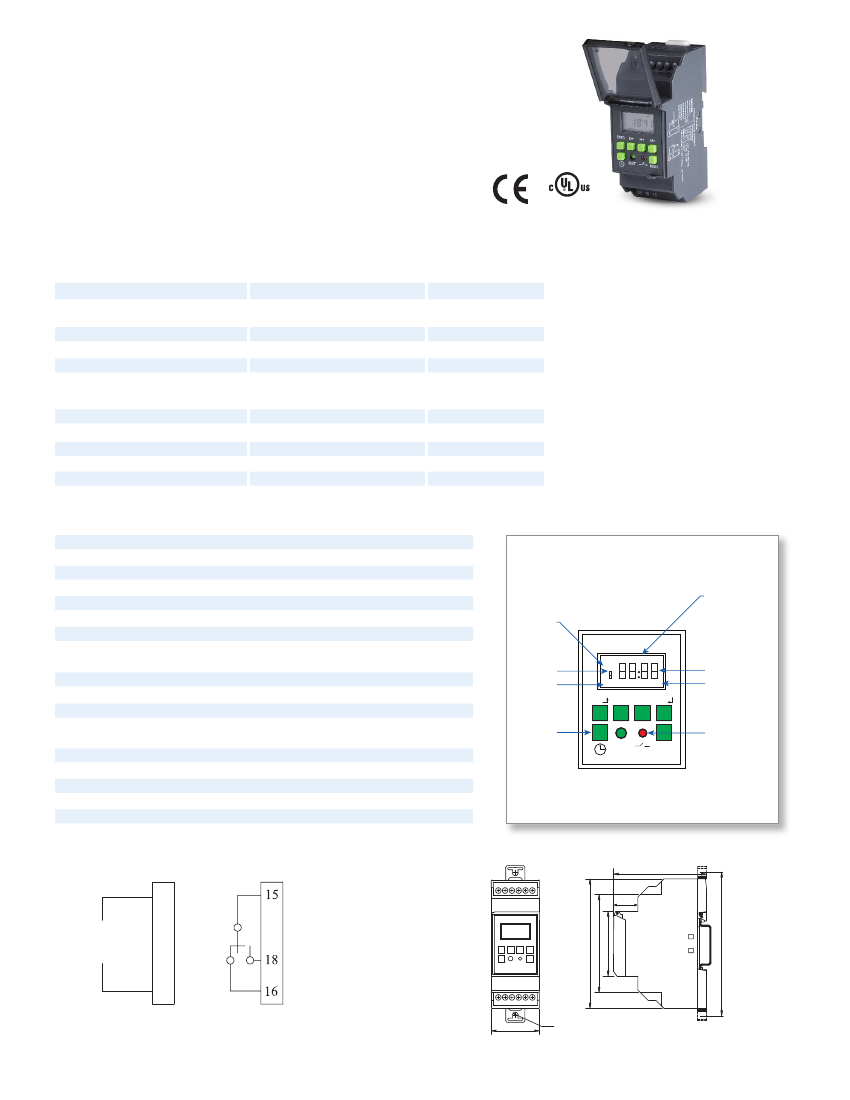

Altech Digital Time Switch
Altech's ATS Series of Digital Time Switches comprises 6 models featuring
Precise Time Programming for Daily/ Weekly (ATS-C) or Pulse (ATS-P) switching.
An LCD displays shows current Timing and Function information.
Features
•
•
•
•
•
25 ON/ OFF Programs (16 ON Programs for Pulse version)
LCD Display for Time and Program Information
Various Supply voltages
•
Settable Daylight Savings Time
Keypad Lockable
•
Simple Manual Override
12/ 24h time format
•
DIN Rail Mount
LISTED
E351145
CAT. NO.
Supply Voltage
110-240V AC
12V DC
24V DC
Chrono Version
ATS-C120
ATS-C12
ATS-C24
4 VA max.
25 ON/ OFF Programs
1min
–
Program ON
Instant ON until next Auto event
Instant OFF until next Auto event
Continuous ON
Continuous OFF
Pulse Version
ATS-P120
ATS-P12
ATS-P24
4 VA max.
16 Pulse Programs
1s
1-59s
Program On
–
–
Continuous ON
Continuous OFF
DESCRIPTION
The standard timings version
(ATS-C)
and
Pulse version
(ATS-P)
essentially differ in their
programmed ON/OFF duration.
Chrono Version
The
ATS-C
Series allows daily/ weekly
switching times with a minimum duration of
1min. 25 ON/ OFF programs can be config-
ured.Application examples are Lighting
applications, illuminated advertising displays,
HVAC and Pump applications.
Pulse Version
The Pulse version,
ATS-P
series, allows pulse
operations to be scheduled with duration 1-59s.
Application Examples are scheduling Sirens,
bells, etc.
Power Consumption
Programs
Minimum Switching Time
Programmable Pulse duration
OPERATING MODES
AUTO
ON AUTO
AUTO OFF
ON
OFF
SPECIFICATIONS
Functional
Display
Clock Resolution
Clock Mode
Clock Accuracy
LED Indicator
3 Line Text LCD
1 minute
12h (AM/ PM) or 24h
+/- 2s above operating temperature
ON: relay activated, OFF: relay deactivated
1 x SPDT (C/O)
16A (NO), 5A (NC) @ 240VAC/ 24VDC (resistive)
6A @ 250VAC, cosΦ=0.6 (inductive)
30,000 switching cycles
250VAC/ 6.0A, cosΦ=0.6, 85°C
Rated Voltage (Ue): 24VDC, Rated Current (Ie): 2.0A
-10°C - 55°C (14°F - 131°F)
-10°C - 60°C (14°F - 140°F)
IP40 (Enclosure), IP20 (Terminals)
UL94-V0
0.54 Nm (3.5lb.in.), M2.5 screw
0.2-3.3mm2 (24-12AWG)
110g (0.24lb.)
DISPLAY FUNCTIONS
Day
LCD
Program
Number
Relay
Status
Keypad
RST
MAN
(–)
MO TU WE TH
FR
SA
SU
Output
Output Configuration
Output Contact Rating
Electrical Life
AC-15 Rating
DC-13 Rating
AM
ON OFF
ON
AUTO
OFF
HR : MIN
Mode
PR/
D+
H+
M+/
Material
Operating Temperature
Storage Temperature
Protection Enclosure
Housing
Torque Terminals
Terminal Wire Size
Weight
Relay ON/OF
LED Indication
CONNECTION DIAGRAMS
DIMENSIONS
65.0
17.0
L
110-240V AC
12V Dc
24V DC
90.0
68.0
45.0
N
Supply Voltage
C/O Output
36.0
Ø
4.2
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
100.0 C/C

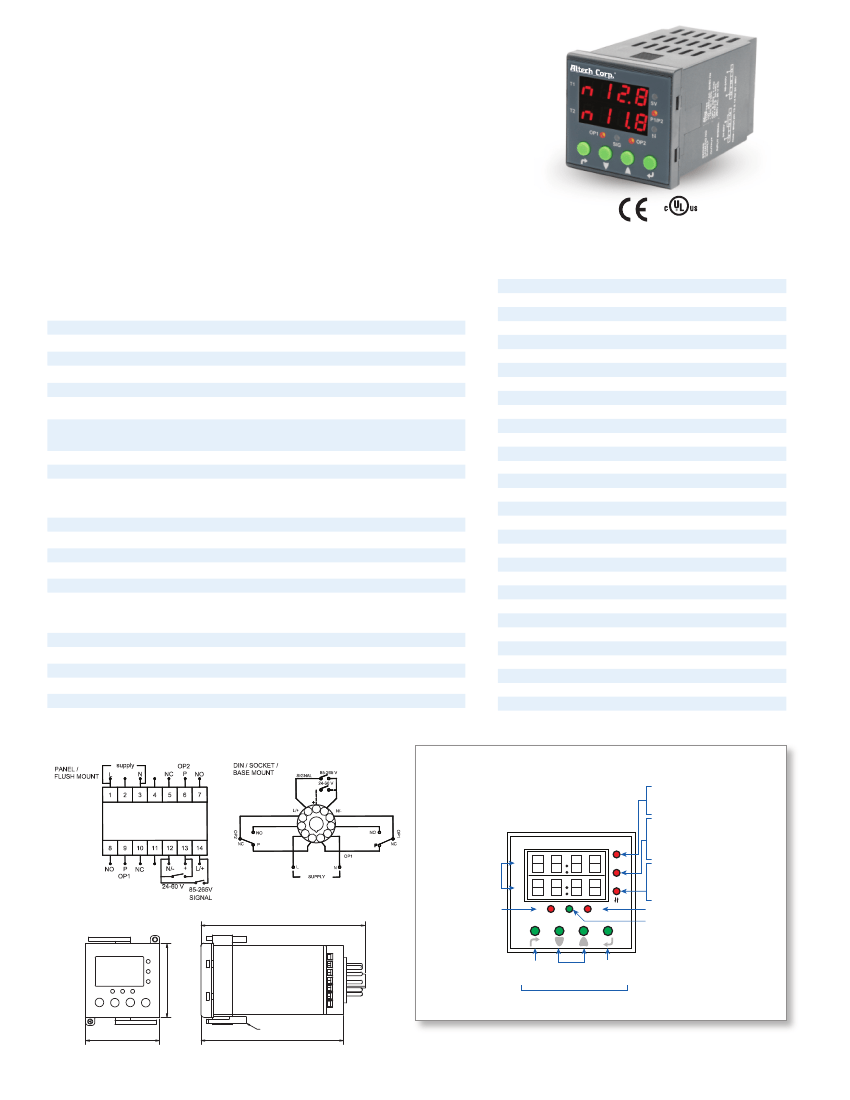

Altech Programmable Panel-Mount Digital Multi-Timer
Altech's AMT33 Series of Programmable Panel-Mount Digital Multi-Timers comprises
2 models featuring 33 Timing Functions and 2 separate Outputs with selectable Timing
modes for maximum flexibility in automation and control applications. Timing Range
is adjustabel from 0.1s to 999 days. A Digital 7-Segment shows current Run Time
information and Input/Output states.
FEATURES
•
•
•
•
33 Built-in Timing Functions
Supply Voltage 110-240 VAC
7 Segment Digital LED Display
2 Separate Output Channels
•
•
•
•
Individually selectable Timing Functions
Wide Timing Range 0.1s - 999 days
Compact Design
Panel & DIN rail (11-pin socket) mount
LISTED
E351145
CAT. NO.
Mounting
AMT33-S2
Panel Mount
AMT33-S2-11
DIN/ 11-pin Socket Mount
TIMING FUNCTIONS
MODE 00
MODE 01
MODE 02
MODE 03
MODE 04
MODE 05
MODE 06
MODE 07
MODE 08
MODE 09
MODE 10
MODE 11
MODE 12
MODE 13
MODE 14
MODE 15
MODE 16
MODE 17
MODE 18
MODE 19
MODE 20
MODE 21
MODE 22
MODE 23
MODE 24
MODE 25
MODE 26
MODE 27
MODE 28
MODE 29
MODE 30
MODE 31
MODE 32
ON Delay
ON Delay constant supply 2
ON Delay constant supply 3
ON Delay (Control Switch resettable)
Signal ON Delay
Inverted Signal ON Delay
Inverted Signal ON Delay 2
Signal OFF Delay
OFF Delay constant supply 2
Cyclic ON/ OFF
Cyclic OFF/ ON
Assymetric Cycle Pulse Start
Assymetric Recycler Pulse Start 2
Signal ON/ OFF Delay
Signal ON/ OFF Delay 2
Signal OFF/ ON
Impulse on Energyzing
Impulse ON/ OFF
Accumulative Delay ON Signal
Accumulative Delay ON Inverted Signal
Accumulative Impulse ON Signal
Leading Edge Impulse 1
Leading Edge Impulse 2
Trailing Edge Impulse 1
Trailing Edge Impulse 2
Delayed Impulse 1
Delayed Impulse 2
Delayed Pulse constant supply, power based
Delayed Pulse (Remote Trigger)
Delayed Pulse constant supply 2
ON Pulse (Control Switch resettable)/ Watchdog Type
On Pulse (Supply Reset)
Leading Edge Bi-stable or Step Relay
SPECIFICATIONS
Electrical
Supply Voltage
Power Consumption
Timing Range
Reset Time/ Initiation Time
Timing Accuracy
110-240VAC (-20% to +10%), 50/ 60Hz
9 VA max.
0.1s - 999 days
max. 200ms/ 100ms
+/- 0.01%
High Range: 85-265VAC/ 100-265DC
Low Range: 24-60V AC/DC
50ms max. (10ms for DC)
100ms @ Power on/ signal based modes
2kV
2 x SPDT (C/O)
5A (NO), 3A (NC)
10,000 switching cycles
500,000 switching cycles
250VAC/ 2A, cosΦ=0.6, 85°C
Rated Voltage (Ue): 24VDC, Rated Current (Ie): 2.0A
-5°C - 55°C (23°F - 131°F)
-10°C - 60°C (14°F - 140°F)
IP30 (Enclosure), IP20 (Terminals)
0.50 Nm (3.5lb.in.), M3 screw
0.12-2.0mm2 (26-14AWG)
160g (0.35lb)
Input
Input Signal
Signal Sensing Time
Signal Wait Period
Signal Isolation
Output
Output Configuration
Output Contact Rating
Electrical Life
Mechanical Life
AC-15 Rating
DC-13 Rating
Material
Operating Temperature
Storage Temperature
Protection Enclosure
Torque Terminals
Terminal Wire Size
Weight
CONNECTION DIAGRAMS
DISPLAY FUNCTIONS
AMT33-S2
AMT33-S2-11
4
3
2
1 11
5
6
7
8
9
10
SV:
Set Time of Timer 1/2
P1 / P2:
LED ON: P1 running
LED OFF: P2 running
T1/T2:
Run Time Timer 1/2
T1
SV
P1/P2
T2
OP1
SIG
OP2
DIMENSIONS
106.5
OP1:
Relay Output 1
LED
Down /UP
LED ON: Elapsed Time (Up)
LED OFF: Remaining Time (Down)
OP2:
Relay Output 2 LED
SIG:
Signal Input 1 LED
Esc
48.0
Scroll Enter
Down/Up
Operator Keys
48.0
GRID RING
92.5
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Altech
:
AMT8-S1 AMT8-D2 AMT12-S1 ATS-P120 AMT12-D2 ATS-C120 AMT10-S1 AMTAS-S1 AMT33-S2 AMT33-S2-
11
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
