AV series
Snap action security pushbutton switches •
Ø 16 mm • momentary (NO)

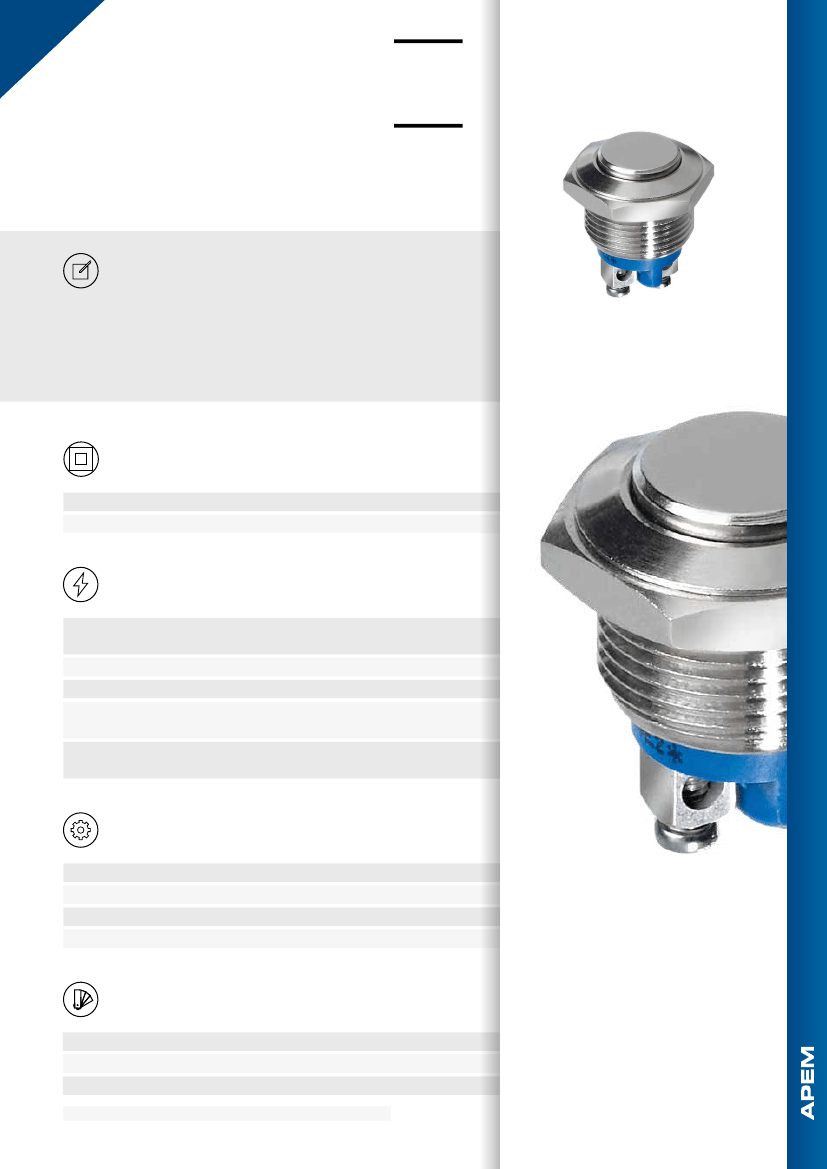

DISTINCTIVE FEATURES
Momentary (NO)
Compact
Long life
Marking available
ENVIRONMENTAL SPECIFICATIONS
• Optional front panel sealing : IP65 according to IEC 60529
• Operating temperature : -30 °C to +70 °C (-22 °F to +158 °F)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
200 mA 48 VDC - 100 mA 48 VDC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1,000 MΩ min. at 500 VDC
• Dielectric strength : 2,000 Vrms 50 Hz min.
between terminals and frame
• Electrical life : 50,000 cycles at 200 mA 48 VDC
100,000 cycles at 100 mA 48 VDC
GENERAL SPECIFICATIONS
•
Travel : 1.60 mm
(.063) ± 0.3 mm (.011)
• Torque : 5 Nm min. - 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Low level or mechanical life : 1,000,000 cycles
MATERIALS
• Case : PBT
• Contacts : brass, silver plated (C)
• Bushing and actuator : see next page
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
7
-1
09
PANEL SWITCHES
AV series
Snap action security pushbutton switches •
Ø 16 mm • momentary (NO)
ELECTRICAL FUNCTIONS
Function 3 (NO)
MOUNTING
• Panel cut-out : Ø 16.2 mm (.637)
• Min. pitch for matrix mounting :
24 mm x 24 mm (.944 x .944)
(AV6P & AV6B : 20 mm x 20 mm)
2
AV series
Snap action security pushbutton switches •
Ø 16 mm • momentary (NO)
BUILD YOUR PART NUMBER
BASIC PART NUMBER
AV
SERIES
BUSHING/ACTUATOR CONFIGURATIONS
FUNCTION
CASE
CONTACTS
TERMINALS
06
16
08
07
6P
6B
Flat actuator
Curved actuator
Curved actuator +
chamfer
Flat actuator +
chamfer
Flat actuator +
knurled nut
Curved actuator +
knurled nut
3
NO
0
Short
C
Brass,
silver plated
9
Screw
OPTIONS
BUSHING/ACTUATOR MATERIALS
SEALING
00 (std)
10
40
70
Nickel plated brass / Nickel plated brass
Nickel plated brass / Stainless steel
Stainless steel / Stainless steel
Black chrome plated brass / Black
chrome plated brass
Blank
K
No sealing
Sealed to IP65
ABOUT THIS SERIES
On the following pages, you will find successively basic part numbers of switches and options in the same order as in above chart
Notice:
please note that not all combinations of above numbers are available. Refer to the following pages for further information.
Mounting accessories:
standard hardware supplied : 1 hex nut. Standard and special hardware is presented in the "Hardware" section of
website.
3
PANEL SWITCHES
PANEL SWITCHES
AV series
Snap action security pushbutton switches •
Ø 16 mm • momentary (NO)

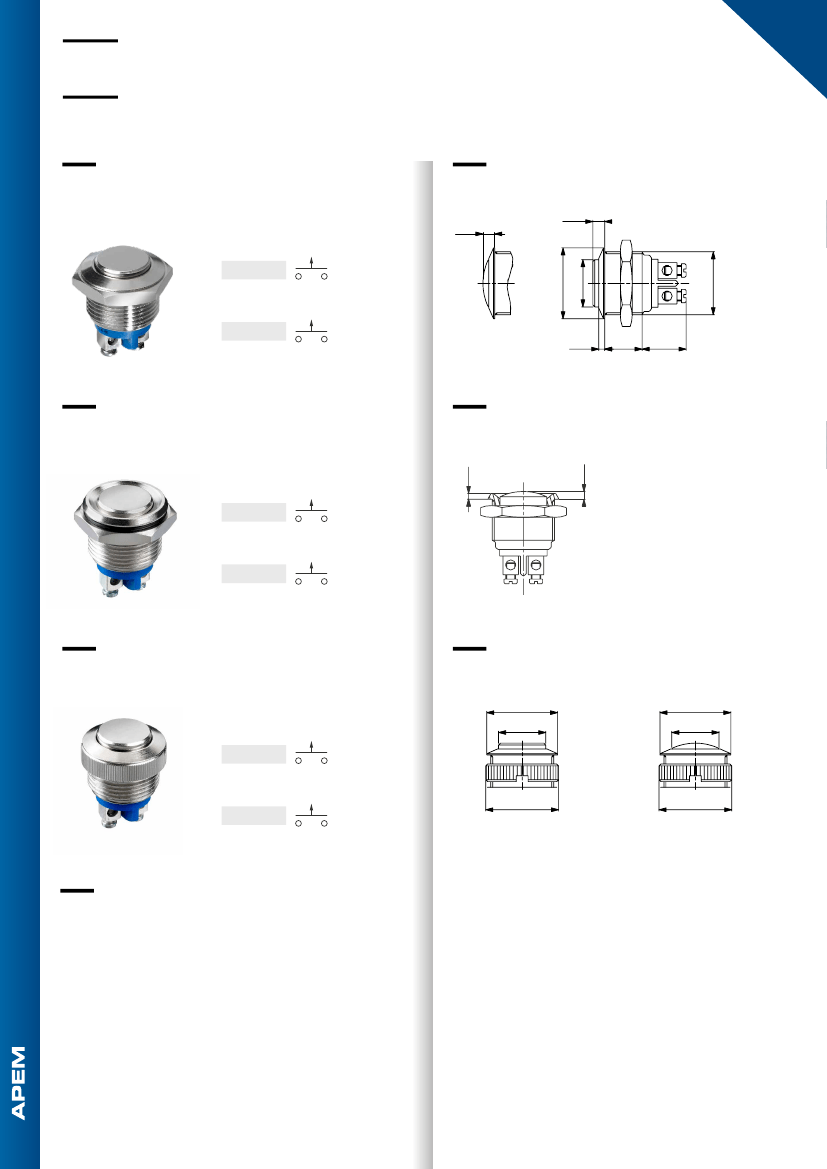

FLAT OR CURVED ACTUATOR
SCREW TERMINALS
Flat actuator
Ø18.00
(.708DIA)
Ø12.00
(.472DIA)
Hex nut 19 (.748) across flats
3.00
(.118)
3.00
(.118)
AV0630C9
Curved actuator
AV1630C9
1.50
(.059)
9.50
(.374)
11.20
(.440)
AV16DT1-A
FLAT OR CURVED ACTUATOR
WITH CHAMFER
Flat actuator
AV0830C9
Curved actuator
AV0730C9
1.50
(.059)
Hex nut 19 (.748) across flats
WITH KNURLED NUT FOR MATRIX
MOUNTING 20 X 20 (.787X.787)
Flat actuator
AV6P30C9
Curved actuator
AV6B30C9
Ø18.00
(.708DIA)
Ø12.00
(.472DIA)
2.00
(.078)
Ø18.00
(.708DIA)
Ø12.00
(.472DIA)
Ø16.00X1.00 SI
(.629DIAX1.00 IS)
Ø18.00
(.708DIA)
Ø18.00
(.708DIA)
FICHIER CAV6PDT1
Wrench available under P/N
U1990.
Screw terminals for wires 1,5 mm
2
max.
4
20.00
(.787)
AV series
Snap action security pushbutton switches •
Ø 16 mm • momentary (NO)
BUSHING/ACTUATOR
MATERIALS
BASIC P/N
CODE
00 (std)
10
40
70
BUSHING
Nickel plated brass
Nickel plated brass
Stainless steel
Black chrome plated brass
ACTUATOR
Nickel plated brass
Stainless steel
Stainless steel
Black chrome plated brass

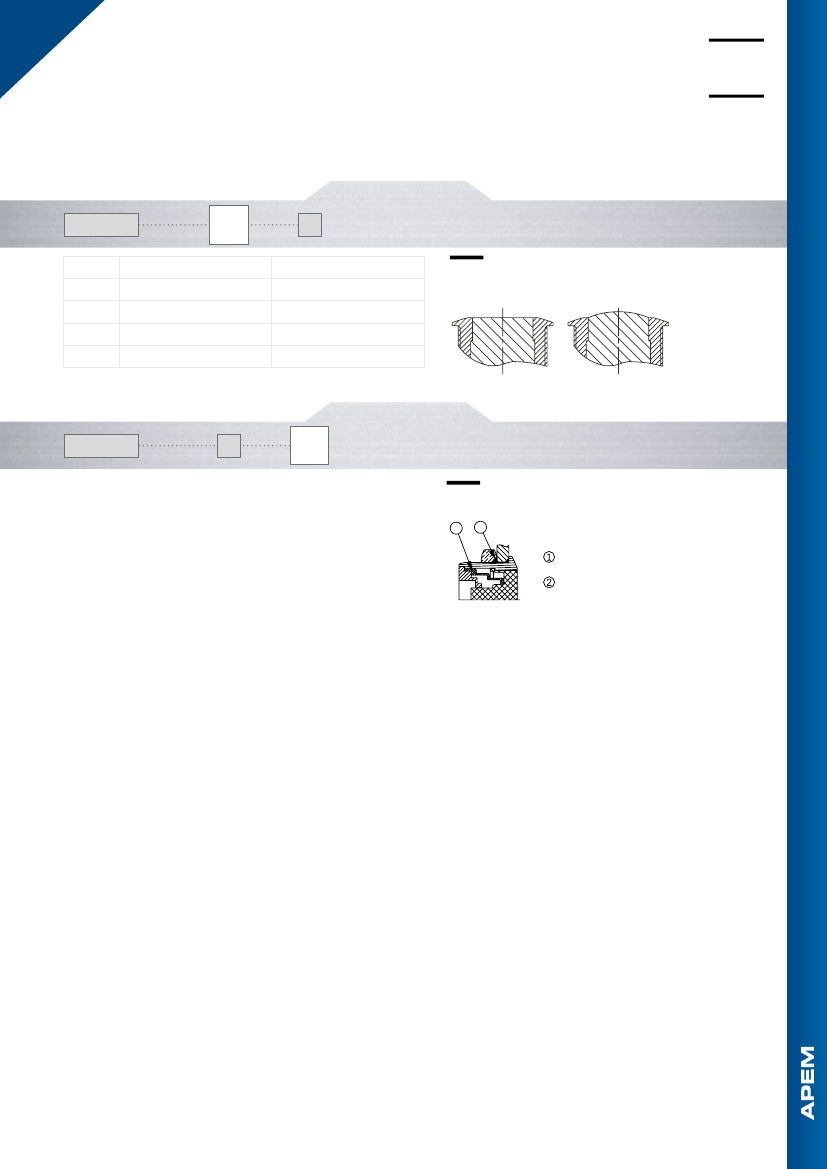

FLAT OR CURVED METAL ACTUATOR
SEALING
BASIC P/N
Blank
K
No sealing
Front panel sealing to IP65
OPTION K
1
2
- elastomeric membrane
- external gasket
CAVNONFET
5
PANEL SWITCHES
Industrial Control Electronics
