Last Update:
3/21/17

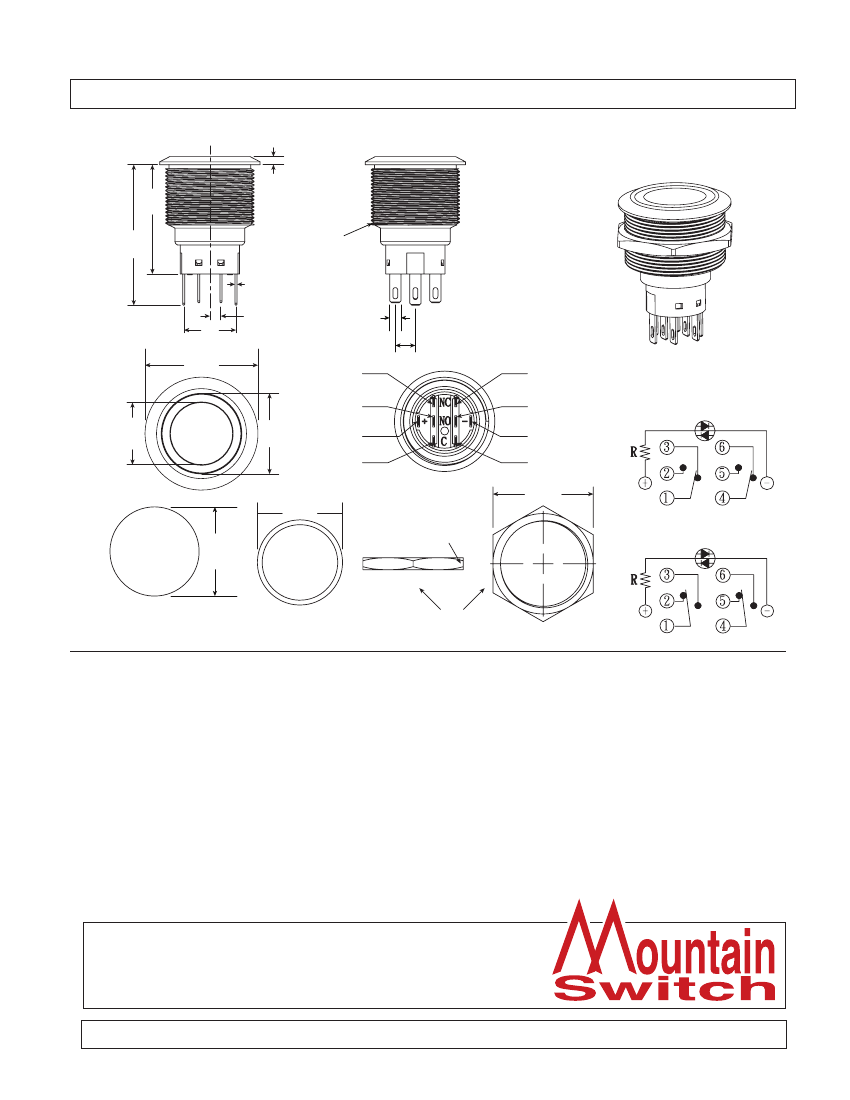

Dimensions: mm (in.)
2
(.08)
Ref. #:
MS-101441
27.4
(1.08)
35.2
(1.39)
M25x1.0
.50
(.02)
13
(.51)
ø28
(ø1.1)
2.75
(.11)
2.8
(.11)
5
(.2)
3
2
6
5
(-)
4
28
(1.1)
M25x1.0
Position 1
Assembled View
ø15.7
(ø.62)
ø19.8
(ø.78)
(+)
1
22.5
(.89)
ø25.2
(ø.99)
Position 2
Exploded View
Panel Cutout
Max. Panel Thickness: 10 (.394)
O-Ring
Hex Nut
Mechanical Specifications:
•
Life: Self-Lock 500,000
•
Operating Temperature: -20°C to +55°C
•
Travel: About 3.2mm
•
LED Color: Blue
Electrical Specifications:
•
Rating: 5A/250VAC. resistive load 3A/250VAC.
•
Life: 50,000 Make-and Break Cycles at Full Load
•
Insulation Resistance: 1,000MΩ Min. at 500VDC.
•
Dielectric Strength: 2,000V RMS @sea level.
•
Contact Resistance: 50mΩ Max. @1A 12VDC (initial value)
•
LED Voltage: 6V
Material:
•
Body Type & Color: Stainless Steel, Natural
Note:
•
RoHS Compliant by Exemption
Illuminated Pushbutton Switch
108-25217-EVX
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
