K6BL0G1.52NLV3150D Overview

Push button switch K6BL0G1.52N LV3150D

K6BL0G1.52NLV3150D Parametric

Parameter Name	Attribute value
Maker	C&K
Product Category	power switch button
Shipping restrictions	Mouser does not currently sell this product.
illumination	Non-Illuminated
Lamp type	-
series	K6
Factory packaging quantity	500

Preview

Download Datasheet

View All

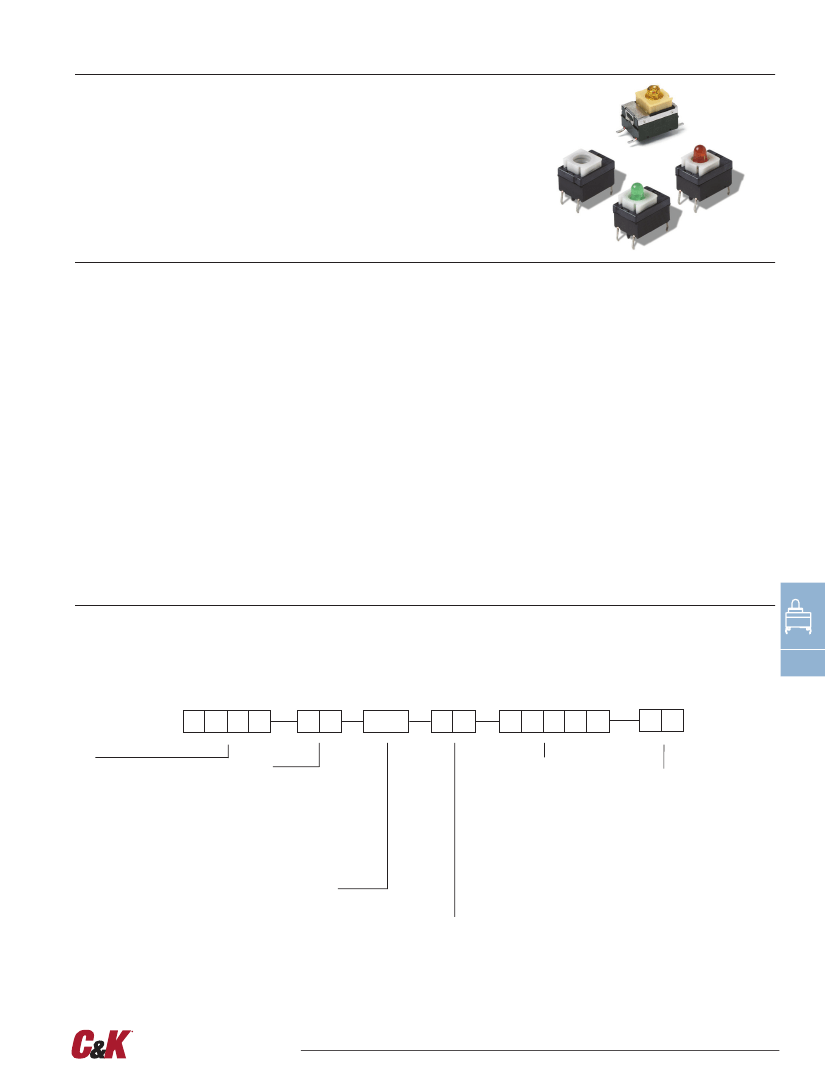

Miniature Key Switches

Features/Benefits

•

Excellent tactile feel

•

Wide variety of LED’s,

switching

travel and actuation forces

•

Designed for low-level

•

Detector version available

•

RoHS compliant

Construction

Typical Applications

•

Automotive

•

Industrial electronics

•

Computers and network

equipment

Electrical

SWITCHING POWER MIN./MAX.: 0.02 mW / 3 W DC

SWITCHING VOLTAGE MIN./MAX.: 2 V DC / 30 V DC

SWITCHING CURRENT MIN./MAX.: 10 mA /100 mA DC

DIELECTRIC STRENGTH (50 Hz)

1) 2)

: ≥ 300 V

OPERATING LIFE: ≥ 2 x 10

operations

≥1 X 10

operations for SMT version

CONTACT RESISTANCE: Initial ≤ 50 mΩ

INSULATION RESISTANCE: ≥ 10

BOUNCE TIME: ≤ 1 ms

Operating speed 100 mm/s (3.94/s)

FUNCTION: momentary action

CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.

DISTANCE BETWEEN BUTTON CENTERS:

min. 7,5 and 11,8 (0.295 and 0.465)

TERMINALS: Snap-in pins, tinned

MOUNTING: Soldered by PC pins, locating pins

PC board thickness: 1,5 (0.0591)

Mechanical

TOTAL TRAVEL/SWITCHING TRAVEL: 1,5/0,9 (0.059/0.035)

PROTECTION CLASS: IP 40 according to DIN/IEC 529

1) Voltage rise: 300 V/s

2) According to DIN 41640; IEC 512-2

3) Higher values upon request

Environmental

OPERATING TEMPERATURE: -40˚C to 85˚C.

STORAGE TEMPERATURE: -40˚C to 95˚C.

Packaging

THT: bulk in boxes of 500 pieces

SMT: bulk in boxes of 500 pieces

reels of 500 pieces (with LED) or 750 pieces (without LED)

Process

SOLDERABILITY:

THT: wave soldering, compatible with lead free soldering profile

Hand soldering, 350˚C for 3s

SMT: not compatible with lead free reflow profile

245˚C for 5s

How To Order

Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select

desired option from each category and place it in the appropriate box.

Note: Some of the configurations may not be available or could require some development.

Key Switches

1.5

Standard LED Code

NONE

Models without LED

LV306

Green

LV327

Yellow

LV315

Orange

LV352

Red

LV302

White

LV328

Blue

Series

K6B

K6BL

with LED

K6S

SMT (with metallic frame)

K6SL

SMT with LED (with metallic frame)

LED*

NONE

Models without LED

Green

Yellow

Orange

Red

White

Blue

Travel

1.5

1,5mm (0.059)

Frame Option

(for K6B and K6BL)

Metallic frame

Operating Force

3 N 300 grams

5 N 500 grams

2N OD

2 N 200grams without snap-point

* Additional LED colors available by request.

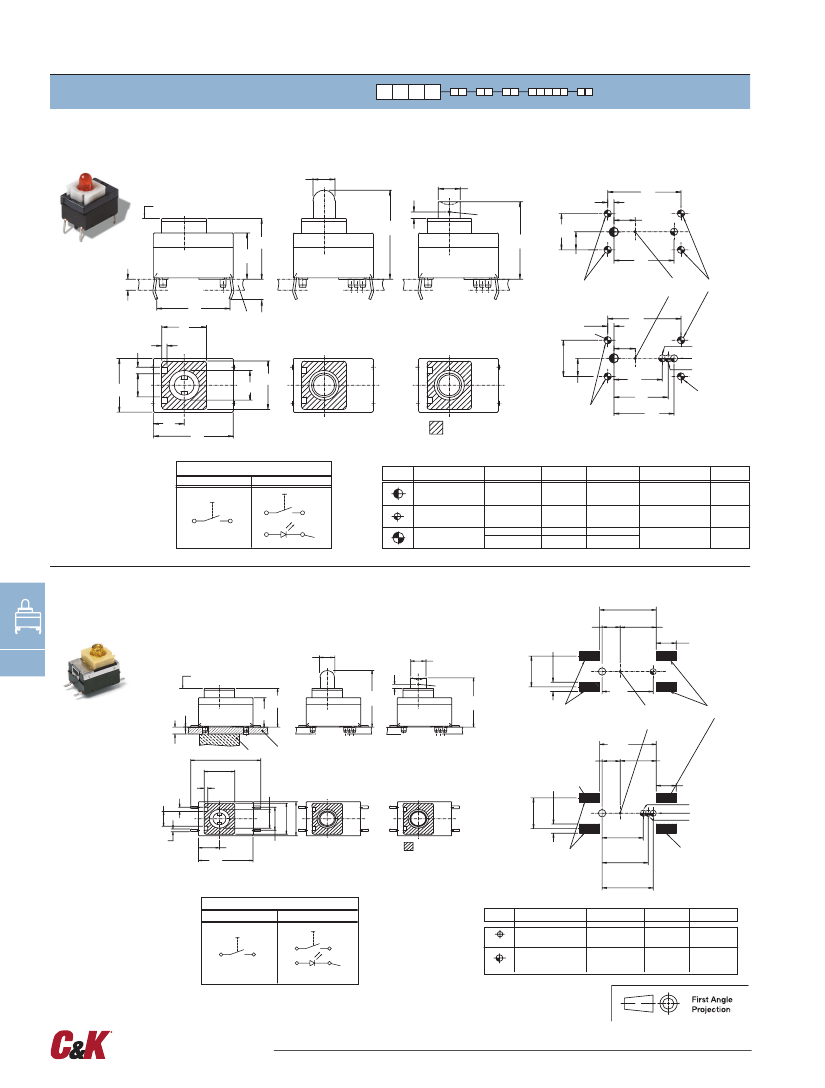

Dimensions are shown: mm

Specifications and dimensions subject to change

D–3

www.ckswitches.com

K6BL0G1.52NLV3150D Related Products

	K6BL0G1.52NLV3150D	K6SLWH1.55NLV302TRSSD	K6BLRD1.52NLV3520D	K6SL0G15NLV315KART0NSD	K6BL RD 1.5 5N L352	K6BLYE1.52NLV3270D	K6BLGN1.52NLV3060D	K6BLPG1.52NLV3160D	K6BLPG1.53NLV316
Description	Push button switch K6BL0G1.52N LV3150D	Push button switch K6SLWH1.55N LV302TRSSD	Push button switch K6BLRD1.52N LV3520D	Push button switch K6SL0G15N LV315KART0NSD	Push button switch WITH LED RED 5N	Push button switch K6BLYE1.52N LV3270D	Push button switch K6BLGN1.52N LV3060D	Push button switch K6BLPG1.52N LV3160D	power switch button
Maker	C&K	C&K	C&K	C&K	C&K	C&K	C&K	C&K	C&K
Product Category	power switch button	power switch button	power switch button	power switch button	power switch button	power switch button	power switch button	power switch button	power switch button
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
illumination	Non-Illuminated	Non-Illuminated	Non-Illuminated	Non-Illuminated	Illuminated	Non-Illuminated	Non-Illuminated	Non-Illuminated	Non-Illuminated
series	K6	K6	K6	K6	K6	K6	K6	K6	K6
Factory packaging quantity	500	900	500	500	500	500	500	500	1500
