PB Series
Single Pole and Multi-Key Pushbutton Switches
Features/Benefits
•
Momentary or latching options
•
Reliable contact design
•
2, 4, and 6 pole configurations
•
Long travel and extended life cycles
Typical Applications
•
Appliances
•
Audio and visual equipment
•
Consumer electronics
•
Industrial equipment
A
Pushbutton
Specifications
CONTACT RATING: 0.3A @ 30 VDC
INITIAL CONTACT RESISTANCE: 30 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
250 ± 100 gf (2.45 ± 0.98N)
LOCK TRAVEL: 2 ± 0.3 mm
TOTAL TRAVEL: 3 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
Materials
CASE: PC (UL 94HB)
PLASTIC CLIP: POM (UL 94HB)
SPRING: SUS
KNOB: POM
TERMINAL: Silver plated

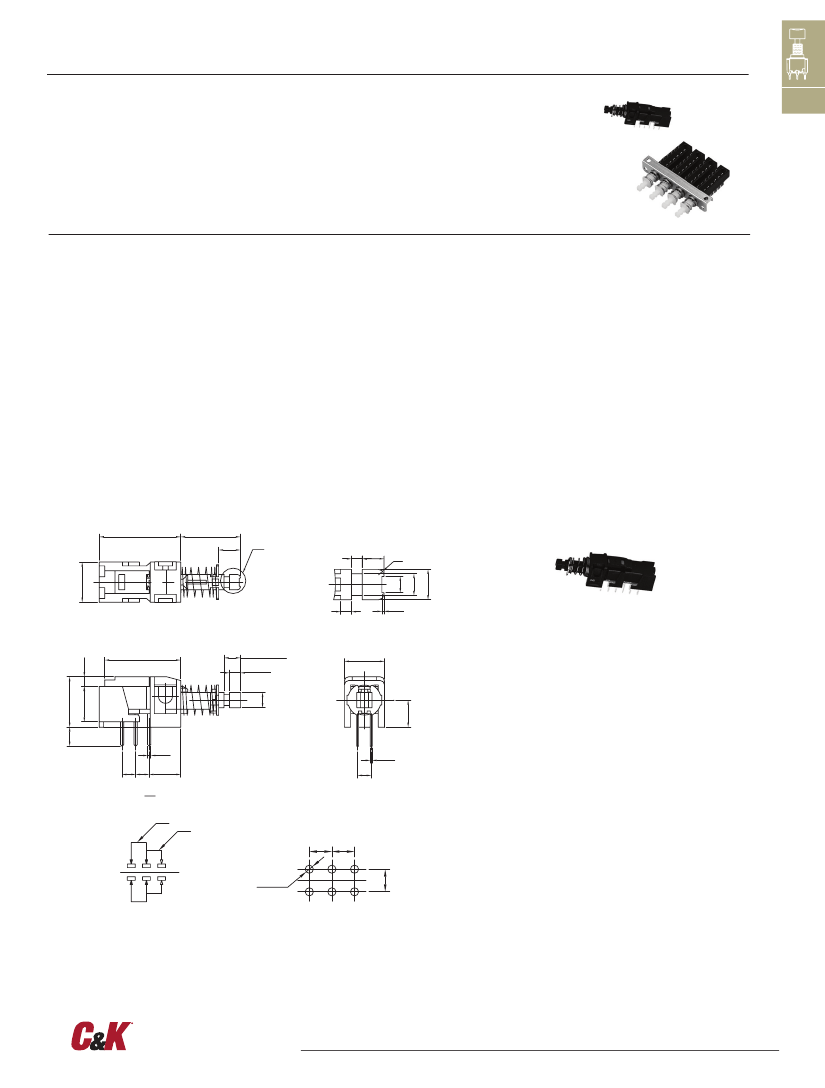

PB-22D01-L
15
2PDT LOCK / LATCHING
11
4
P
1
2
R1
2.0
1.5
1
P DETAIL 2 : 1
0.2
2.8
7.4
1.8
14
3
2
OVERALL TRAVEL
TRAVELS
7.4
9.3
6.5
2.8
3.5
0.6
2.5 2.5
2P
5.8
2T
1
2
2.5
2.5
2.5
0.35
SCHEMATIC
PIERCING PLAN
2.5
6-ø 0.9
5
Dimensions are shown: mm
Specifications and dimensions subject to change
A-131
www.ckswitches.com
PB Series
Single Pole and Multi-Key Pushbutton Switches
A

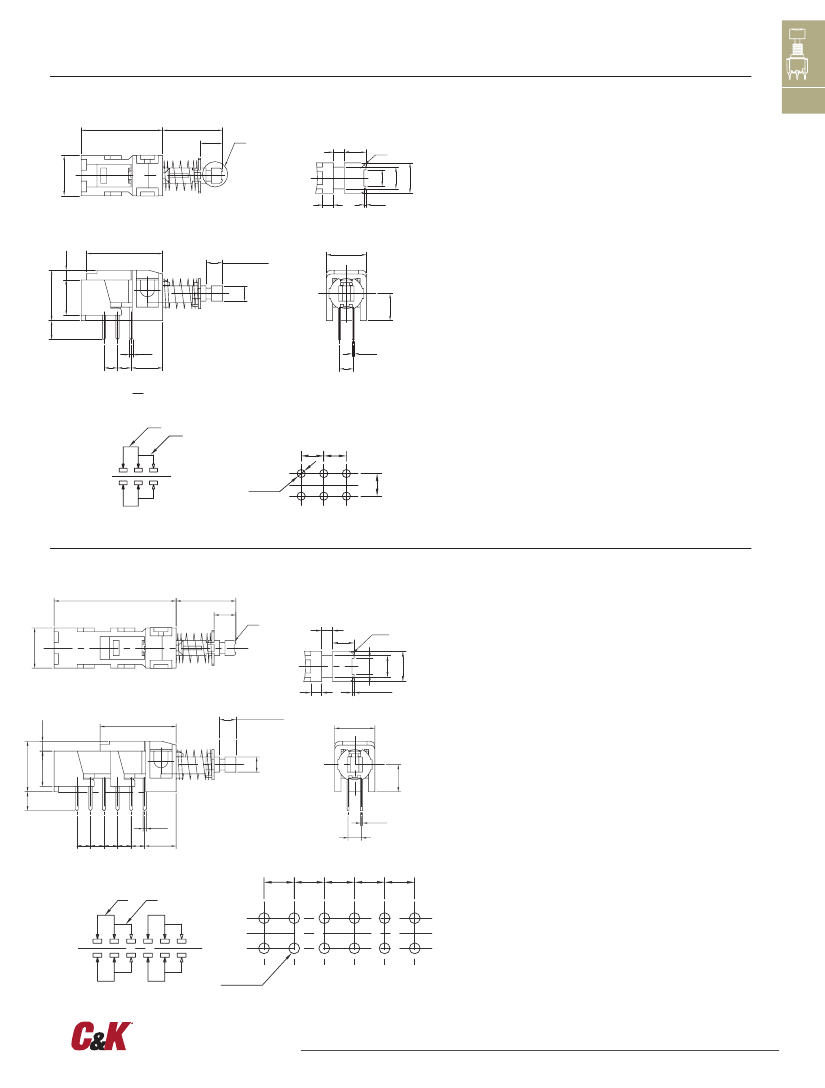

PB-42D01-L
4PDT LOCK / LATCHING
Pushbutton
22.5
11
4
P
COMAX
1
2
R0.5
Specifications
CONTACT RATING: 0.3A @ 30 VDC
INITIAL CONTACT RESISTANCE: 30 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
280 ± 100 gf
LOCK TRAVEL: 2 ± 0.3 mm
TOTAL TRAVEL: 3 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
5
2.8x2.8
2.5
2x2
0.2
P DETAIL 2 : 1
7.4
1.5
1
3
2
OVERALL TRAVEL
SELF LOCK TRAVEL
7.4
1.8
14
9.3
6.5
2.8
0.6
2.5 2.5 2.5 2.5 2.5
5.8
2.5
2
2.5
2.5
2.5
0.35
2.5
Materials
CASE: PC (UL 94HB)
PLASTIC CLIP: POM (UL 94HB)
SPRING: SUS
KNOB: POM
TERMINAL: Silver plated
3.5
4P - 2T
1
2.5
12-Ø0.9
SCHEMATIC
PIERCING PLAN
PB-62D01-L
6PDT LOCK / LATCHING
Specifications
30
11
4
P
1
2
CONTACT RATING: 0.3A @ 30 VDC
R0.5
INITIAL CONTACT RESISTANCE: 30 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
2.8x2.8
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
300 ± 100 gf (2.94 ± 0.98N)
LOCK TRAVEL: 2 ± 0.3 mm
TOTAL TRAVEL: 3 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
2x2
COMAX
7.4
1
OVERALL TRAVEL
1.8
14
SELF LOCK TRAVEL
3
2
P DETAIL 2 : 1
7.4
0.2
9.3
6.5
2.8
1.5
Materials
3.5
CASE: PC (UL 94HB)
0.6
2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
5.8
2.5
0.35
PLASTIC
5
CLIP: POM (UL 94HB)
SPRING: SUS
KNOB: POM
TERMINAL: Silver plated
6P - 2T
1
2
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
18-Ø0.9
SCHEMATIC
PIERCING PLAN
Dimensions are shown: mm
Specifications and dimensions subject to change
2.5
A-132
www.ckswitches.com
PB Series
Single Pole and Multi-Key Pushbutton Switches
PB-22D01-F
15
2PDT NON-LOCK / MOMENTARY
11
4
P
1
2
R0.5
2.8× 2.8
2× 2
1.5
Specifications
CONTACT RATING: 0.3A @ 30 VDC
INITIAL CONTACT RESISTANCE: 30 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
250 ± 100 gf (2.45 ± 0.98N)
TOTAL TRAVEL: 3 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
A
Pushbutton
7.4
1
P DETAIL 2 : 1
14
7.4
0.2
3
OVERALL TRAVEL
1.8
9.3
6.5
2.8
Materials
CASE: PC (UL 94HB)
PLASTIC CLIP: POM (UL 94HB)
SPRING: SUS
KNOB: POM
TERMINAL: Silver plated
3.5
0.6
2.5 2.5
5.8
2.5
0.35
2P
2T
1
2
2.5
2.5
SCHEMATIC
PIERCING PLAN
PB-42D01-F
22.5
4PDT NON-LOCK / MOMENTARY
2.5
6-
ø
0.9
5
Specifications
11
4
P
COMAX
7.4
1
2
R0.5
CONTACT RATING: 0.3A @ 30 VDC
INITIAL CONTACT RESISTANCE: 30 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
2.8x2.8
2x2
1.5
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
280 ± 100 gf (2.477 ± 0.98N)
TOTAL TRAVEL: 3 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
1
3
OVERALL TRAVEL
P DETAIL 2 : 1
7.4
0.2
1.8
14
9.3
6.5
2.8
Materials
CASE: PC (UL 94HB)
PLASTIC CLIP: POM (UL 94HB)
SPRING: SUS
KNOB: POM
TERMINAL: Silver plated
3.5
0.6
2.5 2.5 2.5 2.5 2.5
5.8
0.35
2.5
4P - 2T
1
2
2.5
2.5
2.5
2.5
5
2.5
12-Ø0.9
SCHEMATIC
PIERCING PLAN
Dimensions are shown: mm
Specifications and dimensions subject to change
2.5
A-133
www.ckswitches.com
PB Series
Single Pole and Multi-Key Pushbutton Switches
A

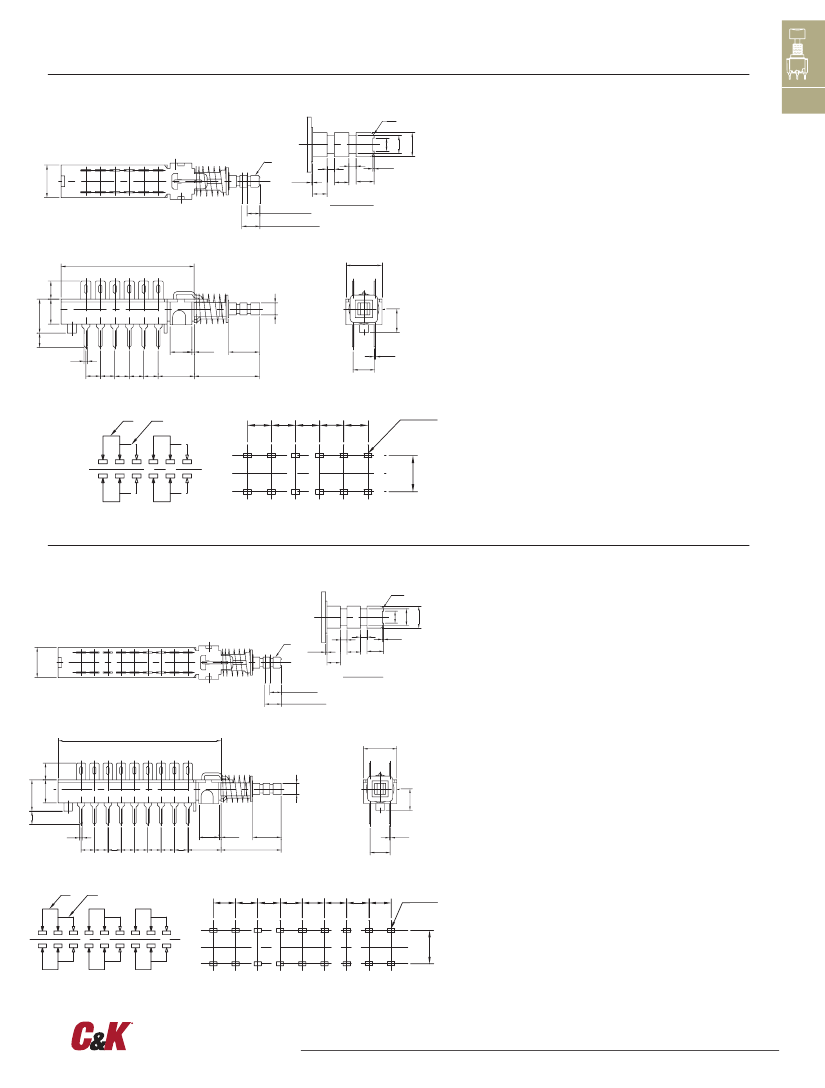

PB-62D01-F
6PDT NON-LOCK / MOMENTARY
Pushbutton
30
11
4
P
1
2
R0.5
Specifications
CONTACT RATING: 0.3A @ 30 VDC
INITIAL CONTACT RESISTANCE: 30 m ohms max.
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
300 ± 100 gf (2.94 ± 0.98N)
TOTAL TRAVEL: 3 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
2.8
2.8x2.8
7.4
INSULATION RESISTANCE: 100 M ohms min.
1
P DETAIL 2 : 1
OVERALL TRAVEL
1.8
14
3
7.4
0.2
9.3
6.5
5
2x2
1.5
0.6
0.35
2.5
5.8
2.5
2.5
2.5
2.5
2.5
COMAX
Materials
3.5
CASE: PC (UL 94HB)
PLASTIC CLIP: POM (UL 94HB)
SPRING: SUS
KNOB: POM
6P - 2T
1
2
2.5
2.5
2.5
2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
TERMINAL: Silver plated
18-Ø0.9
SCHEMATIC
PIERCING PLAN

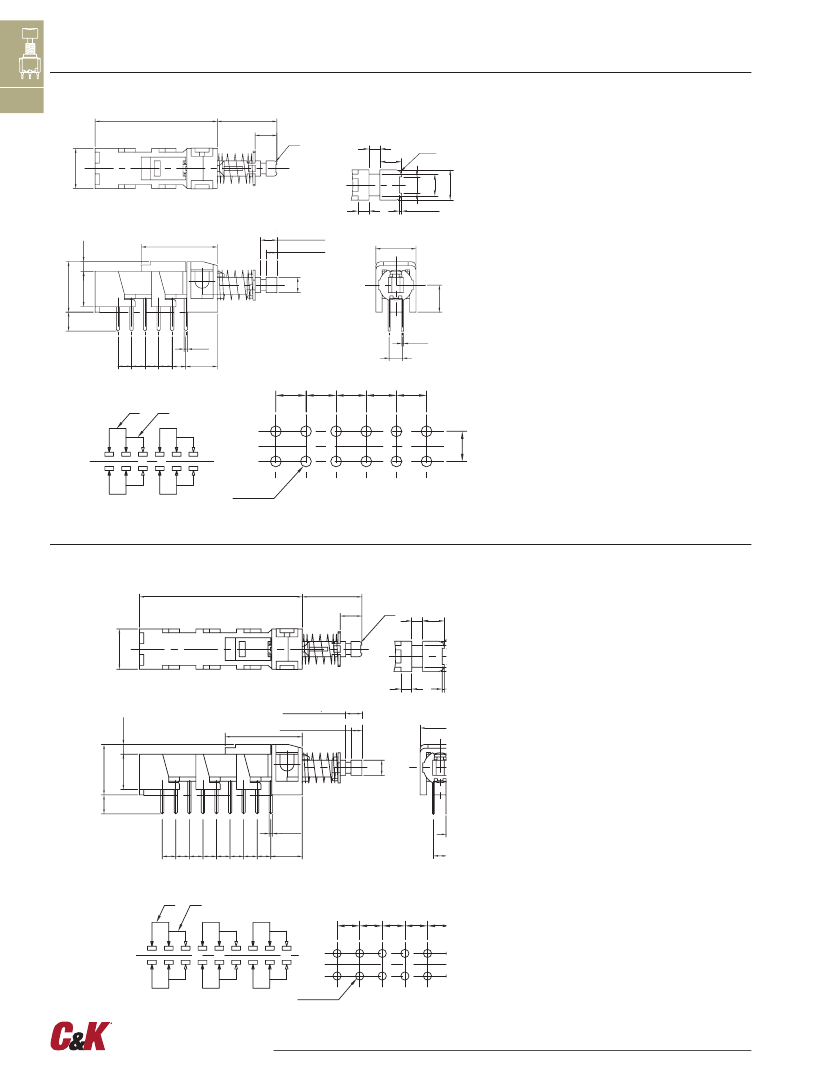

PB-22G02-L
2PDT LOCK / LATCHING
Specifications
CONTACT RATING: 1A @ 25 VDC
P
9
R0.5
1.8
2.5× 2.5
INITIAL CONTACT RESISTANCE: 30 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
350 ± 150 gf (3.43 ± 1.47N)
LOCK TRAVEL: 3.5 ± 0.3mm
TOTAL TRAVEL: 5 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
3.3× 3.3
3.5
TRAVELS
5
24.8
OVERALL TRAVEL
0.2
1
2
2
1
2.5
P DETAIL 2 : 1
10
0.2
5
9.4
6.9
3.3
6.5
Materials
CASE: PC (UL 94HB)
SPRING: SUS
KNOB: POM
TERMINAL: Silver plated
4
6
1
4
4
10
0.7
18
8.5
0.4
6
2P - 2T
1
2
4
4
1.3X0.7
ALL
SCHEMATIC
PIERCING PLAN
6
2.5
Dimensions are shown: mm
Specifications and dimensions subject to change
A-134
www.ckswitches.com
PB Series
Single Pole and Multi-Key Pushbutton Switches

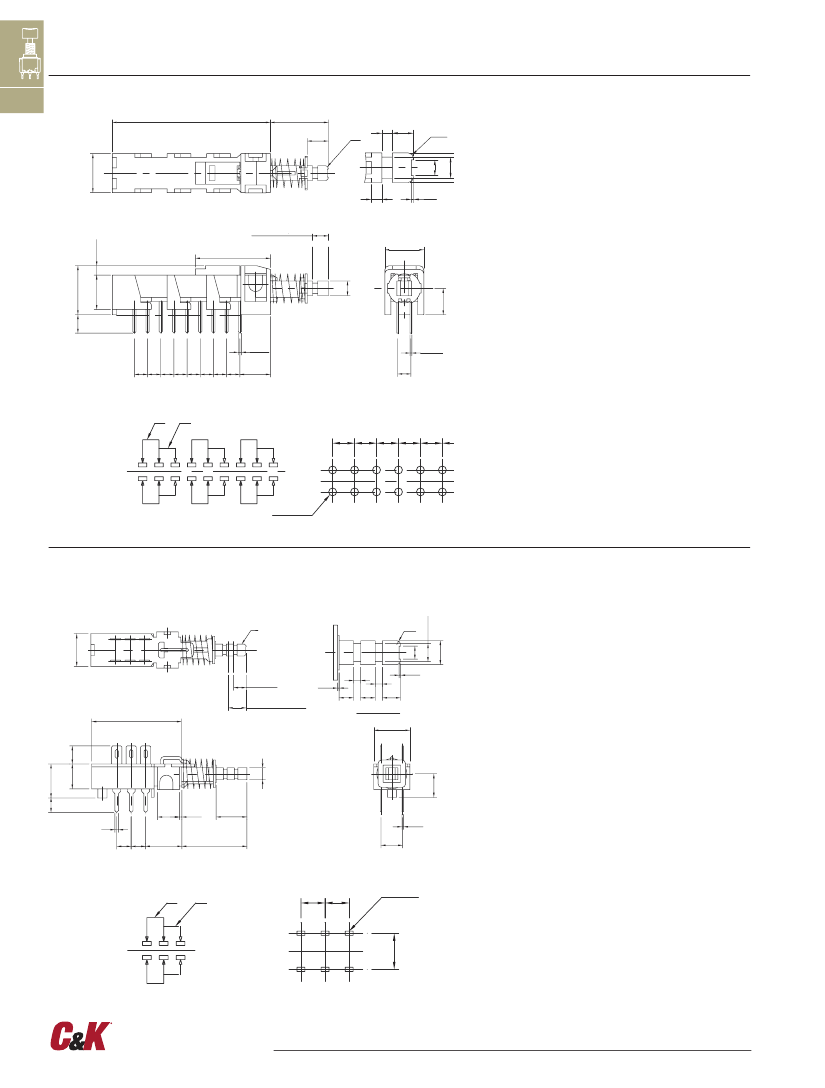

PB-42G02-L
4PDT LOCK / LATCHING
R0.5
1.8
2.5x2.5
3.3x3.3
Specifications
CONTACT RATING: 1A @ 25 VDC
INITIAL CONTACT RESISTANCE: 30 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
400 ± 150 gf (3.92 ± 1.47N)
A
Pushbutton
P
9
0.2
2
3.5 LOCK TRAVEL
5 OVERALL TRAVEL
1
2
1
2.5
0.2
P DETAIL 2 : 1
36.8
10
LOCK TRAVEL: 3.5 ± 0.3mm
TOTAL TRAVEL: 5 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
5
9.4
6.9
3.3
6.5
Materials
HOUSING: PC (UL 94HB)
SPRING: SUS
KNOB: POM
TERMINAL: Silver plated
4
1
4
4
4
4
4
10
6
0.7
18
8.5
6
0.4
4P - 2T
1
2
4
4
4
4
4
1.3X0.7
ALL
SCHEMATIC
PIERCING PLAN
PB-62G02-L
DPDT LOCK / LATCHING
6
Specifications
R0.5
1.8
2.5x2.5
3.3x3.3
CONTACT RATING: 1A @ 25 VDC
INITIAL CONTACT RESISTANCE: 30 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 500 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 10,000 cycles without load
OPERATING FORCE:
450 ± 150 gf
LOCK TRAVEL: 3.5 ± 0.3mm
P
9
1
0.2
2
2
1
2.5
0.2
P DETAIL 2 : 1
3.5 LOCK TRAVEL
5 OVERALL TRAVEL
48.8
10
TOTAL TRAVEL: 5 ± 0.3 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
5
6.5
Materials
HOUSING: PC (UL 94HB)
SPRING: SUS
KNOB: POM
TERMINAL: Silver plated
4
9.4
6.9
1
4
4
4
4
4
4
4
4
10
6
0.7
18
8.5
6
3.3
0.4
1
6P - 2T
2
4
4
4
4
4
4
4
4
1.3X0.7
ALL
SCHEMATIC
PIERCING PLAN
6
Dimensions are shown: mm
Specifications and dimensions subject to change
A-135
www.ckswitches.com
