CP-86 WE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> hardware> Hardware - PCB circuit boards> CP-86 WE

CP-86 WE: DescriptionCircuit Board Hardware - PCB PCB Ejector .062in Nylon White; CategoryMechanical and electronic products hardware Hardware - PCB circuit boards; File Size66KB，2 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

CP-86 WE Overview

Circuit Board Hardware - PCB PCB Ejector .062in Nylon White

CP-86 WE Parametric

Parameter Name	Attribute value
Maker	Bivar
Product Category	Circuit Board Hardware – PCB
Material	Nylon
color	White
Encapsulation	Bulk
Factory packaging quantity	100
unit weight	1.161 g

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

Engineering Update w/o Changes

Material Update w/o Changes

Added Pin Assembly Notes

Added Notes 4, 5, 6 & Color Options Sheet #2

02/25/04

05/13/05

01/16/09

05/16/16

M. C.

T. Y.

J. C.

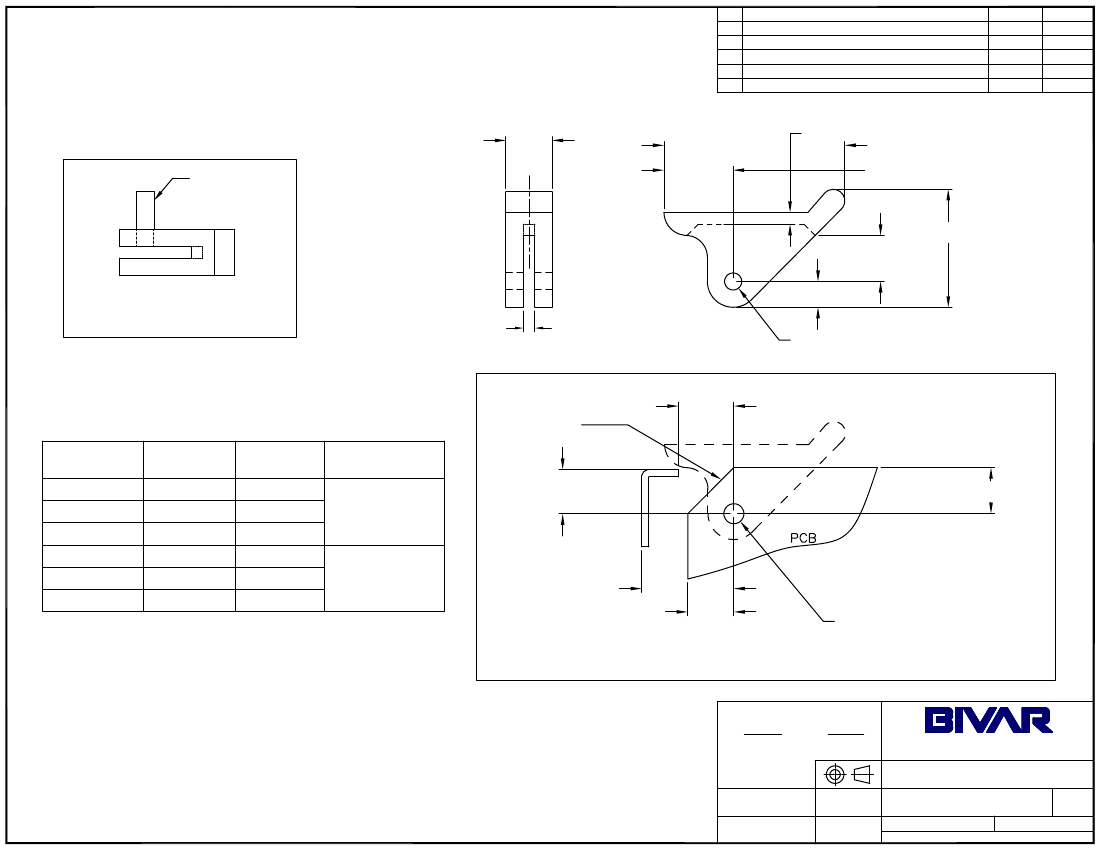

0.25 [6.4mm]

ROLL PIN

0.98 [24.9mm]

0.06 [1.6mm]

0.38 [9.5mm]

0.64 [16.2mm]

0.25 [6.3mm]

For Pin Assembly, add suffix

/PA to part number.

0.14 [3.6mm]

CARD THICKNESS

Ø.093 [Ø2.4mm]

45° x 0.25 [6.4mm]

CHAMFER

0.30 [7.6mm]

MIN.

PART NO.

CP-86 NT

CP-86 WE

CP-86 XX

CP-89 NT

CP-89 WE

CP-89 XX

COLOR

NATURAL

WHITE

SEE S.#2

NATURAL

WHITE

SEE S.#2

ROLL PIN

RP-250

CARD THICK.

0.24 [6.1mm]

1/16"(1.6mm)

0.25 [6.4mm]

3/32"(2.4mm)

0.50 [12.7mm]

0.25 [6.4mm]

Ø.109 [Ø2.8mm]

Recommended Application Layout

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

5. PRE-ASSEMBLED ROLL PINS AVAILABLE UPON REQUEST.

4. ROLL PINS INCLUDED. PACKAGED SEPARATELY.

3. MATERIAL: NYLON 6/6, 94V-2, WHITE.

2. MATERIAL: NYLON 6/6, 94V-2, NATURAL.

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.

.XX

.XXX

DESIGNED:

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

S. Irving

CHECKED:

TITLE:

PRINTED CIRCUIT BOARD EJECTOR

REVISION:

PART NO:

05/13/98

DATE:

CP-8X

D. Green

12/04/02

CAGE CODE : 32559

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

CP-86 WE Related Products

	CP-86 WE	CP-86-NT	CP-89-WE
Description	Circuit Board Hardware - PCB PCB Ejector .062in Nylon White	Circuit Board Hardware - PCB PCB Ejector .062in Nylon Natural	Circuit Board Hardware - PCB PCB Ejector .093in Nylon White
Product Category	Circuit Board Hardware – PCB	Circuit Board Hardware - PCB	Circuit Board Hardware - PCB
Material	Nylon	Nylon	Nylon
Product Attribute	-	Attribute Value	Attribute Value
Manufacturer	-	Bivar	Bivar
RoHS	-	Details	Details
Type	-	Card Ejector	Card Ejector
Length	-	24.9 mm	24.9 mm
Color	-	Natural	White
Mounting Hole Size	-	2.4 mm	2.4 mm
Packaging	-	Bulk	Bulk
Factory Pack Quantity	-	100	100
