Relay Module - PLC-RSP- 48DC/21HC - 2912293
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

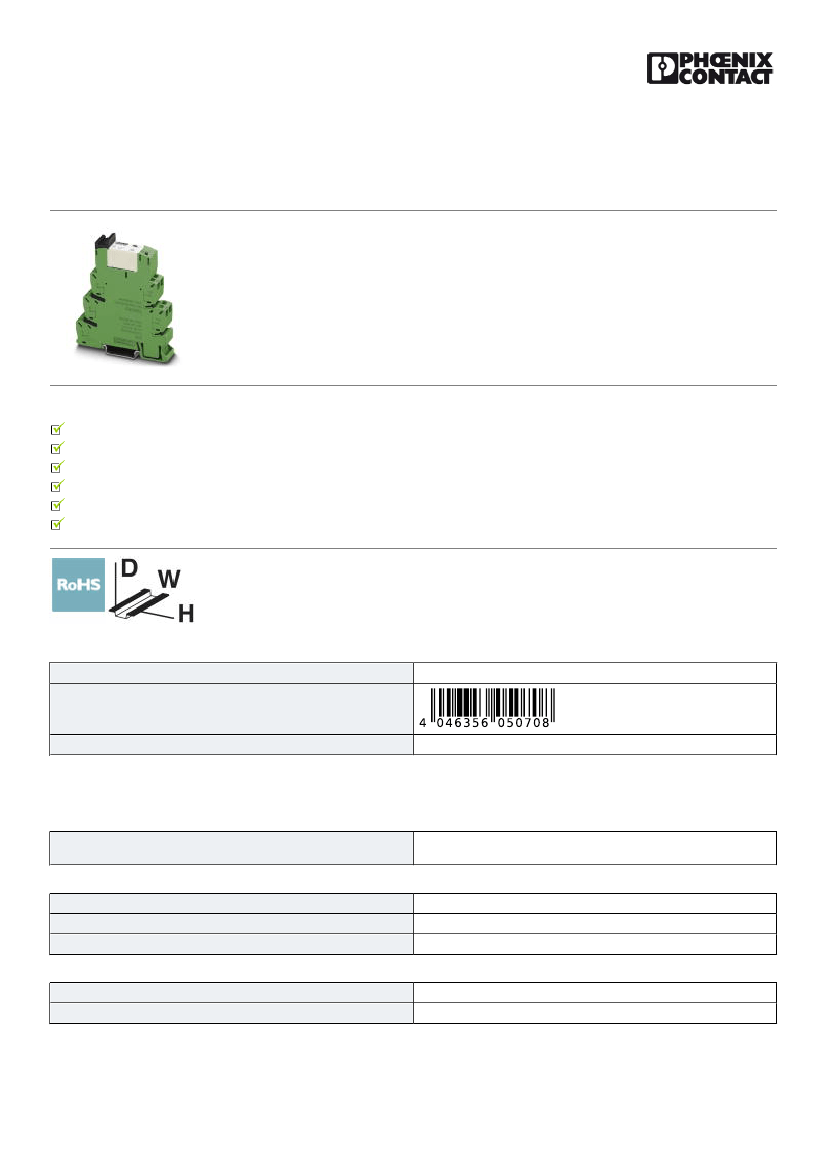

PLC-INTERFACE for high continuous currents, consisting of PLC-BSP.../21 HC basic terminal block with
spring-cage connection and plug-in miniature relay, for mounting on DIN rail NS 35/7,5, limiting continuous
current up to 10 A, 1 PDT, input voltage 48 V DC
Your advantages
All common input voltages of 12 V DC to 230 V AC
Long electrical service life thanks to 16 A relay
Efficient connection to system cabling using V8 adapter
Safe isolation according to DIN EN 50178 between coil and contact
Max. continuous current of 10 A
Functional plug-in bridges
Key Commercial Data
Packing unit
GTIN
GTIN
4046356050708
10 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
14 mm
80 mm
94 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 60 °C
-40 °C ... 85 °C
11/05/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2912293
Relay Module - PLC-RSP- 48DC/21HC - 2912293
Technical data
Coil side
Nominal input voltage U
N
Typical input current at U
N
Typical response time
Typical release time
Protective circuit
Operating voltage display
Power dissipation for nominal condition
48 V DC
20 mA
8 ms
10 ms
Reverse polarity protection Polarity protection diode
Free-wheeling diode Damping diode
Yellow LED
0.96 W
Contact side
Contact type
Type of switch contact
Contact material
Maximum switching voltage
Minimum switching voltage
Min. switching current
Maximum inrush current
Limiting continuous current
1 PDT
Single contact
AgNi
250 V AC/DC (The separating plate PLC-ATP should be installed for
voltages larger than 250 V (L1, L2, L3) between identical terminal blocks
in adjacent modules. Potential bridging is then carried out with FBST 8-
PLC... or ...FBST 500...)
12 V DC (at 10 mA)
10 mA (at 12 V)
30 A (300 ms)
10 A
6 A (value applies to connections 12. If connections 12 are bridged, the
normal value applies.)
Interrupting rating (ohmic load) max.
240 W (at 24 V DC)
58 W (at 48 V DC)
48 W (at 60 V DC)
50 W (at 110 V DC)
80 W (at 220 V DC)
2500 VA (for 250 V AC)
Interrupting rating (ohmic load) max. bridged
144 W (for 24 V DC. Value applies to connections 12. If connections 12
are bridged, the normal value applies.)
1500 VA (for 250 V AC. Value applies to connections 12. If connections
12 are bridged, the normal value applies.)
Switching capacity in acc. with DIN VDE 0660/IEC 60947
2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.2 A (at 250 V, DC13)
6 A (at 24 V, AC15)
6 A (at 120 V, AC15)
6 A (at 250 V, AC15)
Connection data input side
Connection name
Connection method
Stripping length
Coil side
Spring-cage connection
8 mm
11/05/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/2912293
Relay Module - PLC-RSP- 48DC/21HC - 2912293
Technical data
Connection data input side
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
Connection data output side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Contact side
Spring-cage connection
8 mm
0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm²
26 ... 14
General
Operating mode
Degree of protection
Mechanical service life
Mounting position
Assembly instructions
100% operating factor
RT II (Relay)
IP20 (Relay base)
3x 10 cycles
any
In rows with zero spacing
7
Standards and Regulations
Connection in acc. with standard
Designation
Standards/regulations
Rated surge voltage
Insulation
Degree of pollution
Overvoltage category
Flammability rating according to UL 94
CUL
Standards/regulations
IEC 60664
EN 50178
6 kV
Safe isolation, reinforced insulation
2
III
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
11/05/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2912293
Relay Module - PLC-RSP- 48DC/21HC - 2912293

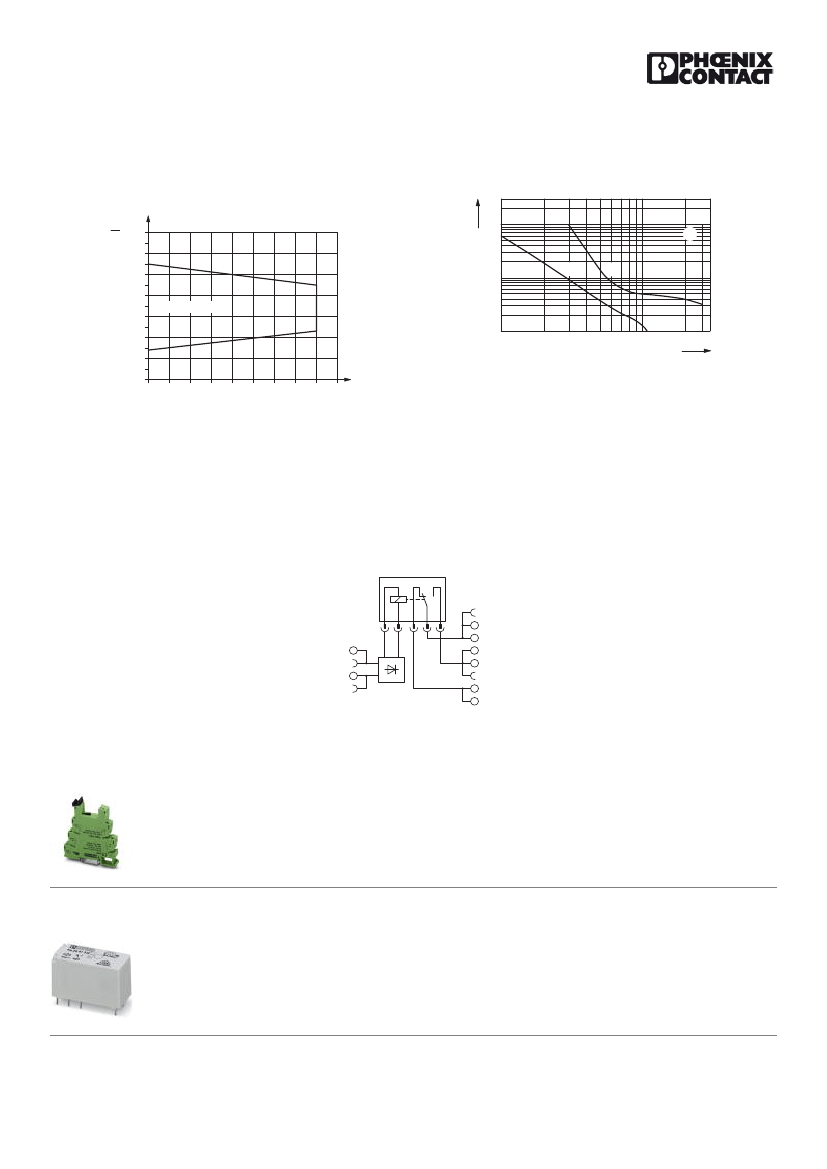

Diagram
20
Diagram
1,3
1,2
1,1
A
Switching current [A]
U
U
N
1,4
10
6
4
2
1
0,5
0,3
0,2
0,1
10
20
30
1
3
2
U
N
= 48 V DC
1
0,9
0,8
0,7
20
25
30
35
40
45
50
55
60
65
T
U
[ ° C]
B
50 70 100
200
Switching voltage [V]
300
1
AC, ohmic load
2
DC, ohmic load
3
DC, L/R = 40 ms
Interrupting rating
Curve A
Maximum permissible continuous voltage U
max
with limiting continuous
current on the contact side (see relevant technical data)
Curve B
Minimum permissible operate voltage U
op
after pre-excitation (see
relevant technical data)
Circuit diagram
11
A2
14
A1
12
Articles in set
Relay base - PLC-BSP- 48DC/21HC - 2912361
14 mm PLC basic terminal block for high continuous currents with spring-cage connection, without relay or solid-state
relay, for mounting on DIN rail NS 35/7,5, 1 PDT, input voltage 48 V DC
Single relay - REL-MR- 24DC/21HC - 2961312
Plug-in miniature power relay, with power contact for high continuous currents, 1 PDT, input voltage 24 V DC
