100SP5T4B4VS2QE: DescriptionMinature Toggle Switch ON-OFF-(ON) 16.26mm Bat Height NON-THD Bushing DPDT PC MOUNT, Epoxy, No Hardware; CategoryMechanical and electronic products switch Toggle switch; File Size161KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

100SP5T4B4VS2QE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	100SP5T4B4VS2QE	-	-	View	Buy Now

100SP5T4B4VS2QE Overview

Minature Toggle Switch ON-OFF-(ON) 16.26mm Bat Height NON-THD Bushing DPDT PC MOUNT, Epoxy, No Hardware

100SP5T4B4VS2QE Parametric

Parameter Name	Attribute value
Maker	E-Switch
Product Category	Toggle Switches
Shipping restrictions	Mouser does not currently sell this product.
illumination	Non-Illuminated
lighting color	-
Lamp type	-
Contact form	SPDT
switch function	ON - OFF - (ON)
Installation style	Panel
Termination type	Solder Pin
Current rating	5 A
Voltage ratingAC	125 VAC, 250 VAC
Voltage ratingDC	28 VDC
Actuator	Bat
Terminal seal	Sealed
Contact plating	Silver
series	100
life	40000 Cycles
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 30 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

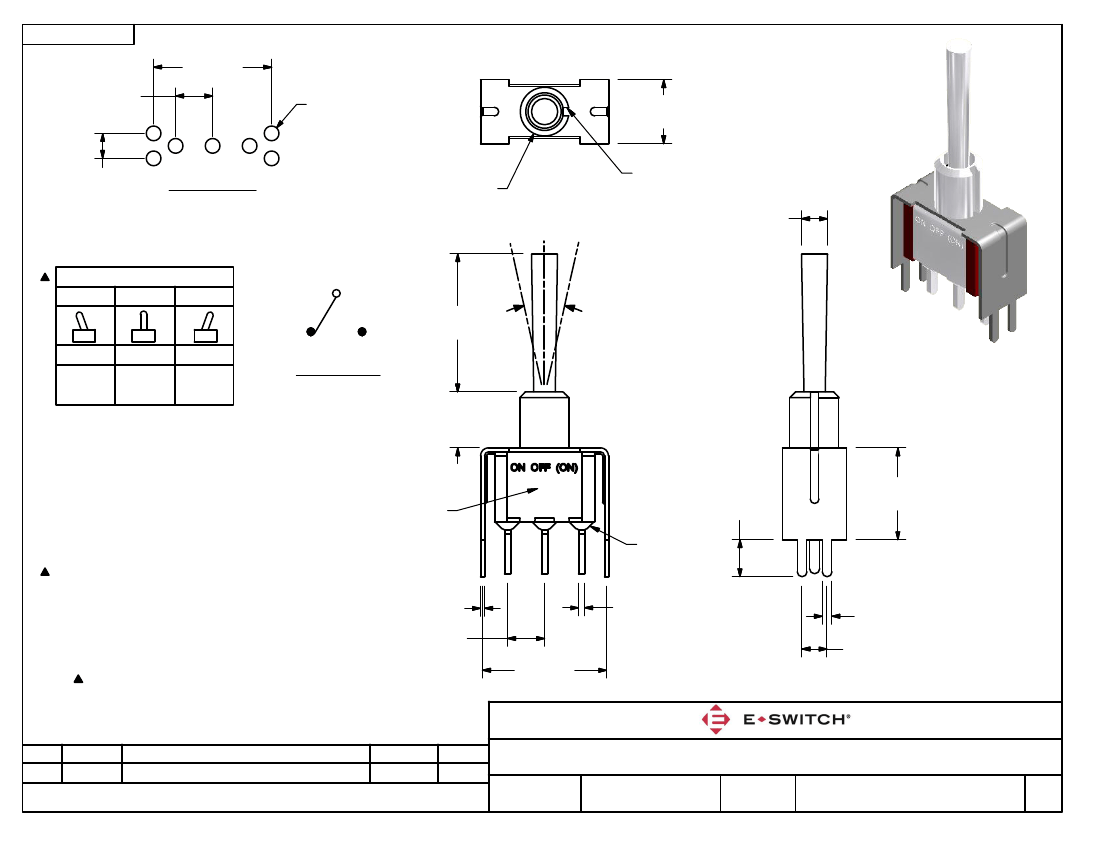

SHEET 1 OF 1

15.75

[.620 in]

4.70

[.185 in]

1.85

[.073 in]

8.13

[.320 in]

3.18

[.125 in]

P.C. MOUNTING

6.22

[.245 in]

POS. 1

POS. 2

POS. 3

KEYWAY

3.30

[.13 in]

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

2

17.54

[.69 in]

25

ON

2-3

OFF

OPEN

(ON)

2-1

1

3

CIRCUIT: SPDT

(ON) = MOMENTARY

7.1

[.28 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X = 0.4

X.XX = 0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 2 AMPS @ 250VAC

5 AMPS @ 120VAC OR 28VDC

6. ELECTRIC LIFE: 40,000 make-and-break cycles

at full load.

7. INSULATION RESISTANCE: 1,000 Mega-ohm min.

8. DIELECTRIC STRENGTH: 1,000 V RMS @sea level.

9. OPERATING TEMP.: -30 C to 85 C

10.

DENOTES CRITICAL PARAMETER.

11. 2011/65/EU (ROHS) COMPLIANT

E-SWITCH

MARKING ON

OPPOSITE SIDE

4.70

[.185 in]

1

2

3

EPOXY SEAL

3

11.68

[.460 in]

.51

[.020 in]

4.70

[.185 in]

15.75

[.620 in]

.76

[.030 in]

1.22

[.048 in]

3.18

[.125 in]

A

REV

22380

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

7/7/16

DATE

MJR

BY

TITLE

SCALE

100SP5T4B4VS2QE

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

2:1

7/7/2016

MJR

T113080

A
