1N5391 THRU 1N5399
GENERAL PURPOSE PLASTIC RECTIFIER
Reverse Voltage
- 50 to 1000 Volts
DO-204AL
Forward Current
- 1.5 Amperes
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
High surge current capability
♦
1.5 Ampere operation at T
L
=70°C
with no thermal runaway
♦
Low reverse leakage
♦
Construction utilizes
void-free molded plastic technique
♦
High temperature soldering guaranteed:
250°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
1.0 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
DIA.
0.205 (5.2)
0.160 (4.1)
MECHANICAL DATA
1.0 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
DIA.
Case:
JEDEC DO-204AL molded plastic body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.012 ounce, 0.3 gram
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
1N
5391
1N
5392
1N
5393
1N
5394
1N
5395
1N
5396
1N
5397
1N
1N
5398 5399
UNITS
*Maximum repetitive peak reverse voltage
*Maximum RMS voltage
*Maximum DC blocking voltage
*Maximum average forward rectified current
0.500” (12.7mm) lead length at T
L
=70°C
*Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method) at T
A
=75°C
*Maximum instantaneous forward voltage
at 1.5A
T
A
=70°C
*Maximum DC reverse current
at rated DC blocking voltage
T
A
=25°C
T
A
=150°C
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
200
140
200
300
210
300
400
280
400
1.5
500
350
500
600
420
600
800 1000 Volts
560 700
800 1000
Volts
Volts
Amps
I
FSM
50.0
Amps
VF
1.4
5.0
300.0
300.0
2.0
15.0
50.0
25.0
+150
-50 to + 170
-50 to+175
Volts
µA
µA
µs
pF
°C/W
°C
°C
°C
I
R
I
R(AV)
t
rr
C
J
R
ΘJA
R
ΘJL
T
A
T
J
T
STG
*Maximum full load reverse current full cycle
average, 0.375",(9.5mm) lead length at T
L
=70°C
Typical reverse recovery time
(NOTE 1)
Typical junction capacitance
(NOTE 2)
Typical thermal resistance
(NOTE 3)
*Maximum DC blocking voltage temperature
*Operating junction temperature range
*Storage temperature range
NOTES:
(1) Measured with I
F
=0.5A, I
R
=0.1A, I
rr
= 0.25A
(2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient and from junction to lead at 0.375” (9.5mm) lead length, P.C.B. mounted
*JEDEC registered value
4/98

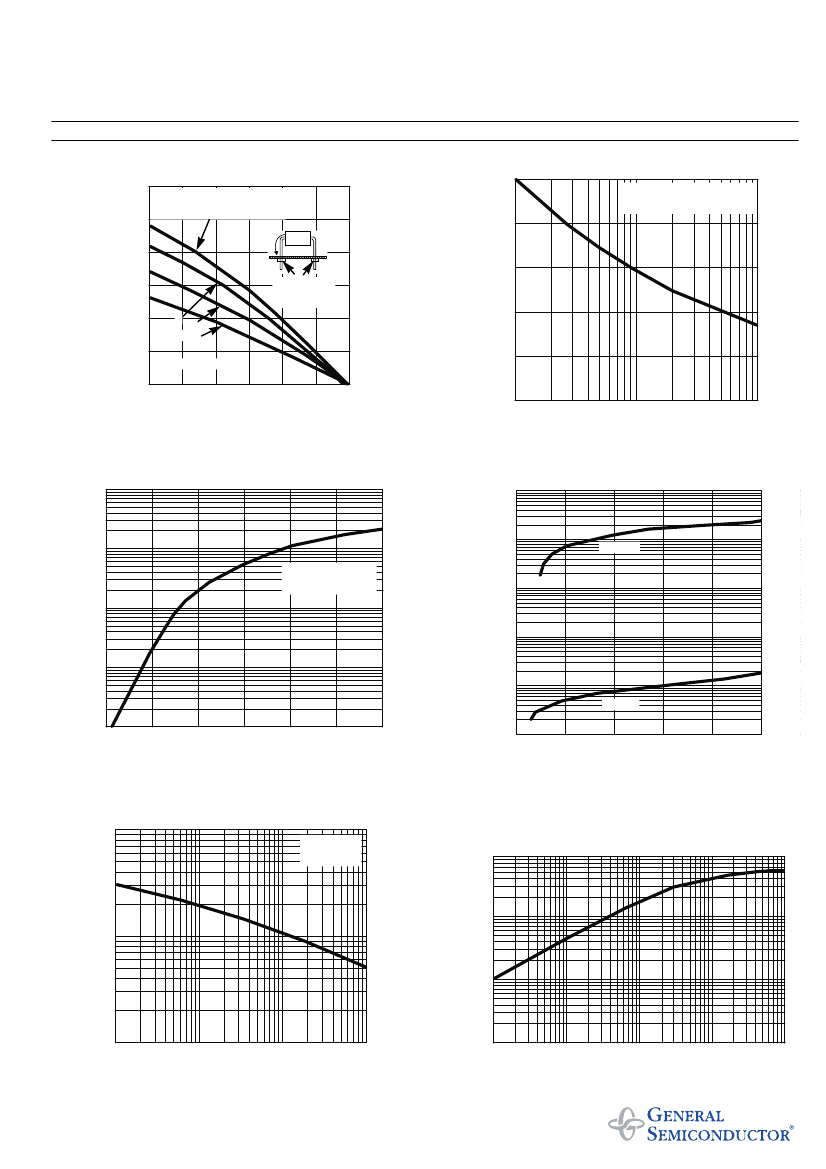

RATINGS AND CHARACTERISTIC CURVES 1N5391 THRU 1N5399
FIG. 1 - FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
2.4
2.0
1.6
1.2
0.8
0.4
50
PEAK FORWARD SURGE CURRENT,
AMPERES
60 H
Z
RESISTIVE OR INDUCTIVE LOAD
0.50” (12.7mm) LEAD LENGTH
8.3ms SINGLE HALF SINE WAVE
(JEDEC Method)
T
A
=75°C
40
30
0.2 x 0.2”
(5.0 x 5.0mm)
COPPER PADS
10
Ipk/I
AV
=
20
CAPACITIVE LOADS
5
20
10
0
25
50
75
100
125
150
175
LEAD TEMPERATURE, °C
0
1
10
NUMBER OF CYCLES AT 60H
Z
100
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT,
AMPERES
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
1,000
10
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
100
T
J
=150°C
10
1
1
0.1
0.1
T
J
=25°C
0.01
0.6
0.8
1.0
1.2
1.4
1.6
1.8
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
100
TRANSIENT THERMAL IMPEDANCE,
°C/W
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
100
JUNCTION CAPACITANCE, pF
10
10
1
1
0.1
1
10
100
0.1
0.01
0.1
1
t, PULSE DURATION, sec.
10
100
REVERSE VOLTAGE, VOLTS
