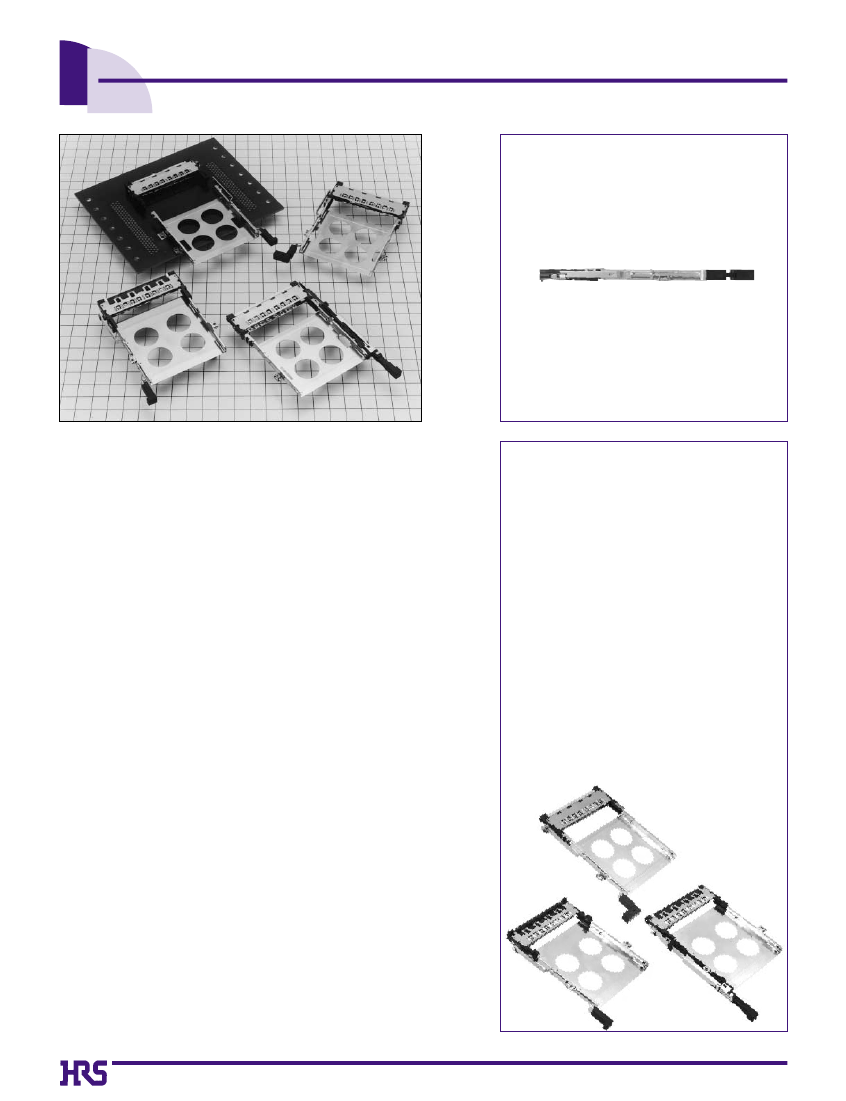

Single Slot SMT Connectors For Card-Bus Based PC Cards
IC11S Series
PC Card Standard Compliant
Reduced height : 5.6mm high
sFeatures
1. PC Card Standard compliant:
•
Grounding is required to meet the high speed signal
requrements of the PC card standard. Grounding reliability is
achieved with a grounding plate and 8 grounding contacts.
•
Type
1
, type
2
and type
3
cards are covered.
•
Terminals for ground clipping are provided.
Wide variety of options
(1)Board Mounting
➀
Standard type
➁
Reverse type
(2)Types of eject button
➀
Rigid button
➁
Foldering button
➂
Pop-up button
(3)Position of eject buttons
➀
Right
➁
Left
(4)Standoffs
➀
None
➁
2.2mm
2. Space saving
Smaller size reduces occupied area on PC boards as
compared to previous products.
3. Reduced Height:
Connector height is minimized to 5.6mm, making possible
thinner product designs.
4. Eject mechanism with high-level functionality
Hirose Electric's original ejection mechanism provides an
higher degree of card ejection over existing products. This
improves the operational qualities of card removal. (Patents
pending)
5. Wide Variety of Options Available
•
Standard type mounts to the top of the PC board and reverse
type mounts on the underside of the board
•
Three types of eject buttons; rigid, flexible and POP-UP.All
types can be installed on the right or left side of the ejector.
•
Available with standoff to utilize space under the connector for
mounting other parts.
6. Light-weight
Weight of 12.7g for normal button type helps achieve the
reduced weight required in today’s products.
A2
sProduct
Specifications
Current rating
Ratings
Voltage rating
0.5A
125V AC
Operating temperature
-55ç to +85ç(Note.1)
Storage temperature
-40ç to +70ç(Note.2)
Operating humidity
Relativehumidity 95% max.
Storage humidity
(With no dew-fall)
40%
to
70%(Note.2)
Item
Specification
500V DC
500V AC
1mA
Conditions
1.Insulation resistance 1000M
ohms
min.
2.Withstanding voltage No flashover or insulation breakdown.
3.Contact resistance 60m
ohms
max. (initial value)
4.Vibration
No electrical discontinuity of 100ns or more
Frequency: 10 to 2000 Hz, full amplitude of 1.52 mm or
acceleration of 147 m/s
2
(peak), 4 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç:30min./+5ç
to
35ç:MAX 5min/85ç:30min/+5
-35ç:MAX 5min.) 5 cycles
10000 cycles at 400 to 600 cycles per hour
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
5.Humidity (Steady state) Insulation resistance: 100M
ohms
min.
6.Temperature
cycle
Insulation resistance: 100M
ohms
min.
7.Durability
Variations from initial contact resistance: 20m
(Insertion/withdrawal)
ohms
max.
8.Resistance to
Soldering heat
No deformation of components affecting
performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during
transportation.
sMaterial
SMT unit
Parts
Insulator
Card connected section
Contact
Ground plate
Eject metal fittings
Phosphor bronze
Stainless steel
PPS
Brass
Material
Finish
Black
Contact section: gold plating
Lead section: solder plating
Contact section: gold plating
Lead section: solder plating
----------
Remarks
UL94V-0
----------
----------
----------
Guide unit
Item
Guide plate
Push rod
Rigid button type resin section
resin section
Foldering
button type
Eject Button
POP-UP type
spring
spring pin
resin section
frame metal
spring
pin
Nut
Material
Stainless steel
Stainless steel
PBT
PBT
Stainless steel
Stainless steel
PBT
Stainless steel
Steel
Brass
Steel
Finish
----------
----------
Color : Black
Color : Black
----------
----------
Color : Black
----------
----------
Nickel plating
----------
Remarks
----------
----------
UL94V-0
UL94V-0
----------
----------
UL94V-0
----------
----------
----------
M2X0.4
A3
sOrdering
Information
SMT Unit
IC11S A - 68 PLR - 1.27SF - EJ R
1
1
2
Series name : IC11S
Standoff type
Blank : none
A
: 2.2mm
Number of contacts : 68
Board Mounting Type:
PL : standard type
PLR : reverse type
7
Eject button positions
R : right
L : left
2
3
4
5
5
6
7
1.27SF : 1.27mm pitch SMT connector
With ejector
EJ : with ejector
6
3
4
Guide Unit
IC11S A - BUR - FEJ R
8
9
10
11
11
12
Series name : IC11S
Standoff type
Blank: none
A : 2.2mm
Board Mounting Type
BD : standard type
BUR : reverse type
12
Eject button type
EJ : rigid button
FEJ : Foldering button
PEJ : POP-UP button
Eject button positions
R : right
L : left
8
9
10
(Note.) IC11S Series will be used in combination of SMT unit with guide unit. When using, please select
the same type for the following items. Please note that other combinations cannot be used.
•
Series name
•
Standoff
•
Board-installed type
•
Eject button positions
(
1
⇔
8
)
(
2
⇔
9
)
(
4
⇔
10
)
(
7
⇔
12
)
A4

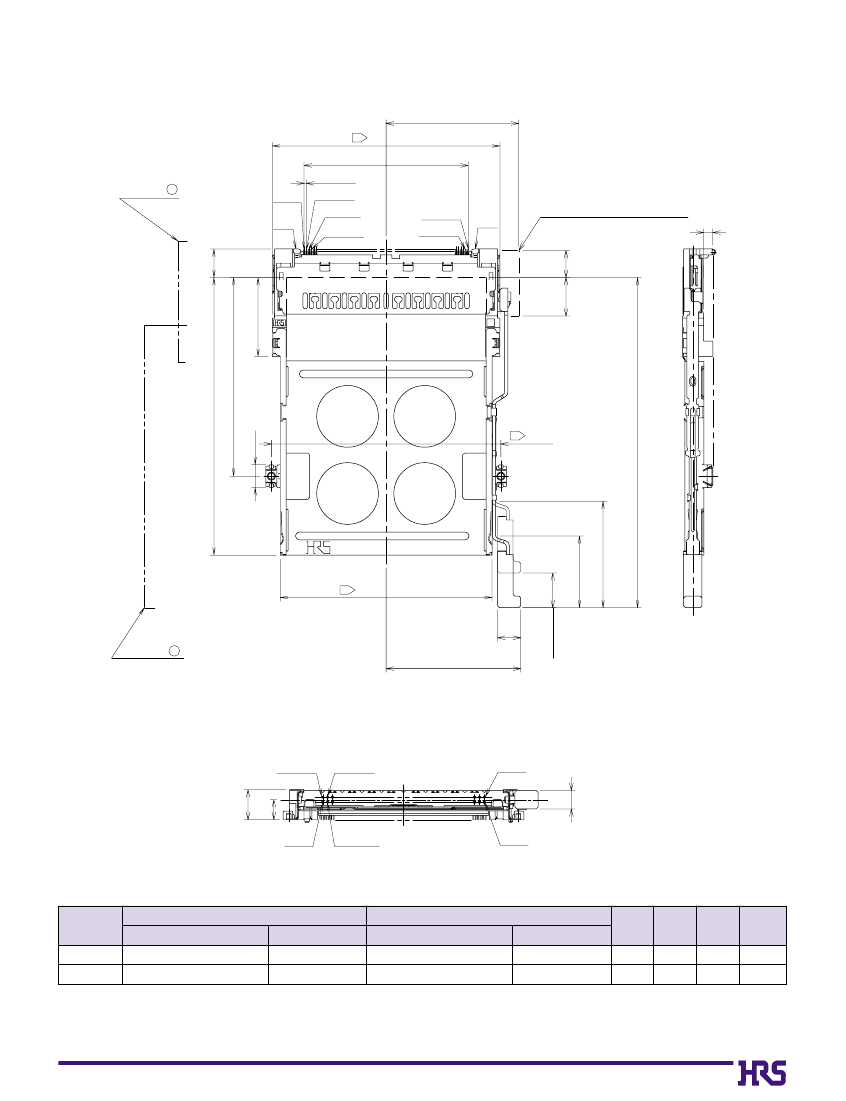

sStandard
Right rigid button type
34.4 MAX
3
59
42.545
P= 0.635
SMT unit ( 1 )
No.1
GND
7.4
No.35
No.2
No.36
No.68
No.34
eject metal fittings movable range
GND
10MAX 7MAX
C
20.5
A
PUSH
PUSH
51.5
5.9
3
59.5
3
54.9
6
guide unit ( 2 )
( 34.9)
No.1
No.2
No.34
stroke:9
B
A
No.35
No.36
No.68
Standoff
type
none
2.2mm
➀
SMT unit
Part Number
IC11S-68PL-1.27SF-EJR
IC11SA-68PL-1.27SF-EJR
CL No.
640-1007-3
640-1009-9
➁
Guide unit
Part Number
IC11S-BD-EJR
IC11SA-BD-EJR
CL No.
640-1071-2
640-1073-8
4.8
(18.6)
(27.6)
A
(mm)
3
5.2
85.6: in card insertion
72
B
(mm)
5.6
7.8
C
Weight
(mm)
(g)
0.1
2.3
12.7
13.1
Note.1) This figure illustrates grouping of SMT unit(
➀
) and guide unit(
➁
) together.
Note.2) Dimensions for card fitting are in accordance with "PC Card Standard".
Note.3) Indicated dimensions are symmetrical to the center of the card insertion slot.
A5

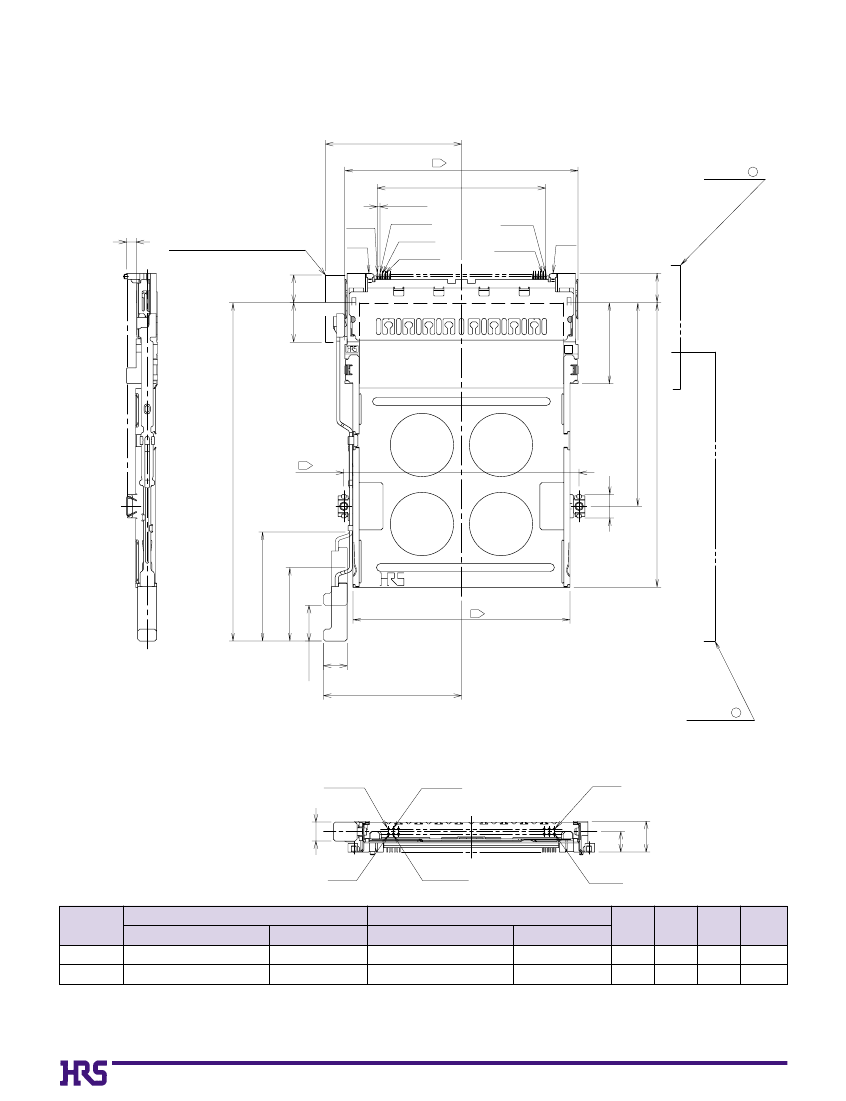

sStandard
Left rigid button type
34.4MAX
3
59
42.545
SMT unit ( 1 )
P= 0.635
No.1
C
eject metal fittings movable range
GND
No.35
No.2
No.36
10MAX 7MAX
No.34
No.68
GND
A
PUSH
PUSH
20.5
85.6: in card insertion
51.5
3
59.5
5.9
(27.6)
(18.6)
3
54.9
stroke:9
6
( 34.9 )
guide unit ( 2 )
No.1
No.2
No.34
4.8
No.35
No.36
No.68
Standoff
type
none
2.2mm
➀
SMT unit
Part Number
IC11S-68PL-1.27SF-EJL
IC11SA-68PL-1.27SF-EJL
CL No.
640-1008-6
640-1010-8
➁
Guide unit
Part Number
IC11S-BD-EJL
IC11SA-BD-EJL
CL No.
640-1072-5
640-1074-0
A
A
(mm)
3
5.2
B
72
7.4
B
(mm)
5.6
7.8
C
Weight
(mm)
(g)
0.1
2.3
12.7
13.1
Note.1) This figure illustrates grouping of SMT unit(
➀
) and guide unit(
➁
) together.
Note.2) Dimensions for card fitting are in accordance with "PC Card Standard".
Note.3) Indicated dimensions are symmetrical to the center of the card insertion slot.
A6
