CL 222 TM

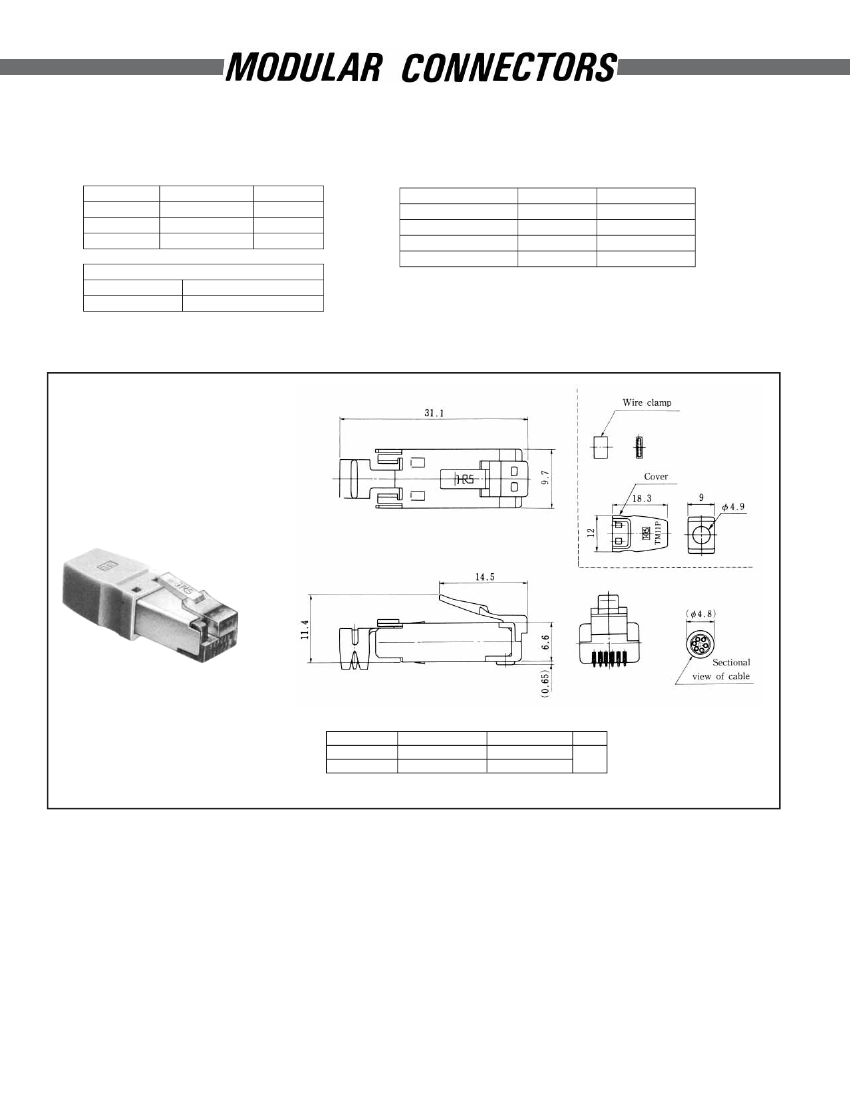

Six-conductor plug with straight cover
●Material・Finish
Part name
Plug case
Terminal
Cover
Material
Polycarbonate
Phosphor Bronze
Polycarbonate
Finish
Clear
Gold plated
Beige
●Electrical Performance
Item
Current rating
Voltage rating
Insulation Resistance
Withstanding Voltage
Condition
Per pin
Per pin
100V DC
1 minute
Specification
0.5A
125V AC
100 M Ω Min.
500V r.m.s AC
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Applicable Cable
Conductor diameter
Insulator diameter
Copper foil or AWG#26
φ0.9∼
φ1.0
●TM11P-66P
（＊＊）
CL No.
222-2149-9-50
222-2149-9-53
Part No.
TM11P-66P
（50）
TM11P-66P
（53）
Cover Color
Beige
Black
RoHS
YES
（Number of plugs in package : 100）
−44−
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
CL 222 TM

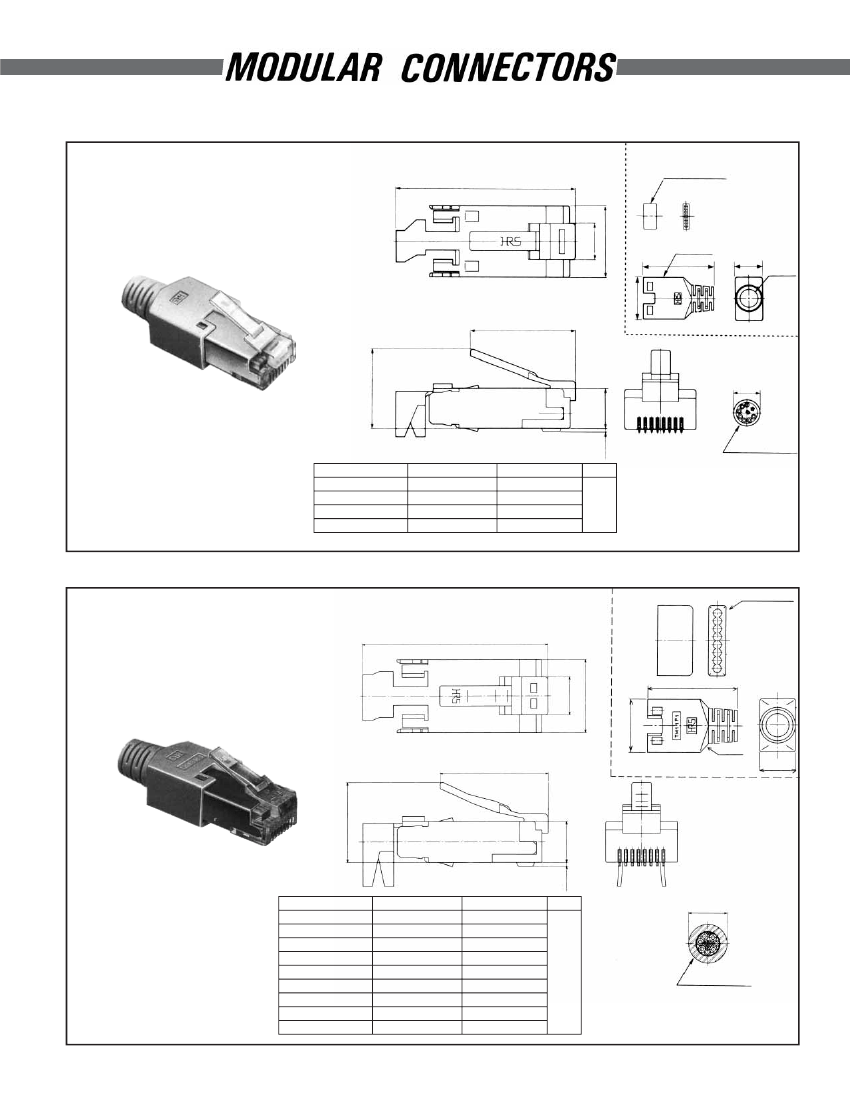

Eight-conductor plug with straight cover
●TM11AP-88P ＊）
（＊
30.2
Wire clamp
6.09
11.7
Cover
23.25
9
φ5.8
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
17.5
12.9
14.1
（φ5）
6.6
CL No.
222-2780-6
222-2780-6-02
222-2780-6-03
222-2780-6-04
Cover color
Beige
TM11AP-88
Medium gray
TM11AP-88P
（02）
Black
TM11AP-88P
（03）
TM11AP-88P
（04） Natural light gray
Part No.
RoHS
YES
Note:This plug is NOT intended to be used for gang-jack.
（0.65）
Sectional
view of cable
（Number of plugs in package:100）
Eight-conductor thin straight plug with cover (For gang-jack)
Wire clamp
●TM11AP1-88P
（＊＊）
30.2
23
6.09
11.7
13.4
Cover
17.5
9
12.9
CL No.
222-2782-1
222-2782-1-02
222-2782-1-03
222-2782-1-04
222-2782-1-05
222-2782-1-06
222-2782-1-07
222-2782-1-08
222-2782-1-09
Part No.
TM11AP1-88P
TM11AP1-88P
（02）
（03）
TM11AP1-88P
TM11AP1-88P
（04）
TM11AP1-88P
（05）
TM11AP1-88P
（06）
TM11AP1-88P
（07）
TM11AP1-88P
（08）
TM11AP1-88P
（09）
Cover color
Light beige
Medium gray
Black
Natural light gray
Red
Green
Blue
Yellow
Orange
RoHS
（0.55）
6.6
（φ5）
YES
Sectional
view of cable
（Number of plugs in package:100）
−45−
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
CL 222 TM

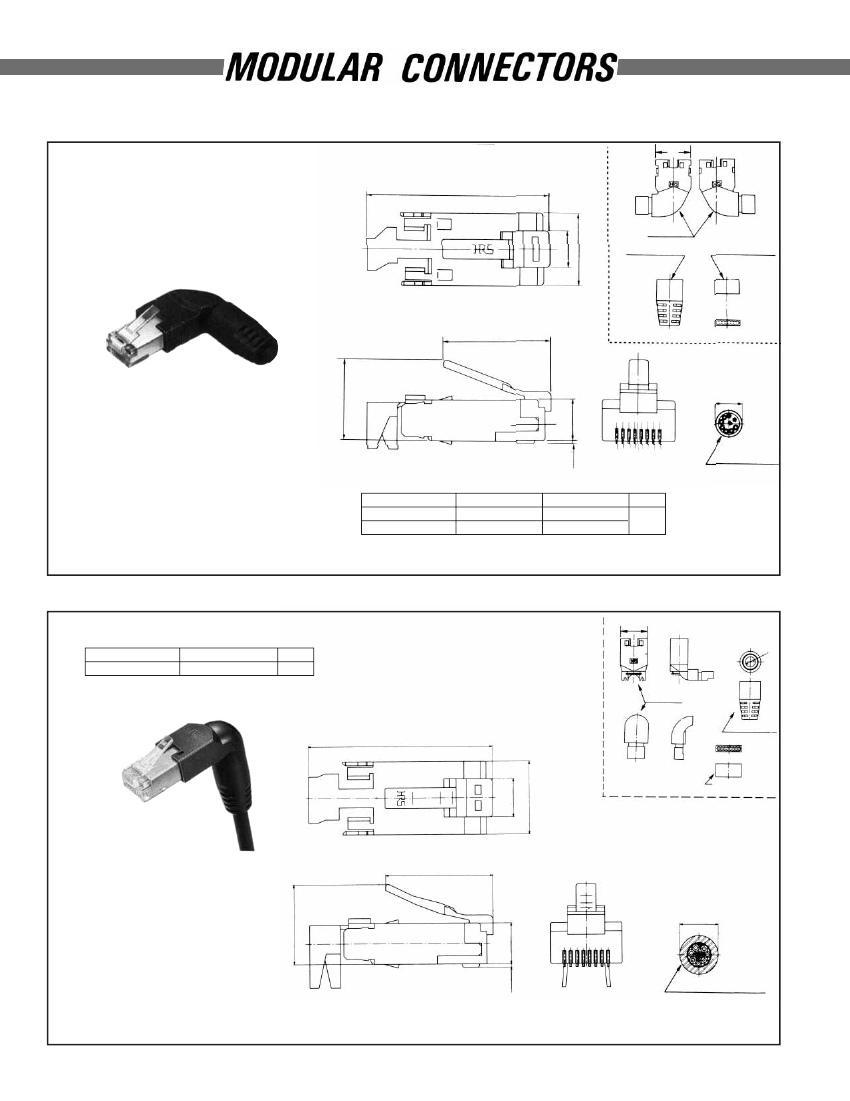

L-shaped 8-conductor plug with cover
●TM11APA-88P
（＊＊）
30.2
16
Cover
6.09
11.7
Bushing
Wire clamp
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
17.5
12.9
（φ5）
6.6
CL No.
222-2781-9
222-2781-9-03
Part No.
TM11APA-88P
TM11APA-88P
（03）
（0.55）
Sectional
view of cable
Cover Color
Light beige
Black
RoHS
YES
(Number of plugs in package:100)
T-shaped 8-conductor plug with cover
●TM11APA1-88P
（＊＊）
CL No.
222-2783-4
Part No.
TM11APA1-88P
RoHS
YES
Cover
13.7
（
φ
5.8
）
Bushing
30.2
6.09
17.5
11.7
Wire clamp
12.9
（φ5）
6.6
（0.55）
Sectional
view of cable
Note:Cover standard color is light beige
(Number of plugs in package:100)
−46−
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
CL 222 TM
●PLUG WIRING TOOL
Jig
Plug
TM11P 」
「 -66P
CL No.
Cable Cramp Jig
Product No.
TM11P66P cable crimping
902-0132-8
902-0077-1
902-0132-8
Hand press HOS-7
TM11P88P cable crimping jig
Hand press HOS-7
CL No.
901-0938-4
901-0005-4
901-0221-0
901-0005-4
Terminal Crimping Jig
Product No.
Applicator 105TM11P-66P
Model 105 crimping tool
Applicator 105TM11P-88P
Model 105 crimping tool
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
TM11P 」
「 -88P

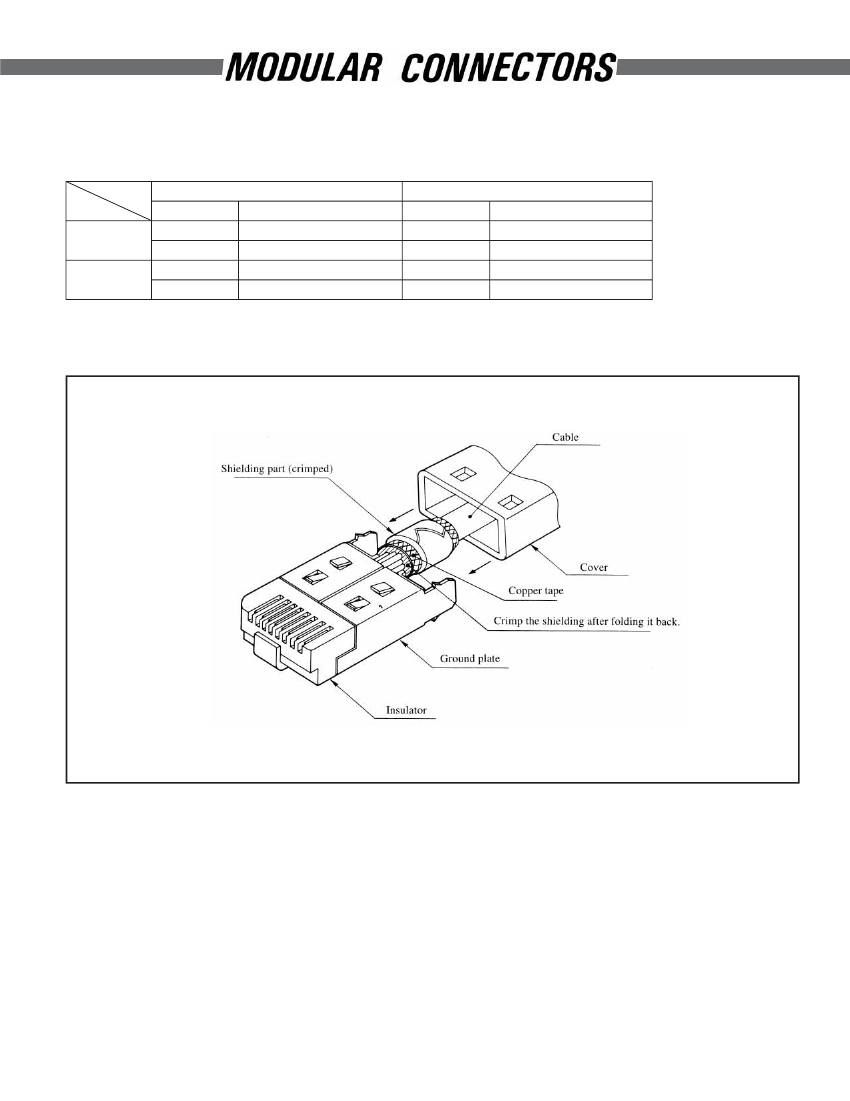

●PLUG ASSEMBLY DRAWING
−47−
