REV.
B
5
ECN NO.
LEN15A0359
6
DATE
2015/09/16
SIGN
Mila
7
DESCRIPTION
Product improve
43.2 (Ref.)
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
T
A
L
W
CONFIDENTIAL
2015-09-16
R&D DEPT.

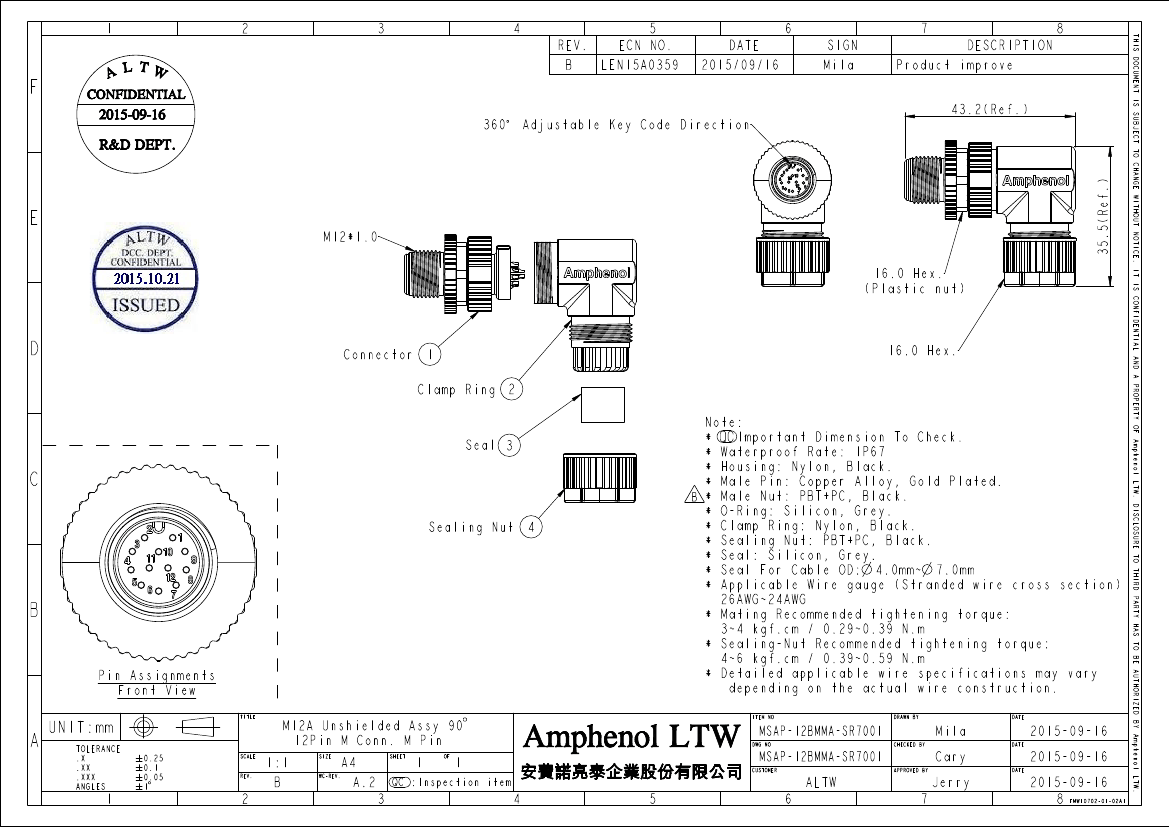

360° Adjustable Key Code Direction
E
M12*1.0
16.0 Hex.
(Plastic nut)
D
Connector
1
Clamp Ring
2
16.0 Hex.
35.5 (Ref.)
Seal
3
Sealing Nut
4
Note:
* Important Dimension To Check.
QC
* Waterproof Rate: IP67
* Housing: Nylon, Black.
* Male Pin: Copper Alloy, Gold Plated.
B
* Male Nut: PBT+PC, Black.
* O-Ring: Silicon, Grey.
* Clamp Ring: Nylon, Black.
* Sealing Nut: PBT+PC, Black.
* Seal: Silicon, Grey.
* Seal For Cable OD: n 4.0mm~ n 7.0mm
* Applicable Wire gauge (Stranded wire cross section)
26AWG~24AWG
* Mating Recommended tightening torque:
3~4 kgf.cm / 0.29~0.39 N.m
* Sealing-Nut Recommended tightening torque:
4~6 kgf.cm / 0.39~0.59 N.m
* Detailed applicable wire specifications may vary
depending on the actual wire construction.
ITEM NO
DRAWN BY
DATE
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
C
B
Pin Assignments
Front View
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
TITLE
M12A Unshielded Assy 90
12Pin M Conn. M Pin
1:1
B
SIZE
$
OF
SCALE
A4
A.2
3
SHEET
Amphenol LTW
1
4
5
MSAP-12BMMA-SR7001
DWG NO
CHECKED BY
Mila
DATE
2015-09-16
2015-09-16
DATE
Amphenol LTW.
1
MSAP-12BMMA-SR7001
CUSTOMER
APPROVED BY
Cary
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2015-09-16
8
FMW10702-01-02A1
