GT8E Series
— High contact pressure Wire-to-Board connectors —
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT32
GT17
GT11
GT36
GT26
GT21
GT19
PO5G
GT16

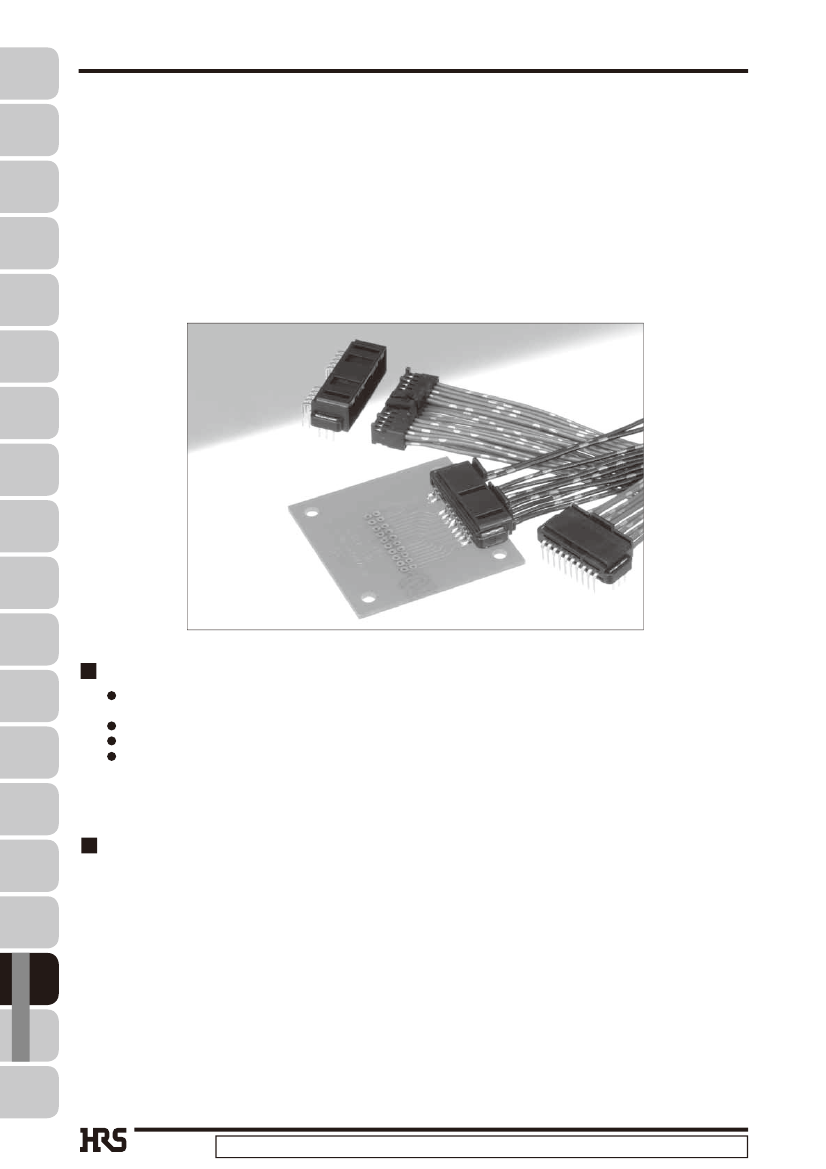

Features
GT3
Use of a formed dimple construction at the contact point, serves to prevent oxidation of
the contact portion.
Design prevents misinsertion
Stress resisting design
SMT type pin header with pin-in-hole type metal fittings improves PCB retention.
High PCB retention force.
GT10
GT7
GT18W
Applications
Internal connectors for in-vehicle and industrial equipment.
Internal connection
GT15
GT9
GT8E
GT25
200
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
GT8E Series
●
Internal connection
GT5

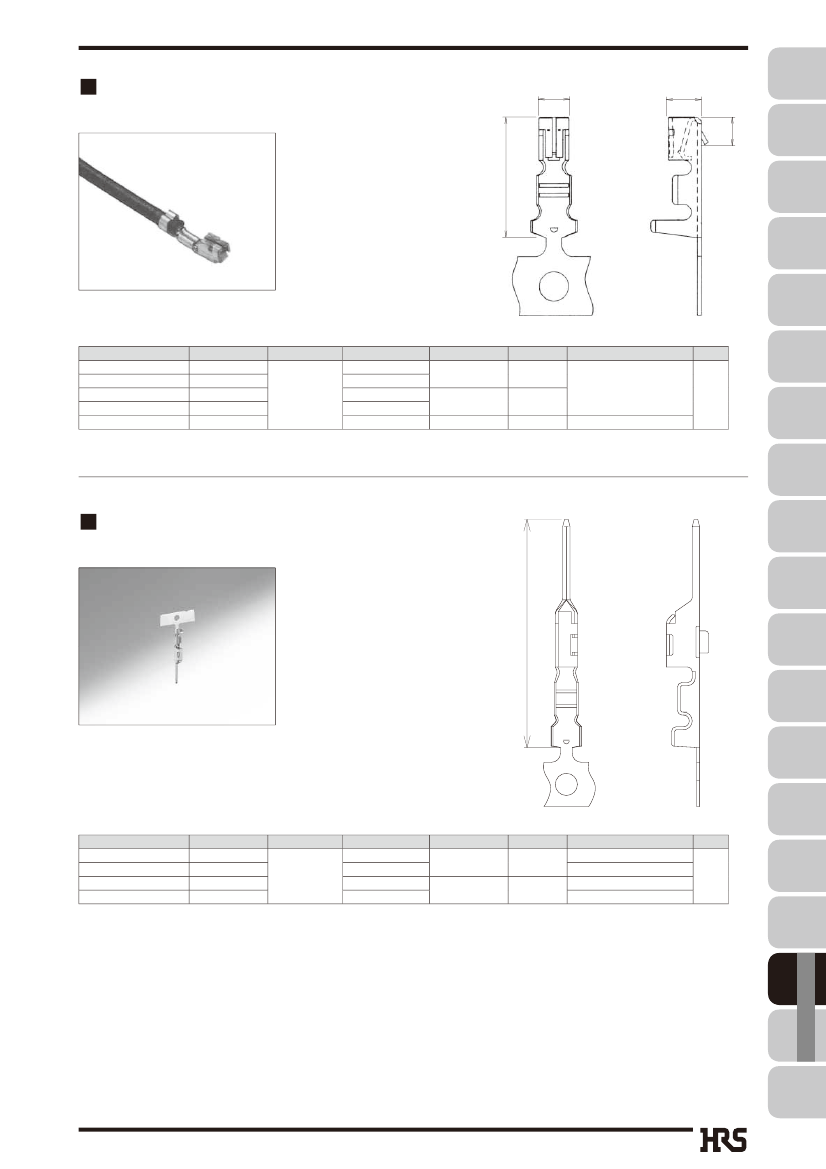

Terminal for female connector
1.5
1.7
GT13
6.2
1.9
GT16
PO5G
GT19
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT21
Part No.
GT8E-2022SCF
GT8E-2022SCF(01)
GT8B-2428SCF
GT8B-2428SCF(01)
GT8E-2022SC *Note1
HRS No.
758-0033-4 00
758-0033-4 01
758-0055-7 00
758-0055-7 01
758-0101-2 00
Material
Phosphor
bronze
Plating
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Conductor Size (AWG) Outer Diameter
20 to 22 AWG
24 to 28 AWG
20 to 22 AWG
Ø1.3
to 1.5
Packaging
RoHS
10,000 pcs/reel
Ø0.9
to 1.1
Ø1.3
to 1.5
YES
GT26
100 pcs/pack
Note 1 :
Small quantities for use with hand tooling are sold in packs.
GT36
GT11
Terminal for M connector
GT17
GT32
GT3
GT7
GT10
Part No.
GT8E-2022PCF
GT8EF-2022PCF
GT8E-2428PCF
GT8EF-2428PCF
HRS No
758-0039-0 00
758-0111-6 00
758-0067-6 00
758-0106-6 00
Material
Brass
Plating
Tin plating
Gold plated
Tin plating
Gold plated
Conductor Size (AWG) Outer Diameter
20 to 22 AWG
24 to 28 AWG
Ø1.3
to 1.5
Ø0.9
to 1.1
Packaging
10,000 pcs/reel
8,000 pcs/reel
10,000 pcs/reel
8,000 pcs/reel
RoHS
GT18W
YES
201
GT25
Internal connection
GT8E
GT9
GT15
GT8E Series
●
Internal connection
GT5
Female connector

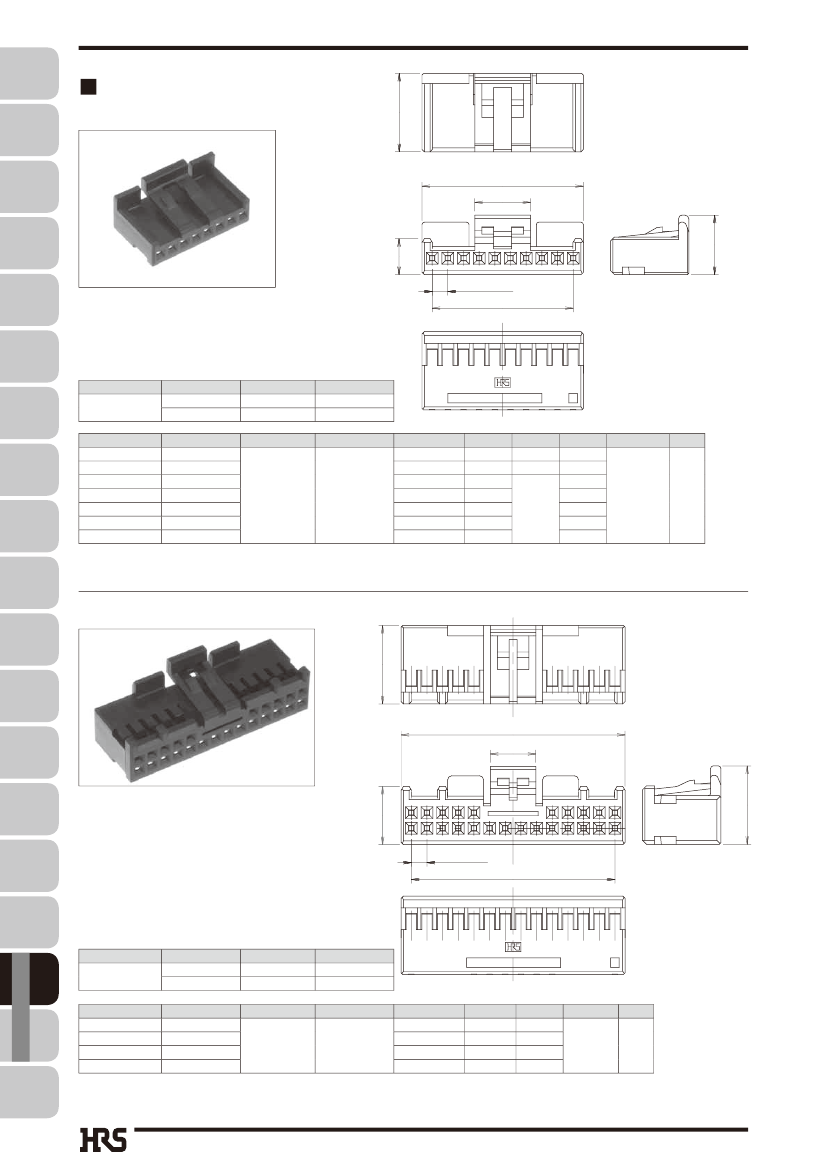

●Housing（Single row type）
10
GT16
GT13
A
B
PO5G
4.6
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT19
P=2
C
GT21
Socket
GT26
GT8E-＊S-HU
Part No.
GT8E-3S-HU
GT8E-4S-HU
GT8E-5S-HU
GT8E-6S-HU
GT8E-7S-HU
GT8E-8S-HU
GT8E-10S-HU
Applicable wire Conductor Size (AWG) Outer Diameter
Ø1.3
to 1.5
GT8E-2022SCF 20 to 22 AWG
Ø0.9
to 1.1
GT8B-2428SCF 24 to 28 AWG
HRS No.
758-0061-0
758-0047-9
758-0062-2
758-0048-1
758-0063-5
758-0049-4
758-0050-3
Material
Color
1
ＧＴ8Ｅ−10Ｓ−ＨＵ ＰＢＴ
10
＊
Packaging
RoHS
PBT
Black
GT11
No. of contacts
3
4
5
6
7
8
10
A dimension B dimension C dimension
7.9
7.9
4
8.6
8.6
6
12
8
12.6
10
15.6
7.1
12
16.6
14
20.6
18
GT36
1
YES
Note : Applicable terminals are GT8E-2022SCF and GT8B-2428SCF.
GT17
●
Housing（Double
row type）
15
24
GT32
GT3
10
A
GT7
5.8
GT10
7.6
P=2
B
1
ＧＴ８Ｅ−２４ＤＳ−ＨＵ
ＰＢＴ
GT25
GT18W
7.45
Internal connection
Socket
GT8E
GT8E-＊DS-HU
Applicable wire Conductor Size (AWG) Outer Diameter
Ø1.3
to 1.5
GT8E-2022SCF 20 to 22 AWG
Ø0.9
to 1.1
GT8B-2428SCF 24 to 28 AWG
HRS No.
758-0051-6
758-0064-8
758-0052-9
758-0054-4
Material
Color
＊
14
Part No.
GT8E-12DS-HU
GT8E-16DS-HU
GT8E-20DS-HU
GT8E-24DS-HU
PBT
Black
No. of contacts
12
16
20
24
A dimension B dimension Packaging RoHS
16.6
14
21.85
18
1
YES
24.6
22
28.6
26
GT15
GT9
Note : Applicable terminals are GT8E-2022SCF and GT8B-2428SCF.
202
10
GT8E Series
●
Internal connection
GT5

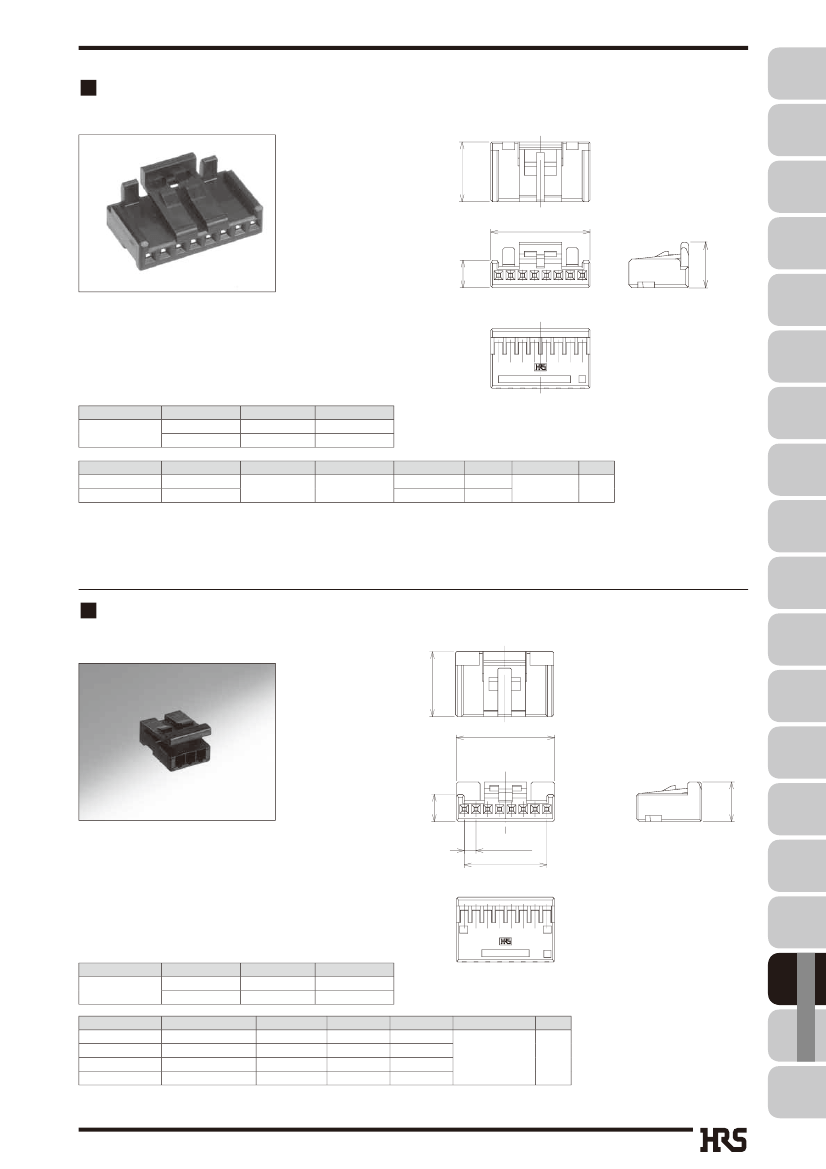

Female connector
●Housing
GT13
10
GT16
A
PO5G
4.6
7.6
GT19
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT21
ＧＴ８Ｅ−８Ｓ−２Ｃ ＰＢＴ
＊
GT26
Socket
GT8E-＊S-2C
Recommended wire Conductor Size (AWG) Outer Diameter
Ø1.3
to 1.5
GT8E-2022SCF 20 to 22 AWG
Ø0.9
to 1.1
GT8B-2428SCF 24 to 28 AWG
HRS No.
758-0030-6
758-0029-7
Material
PBT
Color
Black
No. of contacts A dimension
2
7.1
8
16.6
Packaging
1
RoHS
YES
GT36
Part No.
GT8E-2S-2C
GT8E-8S-2C
GT11
Note 1 : Applicable terminals are GT8E-2022SCF and GT8B-2428SCF.
Note 2 : GT8E-2S-2C can be mated with GT8E-2P-2H(70), GT8E-8/P-2H(70) and GT8E-2P-DS.
GT8E-8S-2C can only be mated with GT8E-8/P-2H(70).
GT17
Female connector
GT32
● Housing（Low profile type）
11
GT3
A
GT7
GT10
4.6
P=2
B
6.7
GT18W
GT25
１
GT8EC-8S-HU
８
*
Internal connection
GT8E
Recommended wire Conductor Size (AWG) Outer Diameter
Ø1.3
to 1.5
GT8E-2022SCF 20 to 22 AWG
GT8EC-＊S-HU
Ø0.9
to 1.1
GT8B-2428SCF 24 to 28 AWG
Part No.
GT8EC-3S-HU
GT8EC-5S-HU
GT8EC-8S-HU
GT8EC-14S-HU
HRS No.
758-1017-3 00
758-0074-1 00
758-1018-6 00
758-0224-2 00
No. of contacts
3
5
8
14
A dimension
7.9
12
16.6
28.4
B dimension
4
8
14
26
Packaging
RoHS
Socket
GT9
1
YES
203
GT15
GT8E Series
●
Internal connection
GT5

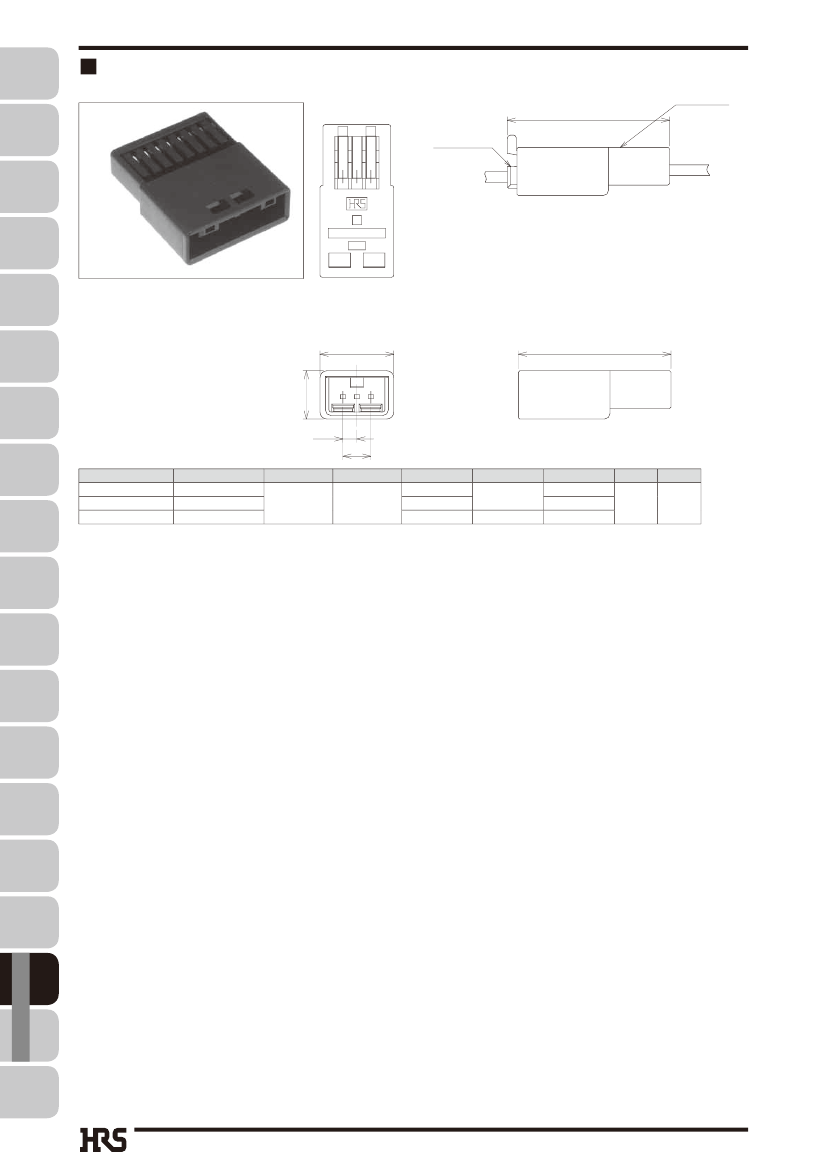

In-line Connectors
３
１
B
Fitting diagram
GT8E-*P-HU
(23.2)
GT8E-*S-HU
GT16
GT13
PO5G
＊
ＧＴ８Ｅ−＊Ｐ−ＨＵ
PBT
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT21
GT19
A
21.8
GT26
6.9
2
GT36
B
GT11
Part No.
GT8E-3P-HU
GT8E-4P-HU
GT8E-8P-HU
HRS No.
758-0084-5
758-0082-0
758-0038-8
Material
PBT
Color
Black
No. of contacts
3
4
8
A dimension
10.55
18.55
B dimension
4
6
14
Packaging
1
RoHS
Yes
Internal connection
GT15
GT9
GT8E
GT25
GT18W
GT10
GT7
GT3
GT32
GT17
Note 1 : GT8E-3P-HU can only be mated with GT8E-3S-HU. GT8E-4P-HU can only be mated with GT8E-4S-HU.
GT8E-8P-HU can only be mated with GT8E-8S-2C.
Note 2 : Applicable terminals are GT8E-2022PCF and GT8E-2428PCF.
Note 3 : GT8E-8P-HU can only be mated with GT8E-8S-HU.
204
