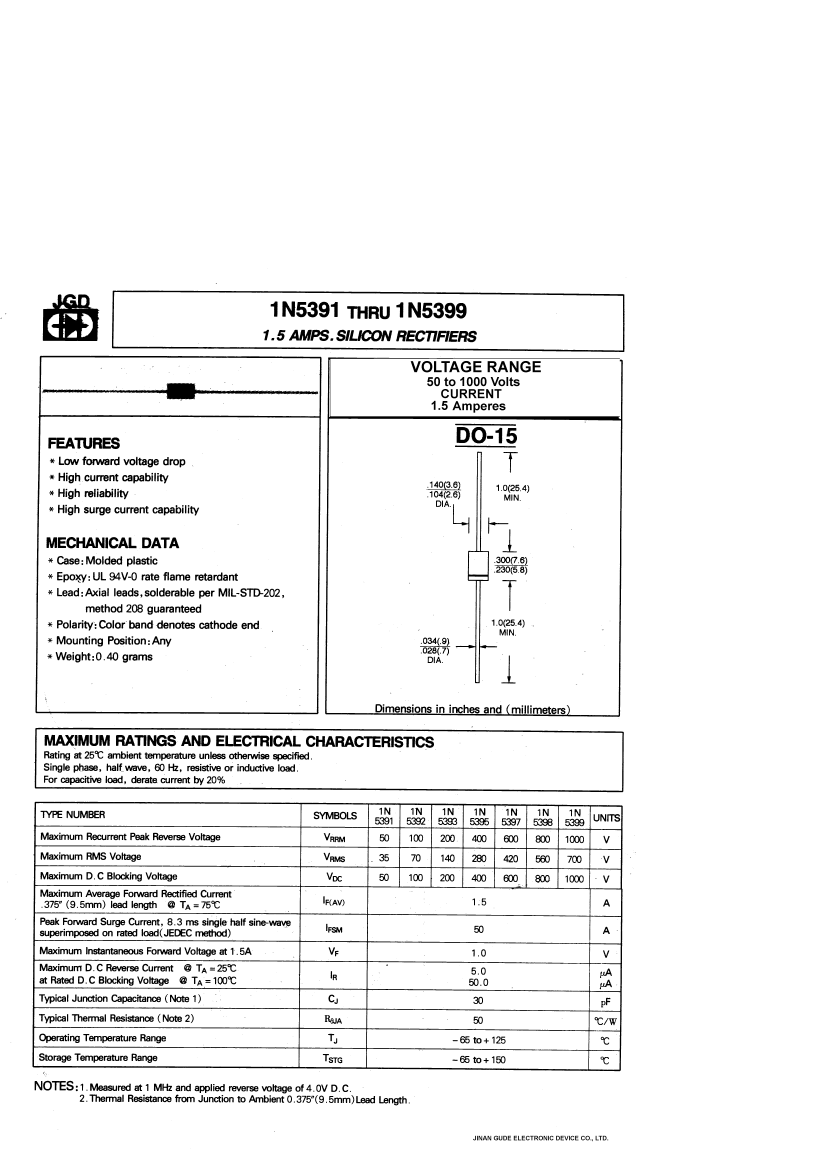

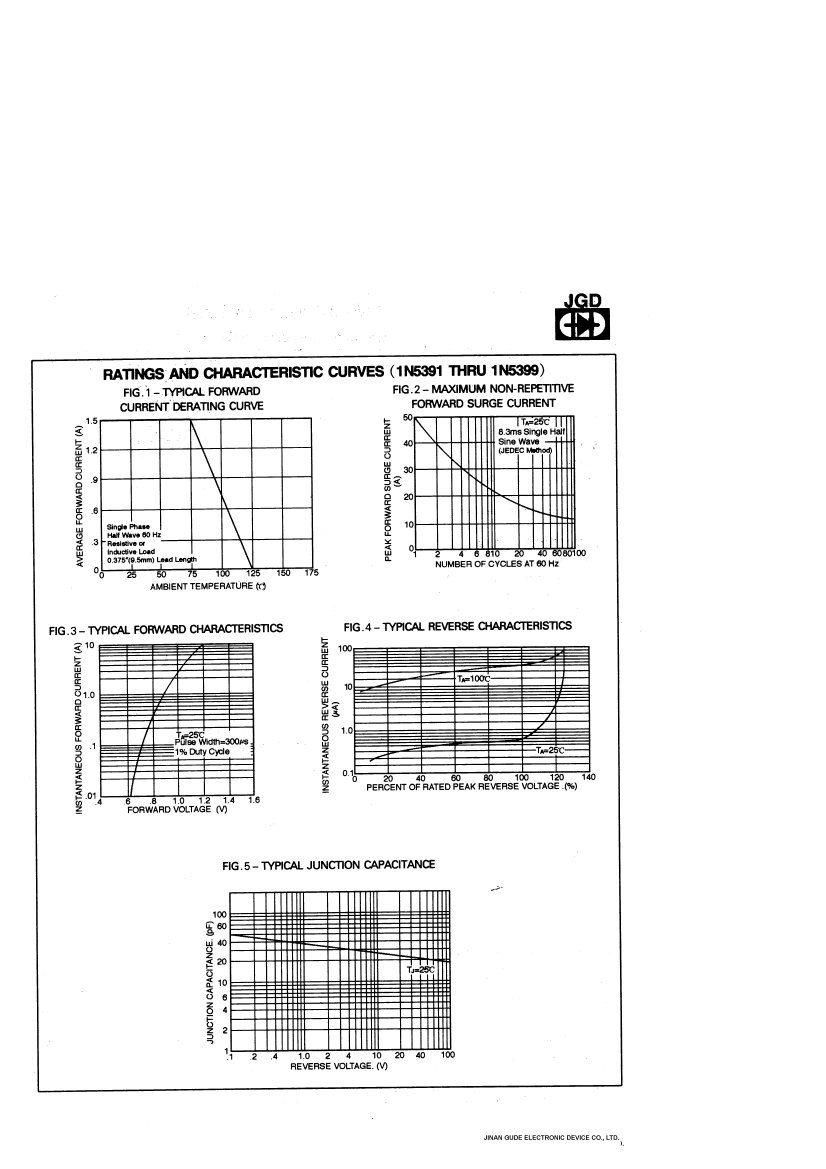

1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15
| Parameter Name | Attribute value |
| package instruction | O-PALF-W2 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | HIGH RELIABILITY |
| application | GENERAL PURPOSE |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1 V |
| JEDEC-95 code | DO-15 |
| JESD-30 code | O-PALF-W2 |
| Maximum non-repetitive peak forward current | 50 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 1.5 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | LONG FORM |
| Maximum repetitive peak reverse voltage | 400 V |
| Maximum reverse current | 5 µA |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | AXIAL |
| Base Number Matches | 1 |
| 1N5395 | 1N5391 | 1N5392 | 1N5393 | 1N5394 | 1N5396 | 1N5397 | 1N5398 | 1N5399 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | 1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15 | 1.5 A, 50 V, SILICON, RECTIFIER DIODE, DO-15 | 1.5 A, 100 V, SILICON, RECTIFIER DIODE, DO-41 | RECTIFIER DIODE, DO-15 | 1.5 A, 300 V, SILICON, RECTIFIER DIODE, DO-15 | 1.5 A, 500 V, SILICON, RECTIFIER DIODE, DO-204AL | 1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-41 | 1.5 A, 800 V, SILICON, RECTIFIER DIODE, DO-204AL | 1.5 A, 1000 V, SILICON, RECTIFIER DIODE, DO-15 |
| package instruction | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | - | - | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 |
| Reach Compliance Code | unknown | unknow | unknown | unknown | - | - | unknown | unknown | unknown |
| Other features | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY | - | - | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | - | - | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | - | - | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | - | - | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | - | - | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1 V | 1 V | 1 V | 1 V | - | - | 1 V | 1 V | 1 V |
| JEDEC-95 code | DO-15 | DO-15 | DO-15 | DO-15 | - | - | DO-15 | DO-15 | DO-15 |
| JESD-30 code | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | - | - | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 |
| Maximum non-repetitive peak forward current | 50 A | 50 A | 50 A | 50 A | - | - | 50 A | 50 A | 50 A |
| Number of components | 1 | 1 | 1 | 1 | - | - | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | - | - | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | - | - | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | - | - | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | - | - | -65 °C | -65 °C | -65 °C |
| Maximum output current | 1.5 A | 1.5 A | 1.5 A | 1.5 A | - | - | 1.5 A | 1.5 A | 1.5 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | - | - | ROUND | ROUND | ROUND |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM | - | - | LONG FORM | LONG FORM | LONG FORM |
| Maximum repetitive peak reverse voltage | 400 V | 50 V | 100 V | 200 V | - | - | 600 V | 800 V | 1000 V |
| Maximum reverse current | 5 µA | 5 µA | 5 µA | 5 µA | - | - | 5 µA | 5 µA | 5 µA |
| surface mount | NO | NO | NO | NO | - | - | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE | - | - | WIRE | WIRE | WIRE |
| Terminal location | AXIAL | AXIAL | AXIAL | AXIAL | - | - | AXIAL | AXIAL | AXIAL |
| Maker | - | JGD（Jinan Gude Electronic Device） | JGD（Jinan Gude Electronic Device） | - | - | - | JGD（Jinan Gude Electronic Device） | JGD（Jinan Gude Electronic Device） | JGD（Jinan Gude Electronic Device） |
