Slim, True-Color Fiber-Optic Sensor
Easy and reliable digital fiber-optic sensor
E3X-DAC-S offers true color detection
Color sensing engine covers all RGB wavelengths
One-touch teaching simplifies color setup and ranging
Fast workpiece detection, up to 60 µs
Space-saving, 10-mm wide amplifier
Wide range of cables/sensing heads
Color-sensing Engine
Easy and Reliable...
Featuring a Color-sensing Engine
Precise Color Detection
Intensity Detection
(Conventional Type)
Color Detection
(Color Sensing Type)

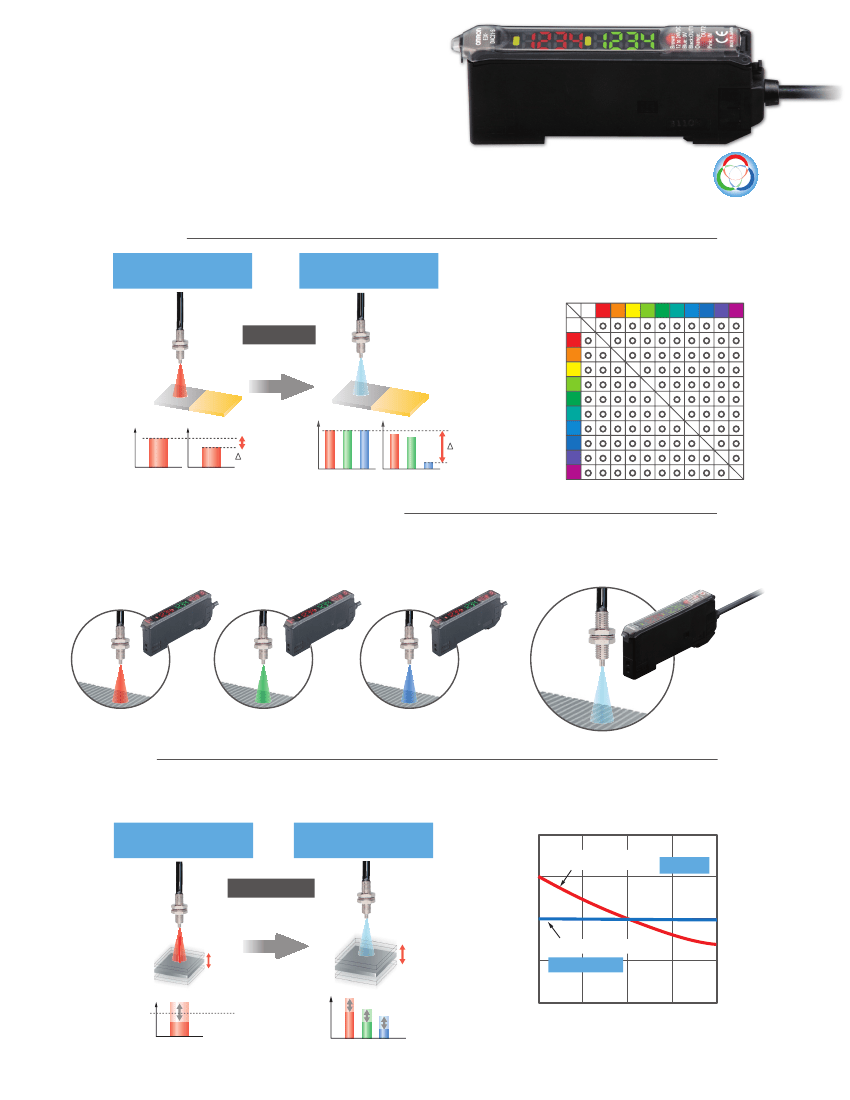

The color sensing engine uses three parameters, RGB, to process incident light. It
detects color information from the workpiece for precise detection of color differences.
Color Sensing
Color vs. Detection Capability
hi
t
Re e
d
Ye
llo
w
Ye -re
llo d
Ye w
llo
G w-g
re re
e
Bl n en
ue
Bl -gre
ue e
n
Bl
ue
Vi -vio
ol le
e t
Re t
d-
vio
le
t
W
Unstable...
White
Red
Yellow-red
Yellow
Yellow-green
Green
Blue-green
Blue
Incident light
intensity
100
90
RGB ratio
10
100 100 100
90 80 10
90
Blue-violet
Violet
Red-violet
No Need to Select Separate Red, Green, Blue LED Amplifiers
A high-power white LED and a multi-RGB processing system combine to cover all RGB wavelengths,
enabling easy and accurate detection of workpieces without having to use a different light source to
match each one.
+
Resists Movement
+
=
Changes in the three parameters are processed as a ratio, so they are not affected by light-intensity
variations due to workpiece movement.
Intensity Detection
(Conventional Type)
Color Detection
(Color Sensing Type)
100%
Intensity Detection
Digital value (%)
50%
0%
-50%
Affected
Misdetection...
Color Detection
Not affected
Incident light
intensity
80 to 130
RGB ratio
8
:
5
:
3
-100%
-20%
-10%
0%
10%
20%
Distance change (%)
2
Amplifier Unit

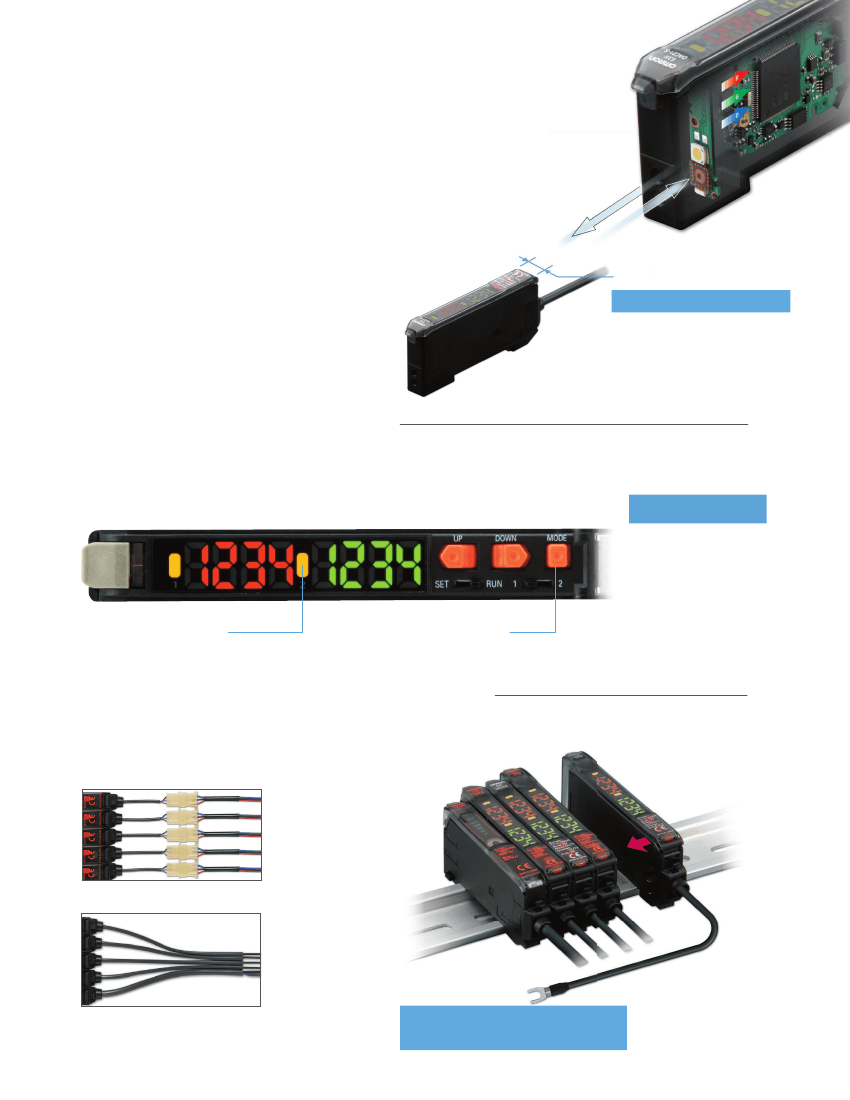

A Slim, 10-mm-wide Amplifier Unit
Use of a white LED and a one-package RGB
light-receiving element has made it possible
to unify the Amplifier Unit, both in size and
operation, with conventional fiber-optic sensors.
If detection should become unstable, the
Amplifier Unit can be separately replaced to
immediately regain stability.
Just 10mm wide
Thinnest in the Industry
Easy and Reliable ... Ease of Use and Smart Functions
In addition to ensuring ease of use, a number of smart functions have been included such as a
remote control to simplify setup. Advanced models offer twin sensing and output to simultaneously
distinguish two registered colors.
First in Its Class
The Setting guide function
shortens set-up and
improves reliability. It
guides the user to place
the workpiece in an
appropriate position
for teaching. (Indicates
OVER, OK, or LOW.)
Easy to understand
A double display for easy, precise setting.
Easy Setting
One push is all it takes.
Easy and Reliable ... Simplified Wiring Connector Reduces Work Steps
OMRON’s unique simplified wiring connectors provide the power for each added Sensor. Up to 16
Units can be mounted, including a combination of Digital Fiber Sensors and Digital Laser Sensors
that feature simplified wiring connectors.
Conventional fiber-optic
amplifiers require three
wiring connections for
each sensor.
Shown: 15 wires plus extension connector wires.
The new E3X-DAC-S
requires three wires for
the master sensor only.
Each additional sensor in
a group requires only one
wiring connection.
Shown: Only 7 wires with no additional
extension connectors.
Mix and Match
Omron Sensor
Amplifiers
From left to right
Digital Fiber Sensors
E3X-NA
E3X-DA-S/MDA
E3X-DAC-S
Power is supplied through the master
connection, so only one output wire is
required for additional sensors.
Digital Laser Sensor
E3C-LDA
Proximity Sensor
E2C-EDA
3
Application

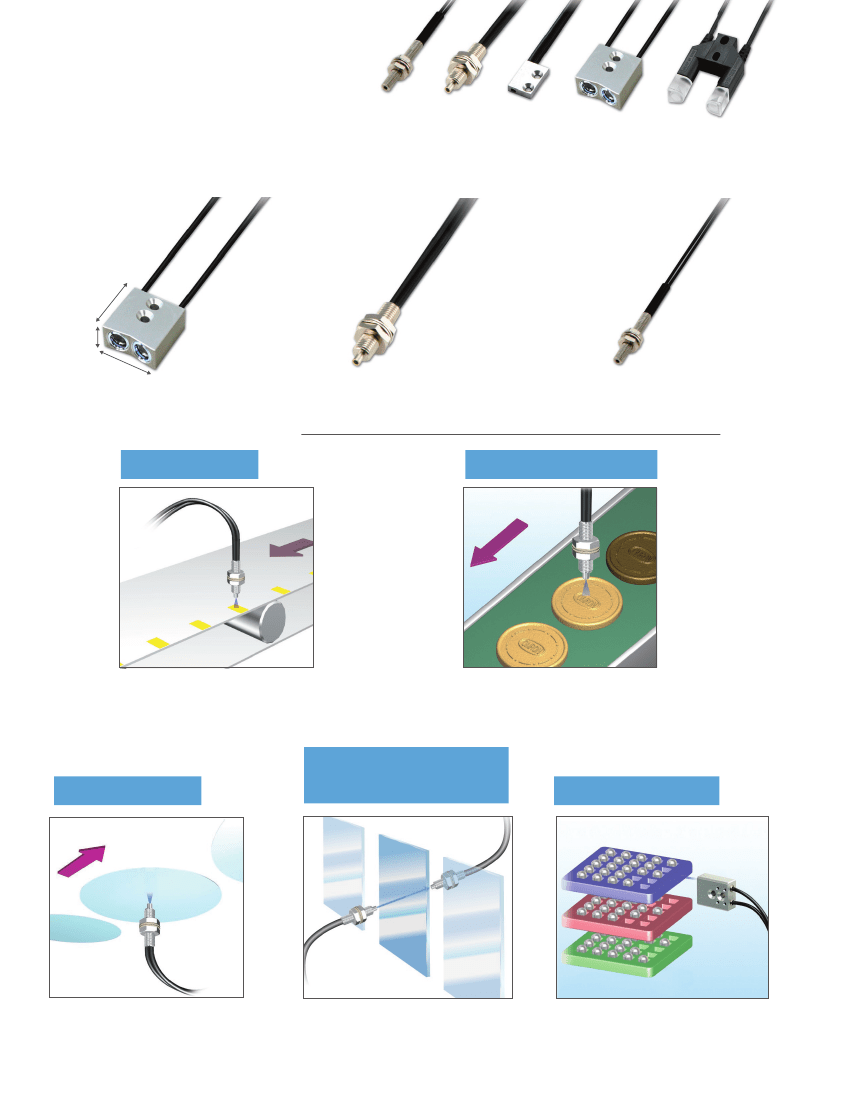

Wide Range of Fiber Heads Available
Long-distance
Fiber Head
E32-A09
Select from a wide range of Fiber Heads to match the workpiece and working space.
This makes installation possible even in small spaces.
General-
purpose
Fiber Head
E32-CC200
Compact
Fiber Head
E32-C31
23 mm
M6 screw
9 mm
20 mm
M3 screw
Detection Distance: 30 mm
Detection Distance: 9 mm
Detection Distance: 3 mm
Easy and Reliable Applications (Examples)
Detecting Marks
Distinguishing Products
Because it distinguishes RGB
ratios, detection is highly resistant
to workpiece movement.
Detection is highly resistant to the
effects of backgrounds and
surface protrusions.
Detecting Wafers
Distinguishing
Semi-transparent Objects
Distinguishing Trays
Workpieces that absorb a specific
wavelength can be detected with
a wide range of wavelengths.
4
Through-beam Fiber Heads are
capable of detecting color differences
in semi-transparent objects.
Twin sensing and remote control
functions simplify setup of color
sortation on a multi-product line.
Ordering Information
Amplifier Units
Amplifier Units with Cables
Item
Appearance
Functions
Model
NPN output
E3X-DAC11-S
PNP output
E3X-DAC41-S
Standard models
Timer, Response speed change
Advanced models
Standard models + Simultaneous
determination (2 colors)
AND/OR output, Remote setting
E3X-DAC21-S
E3X-DAC51-S
Amplifier Units with Connectors (Amplifier Unit Connectors must be purchased separately.)
Item
Appearance
Functions
Model
NPN output
PNP output
Standard models
Timer, Response speed change
E3X-DAC6-S
E3X-DAC8-S
Amplifier Unit Connectors (Order Separately)
Item
Master
Connector
2m
Slave
Connector
1
E3X-CN12
Appearance
Cable
length
No. of
conductors
3
Model
E3X-CN11
Combining Amplifier Units and
Connectors
Amplifier Units and Connectors are sold sep-
arately. Refer to the following tables when
placing an order.
Amplifier Unit
Model
NPN output
Standard models E3X-DAC6-S
PNP output
E3X-DAC8-S
Applicable Connector
(Order Separately)
Master Connector Slave Connector
+ E3X-CN11
E3X-CN12
When Using 5 Amplifier Units
Amplifier Units (5 Units)
+ 1 Master Connector 4 Slave Connectors
Accessories (Order Separately)
Mounting Bracket
Appearance
Model
E39-L143
Quantity
1
End Plate
Appearance
Model
PFP-M
1
Quantity
5
