Product data sheet
Characteristics

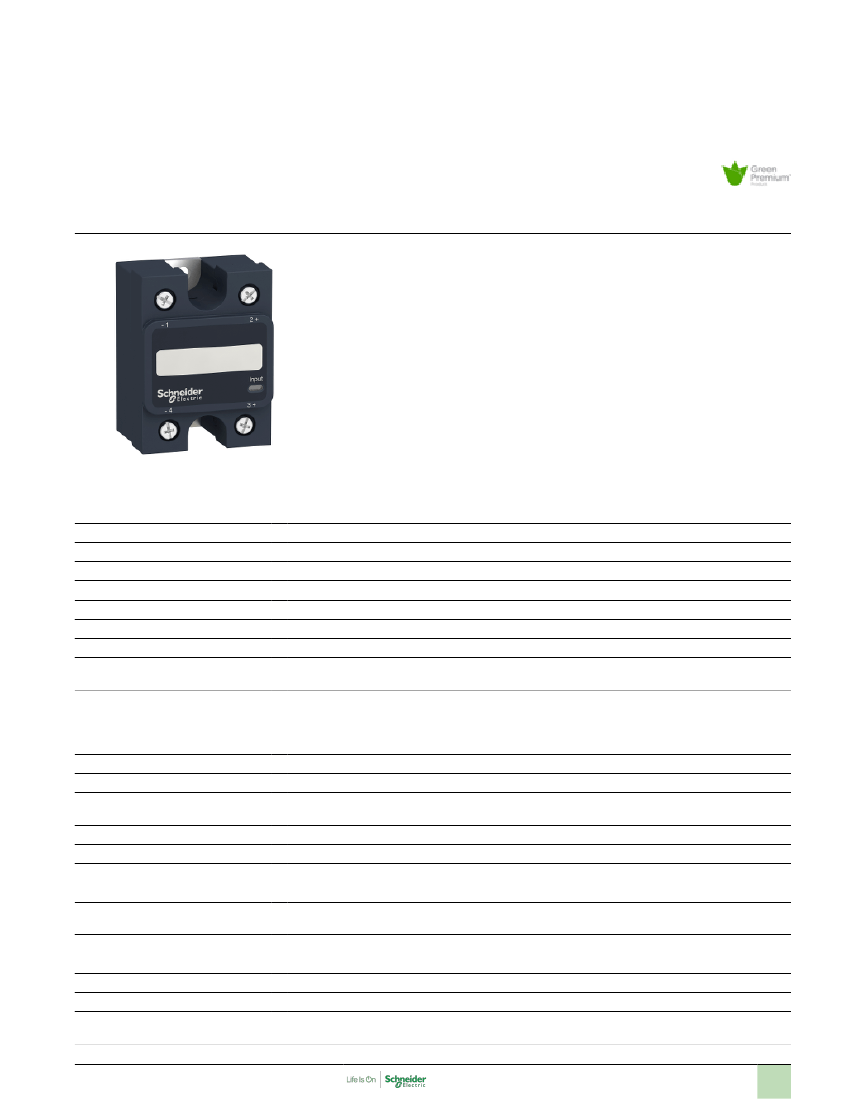

SSP1D425BD
solid state relay - panel mounting - input 3.5-32V
DC, output 1-150 V DC, 25A
Main
Range of product
Product or component type
Device short name
Mounting support
Network number of phases
Contacts type and composition
[In] rated current
Solid state output type
Zelio Relay
Solid state relay
SSP1
Panel
1 phase
1 NO
25 A
Mosfet output
DC switching
Complementary
[Uc] control circuit voltage
Minimum switching voltage
Maximum switching voltage
Response time
Input current limits
Output voltage
Load current
Surge current
Protection device type
Leakage current
Voltage drop
Insulation resistance
Capacitance unbalance
Dielectric strength
3.5...32 V DC
3.5 V DC turn-on
1 V DC turn-off
0.1 ms turn-on
0.1 ms turn-off
10...15 mA
1...150 V DC
0...25 A
<= 106 A for 10 ms
Type 1 - 25 A miniature circuit breaker (MCB) - curve B
Type 2 - 13 A miniature circuit breaker (MCB) - curve B
<= 0.3 mA off-state
2.1 V on-state
1000 MOhm at 500 V DC
50 pF for input/output
2.5 kV AC for input/output
2.5 kV AC for input or output to case
Dec 21, 2018
1
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
[Uimp] rated impulse withstand voltage
Tightening torque
Connections - terminals
2.5 kV output to case
1.5...1.7 N.m for input
2...2.2 N.m for output
Forked type tag connectors : 9.2 x 4 mm for input
Ring lugs : 9.2 x 4 mm for input
Forked type tag connectors : 11.7 x 4.5 mm for output
Ring lugs : 11.7 x 4.5 mm for output
Screw terminals : 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input
Screw terminals : 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output
Screw terminals : 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input
Screw terminals : 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output
0.22 °C/W junction to case
LED, green for input
IP20
MTTFd = 1875.9 years
B10d = 1731395
89.2 g
Thermal resitance
Local signalling
IP degree of protection
Safety reliability data
Product weight
Environment
Ambient air temperature for operation
Ambient air temperature for storage
Pollution degree
Overvoltage category
Product certifications
-40...80 °C
-40...125 °C
2
III
CE
CSA
RoHS
UL
REACH
EAC
CE
CSA
UL
EAC
EN/IEC 60950-1
UL 508
EN/IEC 62314
CSA C22.2 No 14-13
Marking
Standards
Offer Sustainability
Sustainable offer status
RoHS (date code: YYWW)
REACh
Product environmental profile
Product end of life instructions
Green Premium product
Compliant - since 1522 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Available
Product Environmental Profile
Available
End of Life Information
