TSOP593.., TSOP595..
www.vishay.com
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
4
FEATURES
3
2
1
• Improved immunity against HF and RF noise
• Low supply current
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Supply voltage: 2.5 V to 5.5 V
• Improved immunity against ambient light
• Two lenses for high sensitivity
• Insensitive to supply voltage ripple and noise
• Ultra small top-view PCB footprint
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
22963
DESCRIPTION
click logo to get started
DESIGN SUPPORT TOOLS
Models
Available
MECHANICAL DATA
Pinning:
1, 4 = GND, 2 = V
S
, 3 = OUT

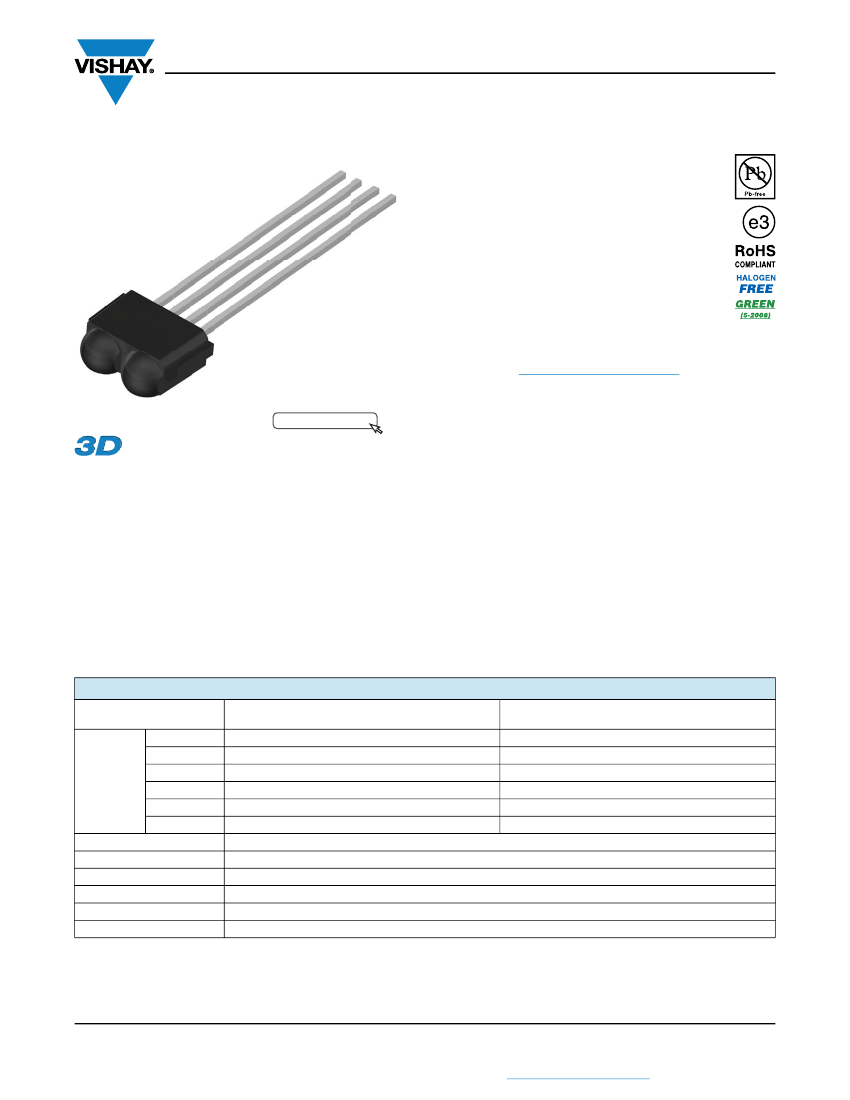

The TSOP59... series are miniaturized receiver modules for
infrared remote control systems. Two PIN diodes and a
preamplifier are assembled on a leadframe, the epoxy
package contains an IR filter. The demodulated output
signal can be directly connected to digital circuitry for
decoding.
The TSOP593.. series devices are optimized to suppress
almost all spurious pulses from Wi-Fi and energy saving
lamps (CFLs). They may also suppress some data signals if
continuously transmitted.
The TSOP595.. series contains a very robust AGC5. This
series should only be used for critically noisy environments.
Please check compatibility with your codes.
These components have not been qualified according to
automotive specifications.
PARTS TABLE
AGC
30 kHz
33 kHz
Carrier
frequency
36 kHz
38 kHz
40 kHz
56 kHz
Package
Pinning
Dimensions (mm)
Mounting
Application
Best choice for
(1)
NOISY ENVIRONMENTS
AND SHORT BURSTS (AGC3)
TSOP59330
TSOP59333
TSOP59336
(1)
TSOP59338
(2)(3)(4)(5)
VERY NOISY ENVIRONMENTS
AND SHORT BURSTS (AGC5)
TSOP59530
TSOP59533
TSOP59536
TSOP59538
TSOP59540
TSOP59556
TVCast
TSOP59340
TSOP59356
1, 4 = GND, 2 = V
S
, 3 = OUT
6.8 W x 2.6 H x 5.3 D
Leaded
Remote control
MCIR
(2)
Mitsubishi
(3)
RECS-80 Code
(4)
r-map
(5)
XMP-1
Rev. 1.3, 26-Sep-2018
1
Document Number: 82776
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TSOP593.., TSOP595..
www.vishay.com

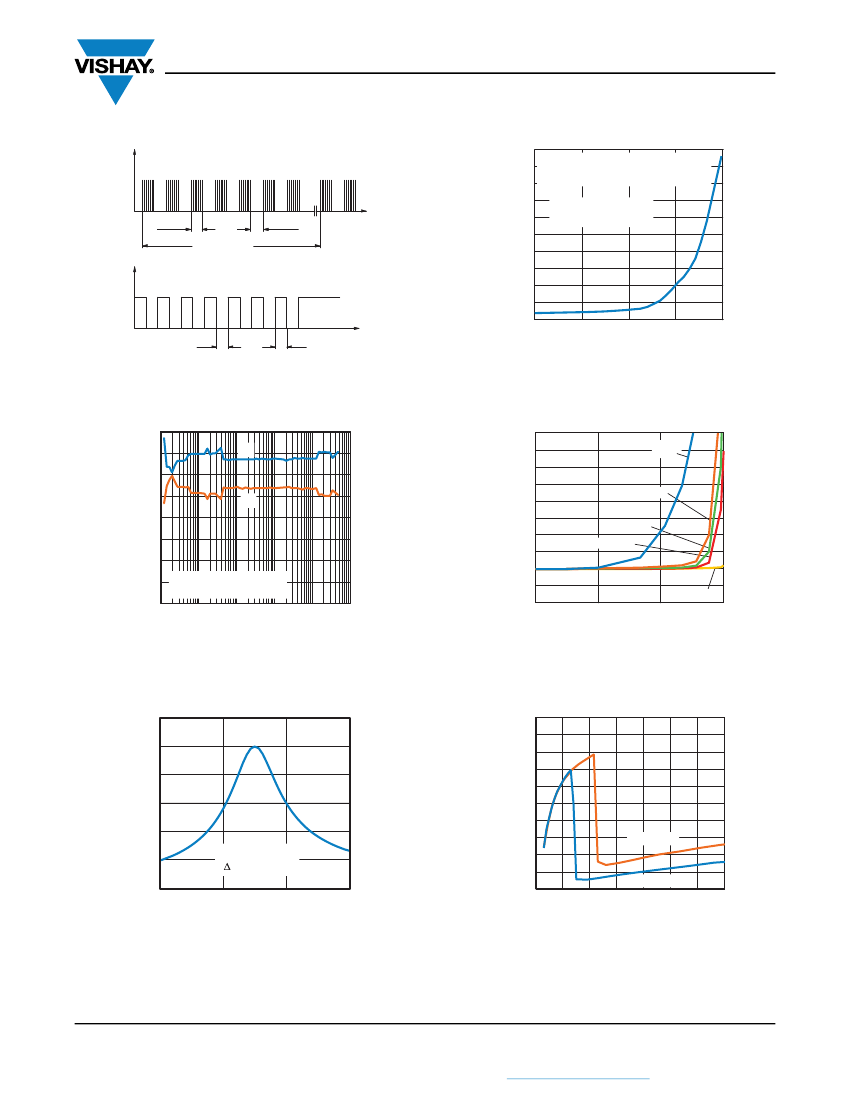

BLOCK DIAGRAM
2
30 k
Ω
Band
pass
Demo-
dulator
V
S
3
Input
AGC
OUT
1, 4
PIN
20445-1
Vishay Semiconductors
APPLICATION CIRCUIT
17170-11
R
1
IR receiver
V
S
Circuit
C
1
OUT
GND
V
O
μC
GND
+ V
S
Transmitter
with
TSALxxxx
Control circuit
GND
R
1
and C
1
recommended to reduce
supply
ripple for V
S
< 2.8 V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Supply voltage
Supply current
Output voltage
Voltage at output to supply
Output current
Junction temperature
Storage temperature range
Operating temperature range
Power consumption
Soldering temperature
TEST CONDITION
SYMBOL
V
S
I
S
V
O
V
S
- V
O
I
O
T
j
T
stg
T
amb
P
tot
T
sd
VALUE
-0.3 to +6
5
-0.3 to 5.5
-0.3 to (V
S
+ 0.3)
5
100
-25 to +85
-25 to +85
10
260
UNIT
V
mA
V
V
mA
°C
°C
°C
mW
°C
T
amb
≤
85 °C
t
≤
10 s, 1 mm from case
Note
• Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification
is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability
ELECTRICAL AND OPTICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
SYMBOL
I
SD
Supply current
I
SH
Supply voltage
V
S
d
Transmission distance
E
v
= 0, test signal see Fig. 1, IR diode TSAL6200, I
F
= 50 mA
2
, test signal see Fig. 1
V
OSL
Output voltage low
I
OSL
= 0.5 mA, E
e
= 0.7 mW/m
E
e min.
Minimum irradiance
Pulse width tolerance: t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
, test signal see Fig. 1
Maximum irradiance
t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
, test signal see Fig. 1
E
e max.
Directivity
Angle of half transmission distance
ϕ
1/2
PARAMETER
TEST CONDITION
E
v
= 0, V
S
= 5 V
E
v
= 40 klx, sunlight
MIN.
0.55
-
2.5
-
-
-
50
-
TYP.
0.7
0.8
-
18
-
0.2
-
± 45
MAX.
0.9
-
5.5
-
100
0.4
-
-
UNIT
mA
mA
V
m
mV
mW/m
2
W/m
2
deg
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
E
e
Optical Test Signal
(IR diode TSAL6200, I
F
= 0.4 A, N = 6 pulses, f = f
0
, t = 10 ms)
0.5
t
po
- Output Pulse Width (ms)
0.4
λ
= 950 nm,
optical test
signal,
Fig. 1
t
pi
*)
T
t
0.3
Output pulse width
*) t
pi
≥
6/f0 is recommended for optimal function
Output Signal
V
O
V
OH
V
OL
t
d 1)
1)
14337
0.2
Input burst length
0.1
3/f
0
< t
d
< 9/f
0
2)
t
pi
- 4/f
0
< t
po
< t
pi
+ 6/f
0
t
po 2)
t
0
0.1
10
1000
100 000
E
e
- Irradiance
Fig. 1 - Output Active Low
Rev. 1.3, 26-Sep-2018
2
(mW/m
2
)
Fig. 2 - Pulse Length and Sensitivity in Dark Ambient
Document Number: 82776
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TSOP593.., TSOP595..
www.vishay.com
Vishay Semiconductors
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0.01
0.1
1
10
100
Wavelength of ambient
illumination:
λ
= 950 nm
Correlation with ambient light sources:
10 W/m
2
= 1.4 klx (std. illum. A, T = 2855 K)
10 W/m
2
= 8.2 klx (daylight, T = 5900 K)
E
e
600 µs
t = 60 ms
V
O
V
OH
V
OL
t
on
Output Signal,
(see Fig. 4)
600 µs
t
94 8134
t
off
t
E
e min.
- Threshold Irradiance (mW/m
2
)
Optical Test Signal
E
e
- Ambient DC Irradiance (W/m
2
)
Fig. 3 - Output Function
Fig. 6 - Sensitivity in Bright Ambient
E
e min.
- Threshold Irradiance (mW/m
2
)
t
on
, t
off
- Output Pulse Width (ms)
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0.1
1
10
100
1000
10 000
λ
= 950 nm,
optical test
signal,
Fig. 3
t
off
t
on
1.0
0.9
0.8
0.7
f = 30 kHz
0.6
0.5
f = 20 kHz
0.4
0.3
0.2
0.1
0
1
10
100
f = 100 Hz
1000
f = 10 kHz
f = f
0
E
e
- Irradiance (mW/m
2
)
Fig. 4 - Output Pulse Diagram
ΔV
s
RMS
- AC Voltage on DC Supply Voltage (mV)
Fig. 7 - Sensitivity vs. Supply Voltage Disturbances
1.2
1.0
Maximum Envelope Duty Cycle
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
TSOP595..
0
20
40
60
80
100
120
140
TSOP593..
E
e min.
/E
e
- Rel. Responsivity
1.0
0.8
0.6
0.4
0.2
0.0
0.7
0.9
1.1
1.3
f = f
0
± 5 %
f (3 dB) = f
0
/7
16926
f/f
0
- Relative Frequency
Burst Length (Number of Cycles/Burst)
Fig. 8 - Max. Envelope Duty Cycle vs. Burst Length
Fig. 5 - Frequency Dependence of Responsivity
Rev. 1.3, 26-Sep-2018
3
Document Number: 82776
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TSOP593.., TSOP595..
www.vishay.com
Vishay Semiconductors
0°
10°
20°
30°
0.40
E
e min.
- Sensitivity (mW/m
2
)
0.35
0.30
40°
0.25
0.20
0.15
0.10
0.05
0
-30
1.0
0.9
0.8
0.7
50°
60°
70°
80°
-10
10
30
50
70
90
0.6
0.4
0.2
0
T
amb
- Ambient Temperature (°C)
d
rel
- Relative Transmission Distance

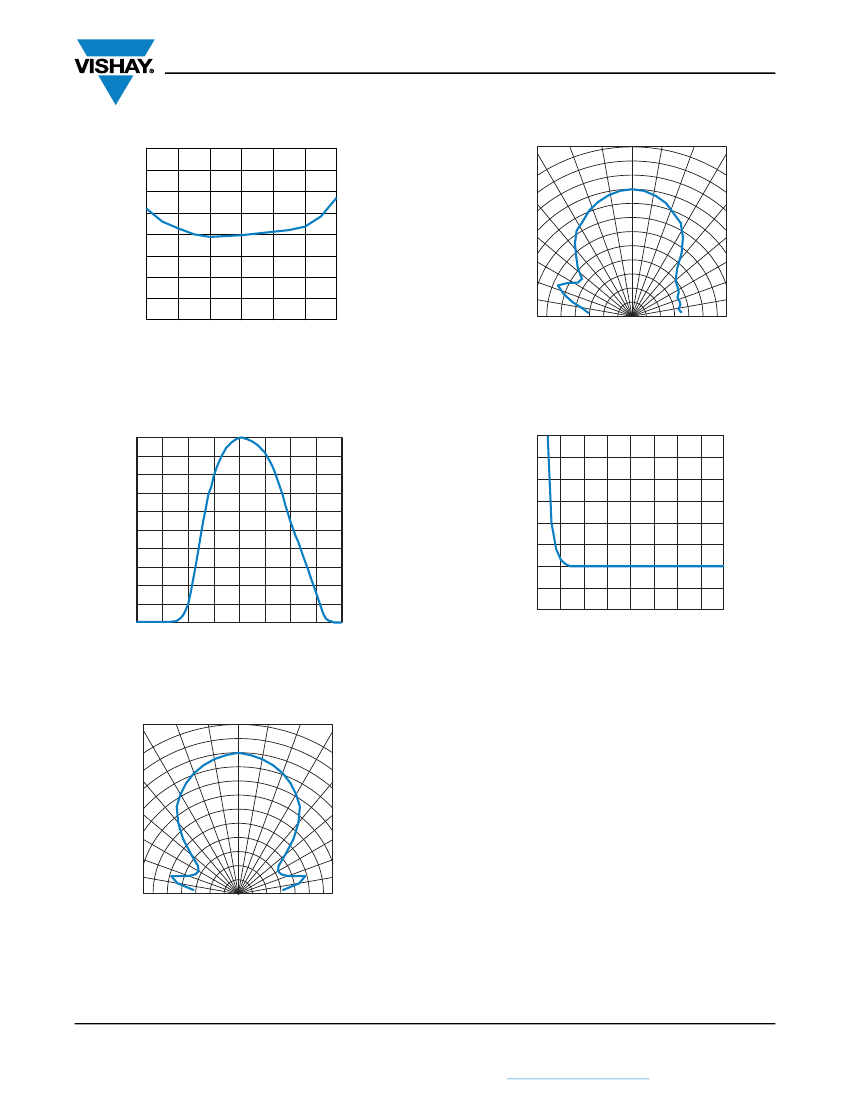

Fig. 12 - Vertical Directivity
Fig. 9 - Sensitivity vs. Ambient Temperature
Axis Title
1.0
2nd line
S(λ)
rel.
- Relative Spectral Sensitivity
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
750
21425
10000
0.8
E
e min.
- Sensitivity (mW/m
2
)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
1.5
1000
1st line
2nd line
100
850
950
1050
10
1150
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
V
S
- Supply Voltage (V)
λ - Wavelength (nm)
Fig. 10 - Relative Spectral Sensitivity vs. Wavelength
Fig. 13 - Sensitivity vs. Supply Voltage
0°
10°
20°
30°
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
d
rel
- Relative Transmission Distance
Fig. 11 - Horizontal Directivity
Rev. 1.3, 26-Sep-2018
4
Document Number: 82776
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TSOP593.., TSOP595..
www.vishay.com
SUITABLE DATA FORMAT
This series is designed to suppress spurious output pulses
due to noise or disturbance signals. The devices can
distinguish data signals from noise due to differences in
frequency, burst length, and envelope duty cycle. The data
signal should be close to the device’s band-pass center
frequency (e.g. 38 kHz) and fulfill the conditions in the table
below
When a data signal is applied to the product in the presence
of a disturbance, the sensitivity of the receiver is
automatically reduced by the AGC to insure that no spurious
pulses are present at the receiver’s output.
Some examples which are suppressed are:
• DC light (e.g. from tungsten bulbs sunlight)
• Continuous signals at any frequency
• Strongly or weakly modulated pattern from fluorescent
lamps with electronic ballasts (see Fig. 14 or Fig. 15)
16920
Vishay Semiconductors
Axis Title
7
6
2nd line
IR Signal Amplitude
5
4
3
2
1
0
0
5
10
Time (ms)
15
20
10
100
10000
1000
1st line
2nd line
Axis Title
10000
1000
1st line
2nd line
100
10
0
5
10
Time (ms)
15
20
Fig. 14 - IR Disturbance from Fluorescent Lamp
With Low Modulation
40
20
2nd line
IR Signal Amplitude
0
-20
-40
-60
16921
Fig. 15 - IR Disturbance from Fluorescent Lamp
With High Modulation
TSOP593..
Minimum burst length
After each burst of length
a minimum gap time is required of
For bursts greater than
a minimum gap time in the data stream is needed of
Maximum number of continuous short bursts/second
MCIR code
XMP-1, XMP-2 code
Suppression of interference from fluorescent lamps
6 cycles/burst
6 to 35 cycles
≥
10 cycles
35 cycles
> 6 x burst length
2000
Preferred
Preferred
Mild and complex disturbance
patterns are suppressed (example:
signal patterns of Fig. 14 and Fig. 15)
TSOP595..
6 cycles/burst
6 to 24 cycles
≥
10 cycles
24 cycles
> 25 ms
2000
Yes
Yes
Critical disturbance
patterns are suppressed,
e.g. highly dimmed LCDs
Note
• For data formats with long bursts please see the datasheet for TSOP592.., TSOP594..
Rev. 1.3, 26-Sep-2018
5
Document Number: 82776
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
