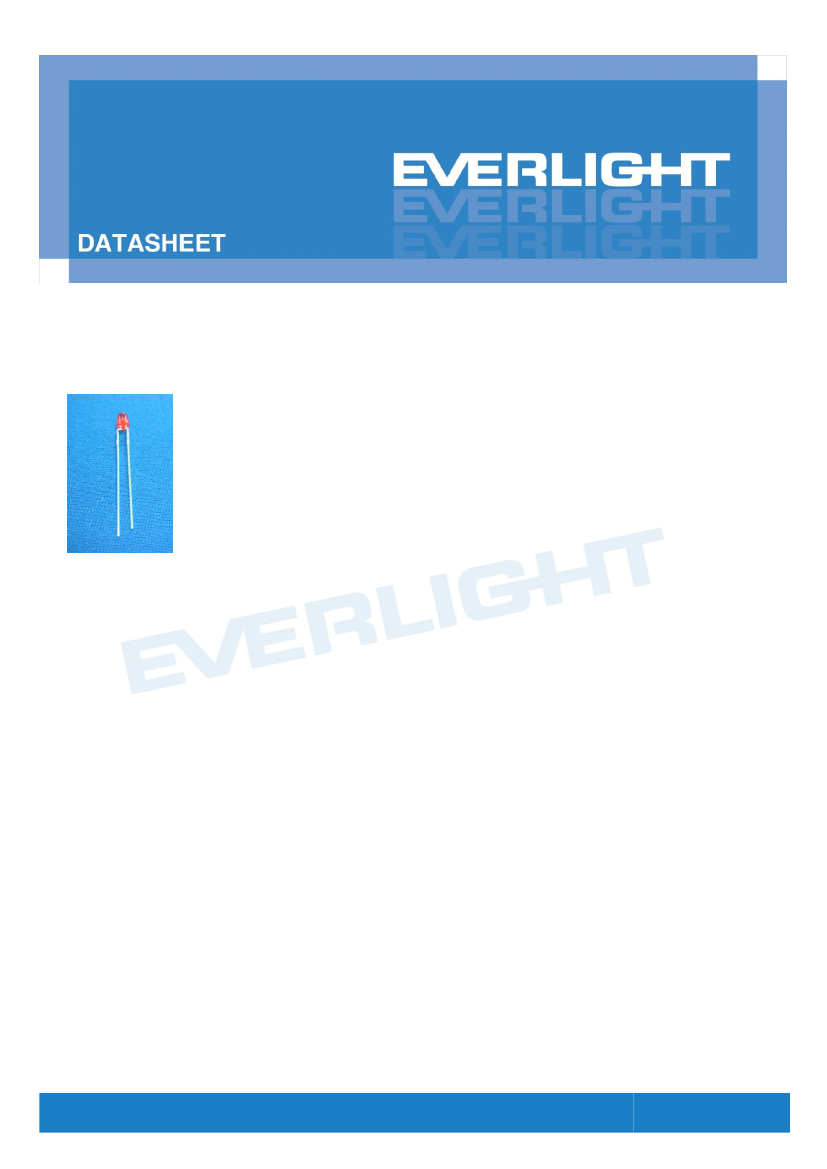

LAMP
MV57640/QT264-3ID
Features
• Choice of various viewing angles
• Available on tape and reel.
• Reliable and robust
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH
• Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
Description
•The series is specially designed for applications requiring higher brightness
•The led lamps are available with different colors, intensities..
Applications
• TV set
• Monitor
• Telephone
• Computer
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : May .08. 2018. Issue No: DLE-0009557_Rev.1
Ver.:1
Release Date:05/11/2018
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
LAMP
MV57640/QT264-3ID
Device Selection Guide
Chip
Materials
GaP
Emitted Color
High Efficiency Red
Resin Color
Red Diffuse
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current (Duty 1/10 @ 1KHZ)
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
I
F
I
FP
V
R
P
d
T
opr
Tstg
T
sol
Rating
30
1.0
5
120
-55~ +100
-55 ~ +100
260
℃
for 5 sec.
Unit
mA
A
V
mW
℃
℃
Electro-Optical Characteristics (Ta=25℃)
Conditio
n
I
F
=10mA
I
F
=10mA
I
F
=10mA
I
F
=10mA
I
F
=10mA
I
F
=10mA
I
R
=100μA
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Reverse Current
Note:
Symbol
Iv
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
Min.
1.0
-----
-----
-----
-----
-----
5.0
Typ.
2.0
90
660
655
20
1.6
-----
Max.
-----
-----
-----
-----
-----
2.0
-----
Unit
mcd
deg
nm
nm
nm
V
μA
*Measurement Uncertainty of Forward Voltage: ±0.1V
*Measurement Uncertainty of Luminous Intensity: ±10%
*Measurement Uncertainty of Dominant Wavelength ±1.0nm
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : May .08. 2018. Issue No: DLE-0009557_Rev.1
Ver.:1
Release Date:05/11/2018
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
LAMP
MV57640/QT264-3ID

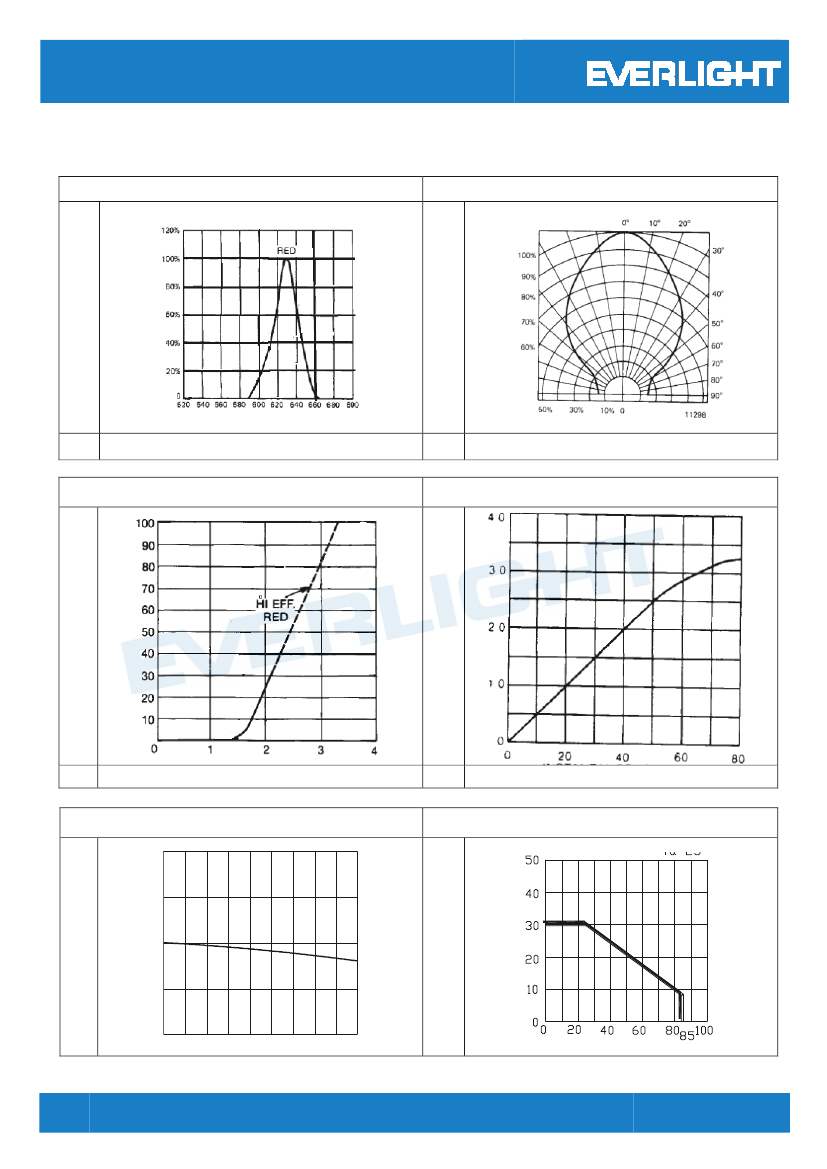

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength (Ta=25℃)
Directivity (Ta=25℃)
Relative Intensity (a.u.)
Wavelength (nm)
Forward Current vs. Forward Voltage (Ta=25℃)
Radiation Angle
Relative Intensity (a.u.)
Relative Intensity vs. Forward Current (Ta=25℃)
Forward Voltage (V)
Relative Intensity vs. Ambient Temp.
2.0
Relative Intensity(a.u.)
Forward Current (mA)
Forward Current (mA)
Forward Current vs. Ambient Temp.
Relative Intensity(a.u.)
1.5
1.0
0.5
0.0
25
30
35
40
45
50
55
60
65
70
3
Forward Current (mA)
Copyright © 2010, Everlight All Rights Reserved. Release Date : May .08. 2018. Issue No: DLE-0009557_Rev.1
Ver.:1
Release Date:05/11/2018
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
LAMP
MV57640/QT264-3ID
Ambient Temperature Ta(℃)
Ambient Temperature Ta(℃)

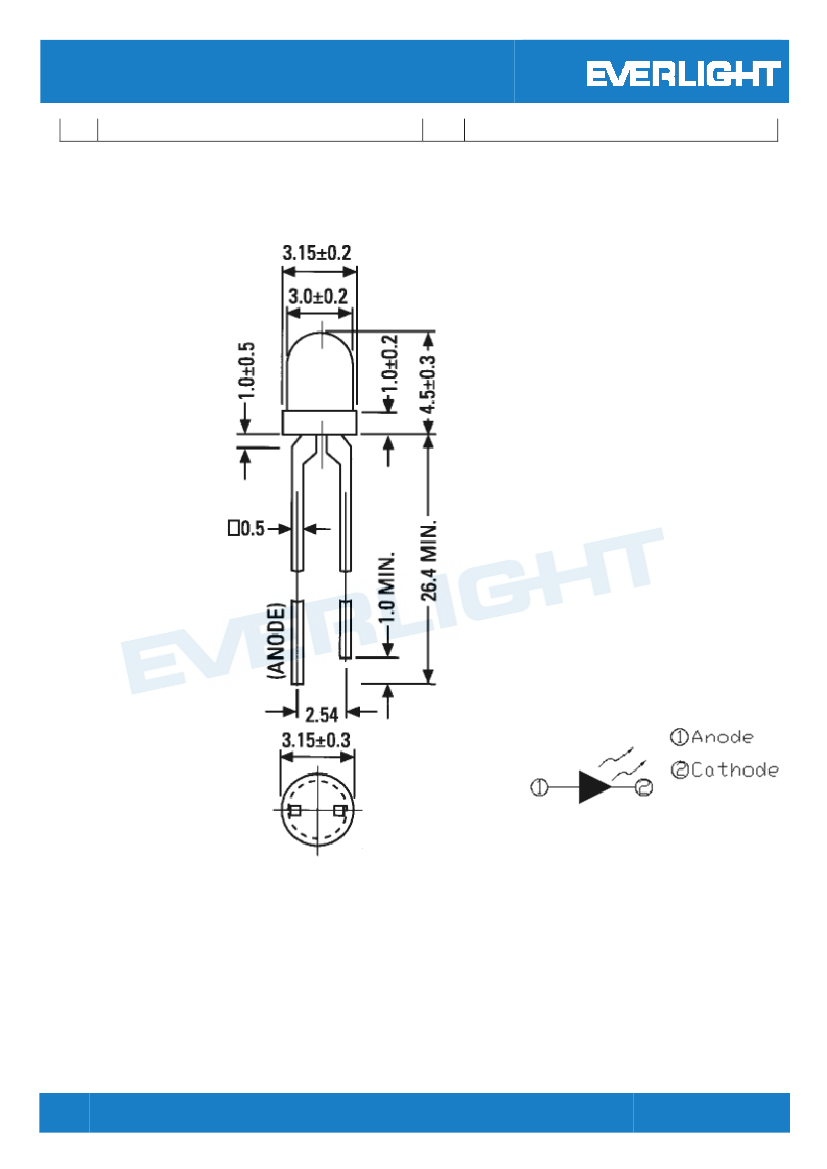

Package Dimension
Note: Note:
1. All dimensions are in millimeters
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared, the tolerance is ±0.25mm.
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : May .08. 2018. Issue No: DLE-0009557_Rev.1
Ver.:1
Release Date:05/11/2018
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
LAMP
MV57640/QT264-3ID

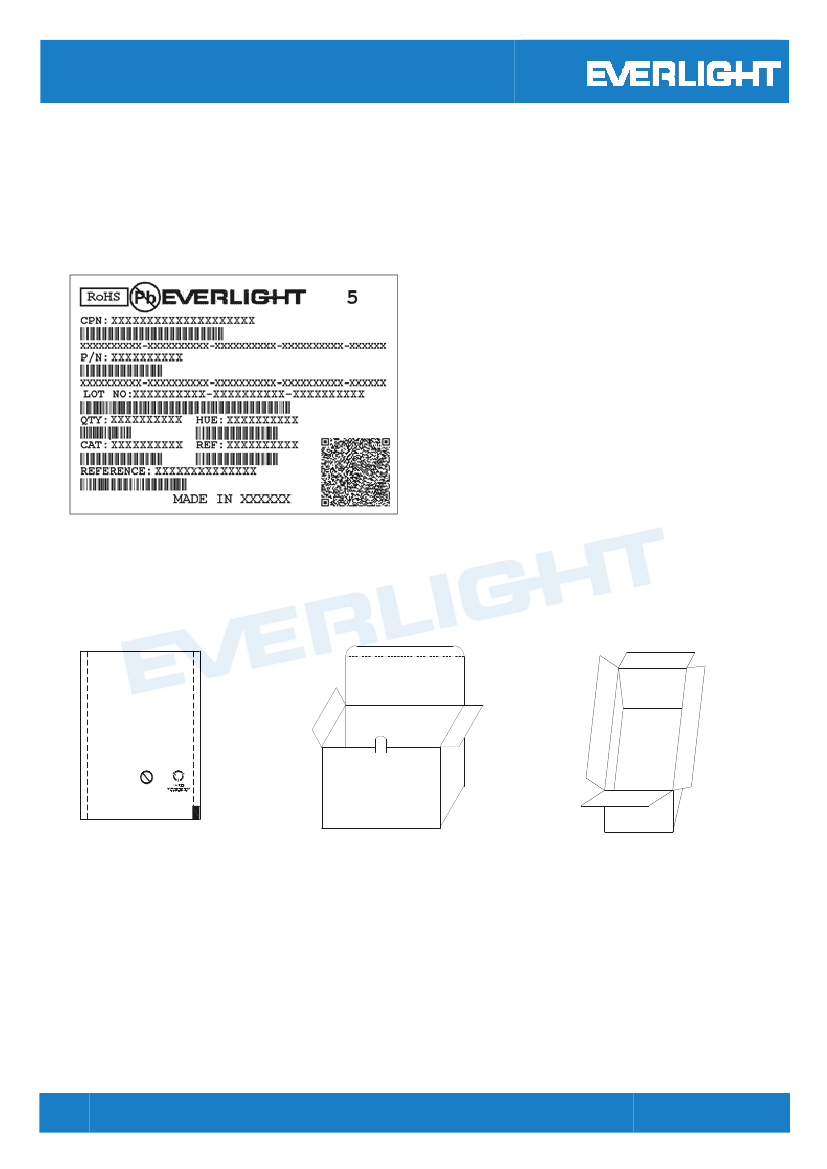

Moisture Resistant Packing Materials
Label Explanation
CPN: Customer's
Production Number
P/N : Production Number
QTY: Packing Quantity
CAT:
Ranks of Luminous Intensity
HUE:
Ranks of Dominant Wavelength
REF:
Ranks of Forward Voltage
LOT No: Lot Number
Packing Specification
■ Anti-electrostatic bag
■ Inner Carton
■ Outside Carton
Pb
EL ECTROSTATIC ELECTRONAGNETIC
MAGNETIC OR RADIOACTIVE RELDS
anti-static for 750
■ Packing Quantity
1. 250 PCS/1 Bag, 4 Bags/1 Inner Carton
2. 10 Inner Cartons/1 Outside Carton
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : May .08. 2018. Issue No: DLE-0009557_Rev.1
Ver.:1
Release Date:05/11/2018
狀態:Approved(正式發行)
www.everlight.com
