PLW3014AAA30B5

Description
High Power LED - White 3000K CCT 0.1W 30mA 3.1Vf 11lm 80 CRI
CategoryLED optoelectronic/LED    LED lighting    The LED emitter    High power LED - white
File Size1MB，21 Pages
ManufacturerPlessey Semiconductors
Environmental Compliance
Download Datasheet Parametric Compare View All

PLW3014AAA30B5 Online Shopping

Suppliers Part Number Price MOQ In stock
PLW3014AAA30B5 - - View Buy Now

PLW3014AAA30B5 Overview

High Power LED - White 3000K CCT 0.1W 30mA 3.1Vf 11lm 80 CRI

PLW3014AAA30B5 Parametric

Parameter NameAttribute value
MakerPlessey Semiconductors
Product CategoryHigh Power LED - White
productWhite LEDs
Installation styleSMD/SMT
lighting colorWhite (Warm White)
Wavelength/Color Temperature3000 K
Luminous flux/radiant flux11 lm
Color Rendering Index - CRI80
display angle120 deg
If - forward current30 mA
Vf - forward voltage3.2 V
length2.7 mm
width1.4 mm
high0.7 mm
Minimum operating temperature- 40 C
Maximum operating temperature+ 85 C
seriesPLW3014AAA
EncapsulationReel
Factory packaging quantity4000

Preview

Download Datasheet

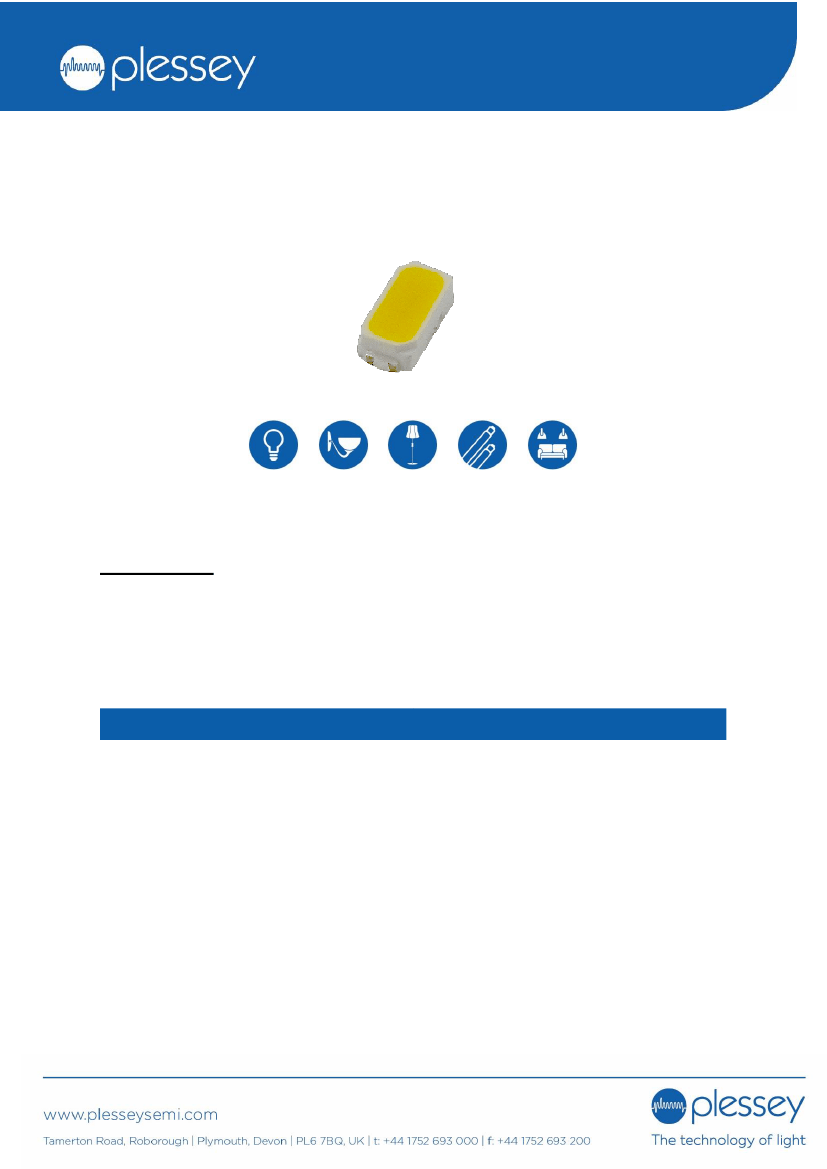

PLW3014AAA Series
Product Datasheet
Bulb
Wall
Light
Floor
Lamp
Tube
Light
General
Lighting
Introduction
Plessey PLW3014AAA SMT LEDs are designed for flashlights, backlighting, linear tubes and
other general lighting applications. The light is emitted close to a Lambertian distribution and
hence this SMT package is naturally suitable for backlighting panels and symbols. The LEDs
are packed in reels containing 4,000 pcs; each individual reel will be shipped in single
intensity and colour bin, to provide close uniformity.
Description
Best luminous and colour uniformity.
Enables halogen and CDM replacement.
The article itself presents the actual
colour.
Features and Benefits
High luminous intensity and high
efficiency.
Based on Blue InGaN technology.
Wide viewing angle: 120°.
Excellent performance and visibility.
Suitable for all SMT assembly methods.
IR reflow process compatible.
Environmental friendly; RoHS
compliance.

PLW3014AAA30B5 Related Products

PLW3014AAA30B5 PLW3014AAA27B3 PLW3014AAA27B5 PLW3014AAA30B3 PLW3014AAA57B5 PLW3014AAA40B5 PLW3014AAB50B5 PLW3014AAB57B5 PLW3014AAA35B5 PLW3014AAA57B3
Description High Power LED - White 3000K CCT 0.1W 30mA 3.1Vf 11lm 80 CRI High Power LED - White 2700K CCT 0.1W 30mA 3.1Vf 11lm 80 CRI High Power LED - White 2700K CCT 0.1W 30mA 3.1Vf 11lm 80 CRI High Power LED - White 3000K CCT 0.1W 30mA 3.1Vf 11lm 80 CRI High Power LED - White 5700 CCT 5Step White 40mA 10uA 5Vr 100mW High Power LED - White 4000K CCT 0.1W 30mA 3.1Vf 12lm 80 CRI High Power LED - White 5000K CCT 0.1W 30mA 3.1Vf 12lm 80 CRI High Power LED - White 5700K CCT 0.1W 30mA 3.1Vf 12lm 80 CRI High Power LED - White 3500K CCT 0.1W 30mA 3.1Vf 11lm 80 CRI High Power LED - White Cool White 5700 CCT Blue InGaN 100mA
Maker Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors Plessey Semiconductors
Product Category High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White High Power LED - White
product White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs White LEDs
lighting color White (Warm White) Warm White White (Warm White) White (Warm White) White (Cool White) White (Neutral White) White (Cool White) White (Cool White) White (Warm White) White (Cool White)
Wavelength/Color Temperature 3000 K 2700 K 2700 K 3000 K 5700 K 4000 K 5000 K 5700 K 3500 K 5700 K
Luminous flux/radiant flux 11 lm 11 lm 11 lm 11 lm 10 lm 12 lm 12 lm 12 lm 11 lm 10 lm
Color Rendering Index - CRI 80 80 80 80 80 80 80 80 80 80
display angle 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg
If - forward current 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA
Vf - forward voltage 3.2 V 3.2 V 3.2 V 3.2 V 3.2 V 3.2 V 3.1 V 3.1 V 3.2 V 3.2 V
series PLW3014AAA PLW3014AAA PLW3014AAA PLW3014AAA PLW3014AAA PLW3014AAA PLW3014AAA PLW3014AAA PLW3014AAA PLW3014AAA
Encapsulation Reel Reel Reel Reel Reel Reel Reel Reel Reel Reel
Factory packaging quantity 4000 4000 4000 4000 4000 4000 4000 4000 4000 1000
Installation style SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT - - SMD/SMT SMD/SMT
length 2.7 mm 2.7 mm 2.7 mm 2.7 mm 3 mm 2.7 mm - - 2.7 mm 3 mm
width 1.4 mm 1.4 mm 1.4 mm 1.4 mm 1.4 mm 1.4 mm - - 1.4 mm 1.4 mm
high 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm - - 0.7 mm 0.7 mm
Minimum operating temperature - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - - - 40 C - 40 C
Maximum operating temperature + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C - - + 85 C + 85 C
