PLW2835AIA65B3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LED lighting> The LED emitter> High power LED - white> PLW2835AIA65B3

Preview

PLW2835AIA65B3: DescriptionHigh Power LED - White 6500K CCT 0.8W 65mA 2.9Vf 34lm 80 CRI; CategoryLED optoelectronic/LED LED lighting The LED emitter High power LED - white; File Size1MB，21 Pages; ManufacturerPlessey Semiconductors; Environmental Compliance

Download Datasheet Parametric Compare View All

PLW2835AIA65B3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLW2835AIA65B3	-	-	View	Buy Now

PLW2835AIA65B3 Overview

High Power LED - White 6500K CCT 0.8W 65mA 2.9Vf 34lm 80 CRI

PLW2835AIA65B3 Parametric

Parameter Name	Attribute value
Maker	Plessey Semiconductors
Product Category	High Power LED - White
product	White LEDs
Installation style	SMD/SMT
Package/box	PLCC-2
lighting color	White (Cool White)
Wavelength/Color Temperature	6500 K
Luminous flux/radiant flux	34 lm
Color Rendering Index - CRI	80
display angle	120 deg
If - forward current	65 mA
Vf - forward voltage	2.7 V
length	3.5 mm
width	2.8 mm
high	0.7 mm
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
series	PLW2835AIA
Encapsulation	Reel
Factory packaging quantity	4000

Preview

Download Datasheet

View All

PLW2835AIA Series

Product Datasheet

Bulb

Commercial General

Lighting

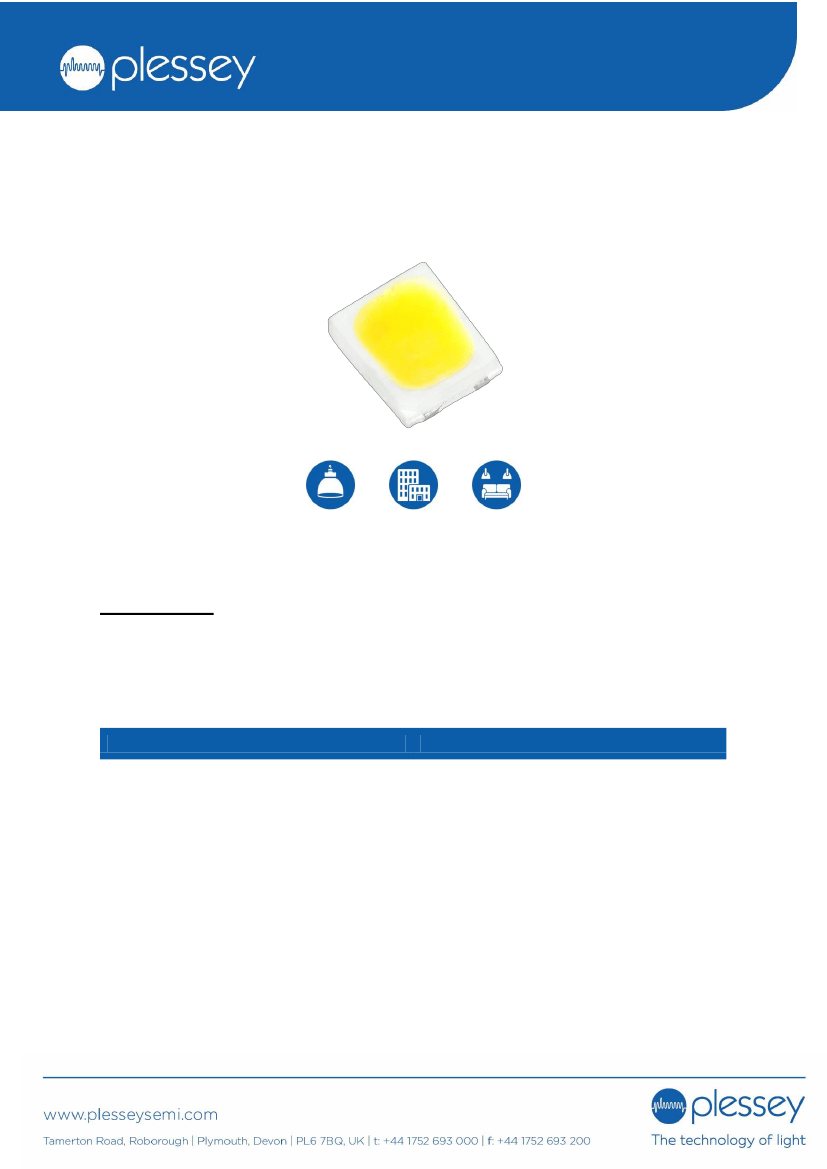

Introduction

The PLW2835AIA series offer ultra-high luminous efficacy combined with the flexibility in

design due to its slim and miniature size. This PLCC LED Series is optimized to be used as

lighting for building and other general lighting applications. These high performance LEDs

are available in a wide range of colour temperatures.

Description



Best luminous and colour uniformity.

Enables halogen and CDM replacement.

The article itself presents the actual

colour.



Features and Benefits



Superior luminous efficiency 181 lm/W

@4000K.

Deliver 33.5 lm @ 65mA, 4000k.

Pass LM-80 verification.

Suitable for all SMT assembly methods.

IR reflow process compatible.

Environmental friendly; RoHS

compliance.

Page 2 of 20

Document number MP1048 V1

Contents

Order Codes ..........................................................................................................

Absolute Maximum Ratings....................................................................................

General Characteristics..........................................................................................

Luminous Flux Characteristic .................................................................................

Forward Voltage Bins .............................................................................................

Characteristic Curves .............................................................................................

Forward Current vs. Forward Voltage .........................................................

Forward Current vs. Junction Temperature ................................................

Relative Luminous Intensity vs. Forward Current........................................

Relative Luminous Intensity vs. Junction Temperature ...............................

Δx, Δy vs. Forward Current.........................................................................

Δx, Δy vs. Junction Temperature ................................................................

Current Derating vs. Ambient Temperature ................................................

Beam Pattern .............................................................................................

Spectrum, CRI 80 .......................................................................................

Chromaticity Groups ..............................................................................................

Cool White; 5000, 5700 and 6500K ............................................................

Neutral White; 4000K .................................................................................

Warm White; 2700, 3000 and 3500K ..........................................................

Mechanical Dimensions .........................................................................................

Soldering Temperature Profile ...............................................................................

Reliability ...............................................................................................................

Reliability – Environmental/Mechanical Evaluation .....................................

Reliability - Lumen Maintenance .................................................................

Product Packaging Information ..............................................................................

Cautions.................................................................................................................

Legal Notice ...........................................................................................................

Contact ..................................................................................................................

PLW2835AIA65B3 Related Products

	PLW2835AIA65B3	PLW2835AIA35B5	PLW2835AIA30B5	PLW2835AIA57B5	PLW2835AIA57B3	PLW2835AIA27B5	PLW2835AIA30B3	PLW2835AIA50B3
Description	High Power LED - White 6500K CCT 0.8W 65mA 2.9Vf 34lm 80 CRI	High Power LED - White 3500K CCT 0.8W 65mA 2.9Vf 32lm 80 CRI	High Power LED - White 3000K CCT 0.8W 65mA 2.9Vf 32lm 80 CRI	High Power LED - White 5700K CCT 0.8W 65mA 2.9Vf 34lm 80 CRI	High Power LED - White 5700K CCT 0.8W 65mA 2.9Vf 34lm 80 CRI	High Power LED - White 2700K CCT 0.8W 65mA 2.9Vf 32lm 80 CRI	High Power LED - White 3000K CCT 0.8W 65mA 2.9Vf 32lm 80 CRI	High Power LED - White 5000K CCT 0.8W 65mA 2.9Vf 34lm 80 CRI
Maker	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors	Plessey Semiconductors
Product Category	High Power LED - White	High Power LED - White	High Power LED - White	High Power LED - White	High Power LED - White	High Power LED - White	High Power LED - White	High Power LED - White
product	White LEDs	White LEDs	White LEDs	White LEDs	White LEDs	White LEDs	White LEDs	White LEDs
Installation style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package/box	PLCC-2	PLCC-2	PLCC-2	PLCC-2	PLCC-2	PLCC-2	PLCC-2	PLCC-2
lighting color	White (Cool White)	Neutral White	White (Warm White)	White (Cool White)	White (Cool White)	White (Warm White)	White (Warm White)	White (Cool White)
Wavelength/Color Temperature	6500 K	3500 K	3000 K	5700 K	5700 K	2700 K	3000 K	5000 K
Luminous flux/radiant flux	34 lm	32 lm	32 lm	34 lm	34 lm	32 lm	32 lm	34 lm
Color Rendering Index - CRI	80	80	80	80	80	80	80	80
display angle	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
If - forward current	65 mA	65 mA	65 mA	65 mA	65 mA	65 mA	65 mA	65 mA
Vf - forward voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
length	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm
width	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm
high	0.7 mm	0.7 mm	0.7 mm	0.7 mm	0.7 mm	0.7 mm	0.7 mm	0.7 mm
Minimum operating temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
series	PLW2835AIA	PLW2835AIA	PLW2835AIA	PLW2835AIA	PLW2835AIA	PLW2835AIA	PLW2835AIA	PLW2835AIA
Encapsulation	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
Factory packaging quantity	4000	4000	4000	4000	4000	4000	4000	4000
