PM53-BCW13.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> The LED indicator> The indicator on the LED panel> PM53-BCW13.5

PM53-BCW13.5: DescriptionIndicator 3 on LED Panel Leaded Red/Grn White Diff 13.5"Wire; CategoryLED optoelectronic/LED The LED indicator The indicator on the LED panel; File Size174KB，2 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric View All

PM53-BCW13.5 Overview

Indicator 3 on LED Panel Leaded Red/Grn White Diff 13.5"Wire

PM53-BCW13.5 Parametric

Parameter Name	Attribute value
Maker	Bivar
Product Category	Indicators on the LED panel
lighting color	Red, Green
Mounting hole size	6.35 mm
Installation style	Press Fit
Termination type	Wire
Lens color/type	Non-Tinted, Diffused
LED size	5 mm
Encapsulation	Bulk
Installation type	Press Fit
Lens color	Clear
Factory packaging quantity	100

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

PM5-3

5BC-3-XX

BWS24-1061-GN

BWS24-1061-BK

BWS24-1061-RD

PART DESCRIPTION

LED Holder, 3-Lead Panel Mount, Press Fit, 5mm

T1 ¾ (5mm) 3-Lead Shouldered LED, See Page 2

24AWG Wire Lead U.L. 1061, Green

24AWG Wire Lead U.L. 1061, Black

24AWG Wire Lead U.L. 1061, Red

REV.

DESCRIPTION

DATE

APPROVED

Engineering Release

Updated 5BC-3 LED on Polarity Diagram

Added Optical/Electrical Data

Engineering Update w/o Changes

12/02/08

09/01/09

05/21/15

08/14/16

T. Y.

J. C.

0.190 [4.8mm]

Ø.197 [Ø5.0mm] LED

0.030 [0.8mm]

0.530 [13.5mm]

XX.X*

0.25 [6.4mm]

Ø0.280 [Ø7.1mm]

Flange

(3)

(2)

(1)

Ø.245 [Ø6.2mm]

BODY

(2) Common Cathode

Black Wire

Ø.250+.003

-.002

(1) Anode

Red Wire

Red

Yellow

Red

(3) Anode

Green Wire

Green

Yellow

EXAMPLE:

PM53 - BC W12.5

XX.X = Wire Length "XX.X*"

Emitted Colors

3-Lead Panel Mount Series

Recommended Panel Mounting Hole

0.047" Minimum Panel Thickness

LED P/N

5BC-3

5BC-3-Y/G

5BC-3-R/Y

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)

REVERSE VOLTAGE

REVERSE CURRENT ( VR=5V)

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE (1/16" FROM BODY)

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

100

-25°C ~ 85°C

-30°C ~ 100°C

260°C for 5 Seconds

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

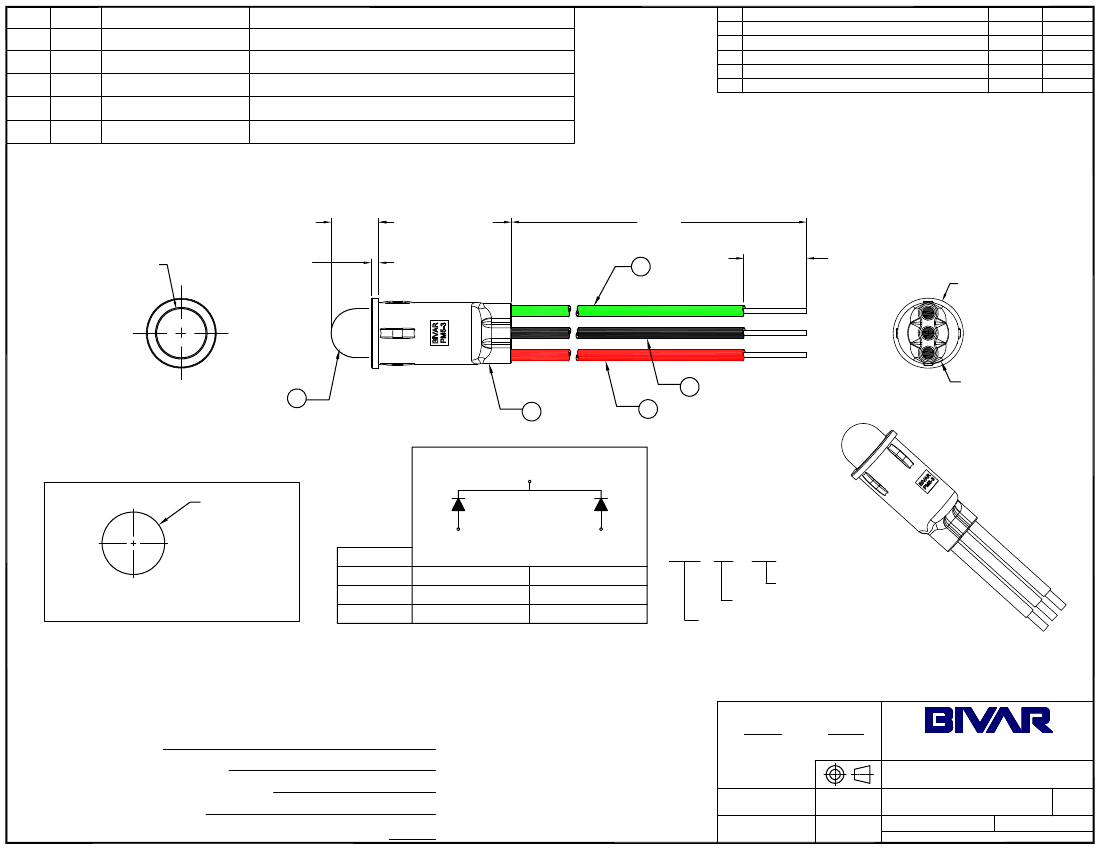

T1 ¾ (5mm) PANEL MOUNT

ASSEMBLY, 3-LEAD BI-COLOR

REVISION:

B. Oliver

CHECKED:

12/02/08

DATE:

PART NO:

PM53-XXWXX.X

CAGE CODE : 32559

F. Jensen

12/02/08

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
