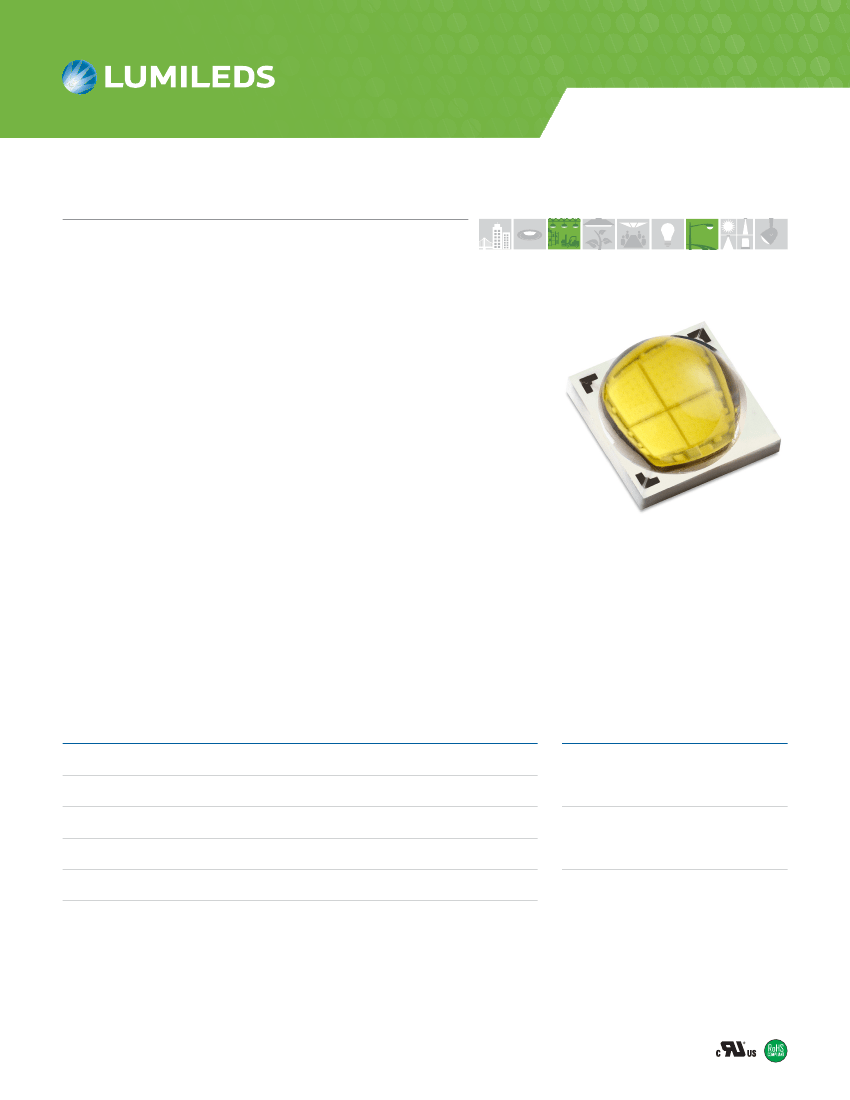

IllumInatIon
luXeon mX
Unmatched performance in a proven package
LUXEON MX is a high power emitter enabling cost effective, high reliability
fixtures for High Bay and Outdoor applications requiring system efficiency
of up to 157 lm/W. This breakthrough LED provides double the flux
compared to previous generations with an even more robust high power
design. Designed to be optically compatible with LUXEON M, LUXEON MX
enables luminaire manufacturers to instantly upgrade their systems to
market leading efficiency without investing design resources.
Features and BeneFIts
2,000 lumens at 130 lm/W enables cost effective 100 lm/W fixtures
1,200 lumens at 150 lm/W enables high performance 120 lm/W fixtures
Double the flux vs. comparable emitters in 120 lm/W systems
More robust package for improved reliability at higher drive currents
Same footprint and optically compatible with LUXEON M for an instant upgrade
PrImary aPPlIcatIons
High Bay & Low Bay
–
Industrial
Outdoor
–
Streetlights
DS179 LUXEON MX Product Datasheet ©2019 Lumileds Holding B.V. All rights reserved.
No. E352519
Table of Contents
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical and Thermal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Forward Current Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Product Bin and Labeling Definitions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Decoding Product Bin Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Luminous Flux Bins
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Color Bin Definitions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Correlated Color Temperature Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reflow Soldering Guidelines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
JEDEC Moisture Sensitivity
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pocket Tape Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
DS179 LUXEON MX Product Datasheet 20190220 ©2019 Lumileds Holding B.V. All rights reserved.
i
General Product Information
Product Test Conditions
LUXEON MX LEDs are tested and binned with a DC drive current specified below at a junction temperature, T
j
, of 85°C:
700mA
1400mA
2800mA
–
–
–
LUXEON MX 12V
LUXEON MX 6V
LUXEON MX 3V
Part Number Nomenclature
Part numbers for LUXEON MX follow the convention below:
L 1 M X –
A A B B C C C D E E E E
0
Where:
A A
B B
C C C
D
–
–
–
–
designates CCT (40=4000K, 50=5000K, 57=5700K, 65=6500K)
designates minimum CRI (70=70CRI, 80=80CRI, 90=90CRI)
designates voltage (12V=12V, 06V=6V, 03V=3V)
designates color (0=full distribution, 3=3-step, 5=5-step, 7=7-step)
designates minimum luminous flux (optional)
E E E E
–
Therefore, the following part number is used for a LUXEON MX 4000K 70CRI, 12V full distribution LED:
L 1 M X –
4 0 7 0 1 2 V 0 0 0 0 0
0
Lumen Maintenance
Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the long-
term performance of this product.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON MX is
compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the
RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted
materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE).
DS179 LUXEON MX Product Datasheet 20190220 ©2019 Lumileds Holding B.V. All rights reserved.
2
Performance Characteristics
Product Selection Guide
Table 1 . Product performance of LUXEON MX at test current, T
j
=85ºC .
Voltage
nomInal
cct
2700K
3000K
4000K
5000K
5700K
6500K
12V
2700K
3000K
4000K
5000K
2700K
3000K
4000K
5700K
2700K
3000K
4000K
5000K
5700K
6500K
6V
2700K
3000K
4000K
5000K
2700K
3000K
4000K
5700K
2700K
3000K
4000K
5000K
5700K
6500K
3V
2700K
3000K
4000K
5000K
2700K
3000K
4000K
5700K
mInImum
crI
[1, 2]
70
70
70
70
70
70
80
80
80
80
90
90
90
90
70
70
70
70
70
70
80
80
80
80
90
90
90
90
70
70
70
70
70
70
80
80
80
80
90
90
90
90
lumInous FluX
[1]
(lm)
mInImum
970
1040
1160
1160
1160
1160
900
970
1040
1040
730
730
900
900
970
1040
1160
1160
1160
1160
900
970
1040
1040
730
730
900
900
970
1040
1160
1160
1160
1160
900
970
1040
1040
730
730
900
900
tyPIcal
1050
1161
1232
1232
1232
1232
988
1000
1115
1115
800
835
965
965
1050
1161
1232
1232
1232
1232
988
1000
1115
1115
800
835
965
965
1050
1161
1232
1232
1232
1232
988
1000
1115
1115
800
835
965
965
tyPIcal
t
j
=25°c
1095
1270
1345
1345
1345
1345
1095
1110
1220
1220
872
910
1046
1046
1095
1270
1345
1345
1345
1345
1095
1110
1220
1220
872
910
1046
1046
1095
1270
1345
1345
1345
1345
1095
1110
1220
1220
872
910
1046
1046
test current
(ma)
700
700
700
700
700
700
700
700
700
700
700
700
700
700
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
2800
2800
2800
2800
2800
2800
2800
2800
2800
2800
2800
2800
Part numBer
L1MX-277012V000000
L1MX-307012V000000
L1MX-407012V000000
L1MX-507012V000000
L1MX-577012V000000
L1MX-657012V000000
L1MX-278012V000000
L1MX-308012V000000
L1MX-408012V000000
L1MX-508012V000000
L1MX-279012V000000
L1MX-309012V000000
L1MX-409012V000000
L1MX-579012V000000
L1MX-277006V000000
L1MX-307006V000000
L1MX-407006V000000
L1MX-507006V000000
L1MX-577006V000000
L1MX-657006V000000
L1MX-278006V000000
L1MX-308006V000000
L1MX-408006V000000
L1MX-508006V000000
L1MX-279006V000000
L1MX-309006V000000
L1MX-409006V000000
L1MX-579006V000000
L1MX-277003V000000
L1MX-307003V000000
L1MX-407003V000000
L1MX-507003V000000
L1MX-577003V000000
L1MX-657003V000000
L1MX-278003V000000
L1MX-308003V000000
L1MX-408003V000000
L1MX-508003V000000
L1MX-279003V000000
L1MX-309003V000000
L1MX-409003V000000
L1MX-579003V000000
Notes for Table 1:
1.
Lumileds maintains a tolerance of ±2 on CRI and ±6.5% on luminous flux measurements.
2.
Typical CRI is approximately 2 points higher than the minimum CRI specified, but this is not guaranteed.
DS179 LUXEON MX Product Datasheet 20190220 ©2019 Lumileds Holding B.V. All rights reserved.
3
Optical Characteristics
Table 2 . Optical characteristics for LUXEON MX at test current, T
j
=85°C .
Part numBer
L1MX-xxxxxxxxxxxx0
tyPIcal total Included angle
[1]
140°
tyPIcal VIewIng angle
[2]
120°
Notes for Table 2:
1.
Total angle at which 90% of total luminous flux is captured.
2.
Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.
Electrical and Thermal Characteristics
Table 3 . Electrical and thermal characteristics for LUXEON MX at test current, T
j
=85°C .
Part numBer
L1MX-xxxx12Vxxxxx0
L1MX-xxxx06Vxxxxx0
L1MX-xxxx03Vxxxxx0
Forward Voltage
[1]
(V
f
)
mInImum
10.50
5.25
2.63
tyPIcal
11.30
5.65
2.83
maXImum
11.70
6.00
3.00
tyPIcal temPerature
coeFFIcIent oF Forward
Voltage
[2]
(mV/°c)
-5.50
-2.75
-1.38
tyPIcal thermal
resIstance—junctIon
to solder Pad (°c/w)
1.25
1.25
1.25
Notes for Table 3:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
2.
Measured between 25°C and 135°C.
Absolute Maximum Ratings
Table 4 . Absolute maximum ratings for LUXEON MX .
Parameter
DC Forward Current
[1, 2]
maXImum PerFormance
1500mA for L1MX-xxxx12Vxxxxx0
3000mA for L1MX-xxxx06Vxxxxx0
6000mA for L1MX-xxxx03Vxxxxx0
1750mA for L1MX-xxxx12Vxxxxx0
3500mA for L1MX-xxxx06Vxxxxx0
7000mA for L1MX-xxxx03Vxxxxx0
135°C
Class 3B
-40°C to 120°C at 700mA for L1MX-xxxxxxxxxxxx0
-40°C to 120°C
JEDEC 020D 250°C
3
LUXEON LEDs are not designed to be driven in reverse bias
Peak Pulsed Forward Current
[1, 3]
LED Junction Temperature
[1]
(DC & Pulse)
ESD Sensitivity (ANSI/ESDA/JEDEC JS-001-2012)
Operating Case Temperature
[1]
LED Storage Temperature
Soldering Temperature
Allowable Reflow Cycles
Reverse Voltage (V
reverse
)
Notes for Table 4:
1.
Proper current derating must be observed to maintain the junction temperature below the maximum allowable junction temperature.
2.
Residual periodic variations due to power conversion from alternating current (AC) to direct current (DC), also called “ripple,” are acceptable if the following conditions are met:
– The frequency of the ripple current is 100Hz or higher
– The average current for each cycle does not exceed the maximum allowable DC forward current
– The maximum amplitude of the ripple does not exceed the maximum peak pulsed forward current
3.
At 10% duty cycle with pulse width of 10ms.
DS179 LUXEON MX Product Datasheet 20190220 ©2019 Lumileds Holding B.V. All rights reserved.
4
