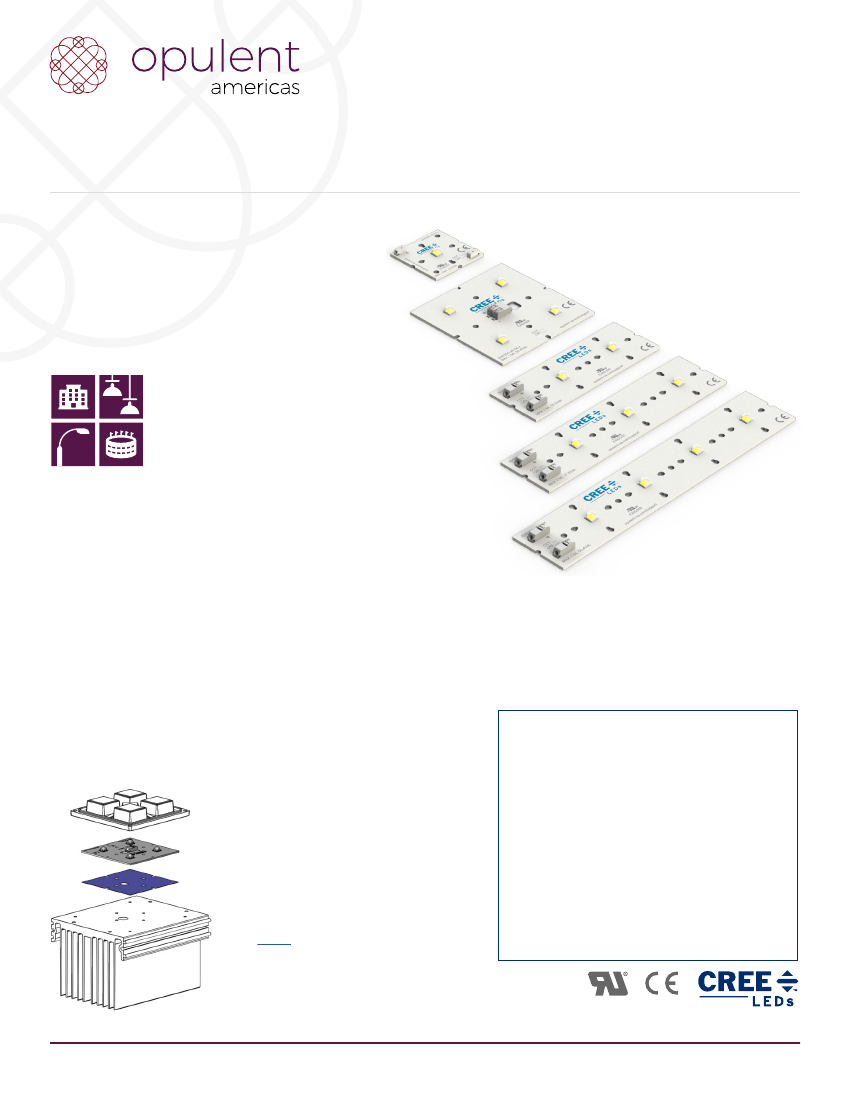

Cree Performance XHP50 LED Module
Power of Cree XHP Series in Standard and Custom LED modules
Illumination Accelerated
Design Faster
– use standard, UL-listed modules
Superior Performance & Cost
– top flux bin LEDs at
competitive prices
Thermal Interface Included
– pre-installed to
simplify assembly
Add Standard Optics
– configured for off-the-shelf
optics
Data Sheet
Primary Applications
High Mast
Streetlight
Stadium
Architectural
Canopy
Garage
Portable
High bay
• Market leading L90 & L70 lifetimes, even in high stress conditions
• 70, 80, and 90 CRI LEDs available
• Metal core PCB for optimal thermal management
• Configurable with off the shelf optics, and heat sinks
• Private label or custom designs available
Superior Performance in Standard & Custom Modules
Simplify Your Next Design
The Cree performance modules, built with Cree SC5 technology, are an off-the-shelf platform to rapidly move from prototype
to finished LED lighting fixture. These versatile building blocks are UL-listed and include Cree XHP35, XHP50 & XHP70 LEDs
in square, linear or rectangle formats. The thermal interface is already installed with easy to use connectors to help simplify
the lighting design and get to market faster. These competitively priced modules come in a range of lumen outputs and can
achieve both DLC Premium or DLC Standard lumens per watt specifications.
Integrate Further
Opulent Americas also offers standard heat sinks and fully assembled
IP-rated modules.
About Opulent Americas
Opulent Americas, part of Singapore based
Opulent Group, is a fully integrated, global
manufacturer for the lighting, automotive
and medical industries. Through 30 years of
manufacturing experience and state-of-the-
art facilities, the company offers leading solid
state lighting components and modules. The
NC-based office provides quick engineering
& sales support with an R&D lab to provide
prototype development and custom solutions.
See Opulent-Americas.com for more
information.
- Standard Off-The-Shelf Optics Available
- Opulent Americas LED Module
- Thermal Interface Material
(Included with Modules)
- Opulent Americas Heat Sink.
Click
HERE
for data sheet.
RoHS
Last Modified: 05/26/17
E482308
Opulent Americas
• 807 Spring Forest Road, Suite 900 Raleigh, NC 27609 • 919.407.8322 • info@opulent-americas.com
Opulent-Americas.com
Electrical Characteristics
Part Number
XHP50A-0S-01-x
XHP50A-0L-02-x
XHP50A-0L-03-x
XHP50A-0L-04-x
XHP50A-0S-04-x
XHP50 Series Specifications
Forward Voltage (v)
Typical
11.5
23
34.5
46
46
Maximum
12.6
25.2
37.8
50.4
50.4
Typical Thermal Resistance -
Juntion to Solder Point (°C/W) RTh J-HS
1.2
1.2
1.2
1.2
1.2
Intended for connection to a class 2 power source with a maximum operating voltage of 50 Vdc
Maximum Ratings
Part Number
XHP50A-0S-01-x
XHP50A-0L-02-x
XHP50A-0L-03-x
XHP50A-0L-04-x
XHP50A-0S-04-x
DC Current (A)
1.5
1.5
1.5
1.5
1.5
Tsp Temp (°C)
105
105
105
105
105
Power (W)
19
38
57
76
76

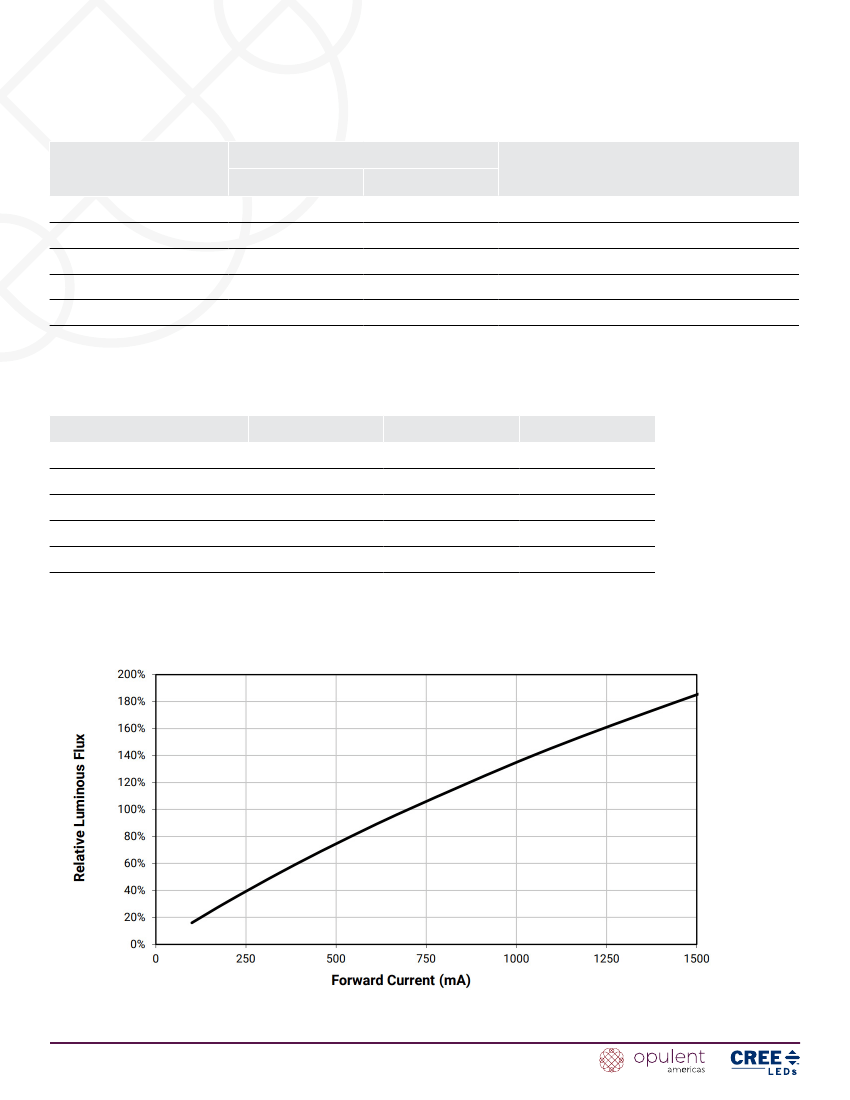

Relative Flux Vs Board Current (TJ = 85°C)
4

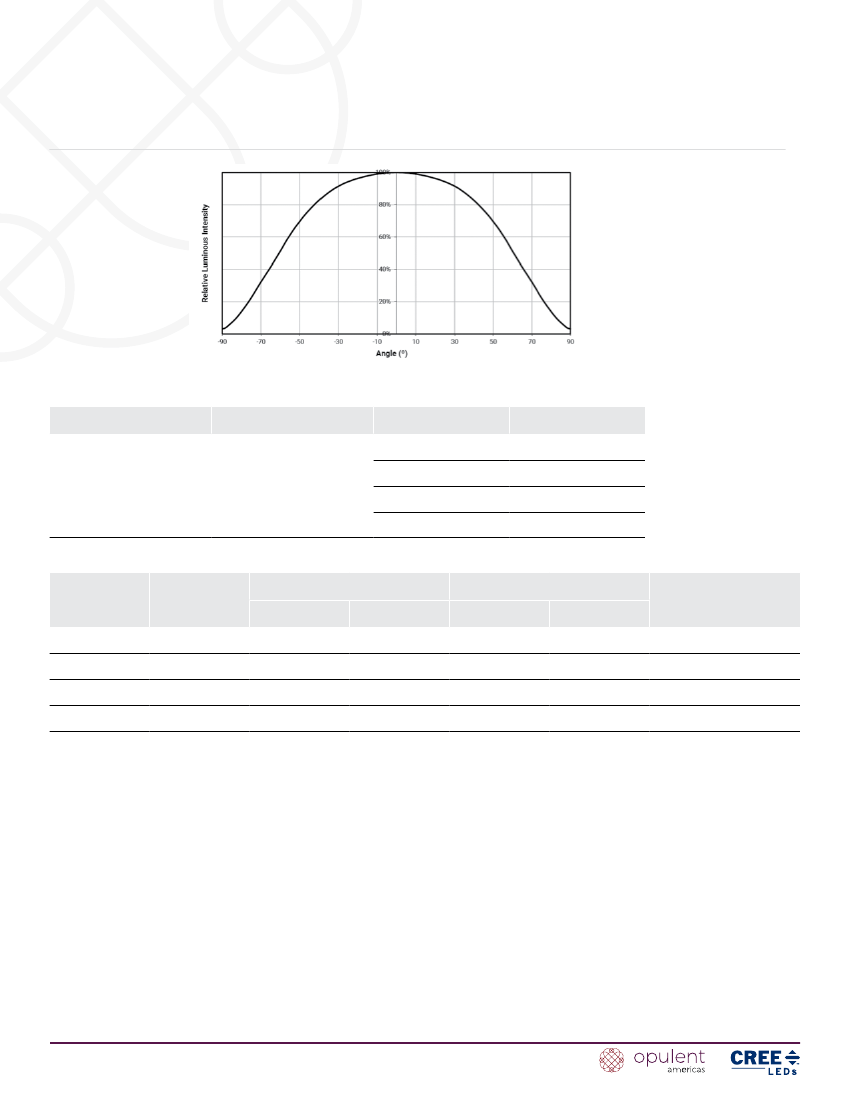

For support on Cree LED Modules, visit Opulent-Americas.com/support
