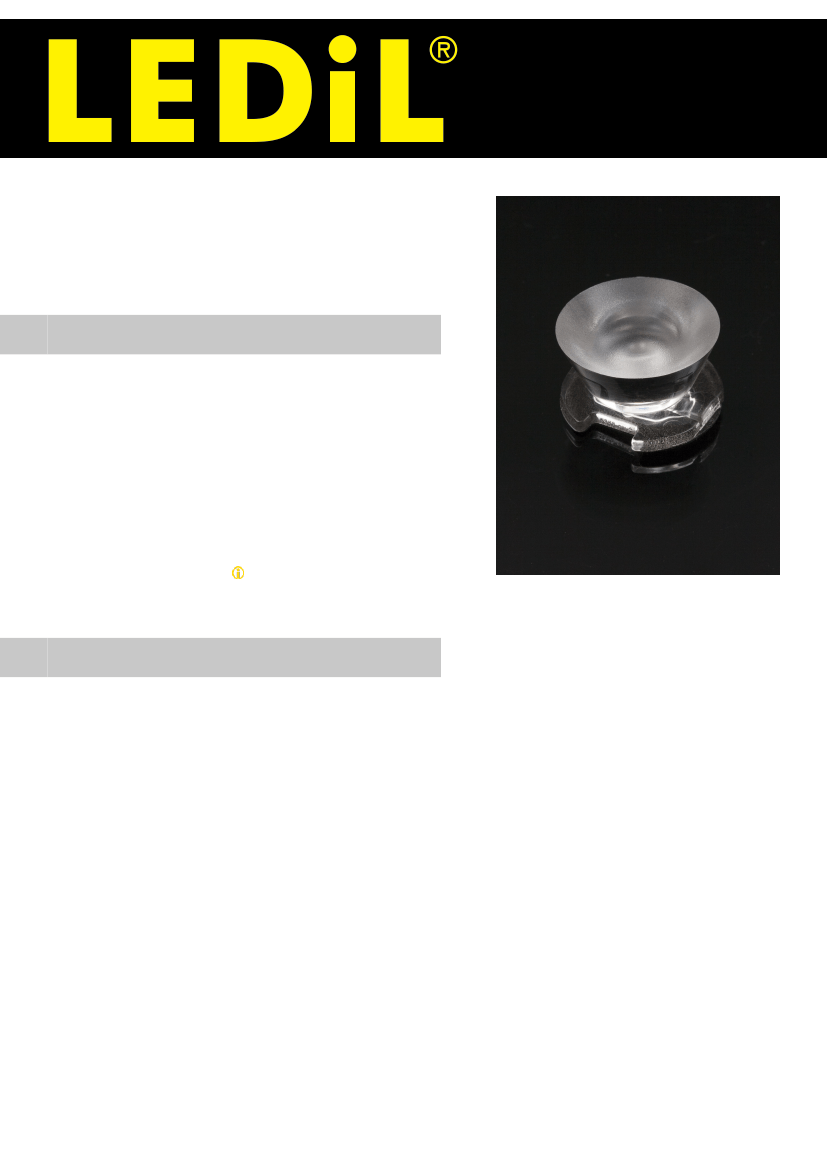

PRODUCT
DATASHEET
CA15359_EMILY-WW
EMILY-WW
~45° wide beam. 14.74 mm high lens.
TECHNICAL SPECIFICATIONS:
Dimensions
Height
Fastening
Colour
Box size
Box weight
Quantity in Box
ROHS compliant
Ø 26.0 mm
14.7 mm
tape, pin
clear
480 x 280 x 300 mm
11.3 kg
1690 pcs
yes
MATERIAL SPECIFICATIONS:
Component
EMILY-WW
SPUTNIK-TAPE
Type
Single lens
Tape
Material
PMMA
PU tape
Colour
clear
black
Last update: 10/08/2018
Subject to change without prior notice
LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries.
1/6

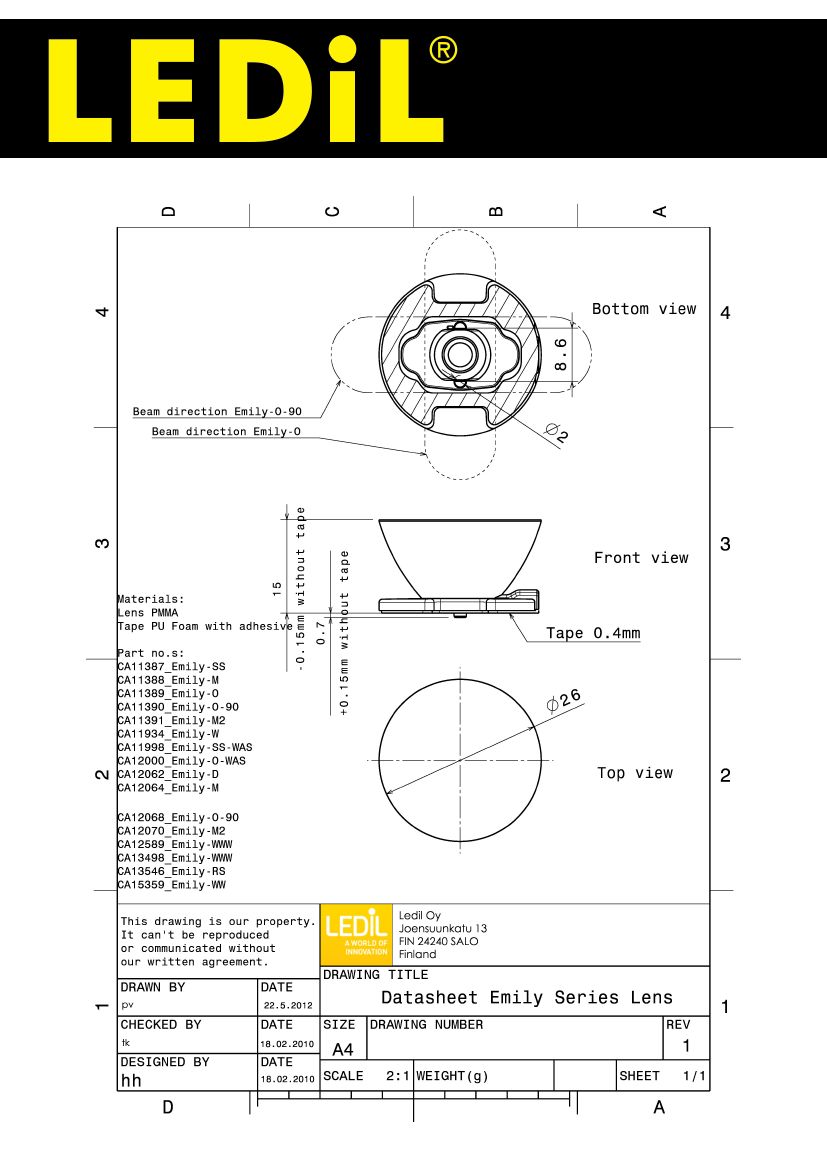

PRODUCT
DATASHEET
CA15359_EMILY-WW
Last update: 10/08/2018
Subject to change without prior notice
LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries.
2/6
PRODUCT
DATASHEET
CA15359_EMILY-WW

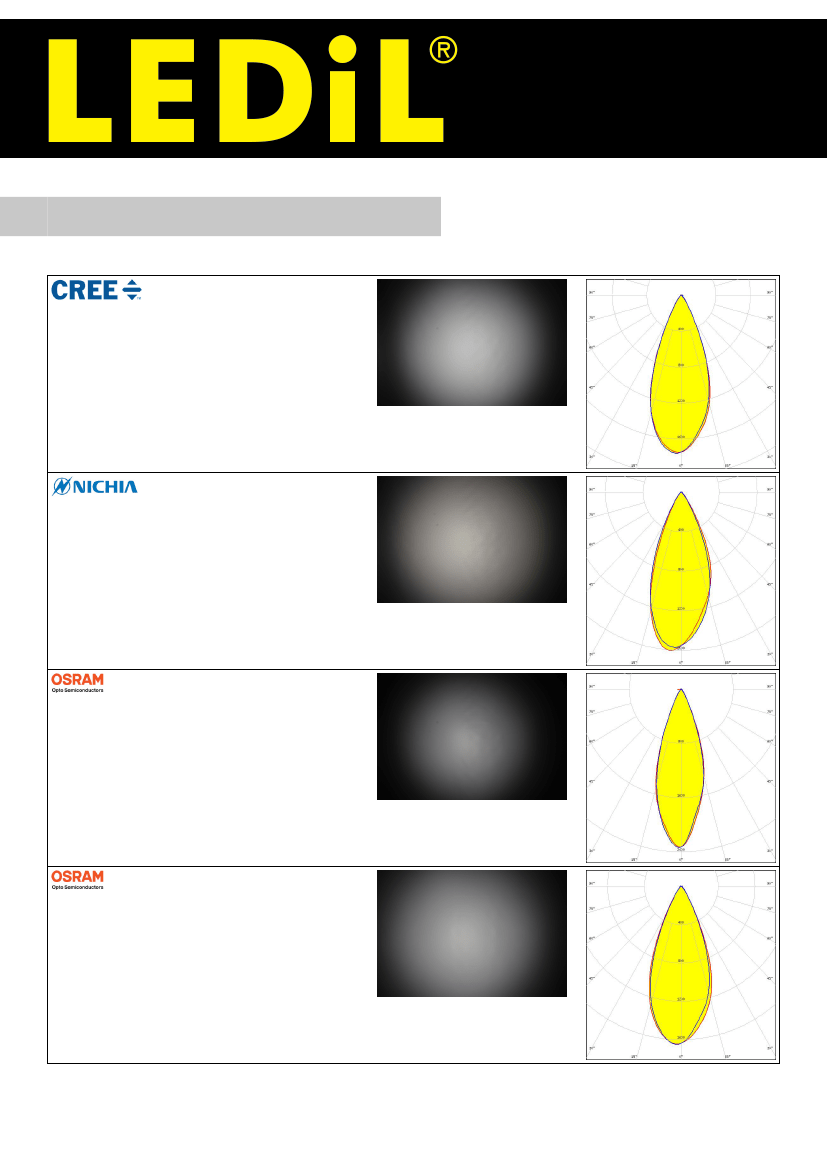

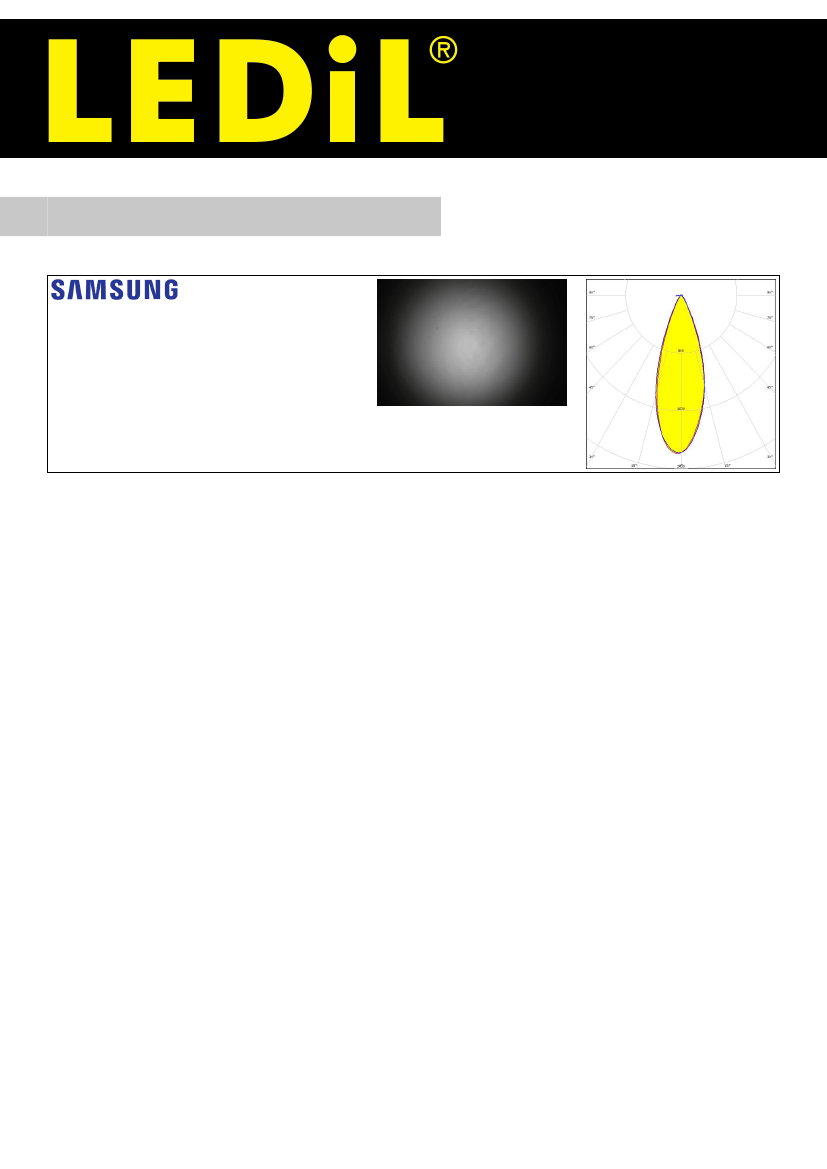

PHOTOMETRIC DATA (MEASURED):
LED
FWHM
Efficiency
Peak intensity
XP-L HI
42.0°
93 %
1.800 cd/lm
Required components:
LED
FWHM
Efficiency
Peak intensity
NVSW219D / NVSW219F
44.0°
92 %
1.600 cd/lm
Required components:
LED
FWHM
Efficiency
Peak intensity
Oslon Black Flat
35.0°
92 %
2.300 cd/lm
Required components:
LED
FWHM
Efficiency
Peak intensity
Oslon Square Gen3
44.0°
93 %
1.700 cd/lm
Required components:
Last update: 10/08/2018
Subject to change without prior notice
LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries.
3/6
PRODUCT
DATASHEET
CA15359_EMILY-WW
PHOTOMETRIC DATA (MEASURED):
LED
FWHM
Efficiency
Peak intensity
LH181B
35.0°
93 %
2.200 cd/lm
Required components:
Last update: 10/08/2018
Subject to change without prior notice
LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries.
4/6
PRODUCT
DATASHEET
CA15359_EMILY-WW

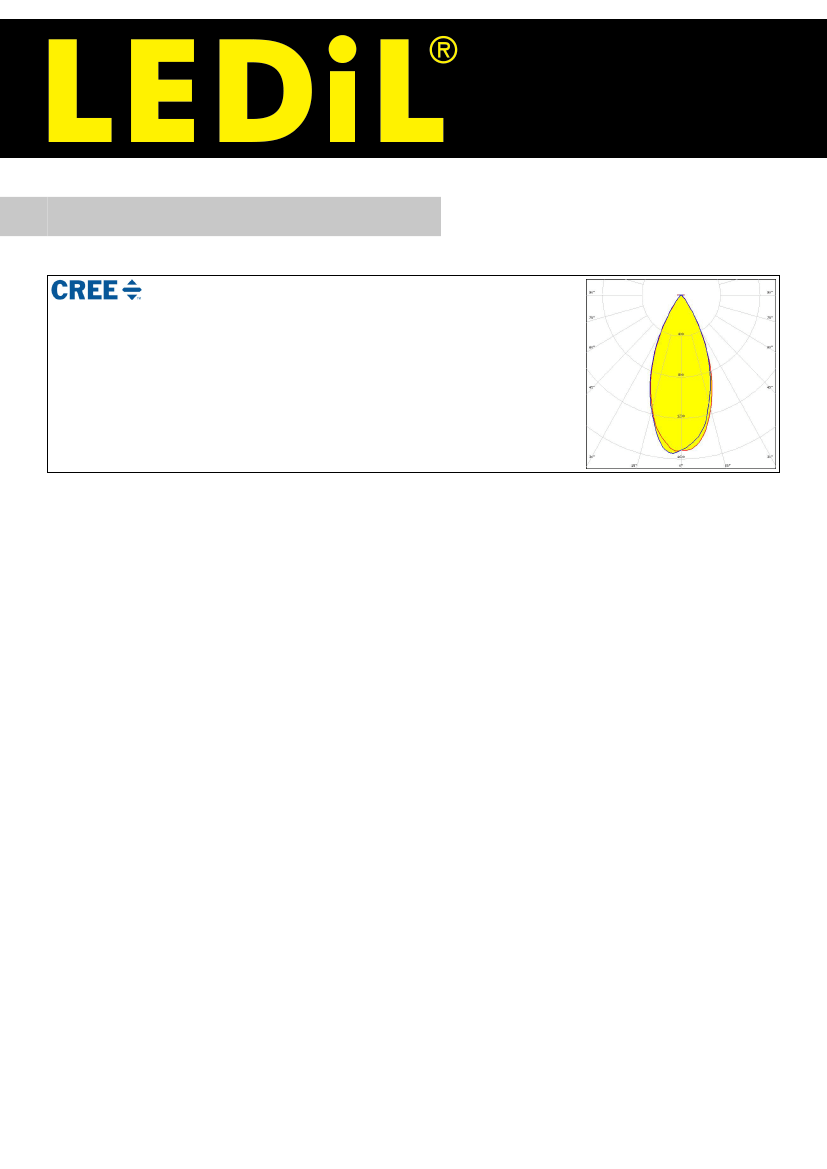

PHOTOMETRIC DATA (SIMULATED):
LED
FWHM
Efficiency
Peak intensity
XP-L2
46.0°
94 %
1.550 cd/lm
Required components:
Last update: 10/08/2018
Subject to change without prior notice
LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries.
5/6
