3561400002 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3561400002

Preview

3561400002: DescriptionFuse tube FUSE 440V TL 6.3X32MM 4A; CategoryCircuit protection Circuit protection; File Size686KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

3561400002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3561400002	-	-	View	Buy Now

3561400002 Overview

Fuse tube FUSE 440V TL 6.3X32MM 4A

3561400002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	32 mm
Body length or diameter	6.3 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	62 J
Installation features	INLINE/HOLDER
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	BULK
physical size	6.3mm x 32mm
Pre-discharge time - minutes	10 ms
Rated breaking capacity	1000 A
Rated current	4 A
Rated voltage (AC)	440 V
Guideline	UL
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

Cartridge Fuses

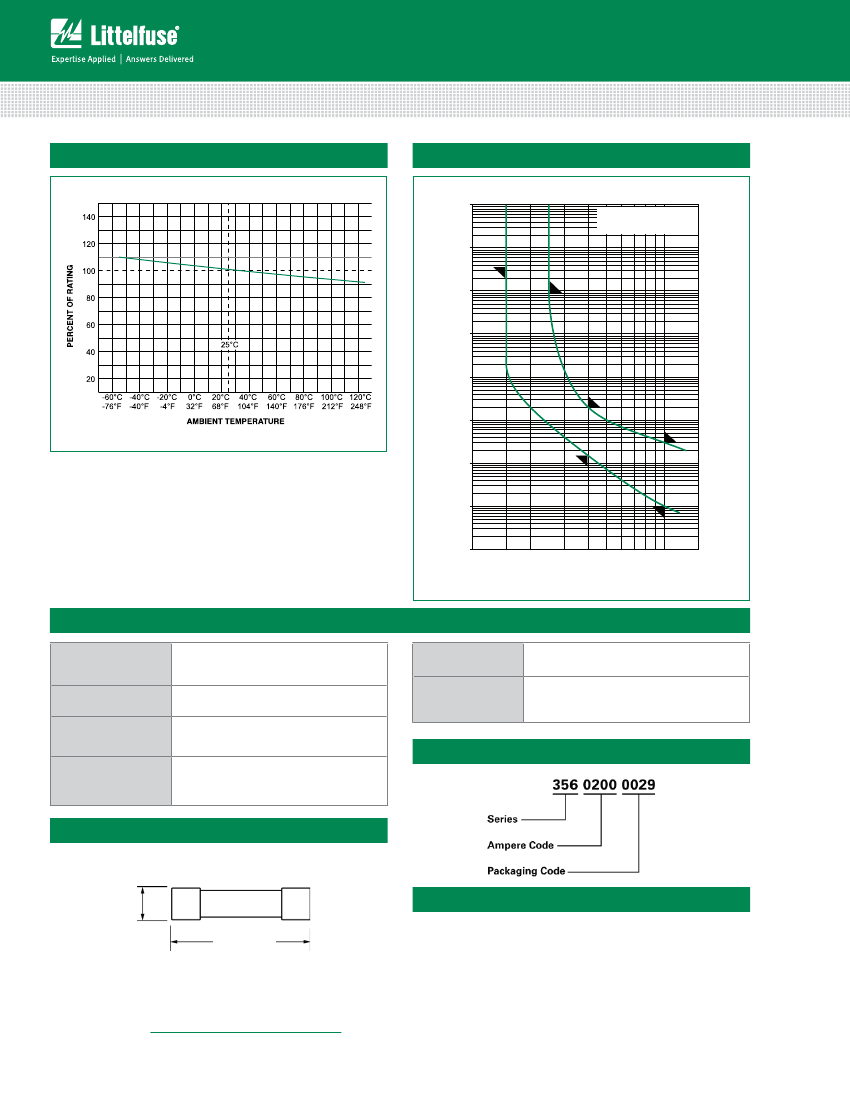

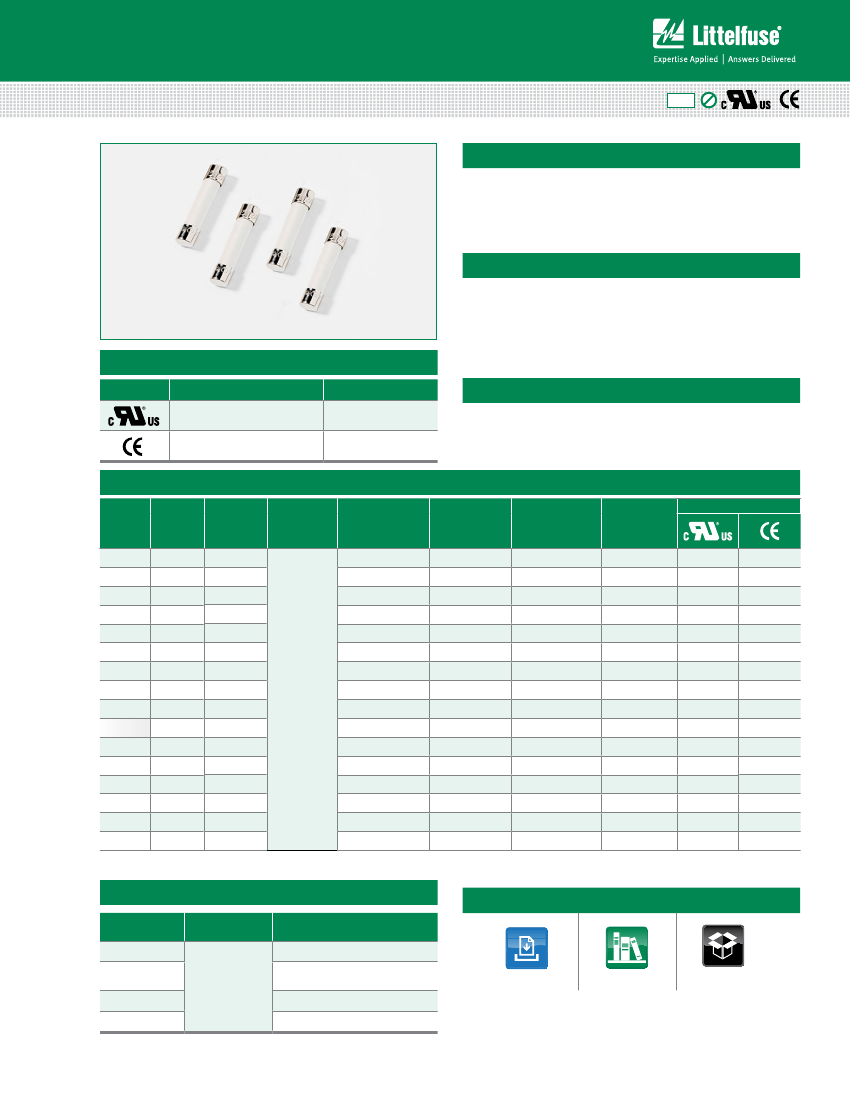

3AB > Slo-Blo

®

Fuse > 356 Series

356 Series, Lead-Free 3AB, Slo-Blo

®

Fuse

Description

RoHS

Pb

The

3

AB special type cartridge fuse for protection of high

voltage and surge tolerant applications.

Features

• Only Available in

Cartridge format

• Pluggable into clips or

shocksafe holders

Agency Approvals

Agency

Agency File Number

Ampere Range

• RoHS compliant and

lead free

Applications

• Used as supplementary protection in appliance or

utilization equipment to provide individual protection for

components or internal circuits

E67006

N/A

1A - 10A

200mA - 10A

Electrical Characteristic by ltem

Amp

Code

0200

0400

0500

0630

0800

1100

1125

1160

1200

1250

1315

1400

1500*

1630*

1800*

2100*

Amp

Rating

0.2

0.4

0.5

0.63

0.8

1

1.25

1.6

2

2.5

3.15

4

5

6.3

8

10

Voltage

Rating

440

1000A@

440VAC

Nominal

Melting

Voltage Drop at

Interrupting

Resistance Cold Integral 10xIn Rated Current

Rating

(Ohms)

Min (A2Sec)

Max. (mV)

7

.1200

1.9500

1.6520

0.9050

0.6100

0.3300

0.1160

0.1470

0.1050

0.0525

0.0463

0.0300

0.0260

0.0157

0.0109

0.0076

0.140

0.160

0.530

2.000

3.100

4.400

3.100

8.30

9.20

22.0

36.0

62.0

91.0

130.0

240.0

510.0

1800

1200

1100

800

700

500

350

320

270

250

230

200

180

150

140

120

Power

Dissipation

1.5xIn Max.

(W)

1.1

1.5

1.6

1.7

1.8

2.0

2.3

2.4

2.6

3.0

3.2

3.8

4.0

x

Agency Approvals

x

*

Depending on the application and mounting, the fuse heating at max. ambient temperature in a closed fuseholder should be considered.

Electrical Characteristics for Series

% of Ampere

Rating

150%

452/454 Series

Fuse 250%

400%

1000%

Specifications are subject to change without notice.

Revised: 01/15/19

Additional Information

Opening Time

Ampere Rating

1 Hour, Minimum

0.2 – 10

15 Mins, Maximum

0.15 Sec. Min., 2 Sec Max.

0.01 Sec. Min., 0.3 Sec Max.

Application testing is strongly recommended.

Datasheet

Resources

Samples

Recommended Resources

Automatic round trip control circuit

HT-2813 series (single tone) circuit

Picture tube protection circuit

Automatic number checker backup power supply circuit diagram

Bidirectional thyristor controlled three-phase electric heating device circuit
