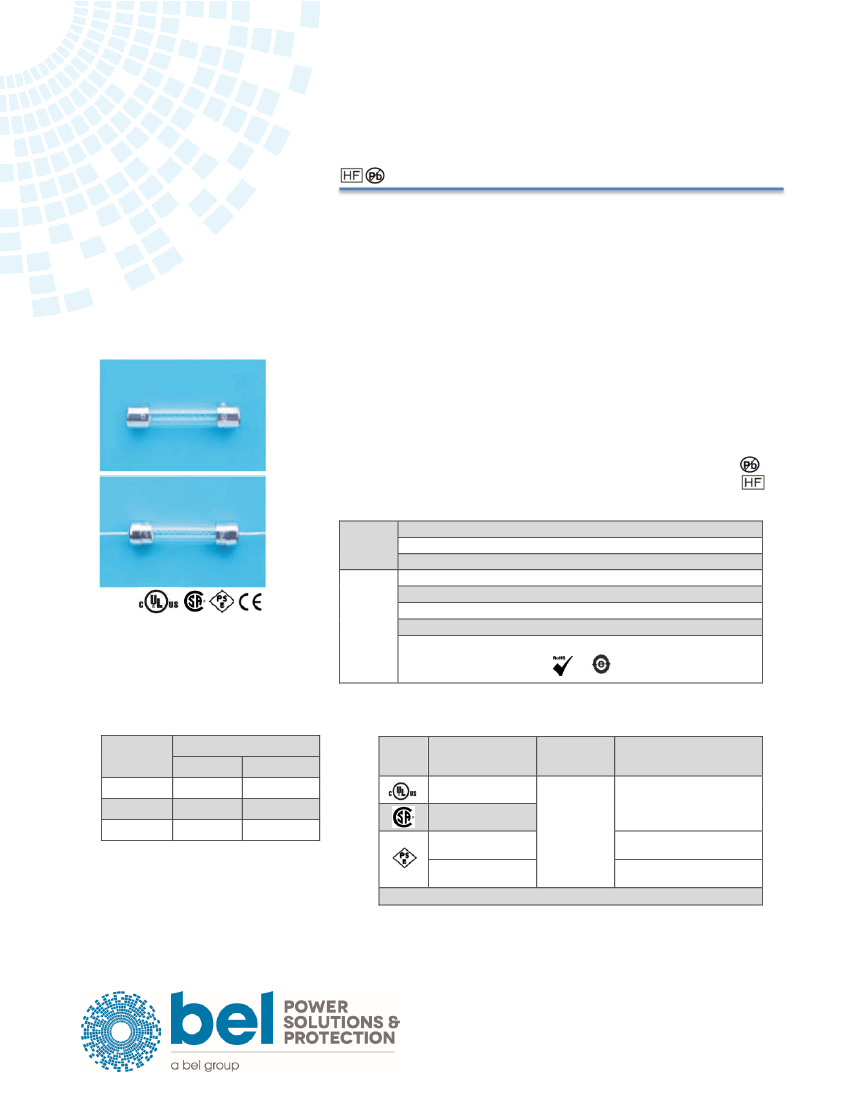

Type 3AG / 3AP
Fast Blow Fuse Series
3AG/3AP Series, 6x32mm Glass Tube Fast Blow Fuse
RoHS 2 Compliant
Description
6x32mm Fast Blow, glass tube body cartridge fuse designed, approved and
complied with UL and CSA standard 248-14.
Features
- Meet UL and CSA standard 248-14
- Wide operating temperature range
- Bulk packing available
- RoHS 2 compliant
- Halogen Free
- Leadfree
Applications
Provide individual protection for components or internal circuits.
- Power supplies
- Battery charger
- Monitor
LEAD FREE =
- Adapter
HALOGEN FREE =
Physical Specifications
Materials
Body : Ceramic
Cap : Nickel Plated Brass Caps
Leads : Matte Tin Plated Copper
On Fuse :
“bel”, "3AG”, "Current Rating”, “Voltage Rating”,
”Appropriate Safety Logos”, ”
”（
RoHS 2compliant）
On Label :
"bel", "3AG”or”3AP", "Current Rating", "Voltage Rating", "Interrupting Rating",
"Appropriate Safety Logos" and "
", "
"(China RoHS compliant).
Marking
Electrical Characteristics
(UL/CSA STD.248-14)
Testing
Current
100%
135%
200%
Blow Time
Minimum
4 hrs.
N/A
N/A
Maximum
N/A
1 hr.
5 sec
Safety Agency Approvals
Safety
Agency
Safety Agency
Certificate
E20624
LR39772
JET1037-31003-1010
JET1037-31003-1011
JET1037-31003-1007
Voltage
Rating
(V)
100mA–10A/
250V AC
12A-15A/
125V AC
Ampere Range / Volt
@ I.R. ability*
100mA-10A/250V AC@200A
100mA-15A/125V AC@10,000A
1A-5A/125V AC@500A
>5A-15A/125V AC@300A
*I.R.= Interrupting Rating = Short Circuit Rating(Amps)
Specifications subject to change without notice
belfuse.com/circuit-protection
Type 3AG / 3AP
Environmental Specifications
Shock Resistance
Vibration Resistance
Salt Spray Resistance
Insulation Resistance
Solderability
Resistance to solder Heat
Thermal Shock
Operating Temperature
Terminal Strength
MIL-STD-202G, Method 213B, Test Condition 1
(100 G's peak for 6 milliseconds; Sawtooth waveform)
MIL-STD-202G, Method 201A (10-55 Hz, 0.06 inch, total excursion).
MIL-STD-202G, Method 101E, Test Condition B (48 hrs).
MIL-STD-202G, Method 302, Test Condition A
(After Opening) 10,000 ohms minimum.
MIL-STD-202G, Method 208H
MIL-STD-202G, Method 210F, Test Condition B (260+/-5℃,10+/-1 sec)
MIL-STD-202G, Method 107G, Test Condition B (-65℃ to +125℃).
-55℃ to +125℃
IEC-68-2-21
2
/
4
Electrical Specifications
Catalog Number
Ampere
Rating
Typical
Cold
Resistance
(ohms)
11.3
10.5
7.3
5.0
3.4
2.5
1.86
1.32
1.19
0.66
Volt-drop
@100%In
(Volt) max.
4.62
5.18
4.85
4.38
4.05
3.54
3.35
3.22
3.17
2.54
0.28
Voltage and
Interrupting
Ratings
Melting I²T
<10 mSec
(A² Sec)
0.002
0.004
0.008
0.014
0.025
0.044
0.071
0.08
0.14
0.19
Melting I²T
@10 In
(A² Sec)
0.002
0.003
0.006
0.010
0.019
0.034
0.055
0.08
0.11
0.17
1.4
2.5
4.4
7.6
13
23
31
40
70
123
162
214
372
597
1023
Maximum
Power
Dissipation
(W)
0.59
0.80
0.94
1.10
1.29
1.51
1.64
1.71
1.88
2.15
0.37
0.44
0.51
0.59
0.70
0.83
0.91
1.00
1.20
1.40
1.60
1.70
2.00
2.40
2.80
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Agency
Approvals
3AG(3AP) 100-R
3AG(3AP) 125-R
3AG(3AP) 160-R
3AG(3AP) 200-R
3AG(3AP) 250-R
3AG(3AP) 300-R
3AG(3AP) 375-R
3AG(3AP) 400-R
3AG(3AP) 500-R
3AG(3AP) 750-R
3AG(3AP) 1-R
3AG(3AP) 1.25-R
3AG(3AP) 1.6-R
3AG(3AP) 2-R
3AG(3AP) 2.5-R
3AG(3AP) 3-R
3AG(3AP) 3.5-R
3AG(3AP) 4-R
3AG(3AP) 5-R
3AG(3AP) 6-R
3AG(3AP) 7-R
3AG(3AP) 8-R
3AG(3AP) 10-R
3AG(3AP) 12-R
3AG(3AP) 15-R
100mA
125mA
160mA
200mA
250mA
300mA
375mA
400mA
500mA
750mA
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
1A
1.25A
1.6A
2A
2.5A
3A
3.5A
4A
5A
6A
7A
8A
10A
12A
15A
0.155
0.114
0.085
0.057
0.043
0.033
0.027
0.024
0.018
0.014
0.012
0.010
0.008
0.006
0.006
0.27
0.27
0.22
0.21
0.17
0.18
0.17
0.16
0.15
0.16
0.15
0.13
0.13
0.15
See Table of
Safety Approvals
on Page 1 for
Voltage and
associated
Interrupting
Ratings
1.4
2.4
4.2
7.2
12
21
28
36
63
107
141
184
316
501
845
Consult manufacturer for other ratings
Specifications subject to change without notice
Bel Fuse Inc.
206 Van Vorst Street
Jersey City, NJ 07302 USA
© 2018 Bel Fuse, Inc.
+1 201.432.0463
Bel.US.CS@belf.com
belfuse.com/circuit-protection
Rev. 3AG Nov2018
Type 3AG / 3AP

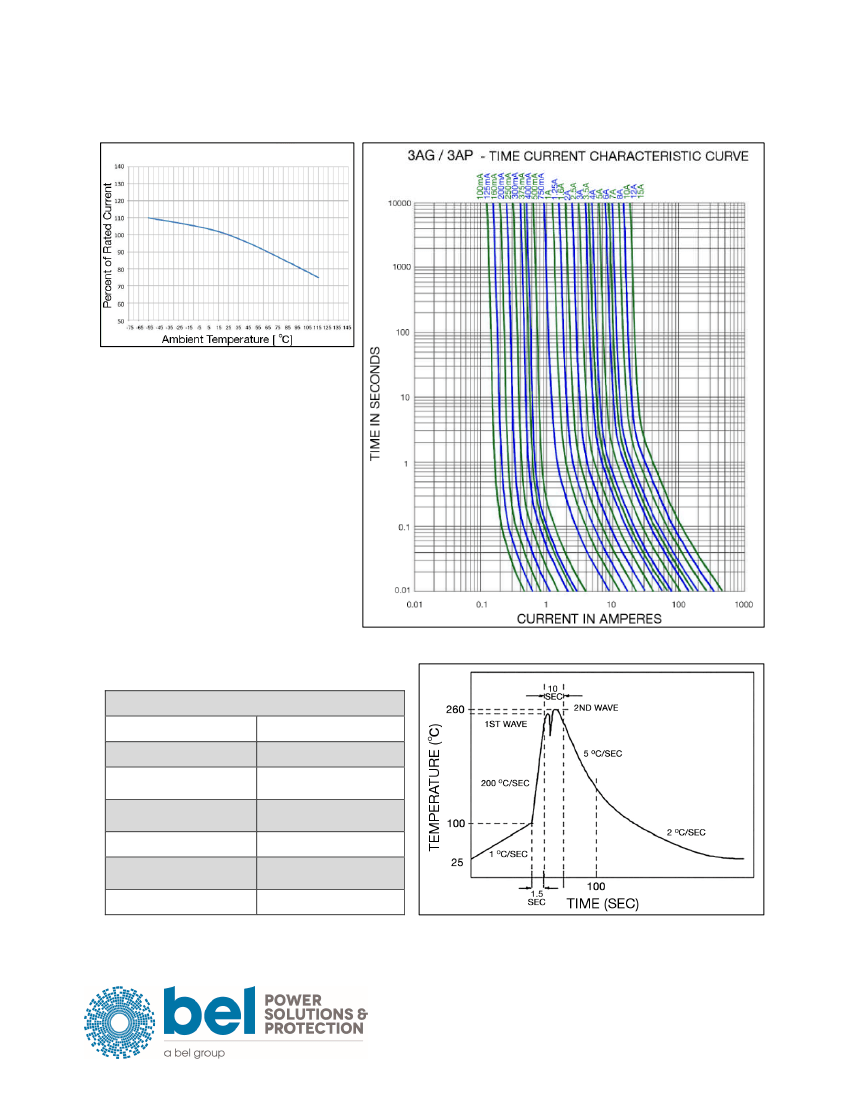

Temperature Derating Curve
Average Time Current Curve
3
/
4
Soldering Parameters
Lead-free Wave Soldering Profile
Wave Soldering Parameter
Average ramp-up rate
Heating rate during preheat
Final preheat temperature
Peak temperature Tp
Time within +0℃ / -5℃ of
actual peak temperature
Ramp-down rate
200℃ / second
typical 1 - 2℃ / second
Max 4℃ / second
within 125℃ of soldering
temperature
260℃
10 seconds
5℃ / second max.
Specifications subject to change without notice
Bel Fuse Inc.
206 Van Vorst Street
Jersey City, NJ 07302 USA
© 2018 Bel Fuse, Inc.
+1 201.432.0463
Bel.US.CS@belf.com
belfuse.com/circuit-protection
Rev. 3AG Nov2018
Type 3AG / 3AP
4
/
4
Fuse FGNO Explanation
06X1 R [XXXX] -XX
0601R=3AG / 0611R=3AP; [XXXX]=Ampere Rating; XX=See Ordering Information as below
Fraction
1/10
1/8
Decimal
0.100
.125
.160
Milliamps
100
125
160
200
250
300
375
400
500
750
Bel FGNO[XXXX]
0100
0125
0160
0200
0250
0300
0375
0400
0500
0750
Fraction
Decimal
1.0
Amps
1
1.25
1.6
2
2.5
3
3.5
4
5
6
7
8
10
12
15
Bel FGNO[XXXX]
1000
1250
1600
2000
2500
3000
3500
4000
5000
6000
7000
8000
9100
9120
9150
1-1/4
1.25
1.60
2.0
2/10
1/4
3/10
3/8
4/10
1/2
3/4
.200
.250
.300
.375
.400
.500
.750
2-1/2
2.5
3.0
3-1/2
3.5
4.0
5.0
6.0
7.0
8.0

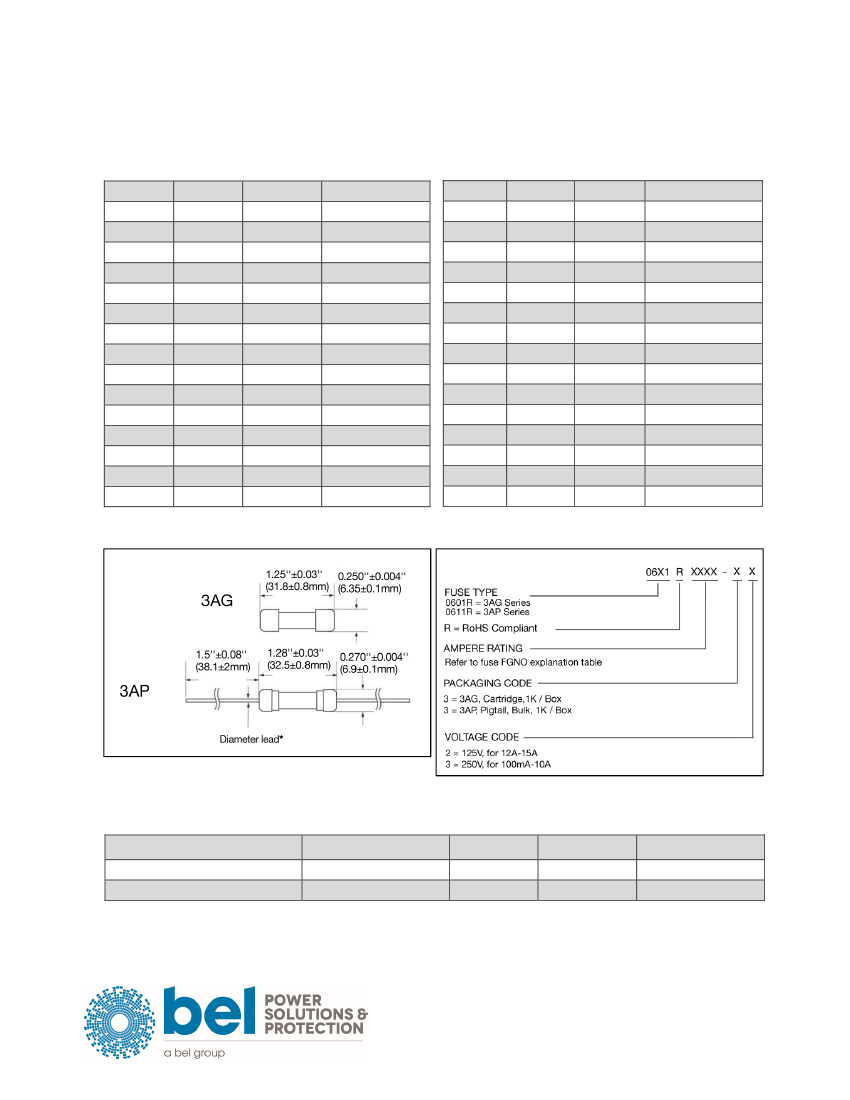

Mechanical Dimensions
Ordering Information
*Ratings 7A and less have 0.032'' diameter lead;
Ratings 8A and above have 0.040'' diameter lead.
Packaging
Packaging Option
Bulk
Bulk (Pigtail Type)
Packaging Specification
N/A
N/A
Quantity
1000
1000
Packaging Code
33 / 32
33 / 32
Inside Tape Spacing
N/A
N/A
Specifications subject to change without notice
Bel Fuse Inc.
206 Van Vorst Street
Jersey City, NJ 07302 USA
© 2018 Bel Fuse, Inc.
+1 201.432.0463
Bel.US.CS@belf.com
belfuse.com/circuit-protection
Rev. 3AG Nov2018
