Bussmann
®
Telpower Indicating Fuse and Holder
®
70 Series
300 Volts DC – 1/10-10A
Dimensional Data
1.86"
.28"
Test Specification
Catalog Numbers
Catalog Number
Percent
Overload
Opening
Time

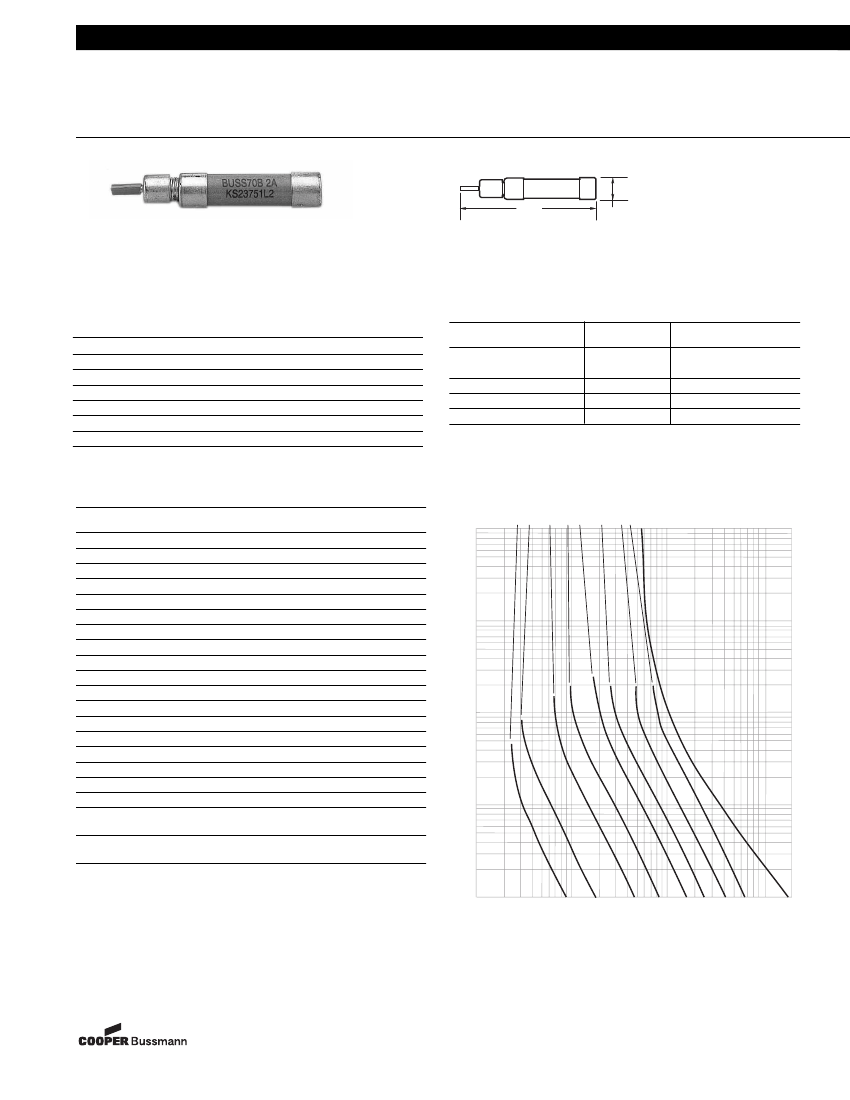

Time-Current Characteristic Curves–Average Melt
70 SERIES TELPOWER (300 Volts DC, 125 Volts AC)
Catalog
Number
Ampere Voltage Rating Color
Rating AC
DC
Code
AT&T Comcode Code/
Ref. No.
List No.
Bussmann
®
Telpower
®
70 Series

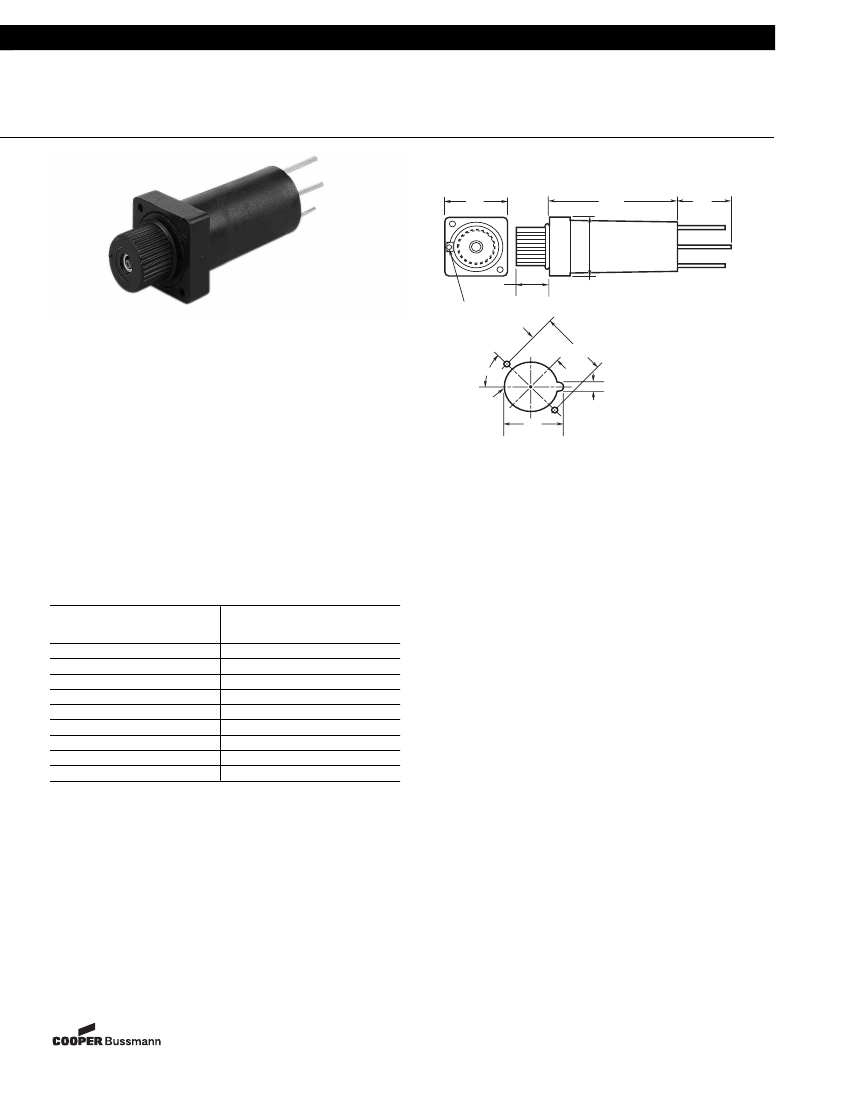

70 Type Indicating Fuse and Holder
300 Volts DC
Dimensional Data
(24.6mm)
.97"
(47.6mm)
1.88"
(19.8mm)
.78"
(11.9mm)
.47"
(22.9mm)
.9"
Eyelet (Optional)
CATALOG SYMBOL: 15087 FUSEHOLDER
300 VOLT DC, 12 AMP
U.L. RECOGNIZED (GUIDE #IZLT2, FILE #E14853)
Materials:
Body:
Terminals:
Screws:
Mounting
Holes
(12.7mm)
.50"
(25.4mm)
1"
45°
.83" Dia.
(21.0mm)
Thermosplastic, U.L. 94VO flammability rating
Copper alloy, tin plating
3-24 x 3/8” steel, zinc plated
(3.9mm)
(23.0mm)
.16"
.91"
NOTE:
Optional color coded eyelet for 15087 holder is available.
• Panel mount fuseholder for 70 Type fuses supplied with
two screws.
• Remote alarm capability.
Optional Color Code Eyelets (order separately)
Catalog
Symbol
1A1706-01
1A1706-02
1A1706-03
1A1706-04
1A1706-05
1A1706-06
1A1706-07
1A1706-08
1A1706-09
Amp
Rating
Ref.
18/100
2/10
1/4
1/4
1/2
3/4
1
1-1/3
2
Color
Code
Yellow
Black
Violet
Violet/White
Red
Brown
Pink
White
Orange
Catalog
Symbol
1A1706-10
1A1706-11
1A1706-12
1A1706-13
1A1706-14
1A1706-15
1A1706-16
1A1706-17
–
Amp
Rating
Ref.
3
5
6
8
10
1/10
3-1/2
15/100
–
Color
Code
Blue
Green/Black
Green/White
Brown/White
Violet/Yellow
Gray/White
Black/White
Red/White
–
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to
clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-
ed, it should be tested by the user in all possible applications.
12-16-98
SB98107 Rev. A
Form No. 70 Series
Page 2 of 2
BIF Doc #5007
