LFSPXO068232Reel datasheet, PDF

Datasheet> All Categories > Passive components> Frequency controller and a timer> oscillator> The standard clock oscillator> LFSPXO068232Reel

Preview

LFSPXO068232Reel: DescriptionStandard clock oscillator 38.4MHz 3.3V 10ppm -40C +85C; CategoryPassive components Frequency controller and a timer oscillator The standard clock oscillator; File Size206KB，3 Pages; ManufacturerIQD; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO068232Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO068232Reel	-	-	View	Buy Now

LFSPXO068232Reel Overview

Standard clock oscillator 38.4MHz 3.3V 10ppm -40C +85C

LFSPXO068232Reel Parametric

Parameter Name	Attribute value
Maker	IQD
Product Category	Standard clock oscillator
frequency	38.4 MHz
frequency stability	10 PPM
Working power voltage	3.3 V
Termination type	SMD/SMT
Package/box	3.2 mm x 2.5 mm
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
length	3.2 mm
width	2.5 mm
series	IQXO-430
Encapsulation	Reel
type	Ceramic SMD Crystal Oscillator
Factory packaging quantity	1000

Preview

Download Datasheet

View All

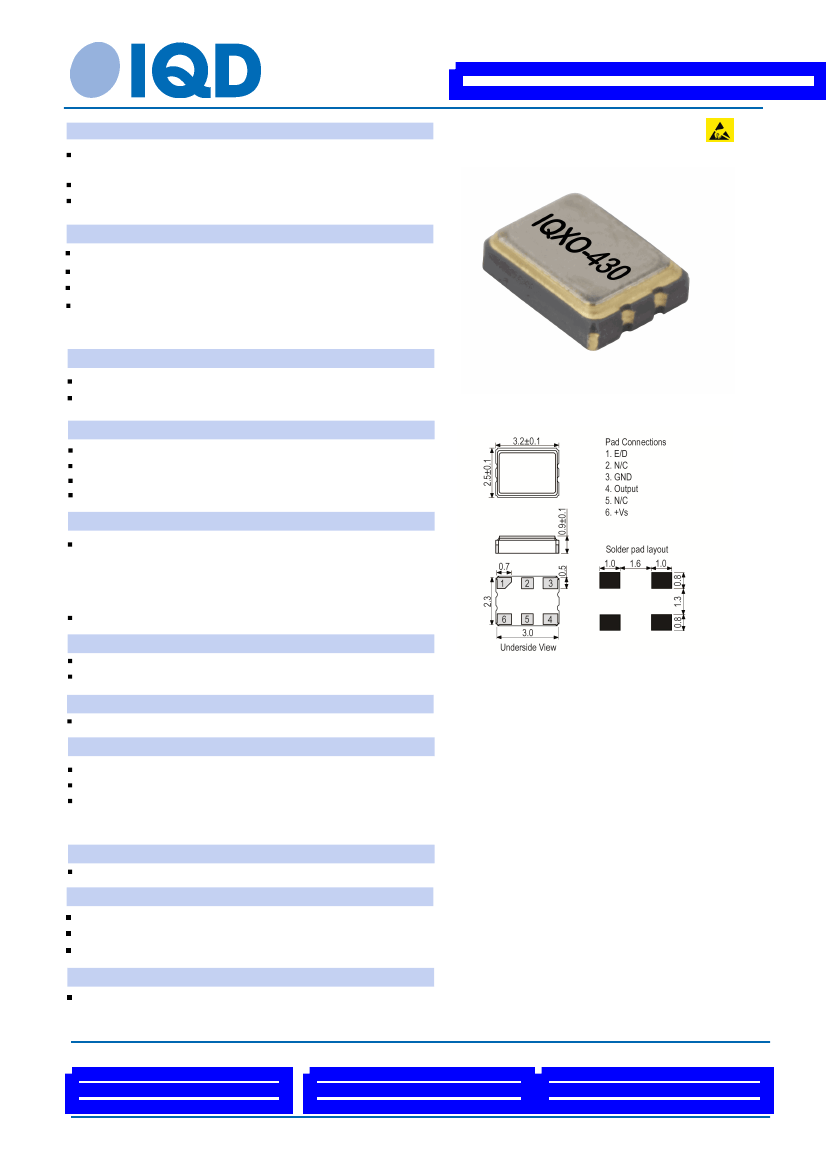

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO068232Reel

Description

Tight stability, hermetically sealed oscillator in a 3.2 x 2.5mm

SMD package.

Model

IQXO-430

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

38.40MHz

±10.00ppm

Operating Temperature Range

-40.00 to 85.00°C

Frequency Stability is inclusive of tolerance @ 25°C, operating

temperature range, supply voltage variation, load variation and

ageing in 1st year @ 25°C.

Electrical Parameters

Supply Voltage

Current Draw

Output Details

3.3V ±10%

7.00mA

Outline (mm)

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF

5.0ns max

45/55%

Logic ‘1’ (>70%Vs) to pad 1 enables oscillator output.

Logic ‘0’ (<30%Vs) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance

state.

No connection to pad 1 enables oscillator output.

Standby Current: 10μA max

Output Levels

VoH: 90%Vs min

VoL: 10%Vs max

Noise Parameters

Period Jitter (RMS 1σ): 3ps typ

Environmental Parameters

Storage Temperature Range: –40 to 85°C

Drop: 100cm drop (3 times) onto hard wooden board.

Vibration: Frequency 10Hz-55Hz, amplitude 1.5mm

(10Hz-36Hz), 4G (36Hz-55Hz), sweep time 1min/oct, duration

2hrs in 3 mutually perpendicular planes.

Manufacturing Details

Maximum Process Temperature: 260°C (10secs max)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 3 Oct 16 17:18 using Part Data Sheet V1.00014
