LFSPXO068059Bulk datasheet, PDF

Datasheet> All Categories > Passive components> Frequency controller and a timer> oscillator> The standard clock oscillator> LFSPXO068059Bulk

Preview

LFSPXO068059Bulk: DescriptionStandard clock oscillator 10MHz 2.8V 50ppm -10C +70C; CategoryPassive components Frequency controller and a timer oscillator The standard clock oscillator; File Size408KB，3 Pages; ManufacturerIQD; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO068059Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO068059Bulk	-	-	View	Buy Now

LFSPXO068059Bulk Overview

Standard clock oscillator 10MHz 2.8V 50ppm -10C +70C

LFSPXO068059Bulk Parametric

Parameter Name	Attribute value
Maker	IQD
Product Category	Standard clock oscillator
frequency	10 MHz
frequency stability	50 PPM
Working power voltage	2.8 V
Termination type	SMD/SMT
Package/box	5 mm x 3.2 mm
Minimum operating temperature	- 10 C
Maximum operating temperature	+ 70 C
length	5 mm
width	3.2 mm
series	CFPS-68
Encapsulation	Bulk
type	Ceramic SMD Crystal Oscillator
Factory packaging quantity	100

Preview

Download Datasheet

View All

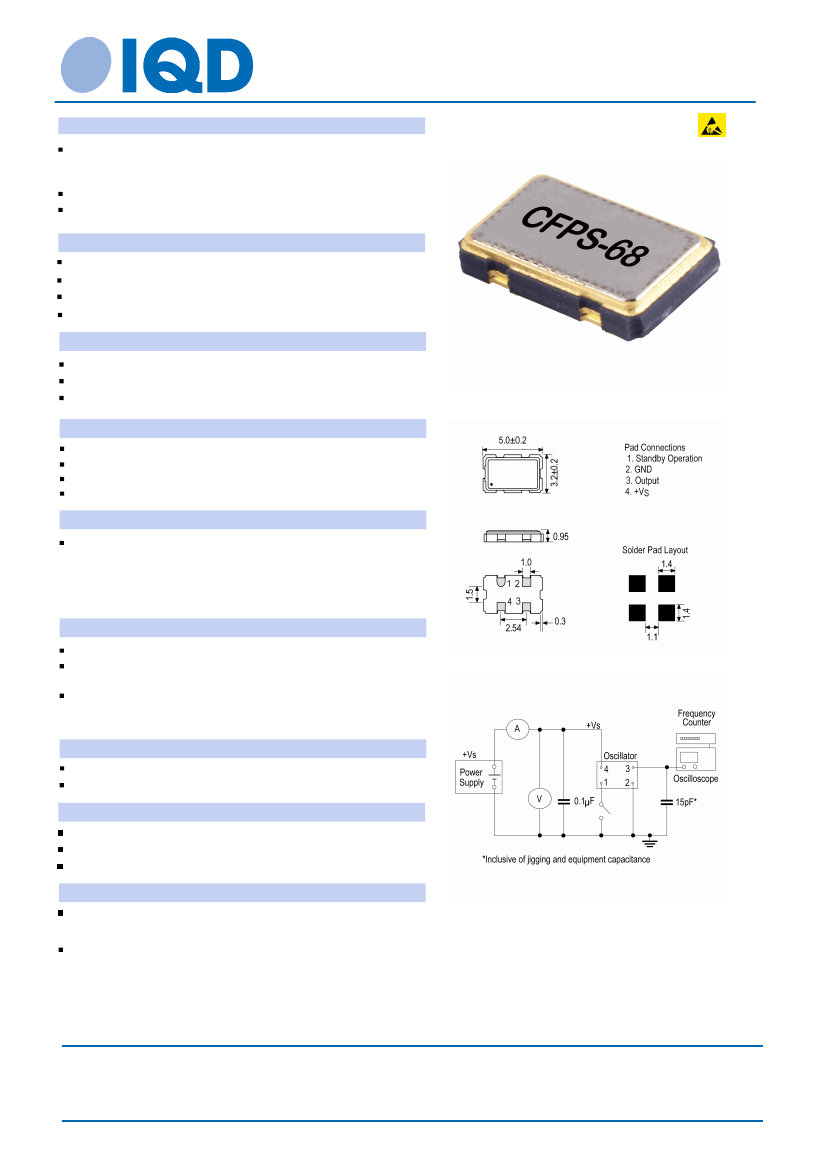

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO068059Bulk

Description

Low supply current crystal oscillators

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-68

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

10.0MHz

50.00ppm

-10.00 to 70.00°C

±3ppm max per year

Supply Voltage

Current Draw

Standby Current: 1μA max

Output Details

2.8V ±5%

4.000mA

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

12.0ns max

45/55%

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when

the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

Test Circuit

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 23 Apr 18 11:01 using Part Data Sheet V1.00015
