AQV252G3AZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> AQV252G3AZ

AQV252G3AZ: DescriptionSolid State Relay-PCB Mount PhotoMOS 1 Form A 3.5A 60V AC/DC; CategoryLED optoelectronic/LED photoelectric; File Size161KB，6 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

AQV252G3AZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AQV252G3AZ	-	-	View	Buy Now

AQV252G3AZ Overview

Solid State Relay-PCB Mount PhotoMOS 1 Form A 3.5A 60V AC/DC

AQV252G3AZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	DIP-6
Reach Compliance Code	compliant
Configuration	SINGLE WITH BUILT-IN DIODE
Maximum forward current	0.03 A
Maximum insulation voltage	1500 V
Number of components	1
Maximum on-state current	3.3 A
Maximum on-state resistance	0.06 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Base Number Matches	1

Preview

Download Datasheet

View All

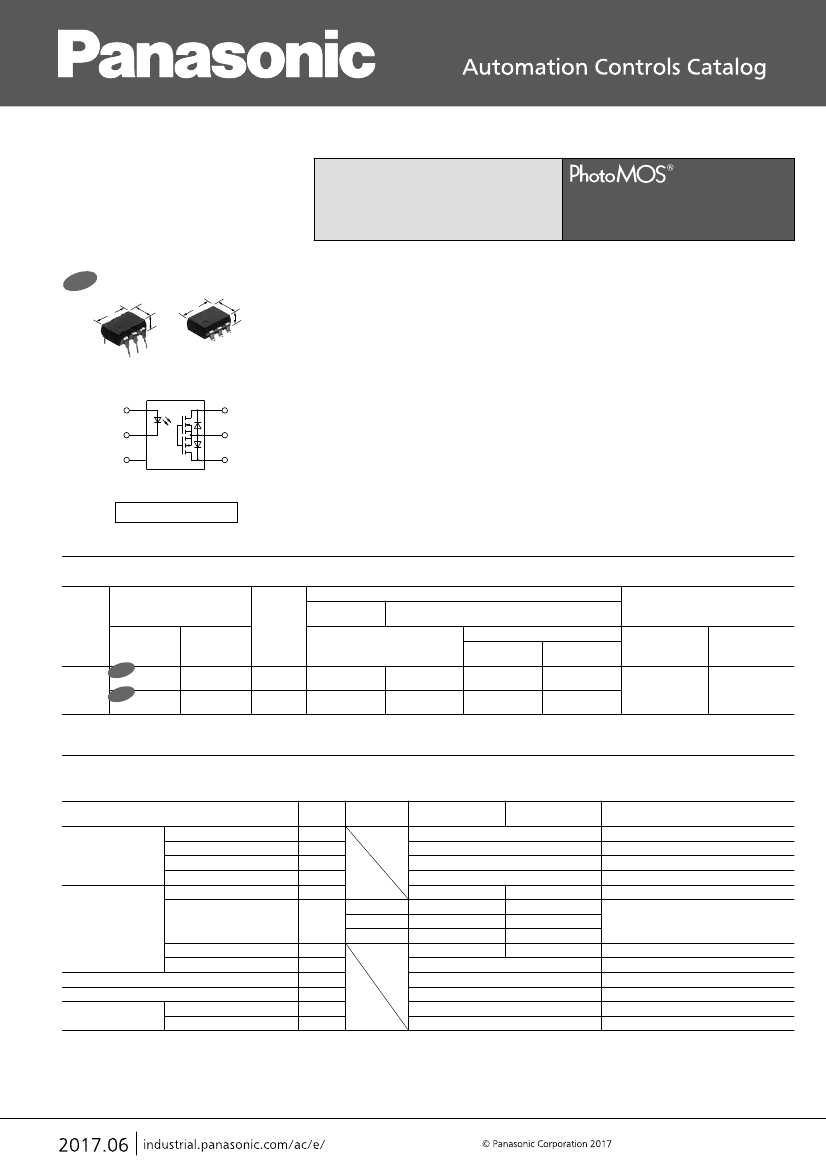

Capable of 2.4A to 3.5A

high capacity load

current control

HE 1 Form A

High Capacity (AQV25❍G3)

New

8.8

.346

8.8

6.4

.346

.252

3.9

.154

FEATURES

6.4

.252

3.6

.142

TYPICAL APPLICATIONS

• Security equipment

• Fire-preventing system

• Industrial machine

• Thermostat (HVAC temperature

controller)

(Height includes standoff)

inch

1. Greatly increased load current in a

compact DIP package

Continuous load current: 3.5A

(AQV252G3)

2. Greatly improved speciﬁcations

allow you to use this in place of

mercury and mechanical relays.

3. Low on-resistance (Typ. 33mΩ,

AQV252G3)

RoHS compliant

TYPES

Part No.

Output rating*

Package

Load voltage

Load current

3.5 A

2.4 A

DIP6-pin

Through hole

terminal

Tube packing style

AQV252G3

AQV255G3

AQV252G3A

AQV255G3A

Surface-mount terminal

Tape and reel packing style

Picked from the Picked from the

1/2/3-pin side

4/5/6-pin side

AQV252G3AX

AQV255G3AX

AQV252G3AZ

AQV255G3AZ

Packing quantity

Tube

1 tube contains:

50 pcs.

1 batch contains:

500 pcs.

Tape and reel

AC/DC

dual use

New

100 V

New

60 V

1,000 pcs.

*Indicate the peak AC and DC values.

Note: The surface mount terminal indicator “A” and the packing style indicator “X” or “Z” are not marked on the device.

RATING

1. Absolute maximum ratings

(Ambient temperature: 25°C

77°F)

Item

LED forward current

LED reverse voltage

Peak forward current

Power dissipation

Load voltage (peak AC)

Continuous load current

Peak load current

Power dissipation

Total power dissipation

I/O isolation voltage

Ambient temperature

Operating

Storage

Symbol

Output

peak

out

iso

opr

stg

Type of

connection

AQV252G3(A)

50 mA

75 mW

60 V

3.5 A

5.0 A

7.0 A

10 A

100 V

2.4 A

3.2 A

4.8 A

7.0 A

A connection: Peak AC, DC

B, C connection: DC

100ms (1 shot), V

= DC at A connection

AQV255G3(A)

Remarks

Input

f = 100 Hz, Duty factor = 0.1%

600 mW

650 mW

1,500 Vrms

–40 to +85°C

–40 to +185°F

–40 to +100°C

–40 to +212°F

(Non-icing at low temperatures)

–1–

ASCTB394E 201705-T

AQV252G3AZ Related Products

	AQV252G3AZ	AQV255G3AZ
Description	Solid State Relay-PCB Mount PhotoMOS 1 Form A 3.5A 60V AC/DC	Solid State Relay-PCB Mount PhotoMOS 1 Form A 2.4A 100V AC/DC
Is it Rohs certified?	conform to	conform to
Maker	Panasonic	Panasonic
package instruction	DIP-6	DIP-6
Reach Compliance Code	compliant	compliant
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Maximum forward current	0.03 A	0.03 A
Maximum insulation voltage	1500 V	1500 V
Number of components	1	1
Maximum on-state current	3.3 A	3.3 A
Maximum on-state resistance	0.06 Ω	0.12 Ω
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Base Number Matches	1	1
