LHUV-0415-A065: DescriptionHigh Power LED - Monochrome Luxeon UV U1- 415nm; CategoryLED optoelectronic/LED LED lighting The LED emitter High power LED - monochromatic; File Size2MB，24 Pages; ManufacturerLumileds; Websitehttps://www.lumileds.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LHUV-0415-A065 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LHUV-0415-A065	-	-	View	Buy Now

LHUV-0415-A065 Overview

High Power LED - Monochrome Luxeon UV U1- 415nm

LHUV-0415-A065 Parametric

Parameter Name	Attribute value
Maker	Lumileds
Product Category	High power LED - single color
product	UV LEDs (Ultraviolet)
Installation style	SMD/SMT
Package/box	SMD-2
lighting color	Ultraviolet (UV)
Wavelength/Color Temperature	415 nm
brightness	-
Luminous flux/radiant flux	675 mW
Lens color/type	Clear
If - forward current	500 mA
Vf - forward voltage	3.4 V
length	1.7 mm
width	1.3 mm
high	0.66 mm
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 135 C
series	LUXEON UV U1
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
LED size	1.7 mm x 1.3 mm
display angle	140 deg
Factory packaging quantity	500

Preview

Download Datasheet

View All

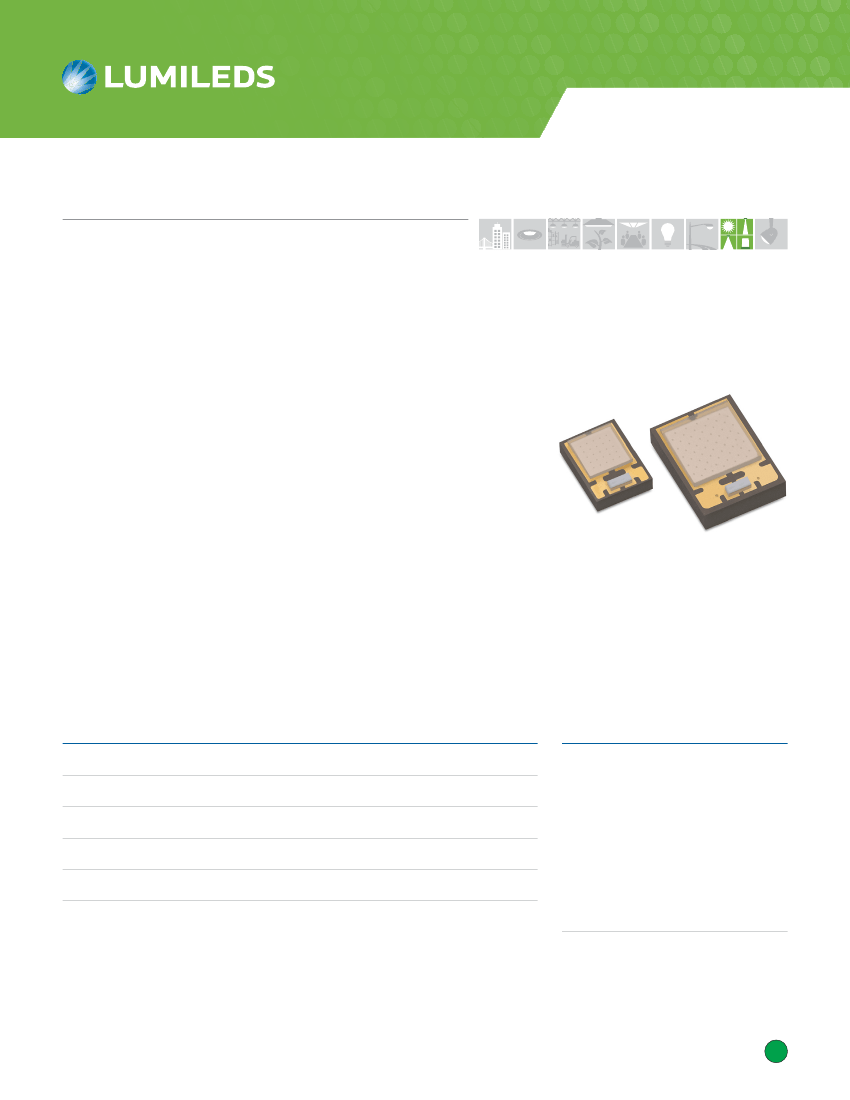

IllumInatIon

luXeon uV u line

Highest power density, superior efficiency, powered

by leading Chip Scale Package (CSP) technology

At a micro package size compared to other ultraviolet and violet LEDs,

LUXEON UV U Line LEDs are SMT devices that can be assembled in

tight arrays with spacing of only 200 microns, which enables high power

density (W/cm²) systems for superior efficiency and design freedom.

These products are undomed for precise optical control and include a

portfolio of 1mm² and 2mm² die sizes covering ultraviolet and violet light.

The superior power density, excellent robustness of CSP technology and

real world efficacy enable leading performance and efficient solution

development in a wide variety of UV specialty lighting applications.

Features and BeneFIts

Offering ultraviolet in 380-400nm and violet (400–420nm) for a range of options

Small 2.2 to 3.6mm² SMT footprint enables highest W/cm

power density,

design freedom

1A per mm

die size maximum drive current allows more power per LED

Up to 50%+ efficiency reduces heat output

AlN package R

as low as 1.8 K/W for better thermal management

PrImary aPPlIcatIons

Specialty Lighting

– Analytical Instrumentation

– Curing

– Medical

– Security

– UV Photoreaction

COMPLIANT

RoHS

Table of Contents

General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Electrical and Thermal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Forward Current Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Wavelength Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Product Bin and Labeling Definitions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Decoding Product Bin Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Radiometric Power Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Peak Wavelength Bins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Reflow Soldering Guidelines

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Pocket Tape Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

LHUV-0415-A065 Related Products

	LHUV-0415-A065	L1F3-U380200010000
Description	High Power LED - Monochrome Luxeon UV U1- 415nm	Single Color LED,
