CMT2870-0000-000P0U0A31Q datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> LED lighting> The LED emitter> High power LED - white> CMT2870-0000-000P0U0A31Q

Preview

CMT2870-0000-000P0U0A31Q: DescriptionHigh Power LED - White COB White LED CMT2870-54V; CategoryLED optoelectronic/LED LED lighting The LED emitter High power LED - white; File Size2MB，22 Pages; ManufacturerCree; Websitehttp://www.cree.com/; Environmental Compliance

Download Datasheet Parametric View All

CMT2870-0000-000P0U0A31Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMT2870-0000-000P0U0A31Q	-	-	View	Buy Now

CMT2870-0000-000P0U0A31Q Overview

High Power LED - White COB White LED CMT2870-54V

CMT2870-0000-000P0U0A31Q Parametric

Parameter Name	Attribute value
Maker	Cree
Product Category	High Power LED - White
product	White CoB LEDs
Installation style	SMD/SMT
Package/box	COB - Chip-on-Board
lighting color	White (Warm White)
Wavelength/Color Temperature	3100 K
brightness	-
Luminous flux/radiant flux	7990 lm
Color Rendering Index - CRI	90
display angle	115 deg
Lens color/type	Tinted, Clear
If - forward current	1300 mA
Vf - forward voltage	50.9 V
length	27.85 mm
width	27.85 mm
high	1.45 mm
series	CMT2870-54V
Encapsulation	Tray
Configuration	-
type	High Current LED Array
Factory packaging quantity	100

Preview

Download Datasheet

View All

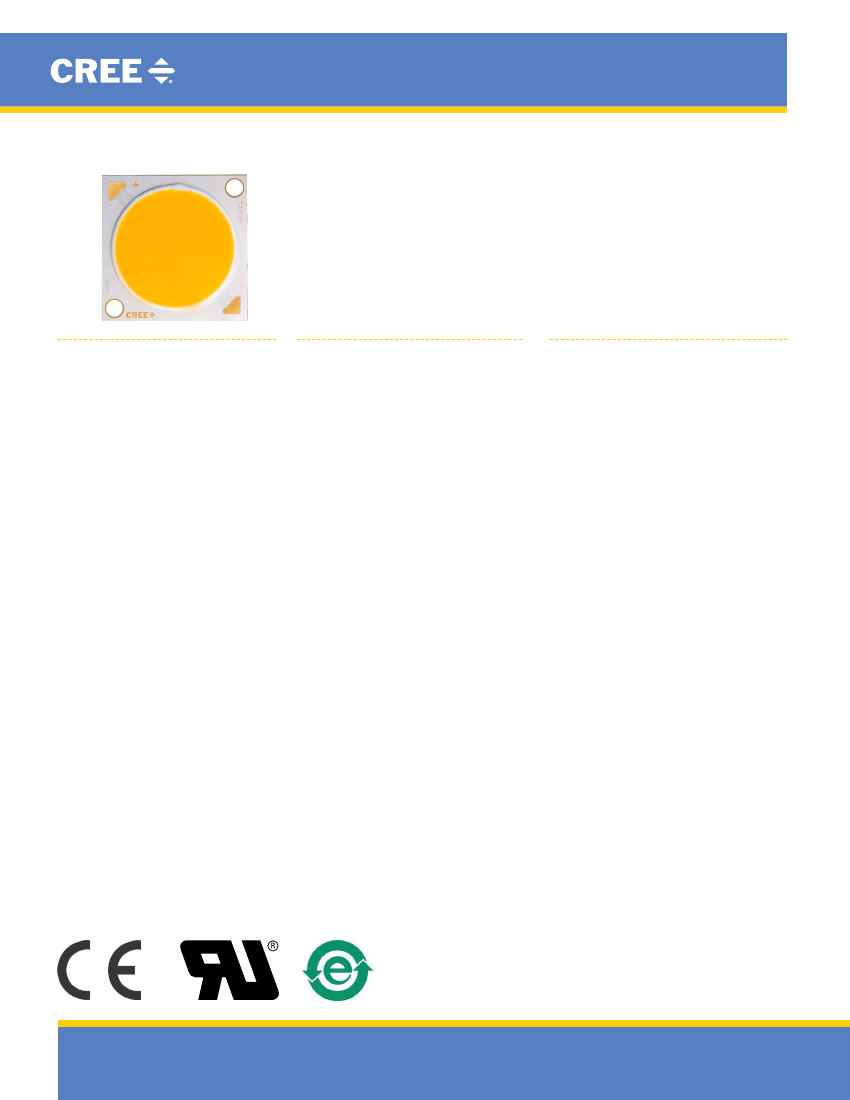

CLD-DS167 Rev 5C

Product family data sheet

Cree

XLamp

CMT2870 LED

ProDuCT DEsCriPTion

The

Cree

XLamp

High-Current

LeD Array family is optimized for

best‑in‑class lumen output, efficacy

and reliability at high drive currents.

XLamp CMT LeDs deliver performance

in industry-compatible packages and

LeSes, enabling lighting manufacturers

to upgrade their designs for applications

such as track, downlight and outdoor

lighting.

High-Current

LeD

Arrays

are

now

fEaTurEs

•

22-mm optical source

Cree easyWhite

2-, 3- and 5-step

binning

Premium Color 2- and 3-step binning

Standard & Premium Color LeDs

available in 70, 80, 90 and 95 CRI

minimum options

•

eTone™ LeDs available in 90 CRI

minimum option

Forward voltage option: 54-v class

85 °C binning and characterization

Maximum drive current: 2800 mA

115° viewing angle, uniform

chromaticity profile

Top-side solder connections

RoHS and ReACh compliant

recognized component

(e349212)

•

TabLE of ConTEnTs

Characteristics ............................................2

Operating Limits ..........................................3

Flux Characteristics, Order Codes & Bins -

Standard LeDs .............................................4

Flux Characteristics, Order Codes & Bins -

Standard LeDs, Premium Color ..................5

Flux Characteristics, Order Codes and

Bins - eTone™ LeDs .....................................6

Relative Spectral Power Distribution -

Standard LeDs .............................................7

Relative Spectral Power Distribution -

Standard LeDs, Premium Color ..................8

Relative Spectral Power Distribution -

eTone™ LeDs ............................................ 10

electrical Characteristics ......................... 10

Relative Luminous Flux ............................ 11

Typical Spatial Distribution...................... 11

Performance Groups - Chromaticity ....... 12

Premium Color Performance Groups -

Chromaticity ............................................. 13

Cree easyWhite

Bins Plotted on the

931 CIe Color Space ................................ 14

Cree Premium Color Bins Plotted on the

1931 CIe Color Space .............................. 15

Bin and Order Code Formats ................... 17

available in two different versions:

Standard and eTone LeDs.

The eTone version delivers beautiful 90

CRI light quality at the same efficacy

as today’s standard 80 CRI LeDs.

Featuring the same mechanical and

optical characteristics as the Standard

version, the eTone LeDs allow easy

upgrades from 80 CRI to 90 CRI without

sacrificing performance.

WWW.CREE.Com/XLAmp

Mechanical Dimensions .......................... 18

Thermal Design ........................................ 19

Notes ........................................................ 20

Packaging ................................................. 21

, the Cree logo,

XLamp

and EasyWhite

are registered trademarks and eTone™ is a trademark of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
