ZFS-245000-CW: DescriptionLED lighting strips and strips with 24V LED Flex ribbon 5m reel Cool Wht; CategoryLED optoelectronic/LED LED lighting LED bulbs and modules LED lighting and belt; File Size226KB，2 Pages; ManufacturerJKL Components; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFS-245000-CW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZFS-245000-CW	-	-	View	Buy Now

ZFS-245000-CW Overview

LED lighting strips and strips with 24V LED Flex ribbon 5m reel Cool Wht

ZFS-245000-CW Parametric

Parameter Name	Attribute value
Maker	JKL Components
Product Category	LED lighting strips and strips
product	LED Flexible Strips
lighting color	White (Cool White)
Wavelength/Color Temperature	12000 K
LED quantity	300 LED
length	5 m
width	10 mm
Power rating	67.2 W
LED size	-
Luminous flux	3900 lm
Installation style	Adhesive
If - forward current	2.8 A
Factory packaging quantity	1
Vf - forward voltage	24 V

Preview

Download Datasheet

View All

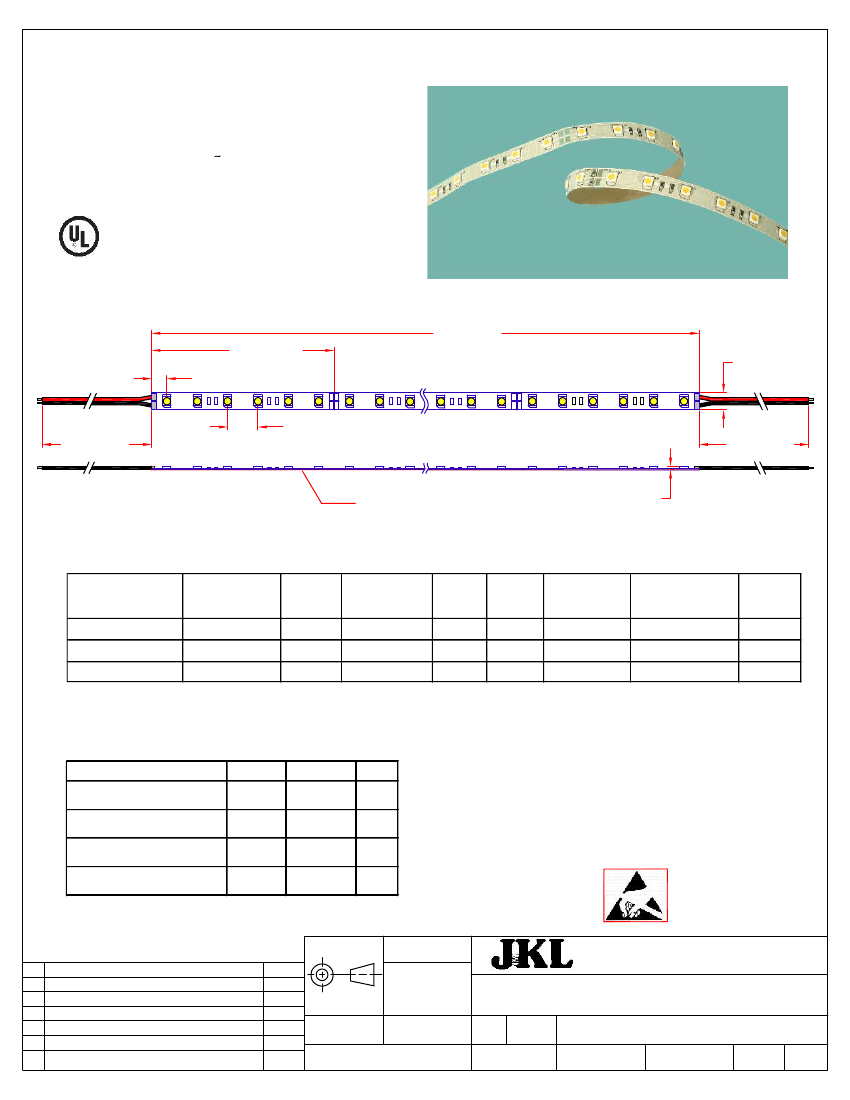

10mm X 5000mm SMD LIGHT RIBBON

Features

Voltage: 24V DC

Current: 2165mA

LED Viewing Angle (2 0 1/2): 120°

Standard Packaging:

5 Meter Reel (300 LED's)

E365522

Dimensions

100.00±1.00mm

(4.00±.04")

12mm REF.

(.47")

+24V

5000.0±1.0mm

(196.85±.04")

10.0±0.35mm

(.400±.014")

L6

+24V

L1

L2

R1

R2

L3

L4

R3

R4

L5

L7

L8

R5

R6

L9

L16

R11

R12

L17

L18

+24V

L19

L20

R13

R14

L21

L22

R15

R16

L23

L24

+24V

197.0mm REF.

(7.75")

17mm

(.67")

197.0mm REF.

(7.75")

Adhesive Tape for Mounting

2.08±0.25mm

(.082±.010")

Electro-Optical Characteristics (T

J

= 25°C)

Part Number

ZFS-245000-CW

ZFS-245000-NW

ZFS-245000-WW

Color

Cool White

Neutral White

Number InputVoltage Power Current Radiance

of LEDs

(V DC)

(W)

(mA) Angle (Deg.)

300

24

67.2

67

52

2800

2165

120

λd(nm)/

CCT(K)

10000 to 12000

3800 to 4300

2700 to 3100

Lumen

Flux (lm)

3900

4525

3650

Warm White

300

24

Note: Flux is measured with an accuracy of +/- 10%.

Maximum Ratings

Parameter

LED Junction Temperature

Operating Temperature

Storage Temperature

ESD Sensitivity

Symbol

Rating

125

-20 ~ +85

-20 ~ +100

1000

Units

ºC

V

OBSERVE PRECAUTION

FOR HANDLING ELECTROSTATIC

DISCHARGE SENSITIVE DEVICES

T

J

T

opr

T

stg

V

B

ATTENTION

METRIC

E

D

C

B

A

REV.

NO.

DIMENSIONS ARE

MILLIMETER (INCH)

TOLERANCE UNLESS

OTHERWISE SPECIFIED

CHANGE SEGMENT LENGTH TO 100.00±1.00mm

11/11/15

COMPONENTS CORPORATION

TITLE

ELECTRO-OPTICAL CHART UPDATE ON CW

ELECTRO-OPTICAL CHART UPDATE

ADD UL SYMBOL

ADD MATING COMPONENTS & PAGE 2

RELEASED

DESCRIPTION/ECO

NUMBER

3/12/15

1/29/14

12/9/13

THIRD ANGLE

PROJECTION

DRAWN BY

1 PL +/-

2 PL +/-

ANGLE +/-

APPV'D BY

REF.

DATE

10 X 5000mm, 17mm PITCH, WHITE

LED FLEX RIBBON

5/20/13

L. WENGSTROM L.R.

2/5/13

APPV'D

DATE

SIZE

11/11/15

MANUAL REVISIONS NOT PERMITTED

- CAD DRAWING -

SCALE

A

55335

NONE

FSCM NO.

DRAWING

NO.

ZFS-245000 MULTI

REVISION

DATE

RELEASED

DATE

2/5/13

11/11/15

REV.

NO.

E

1

SHEET

OF

2
