Module Name: MTD0784AZL Ver1.0
Record of Revision
Date
2016-03-28
Revision No.
1.0
Rev 1.0 was issued
Summary
MICROTIPS TECHNOLOGY USA
3504 Lake Lynda Dr, Suite 110, Orlando, Florida, 32817, TEL: 407-273-0204,
FAX: 407-273-0771
Page 2 of 12
Module Name: MTD0784AZL Ver1.0
1. Scope
This data sheet is to introduce the specification of
MTD0784AZL
active matrix TFT module. It is
composed of a color TFT-LCD panel, driver ICs, FPC and a backlight unit. The 7.84” display
area contains 400RGB)
x 1280
pixels.
2. Application
Digital equipments which need color display, mobile phone,mobile navigator/video systems.
3. General Information
Item
Size
Resolution
Interface
Technology type
Pixel Configuration
Outline Dimension (W x H x D)
Active Area
Display Mode
Backlight Type
Weight
7.84
400(RGB) x 1280
LVDS
IPS
RGB stripes
70.60 x 203.48 x 4.60
59.40 x 190.08
Transmissive, Normally Black
LED
TBD
mm
mm
/
/
g
Contents
inch
/
/
/
Unit
MICROTIPS TECHNOLOGY USA
3504 Lake Lynda Dr, Suite 110, Orlando, Florida, 32817, TEL: 407-273-0204,
FAX: 407-273-0771
Page 3 of 12
Module Name: MTD0784AZL Ver1.0

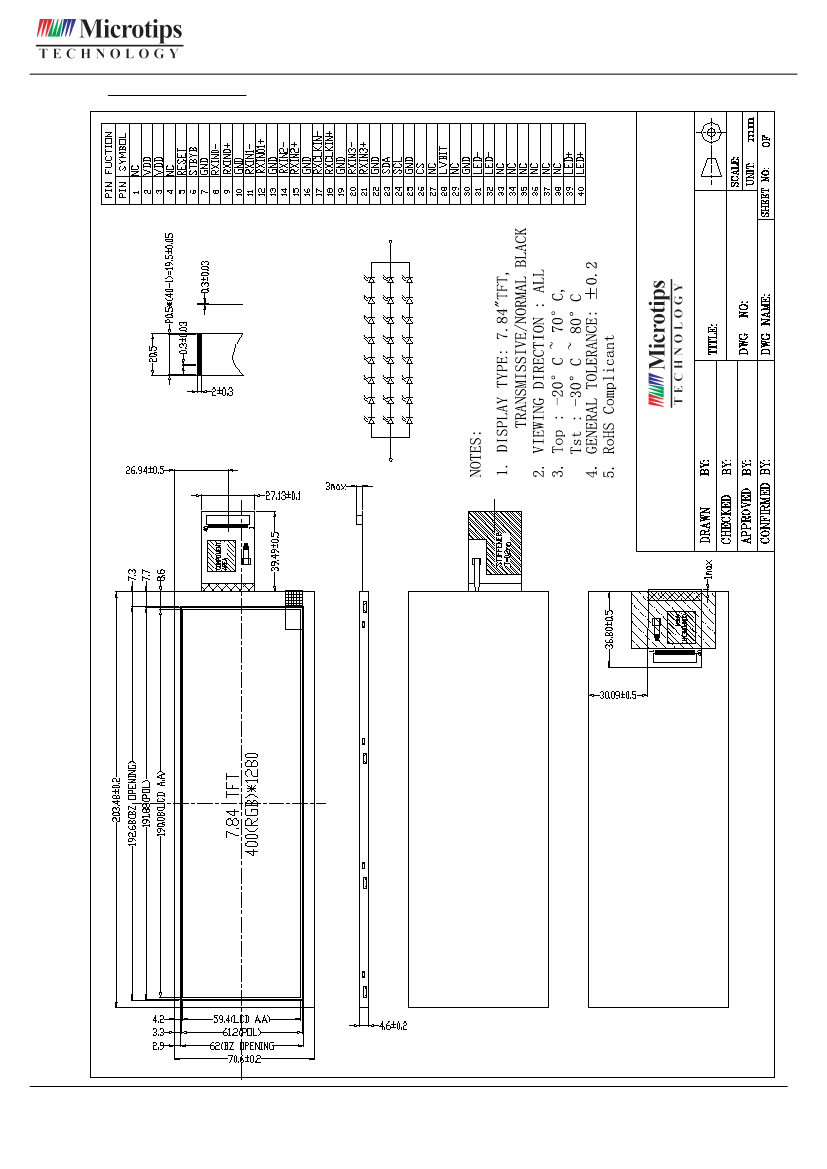

4. Outline Drawing
MATCHING FPC:
LED CIRCUIT DIAGRAM:
MICROTIPS TECHNOLOGY USA
3504 Lake Lynda Dr, Suite 110, Orlando, Florida, 32817, TEL: 407-273-0204,
FAX: 407-273-0771
A
K
Page 4 of 12
Module Name: MTD0784AZL Ver1.0
5. Interface signals
NO.
1
2-3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31-32
33-38
39-40
SYMBOL
NC
VDD
NC
RESET
STBYB
GND
RXIN0-
RXIN0+
GND
RXIN1-
RXIN1+
GND
RXIN2-
RXIN2+
GND
RXCLKIN-
RXCLKIN+
GND
RXIN3-
RXIN3+
GND
SDA
SCL
GND
CS
NC
LVBIT
NC
GND
LED-
NC
LED+
NC
Power Supply
NC
Global reset pin
Standby mode
Ground
Data lane0 input
Ground
Data lane1 input
Ground
Data lane2 input
Ground
CLK input
Ground
Data lane 3 input
Ground
Serial communication data input.
Serial communication clock input
Ground
Serial communication enables.
NC
6-bit / 8-bit input select for LVDS mode
HSD=”L”:6 bit
HSD=”H”:8 bit
NC
Ground
LED Cathode
NC
LED Anode
DISCRIPTION
REMARK
MICROTIPS TECHNOLOGY USA
3504 Lake Lynda Dr, Suite 110, Orlando, Florida, 32817, TEL: 407-273-0204,
FAX: 407-273-0771
Page 5 of 12
