ZFS-CH0-12J

Description
Lighting ConnectorLED Flex Ribbon Input Connector
CategoryThe connector    Lighting connector
File Size87KB,2 Pages
ManufacturerJKL Components
Environmental Compliance
Download Datasheet Parametric View All

ZFS-CH0-12J Online Shopping

Suppliers Part Number Price MOQ In stock
ZFS-CH0-12J - - View Buy Now

ZFS-CH0-12J Overview

Lighting ConnectorLED Flex Ribbon Input Connector

ZFS-CH0-12J Parametric

Parameter NameAttribute value
MakerJKL Components
Product Categorylighting connector
productConnectors
typeLED Flex Strip Connector
Number of locations2 Position
Current rating5 A
Contact plating-
Contact material-
Shell material-
EncapsulationBulk
colorWhite

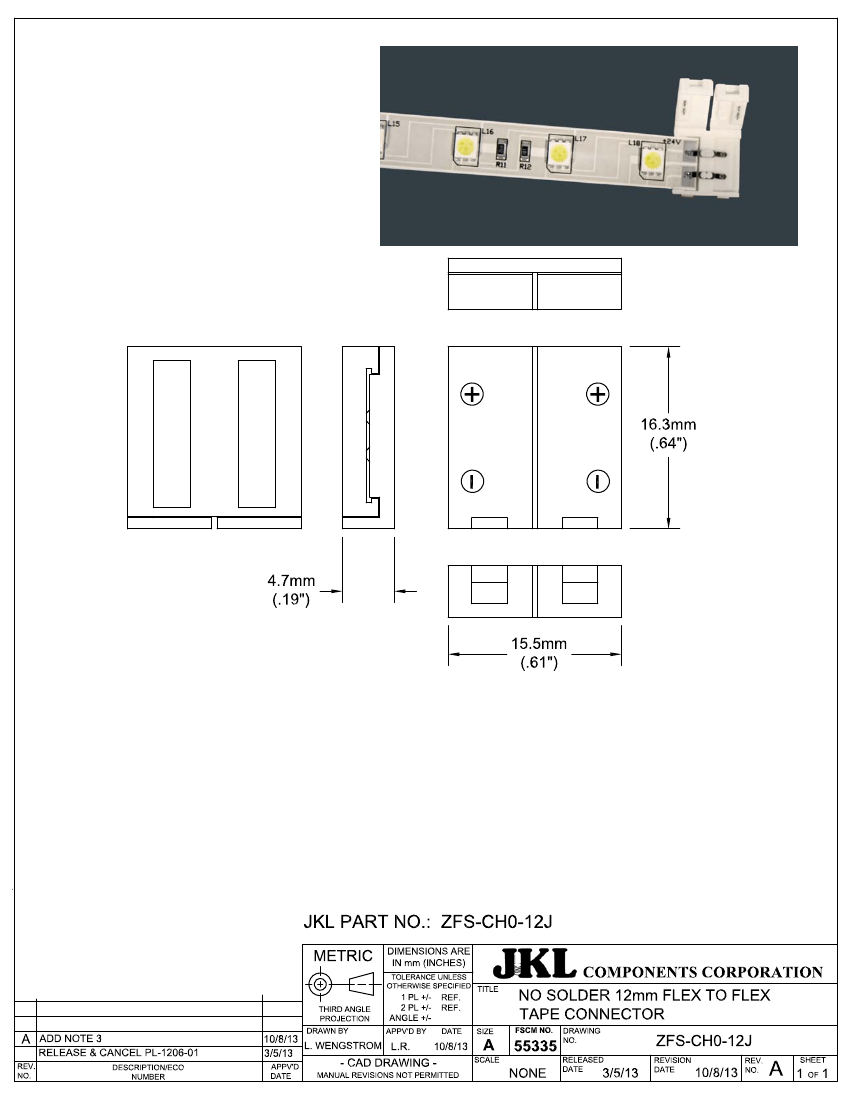

high4.7 mm
length16.3 mm
width15.5 mm
Factory packaging quantity25
NOTES:
1.
OPERATION
1.
2.
3.
GENTLY LIFT LATCH AT SIDE OF CONNECTOR.
SWING COVER OFF OF CONTACTS.
SLIDE THE FLEX TAPE INTO THE CONNECTOR PLACING THE EDGE OF THE FLEX TAPE UNDER
2 HOLD DOWN TABS. MAKE SURE THE POLARITY IS MATCHED BETWEEN THE FLEX TAPE AND
THE CONNECTOR COVER.
FOLD OVER THE COVER AND PRESS IN PLACE UNTIL THE LATCH IS FULLY ENGAGED.
4.
2.
3.
LIMIT CURRENT TO A MAXIMUM OF 5 AMPS.
WILL WORK WITH 10mm OR 12mm WIDE FLEX RIBBON.
