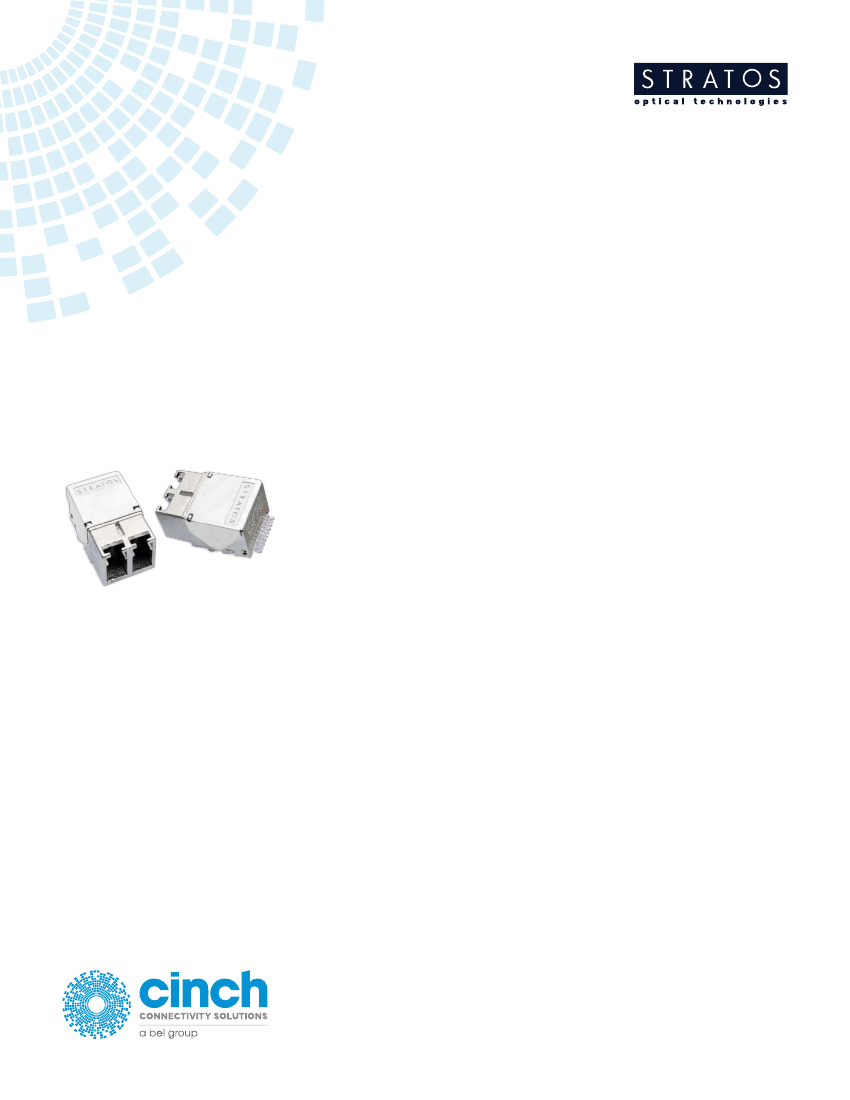

LxLx-ST11xx Low Profile
Optical Transceiver
1x/2x Fiber Channel Applications 3.3V, 850nm VCSEL,
Multimode, Up to 500 Meters
Applications
The LxLx-ST11xx multimode optical fiber transceivers provide low profile, cost
effective solutions for rate agile 1x/2x Fiber Channel multimode optical fiber data
links with a duplex LC connector interface.
These transceivers are fully compliant with the ANSI Fiber Channel standards but
can be used for any other data communications purpose within their operating
parameters.
Features
• Low Profile Design - 0.386 inches max. height
• Surface mount I/O pins for high speed signal integrity
• All metal body, solder or screw mount options
• Industrial Temp Range, Vibration tolerant design
• RX data squelch on Signal Detect deassert
• Individual (separate) +3.3 V power supply per port
• Industry standard duplex multimode LC receptacle
• Compliant with ANSI Fiber Channel FC-PI / PH2
• EN-60825 / IEC-825 / CDRH Class 1 Compliant
• Optional Parylene C Conformal Coating
• High Power Options available
• Optional addition of fiber pigtail
+1 321.308.4100
ccsorders@us.cinch.com
belfuse.com/cinch
Ordering Information
Low Rider
L
X
L
L
X - ST11 X X
X - ST11 X X
Mounting
BLANK – Solder Posts (0.125 length)
B – Screw Posts (0.050 length)
Temperature and Coating
H – -40 to 85ºC, no coating
M – -40 to 85ºC, conformal coating
Roughrider
1
RR
Shell Options
N – No GND Tabs (Flat Shell)
T – GND Tabs
Extended Margin Link
BLANK – Standard Power
2 – +2dB Margin
3 – +3dB Margin
5 – +5dB Margin
Transmitters:
VCCTX = 3.135V to 3.465V, T
A
= Operating Temperature Range
Parameter
Optical Output Power
1,2
LxL-ST11xx
LxL2-ST11xx (+2dB Margin)
LxL3-ST11xx (+3dB Margin)
LxL5-ST11xx (+5dB Margin)
Symbol
P
O
MIN
-10.0
-8.0
-7.0
-5.0
Typical
MAX
-1.5
-1.5
-1.5
-1.5
Unit
dBm
Extinction Ratio
Optical Modulation Amplitude (p-p)
2.125 GigaBaud
1.0625 GigaBaud
Total Jitter
1
ER
OMA
196
156
Tj
9
dB
µW
µW
85
ps
1. Assuming an Extinction Ratio of 9 dB
2. BER=10
-12
@ 2.125 GigaBaud, PRBS = 2
7
-1, NRZ, Compliant with FC-PI-2.
+1 321.308.4100
ccsorders@us.cinch.com
belfuse.com/cinch
Receivers:
VCCRX = 3.135V to 3.465V, T
A
= Operating Temperature Range
Parameter
Optical Sensitivity
1
2.125 GigaBaud
1.0625 GigaBaud
3
2
Symbol
P
I
MIN
-15.0
-17.0
49
31
Typical
MAX
0
0
Unit
dBm
dBm
µW
µW
Optical Modulation Amplitude
2.125 GigaBaud
1.0625 GigaBaud
OMA
Stressed Receiver Sensitivity (OMA)
2.125 GigaBaud
50/125 µm MMF
62.5/125 µm MMF
1.0625 GigaBaud
50/125 µm MMF
62.5/125 µm MMF
96
109
55
67
µW
µW
µW
µW
1. Assuming an Extincton Ratio of 9 dB
2. BER=10
-12
@ 2.125 GigaBaud, PRBS = 2
7
-1, NRZ, Compliant with FC-PI-2.
3. BER=10
-12
@ 1.0625 GigaBaud, PRBS = 2
7
-1, NRZ, Compliant with FC-PH.
Link Distances
Fiber Specification
62.5/125 (200MHz*Km)
50/125 (500MHz*Km)
Application
2x Fiber Channel – ANSI X3.297 FC-PI
1x Fiber Channel – ANSI X3.297 FC-PH-2
2x Fiber Channel – ANSI X3.297 FC-PI
1x Fiber Channel – ANSI X3.297 FC-PH-2
Distance
150M
300M
300M
500M
For more information on this product consult the LxLx-ST11xx product data sheet.
