5mm (T1 ¾) Package Discrete LED
3mm (T1)¾) Package Discrete LED
5mm (T1 Package Discrete LED
YELLOW, Low Bright
TURQUOISE, Current
BLUE, Low Bright
GREEN, 12V Bright
AMBER, 12V Ultra
AMBER 5VCurrent Bright
Ultra
Super
GREEN, Ultra
B
5GX12V-X
♦
♦
♦
♦
♦
♦

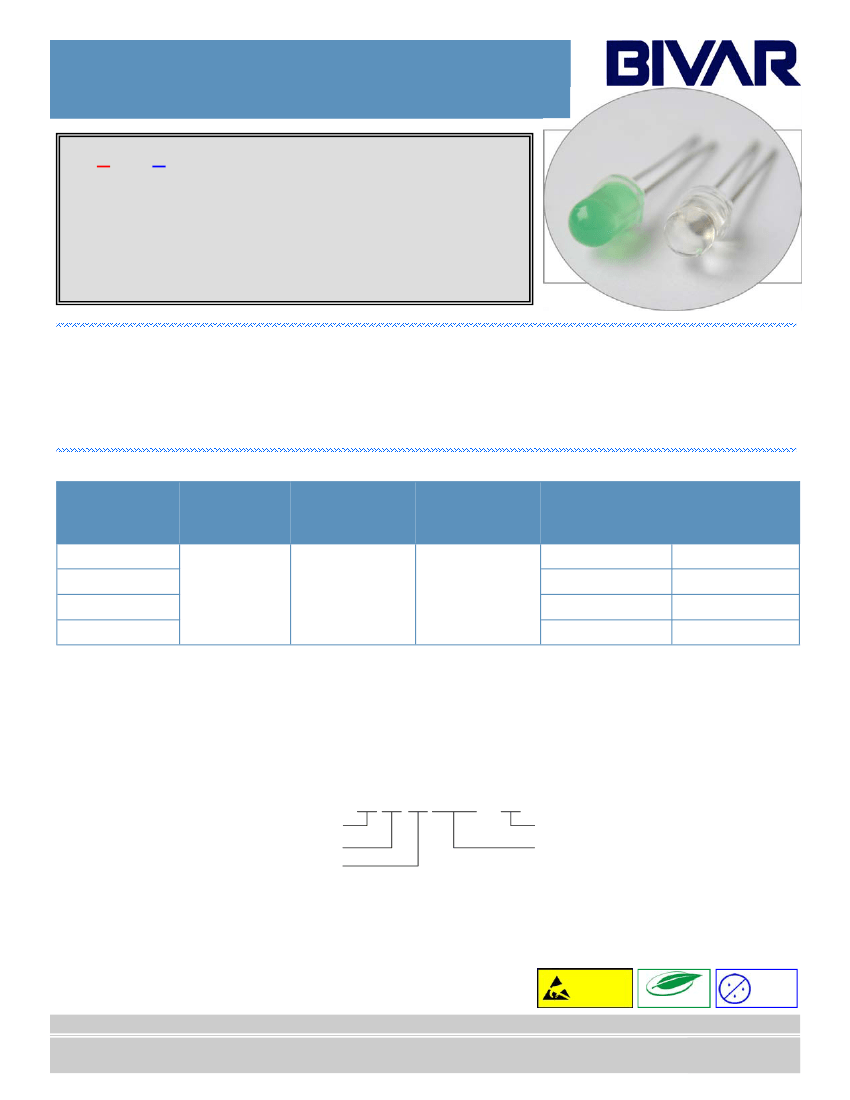

Industry Standard 5mm (T1 ¾) Package
RoHS Compliant
Water Clear (C) and Diffused (D) Lenses
Available in Flange (F) and Standard (Blank) Lead Frame
styles
12V Operating Voltage
Ideal for Status Indication and Display
Bivar 5mm T1 ¾ Package 12V LED is ideal for applications equipped with regular 12V power supplies
such as servers and computer peripherals, and applications operated by 12V batteries such as auto-
mobiles and boats. Bivar offers water clear LED lens for maximum light output and diffused LED lens
for uniform light output. The Flanged LED is ideal for Panel Mount Clip & Ring assemblies and the
Standard Lead frame LED is ideal for vertical spacer assemblies without lead bends.
Part Number
5GC12V-F
5GD12V-F
5GC12V
5GD12V
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
Lens Appearance
Water Clear
Viewing Angle
35°
40°
35°
45°
GaP/GaP
GREEN
568nm
Green Diffused
Water Clear
Green Diffused
Part Number Designation
5 X X 12 V - X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, Blank for Standard
12V Operating Voltage
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 1 of 5
3mm (T1)¾) Package Discrete LED
LEDs
5mm (T1 Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, 12V Ultra
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Ultra
Super
GREEN, 12V Bright

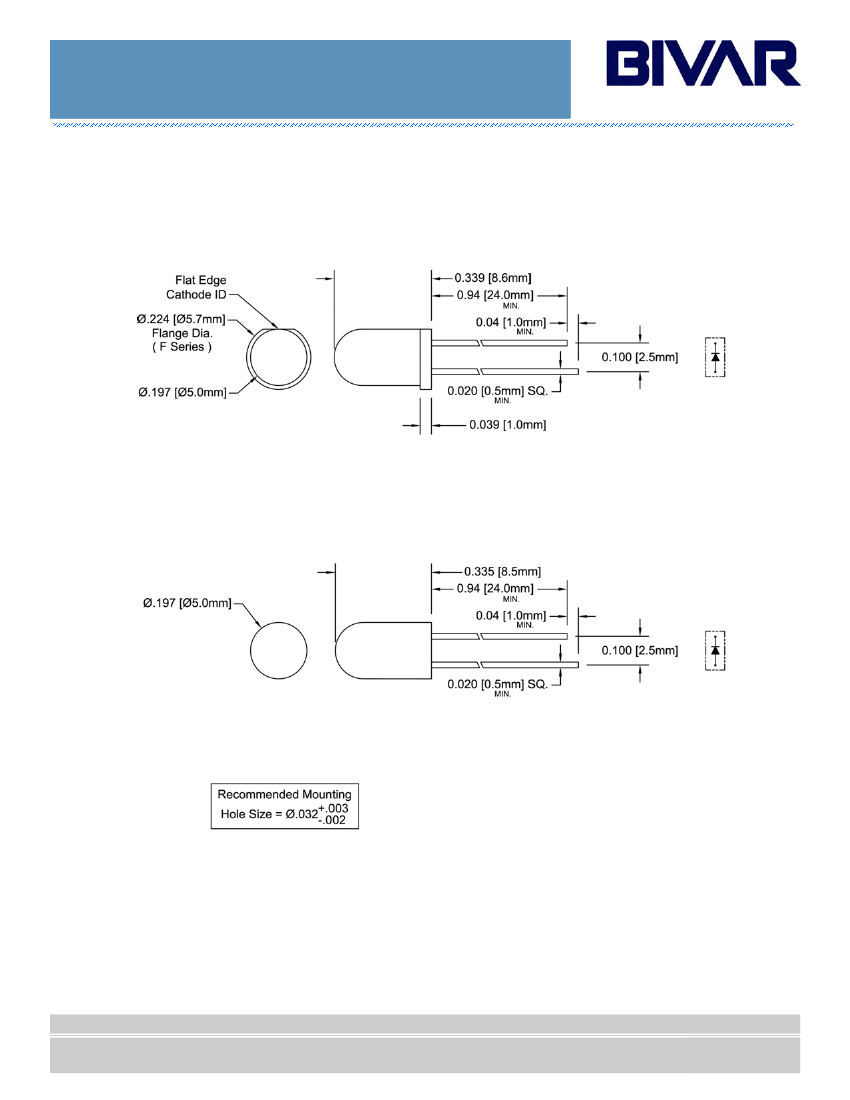

Outline Dimensions
Flanged “5XX12V-F” LED
Standard “5XX12V” LED
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 2 of 5
3mm (T1)¾) Package Discrete LED
LEDs
5mm (T1 Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, 12V Ultra
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Ultra
Super
GREEN, 12V Bright
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
/ mW
10mA
12 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & Vf = 12V unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
100
MIN
/
/
/
/
TYP
/
/
/
/
MAX
/
/
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
/
/
TYP
40
25
40
25
MAX
/
/
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
35
40
35
45
Part Number
MIN TYP MAX MIN TYP MAX
5GC12V-F
5GD12V-F
5GC12V
5GD12V
/
/
/
12
/
/
/
/
12
/
/
/
100
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 3 of 5
3mm (T1)¾) Package Discrete LED
LEDs
5mm (T1 Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, 12V Ultra
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Ultra
Super
GREEN, 12V Bright
Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
1.0
35°
0.5
40°
45°
50°
60°
70°
80°
90°
0.0
500
λ(nm)
550
600
650
0.5
0.3
0.1
0.2
0.4
0.6

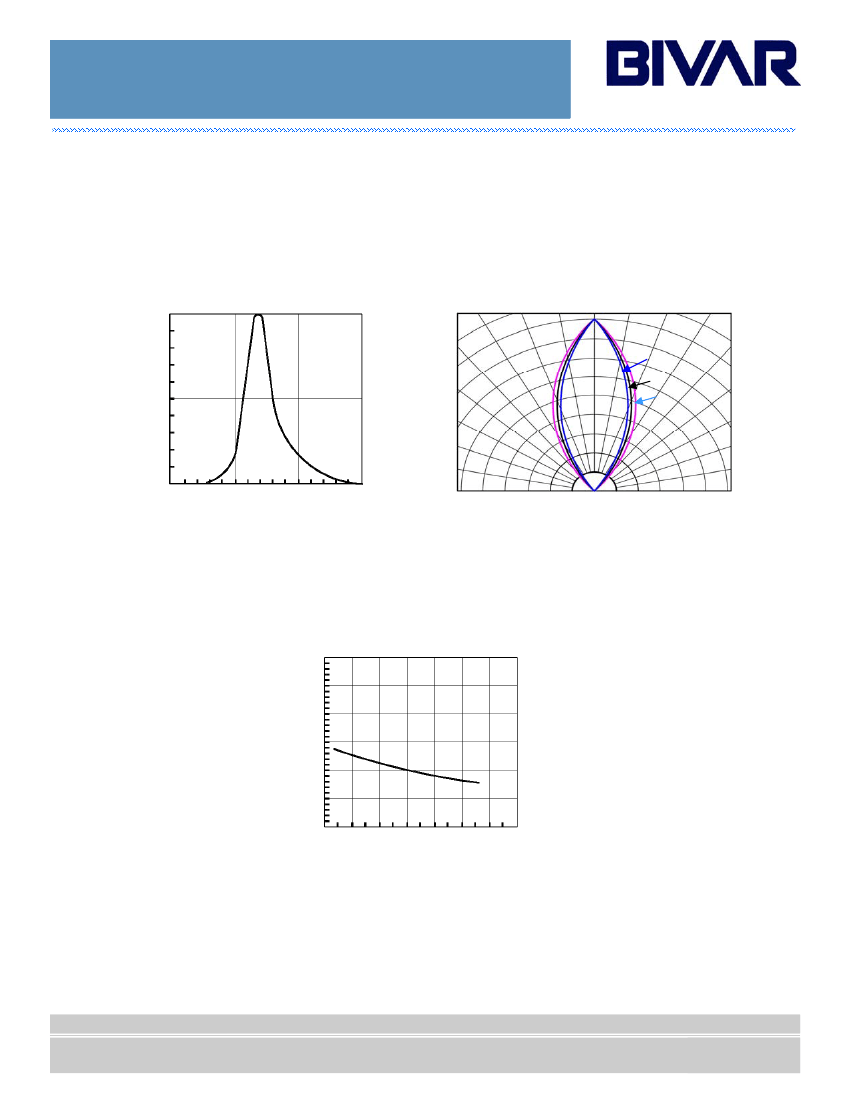

Fig. 1 Relative Luminous Intensity vs. Wavelength
Fig. 2 Directivity Radiation Diagram
Iv
3.0
2.0
1.0
0.0
-40
0
40
80
T (°C)
Fig. 3 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 4 of 5
3mm (T1)¾) Package Discrete LED
LEDs
5mm (T1 Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low Bright
GREEN, 12V Ultra
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Ultra
Super
GREEN, 12V Bright
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision A 03/08
Page 4 of 4
Page 5 of 5
