HCH
CONNECTOR
Board-to-wire

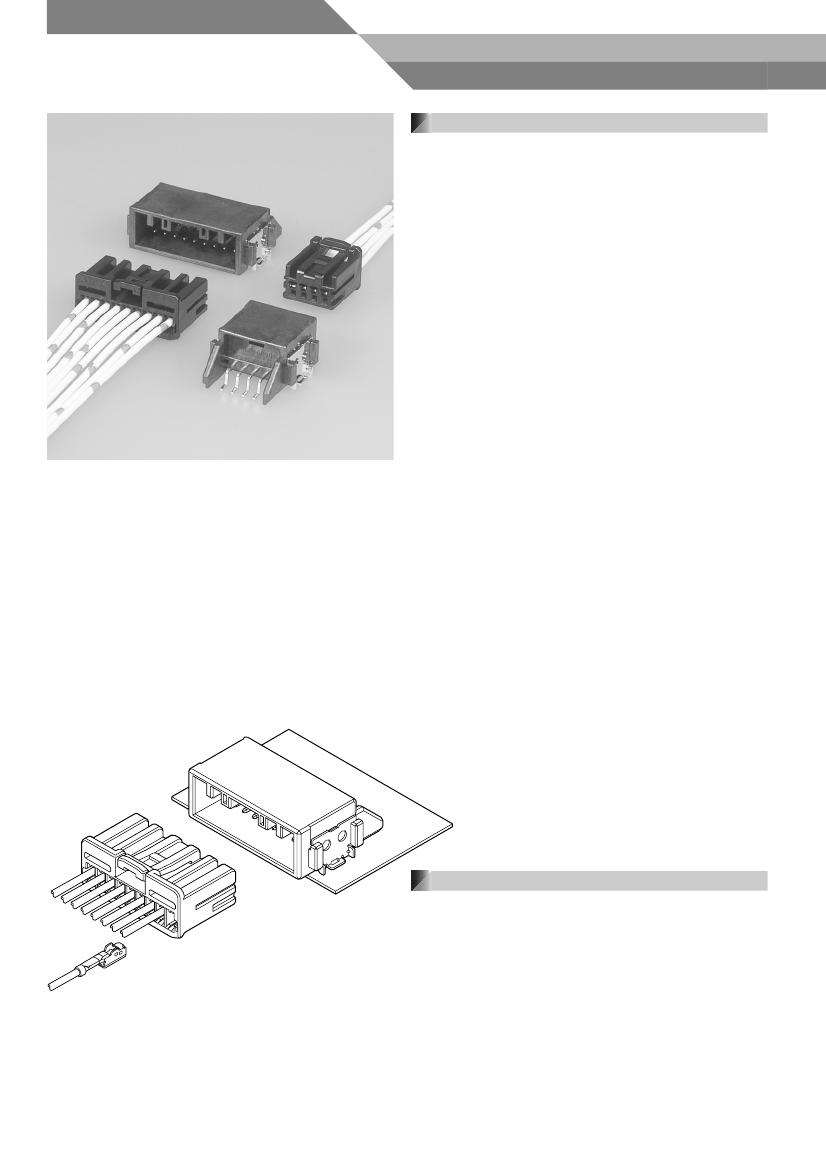

Features
●Miniaturization
Using the short length female terminal, the miniaturization is
realized.
●Surface
mounting
Corresponding to the surface mounting (lead-free), mounting
workability is improved.
●Reliability
High reliability ensures by using proven female terminal in the
automotive electrical equipment.
2.54mm pitch, 0.64 unsealed connector for automotive
corresponding to the surface mounting.
Specifications
¡Current
rating: 5A AC, DC (0.5mm
2
, Single circuit)
¡Voltage
rating: 50V AC, DC
¡Temperature
range: -40°C to +120°C
(including temperature rise in applying
electrical current)
¡Contact
resistance: Initial value/10mΩ max.
After environmental testing/20mΩ max.
¡Applicable
wire: AVSS
0.3mm
2
to 0.5mm
2
∗
Compliant with ELV/RoHS.
∗
Contact JST for details.
1
HCH
CONNECTOR
Female terminal
Applicable wire range
Model No.
11.6
Conductor
(mm
2
)
0.3 to 0.5
Material and Finish
Insulation O.D.
(mm)
1.4 to 1.8
Q’ty/reel
5,000
SHCM-A03T-P025
Copper alloy, tin-plated (reflow treatment)
Female connector
¡4
circuits
12.46
2.5
Circuits
4
9
Model No.
HCMPB-04-K
HCHFB-09-KE
Material
Housing: PBT, black
Retainer: PBT, blue
Q’ty/box
600
300
14.8
Housing
2.54
3
×
2.54=7.62
7.95
11
Retainer
¡9
circuits
25.2
(11.25)
14.8
(1.3)
7.95
2
HCH
CONNECTOR
Male connector
¡4
circuits
3
×
2.54=7.62
2.54
¡9
circuits
2.54
×
8= 20.32
2.54
21.8
21.8
15
21
21
15
(8.65)
19.6
32.3
1.95
1.95
10.9
10.7
10.9
12.65
15.9
25.4
28.6
Circuits
4
9
Model No.
SM04B-HCHK-TB
SM09B-HCHK-TB
Material and Finish
Housing: Glass-filled LCP, black
Terminal: Brass, nickel-undercoated, tin-plated
Reinforcing tab: Brass, nickel-undercoated, tin-plated
10.7
8.2
8.2
(8.65)
Q’ty/reel
220
220
Note: This product displays (LF)(SN) on a label.

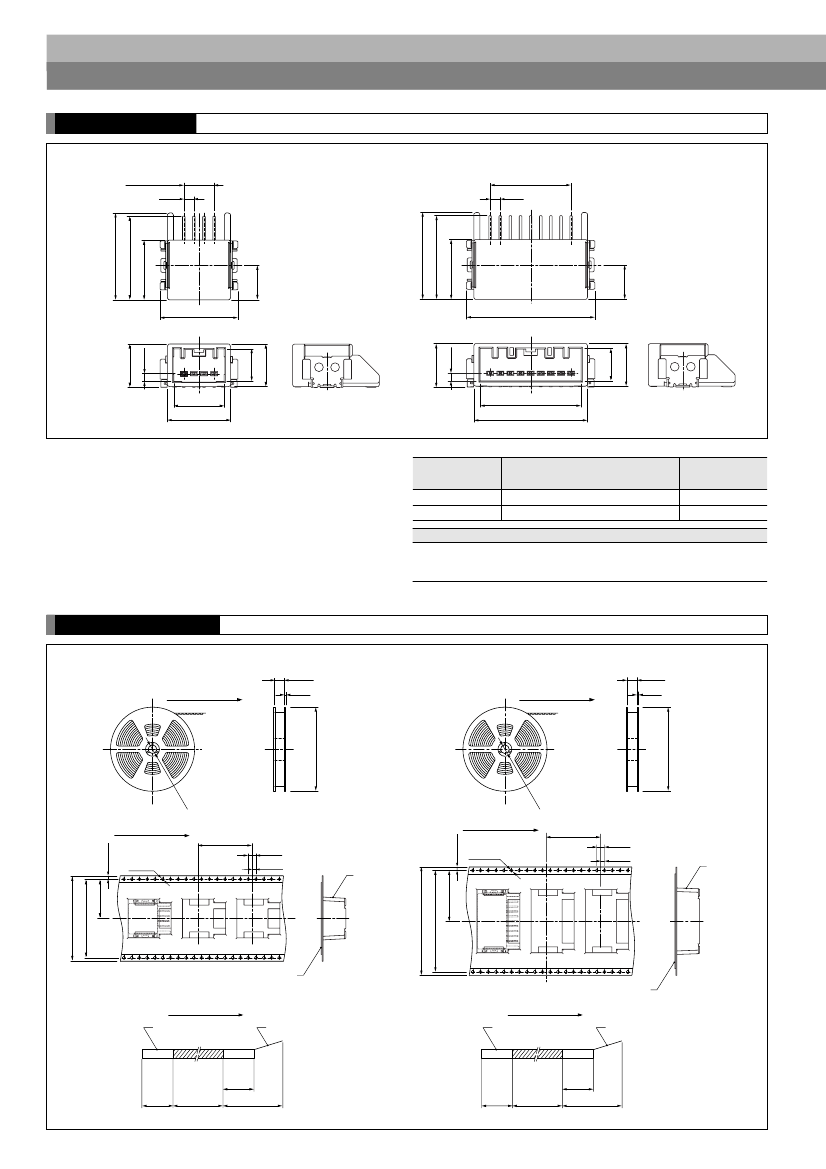

Taping Specifications
¡4
circuits
45
+2.5
-1
Feeding direction
2
±0.5
Feeding direction
¡9
circuits
57
+2.5
-1
2
±0.5
φ
380
±2
1.75
±0.1
28
±0.1
4
±0.1
φ
1.5
+0.1
0
2
±0.1
Carrier tape
1.75
±0.1
Feeding direction
Feeding direction
φ
1.5
+0.1
0
28
±0.1
4
±0.1
2
±0.1
Carrier tape
40.4
±0.1
20.2
±0.1
44
±0.3
56
±0.3
Cover tape
Cover tape
Feeding direction
Carrier tape
Cover tape leader
Feeding direction
Carrier tape
Cover tape leader
The end
part
Connector
160min. mounting part
Leader
part
100min.
400min.
52.4
±0.1
26.2
±0.1
The end
part
Connector
160min. mounting part
Leader
part
100min.
400min.
3
φ
380
±2
3
φ
( 1
)
3
φ
( 1
)
HCH
CONNECTOR
PC board layout, Assembly layout
¡4
circuits
¡9
circuits
2.54
×
3=7.62
4.3
±0.05
4.3
±0.05
1.04
±0.05
2.54
×
8=20.32
1.04
±0.05
2.54
±0.05
(25.9)
(19.1)
1(PCB Edge)
1(PCB Edge)
2.54
±0.05
11.2
11.2
3.6
21.2
3.6
33.9
Note: 1. Tolerances are non-cumulative:
±0.05mm
for all centers.
2. The dimensions above should serve as guideline. Contact JST for details.
Crimping machine, Applicator
Strip terminal
SHCM-A03T-P025
Crimping
machine
AP-K2N
Crimp applicator MKS-L
Dies
MK/SHCM-A03-025
Crimp applicator with dies
APLMK SHCM-A03-025
Note: When crimping operation is conducted using an applicator and die set other than the above, JST cannot guarantee the performance of the terminal.
(11.45)
10
10
4
