LFXTAL066138Cutt

Description
Crystal 20MHz 10pF -40C 85C
CategoryPassive components    Frequency controller and a timer    crystal
File Size174KB,2 Pages
ManufacturerIQD
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL066138Cutt Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL066138Cutt - - View Buy Now

LFXTAL066138Cutt Overview

Crystal 20MHz 10pF -40C 85C

LFXTAL066138Cutt Parametric

Parameter NameAttribute value
MakerIQD
Product Categorycrystal
Termination typeSMD/SMT
Package/box2 mm x 1.6 mm
load capacitance10 pF
frequency20 MHz
Tolerance20 PPM
frequency stability20 PPM
excitation level100 uW
Minimum operating temperature- 40 C
Maximum operating temperature+ 85 C
length2 mm
width1.6 mm
high0.5 mm
diameter-
seriesIQXC-42
EncapsulationCut Tape
productCrystals
typeQuartz Crystal
ESR120 Ohms
Installation styleSMD/SMT
Lead spacing-
Factory packaging quantity500

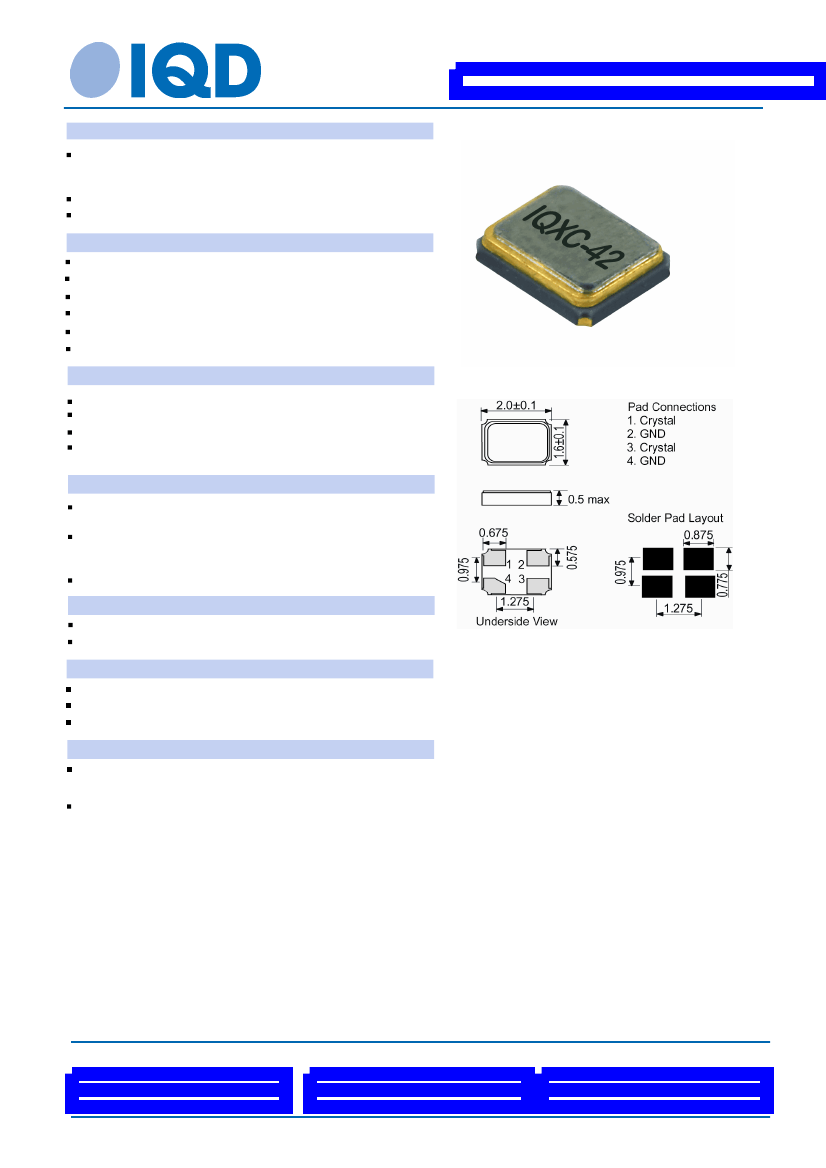

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL066138Bulk
Description
2 x 1.6mm SMD crystal
Ceramic package with a seam sealed metal lid, hermetically
sealed
Model
IQXC-42
Model Issue number
1
Frequency Parameters
Frequency
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
20.0MHz
±20.00ppm
±20.00ppm
-40.00 to 85.00°C
Fundamental
±3ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
10.00pF
3pF max
100µW max
120.00Ω max
Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3
mutually perpendicular planes
Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min
in 3 mutually perpendicular planes, duration 2hrs each plane
(total 6hrs)
Storage Temperature Range: –55 to 125°C
Manufacturing Details
RoHS Terminations
RoHS Reflow Temp
Compliance
NiAu
260degC 10s
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 22 May 18 12:40 using Part Data Sheet V1.00015
