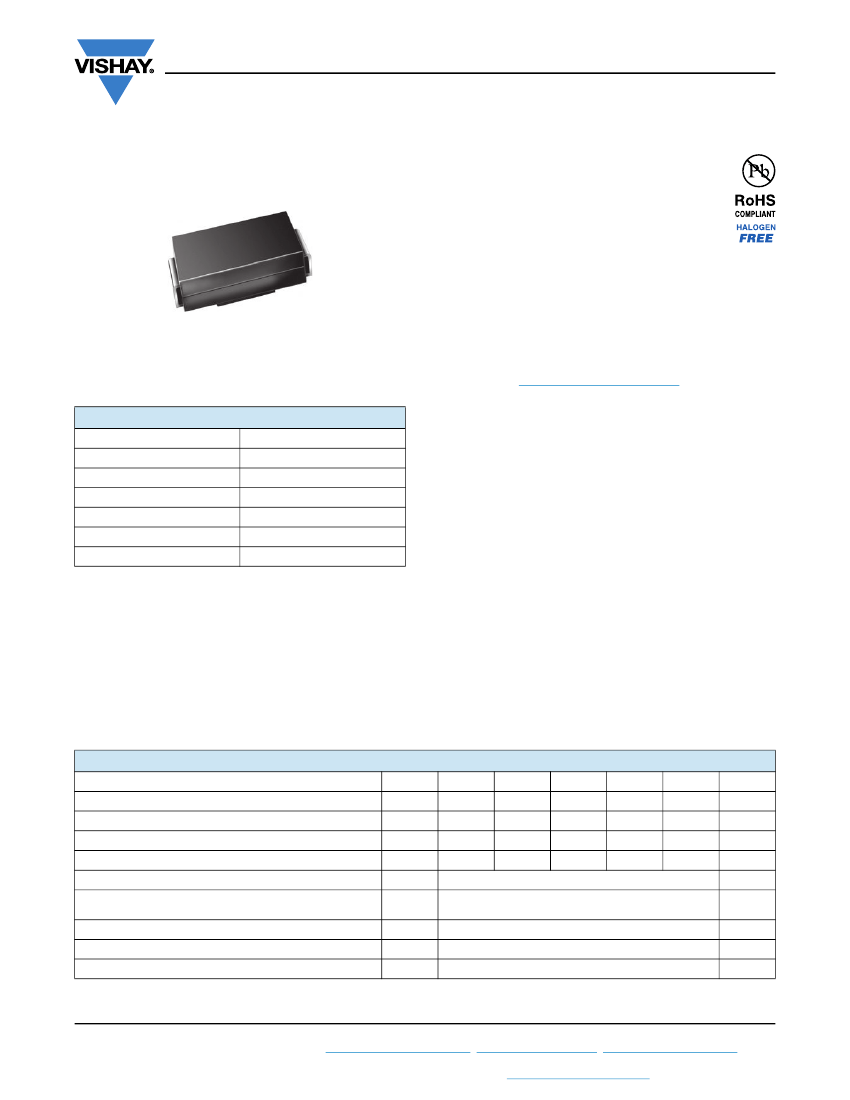

SS12, SS13, SS14, SS15, SS16
www.vishay.com
Vishay General Semiconductor
Surface Mount Schottky Barrier Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
Available
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
SMA
(DO-214AC)
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
T
J
max.
Package
Circuit configuration
1.0 A
20 V, 30 V, 40 V, 50 V, 60 V
40 A
0.50 V, 0.75 V
150 °C
SMA (DO-214AC)
Single
TYPICAL APPLICATIONS
For use in low voltage, high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
MECHANICAL DATA
Case:
SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, and HM3 suffix meets JESD 201 class 2
whisker test
Polarity:
color band denotes the cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
L
(fig. 1)
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Voltage rate of change (rated V
R
)
Operating junction temperature range
Storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
dV/dt
T
J
T
STG
SYMBOL
SS12
S2
20
14
20
SS13
S3
30
21
30
SS14
S4
40
28
40
1.0
40
10 000
-65 to +150
-65 to +150
SS15
S5
50
35
50
SS16
S6
60
42
60
UNIT
V
V
V
V
A
A
V/μs
°C
°C
Revision: 21-Jul-17
Document Number: 88746
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS12, SS13, SS14, SS15, SS16
www.vishay.com
Vishay General Semiconductor
TEST CONDITIONS SYMBOL
1.0 A
T
A
= 25 °C
T
A
= 100 °C
V
F (1)
I
R (2)
SS12
SS13
0.50
0.2
6.0
5.0
SS14
SS15
0.75
SS16
UNIT
V
mA
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward
voltage
Maximum DC reverse current at
rated DC blocking voltage
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: pulse width
≤
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
(1)
SYMBOL
R
θJA
R
θJL
SS12
SS13
SS14
88
28
SS15
SS16
UNIT
°C/W
Note
(1)
PCB mounted with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas
ORDERING INFORMATION
(Example)
PREFERRED P/N
SS16-E3/61T
SS16-E3/5AT
SS16HE3_B/H
(1)
SS16HE3_B/I
(1)
SS16-M3/61T
SS16-M3/5AT
SS16HM3_B/H
(1)
SS16HM3_B/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.064
0.064
0.064
0.064
0.064
0.064
0.064
0.064
PREFERRED PACKAGE CODE
61T
5AT
H
I
61T
5AT
H
I
BASE QUANTITY
1800
7500
1800
7500
1800
7500
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel

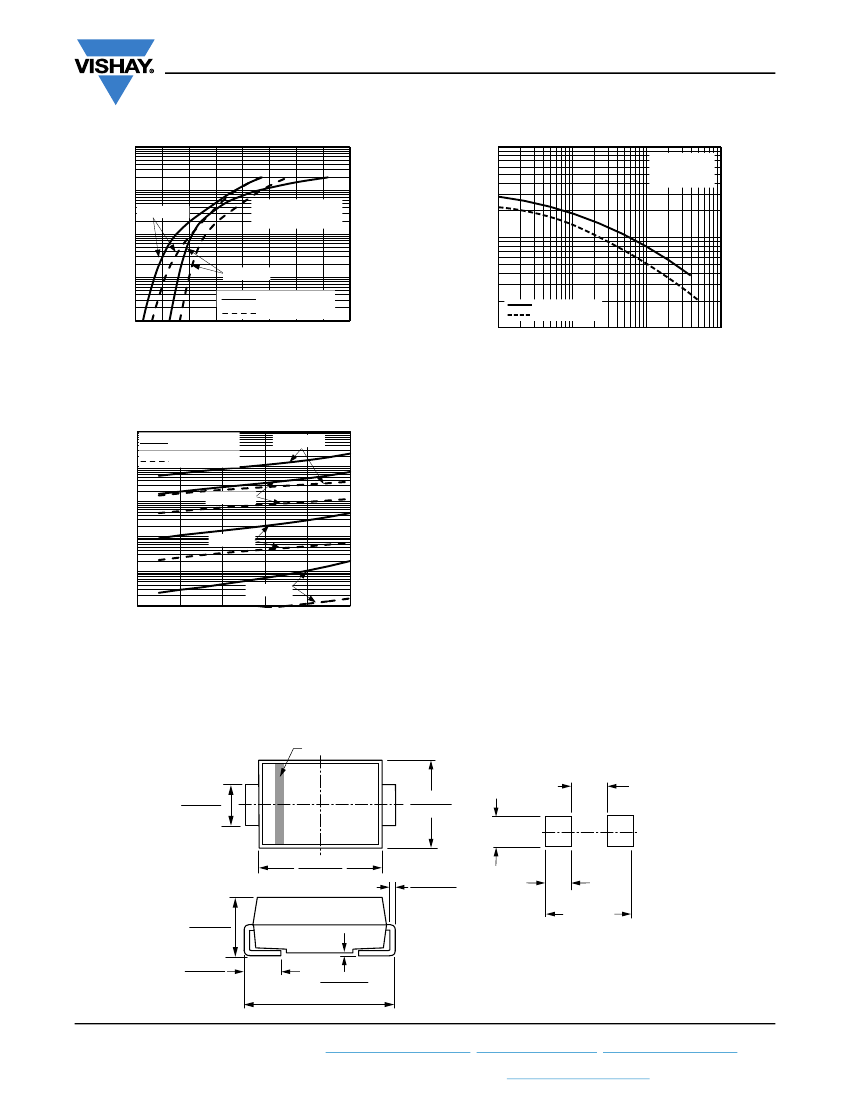

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
°C
unless otherwise noted)
Average Forward Rectified Current (A)
50
1.0
Peak Forward Surge Current (A)
At Rated T
L
8.3 ms Single Half Sine-Wave
40
30
0.5
PCB Mounted on 0.2" x 0.2"
(5.0 mm x 5.0 mm) Copper Pad Area
SS12
thru
SS16
0
0
25
50
75
100
125
150
20
10
0
1
10
100
Lead Temperature (°C)
Fig. 1 - Forward Current Derating Curve
Number of Cycles at 60 Hz
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 21-Jul-17
Document Number: 88746
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS12, SS13, SS14, SS15, SS16
www.vishay.com
Vishay General Semiconductor
1000
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
Instantaneous Forward Current (A)
10
T
J
= 150 °C
1
Pulse Width = 300
s
1% Duty Cycle
Junction Capacitance (pF)
100
0.1
T
J
= 25 °C
SS12 thru SS14
0.01
0
0.2
0.4
0.6
0.8
SS15 and SS16
1.0
1.2
1.4
1.6
10
0.1
SS12 thru SS14
SS15 and SS16
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
Instantaneous Reverse Current (mA)
100
SS12 thru SS14
10
SS15 and SS16
T
J
= 150 °C
1
T
J
= 125 °C
0.1
T
J
= 75 °C
0.01
T
J
= 25 ° C
0.001
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Fig. 4 - Typical Reverse Characteristics
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMA
(DO-214AC)
Cathode Band
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 21-Jul-17
Document Number: 88746
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
