BYV26DGP, BYV26EGP
www.vishay.com
Vishay General Semiconductor
Glass Passivated Ultrafast Plastic Rectifier
FEATURES
• Superectifier structure for high reliability condition
SUPERECTIFIER
®
• Cavity-free glass passivated pellet chip junction
• Ultrafast reverse recovery time
• Low forward voltage drop
• Low switching losses, high efficiency
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106
DO-204AC (DO-15)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
at I
F
T
J
max.
Package
Diode variation
1.0 A
800 V, 1000 V
30 A
75 ns
1.3 V
175 °C
DO-204AC (DO-15)
Single die
TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer and telecommunication.
MECHANICAL DATA
Case:
DO-204AC, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
Color band denotes cathode end
per
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current 0.375" (9.5 mm)
lead length (fig. 1)
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Non repetitive peak reverse energy
Operating junction and storage temperature range
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
E
RSM (1)
T
J
, T
STG
BYV26DGP
800
560
800
1.0
30
10
-65 to +175
BYV26EGP
1000
700
1000
UNIT
V
V
V
A
A
mJ
°C
Note
(1)
Peak reverse energy measured at I = 400 mA, T = T max. on inductive load, t = 20 μs
R
J
J
Revision: 13-Jun-16
Document Number: 88554
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV26DGP, BYV26EGP
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Minimum avalanche breakdown voltage
Maximum instantaneous forward voltage
Maximum DC reverse current at rated DC
blocking voltage
Max. reverse recovery time
Typical junction capacitance
TEST CONDITIONS
100 μA
1.0 A
T
J
= 25 °C
T
J
= 175 °C
T
A
= 25 °C
T
A
= 165 °C
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
SYMBOL
V
BR
V
F
I
R
t
rr
C
J
BYV26DGP
900
2.5
1.3
5.0
150
75
15
BYV26EGP
1100
UNIT
V
V
μA
ns
pF
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JL
(2)
BYV26DGP
70
16
BYV26EGP
UNIT
°C/W
Notes
(1)
Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length, mounted on PCB with 0.5" x 0.5" (12 mm x 12 mm) copper pads
(2)
Thermal resistance from junction to lead at 0.375" (9.5 mm) lead length with both leads attached to heatsink
ORDERING INFORMATION
(Example)
PREFERRED P/N
BYV26EGP-E3/54
BYV26EGP-E3/73
UNIT WEIGHT (g)
0.428
0.428
PREFERRED PACKAGE CODE
54
73
BASE QUANTITY
4000
2000
DELIVERY MODE
13" diameter paper tape and reel
Ammo pack packaging
Revision: 13-Jun-16
Document Number: 88554
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV26DGP, BYV26EGP
www.vishay.com
Vishay General Semiconductor

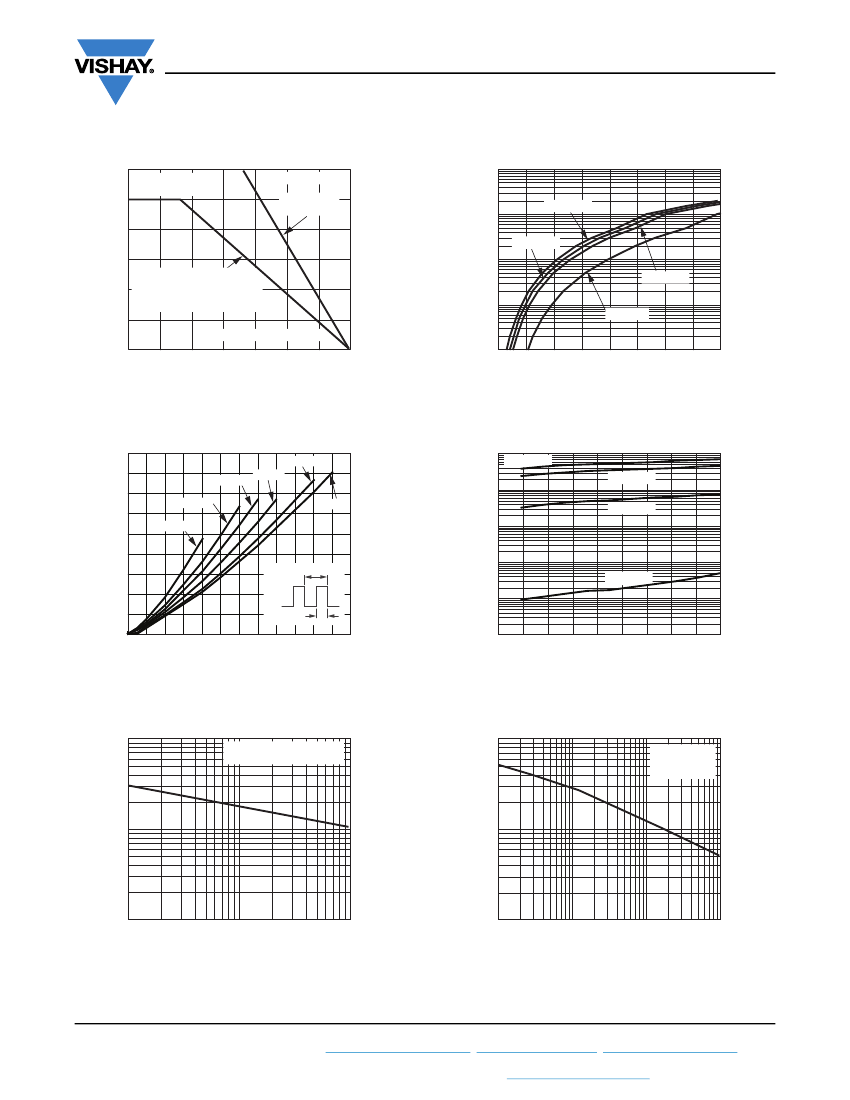

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.2
100
Average Forward Rectified Current (A)
1.0
Lead Mounted
on Heatsinks
Instantaneous Forward Current (A)
Resistive or
Inductive Load
T
L
= Lead Temperature
10
T
J
= 175 °C
0.8
T
J
= 150 °C
1
T
J
= 125 °C
0.1
0.6
Mounted on P.C.B.
0.375
"
(9.5 mm) Lead Length on
0.47
"
x 0.47
"
(12 mm x 12 mm)
Copper Pads
T
A
= Ambient Temperature
0
0
25
50
75
100
125
150
175
0.4
0.2
T
J
= 25 °C
0.01
0.2
0.6
1.0
1.4
1.8
2.2
2.6
3.0
3.4
Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Instantaneous Forward Voltage Characteristics
1.8
1.6
D = 0.3
D = 0.2
1.2
D = 0.1
1.0
0.8
0.6
0.4
0.2
0
0
0.2
0.4
0.6
0.8
D = 0.5
D = 0.8
100
T
J
= 175 °C
T
J
= 165 °C
Instantaneous Reverse Leakage
Current (μA)
Average Power Loss (W)
1.4
D = 1.0
10
T
J
= 125 °C
1
0.1
T
J
= 25 °C
0.01
T
D = t
p
/T
t
p
1.0
1.2
0.001
0
20
40
60
80
100
Average Forward Current (A)
Percent of Peak Reverse Voltage (%)
Fig. 2 - Forward Power Loss Characteristics
Fig. 5 - Typical Reverse Leakage Characteristics
100
100
T
J
= T
J
Max.
10 ms
Single
Half
Sine-Wave
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Peak Forward
Surge
Current (A)
10
Junction Capacitance (pF)
1
10
100
10
1
1
0.1
1
10
100
Number of Cycles at 60 Hz
Reverse Voltage (V)
Fig. 3 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 6 - Typical Junction Capacitance
Revision: 13-Jun-16
Document Number: 88554
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV26DGP, BYV26EGP
www.vishay.com
Vishay General Semiconductor
100
Transient Thermal Impedance (°C/W)
10
Mounted on P.C.B.
0.375
"
(9.5 mm) Lead Length on
0.47
"
x 0.47
"
(12 mm x 12 mm)
Copper Pads
1
0.01
0.1
1
10
100
t - Pulse Duration (s)
Fig. 7 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-204AC (DO-15)
0.034 (0.86)
0.028 (0.71)
DIA.
1.0 (25.4)
MIN.
0.300 (7.6)
0.230 (5.8)
0.140 (3.6)
0.104 (2.6)
DIA.
1.0 (25.4)
MIN.
Revision: 13-Jun-16
Document Number: 88554
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
