MRF18-8P-113/SO-MD: DescriptionRF connector/coaxial connector TERMINATION FIXTURE SHEATH OUTR DIA.1.8; CategoryThe connector Rf interconnection RF connector/coaxial connector; File Size2MB，2 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MRF18-8P-113/SO-MD Overview

RF connector/coaxial connector TERMINATION FIXTURE SHEATH OUTR DIA.1.8

MRF18-8P-113/SO-MD Parametric

Parameter Name	Attribute value
Maker	Hirose
Product Category	RF Connector/Coaxial Connector
Shipping restrictions	Mouser does not currently sell this product.
product	Connectors
RF series	-
Type	Plug
impedance	50 Ohms
minimum frequency	-
maximum frequency	2 GHz
direction	Straight
polarity	Standard
Installation type	-
Subject type	Vertical PCB Mount
series	MRF18
Insulation resistance	500 MOhms
Operation cycle	30
Maximum operating temperature	+ 125 C
Minimum operating temperature	- 40 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

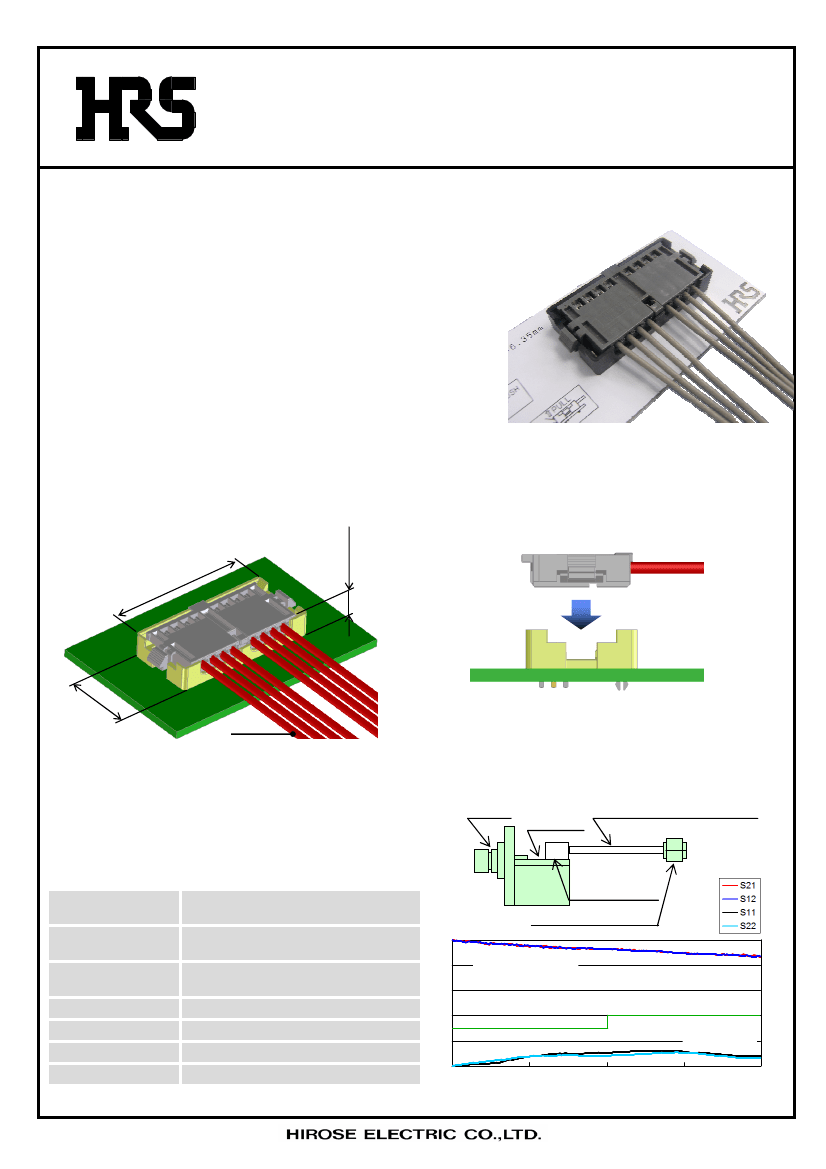

MRF18 Series

Vertical Mating, Non-Magnetic

8-channel Coaxial Connector

Features

1．Non-Magnetic coaxial connector

．

2. Small Size & Light Weight

3. Vertical mate, horizontal cable out

4. High lock strength & cable pull resistance

5. Easy cable termination with soldering both center

and outer conductors

6. Flow mounting or manual soldering for PCB

mounting

7. Applicable cable ranges from

φ

1.13 to 1.8 mm

8．RoHS compliant

．

MKT-E-13088F

Small Size & Light Weight

4.6 grams

6.4

in mated

(cable is not included)

37

Vertical Mate Allows

Layout on PCB Center

Plug: MRF18-8P-178B/U

17

.7

Receptacle: MRF18-8R-PC

[Port 1]

Cable Outer Dia.:

φ

1.13 to 1.8 mm

Cable Pull Force: 70 N/line

(Actual measured value with RG-178B/U cable )

Lock Strength: 28 N

(Actual measured value when cables are pulled up)

High Frequency Characteristics

Data at [Port 1]

HRM-306

Test PCB

Insertion Loss

(dB)

MRF18-8P-178B/U ASSY

L=100 mm RG-178B/U Cable

Characteristic

Impedance

Operating

Temperature Range

V.S.W.R.

Contact Resistance

MRF18-8R-PC

HRM-200-088BPJBN

50

Ω

-40

°C

to + 125

°C

(includes

temperature rise caused by current flow)

1.3 Max. from DC to 1 GHz

1.4 Max. from 1 to 2 GHz

Center: 35 mΩ Max. Outer: 20 mΩ Max.

0

-1

-2

-3

-4

-5

0

0.5

2

Insertion Loss

1.8

1.6

1.4

Insulation Resistance 500 MΩ Min. (DC100 V)

Withstanding Voltage AC 300 V for 1 minute

Durability

30 times

V.S.W.R.

1.2

1

1.5

Frequency (GHz)

Specifications herein are subject to change without notice. Contact Hirose for latest specifications, drawings or availabilities.

Issued: Mar. 28, 2014

V.S.W.R.

Specifications

MRF18-8P-113/SO-MD Related Products

	MRF18-8P-113/SO-MD	MRF18-8P-137/SO-MD	MRF18-8P-178/SO-MD(70)
Description	RF connector/coaxial connector TERMINATION FIXTURE SHEATH OUTR DIA.1.8	RF Connector/Coaxial Connector TERMINATION FIXTURE SHEATH OUTR DIA 1.37	RF Connector/Coaxial Connector
Maker	Hirose	Hirose	Hirose
Product Category	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
product	Connectors	Connectors	Connectors
Type	Plug	Plug	Female
impedance	50 Ohms	50 Ohms	50 Ohms
series	MRF18	MRF18	MRF18
Insulation resistance	500 MOhms	500 MOhms	500 Ohms
Maximum operating temperature	+ 125 C	+ 125 C	+ 125 C
Minimum operating temperature	- 40 C	- 40 C	- 40 C
Factory packaging quantity	1	1	1
maximum frequency	2 GHz	2 GHz	-
direction	Straight	Straight	-
polarity	Standard	Standard	-
Subject type	Vertical PCB Mount	Vertical PCB Mount	-
Operation cycle	30	30	-
