8H-05PFFS-SH7001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Circular connector> The annular metric connector> 8H-05PFFS-SH7001

Preview

8H-05PFFS-SH7001: DescriptionRing Metric Connector M8 CONN WITH KEY PNL SCRW 5PIN F CONN; CategoryThe connector Circular connector The annular metric connector; File Size252KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8H-05PFFS-SH7001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8H-05PFFS-SH7001	-	-	View	Buy Now

8H-05PFFS-SH7001 Overview

Ring Metric Connector M8 CONN WITH KEY PNL SCRW 5PIN F CONN

8H-05PFFS-SH7001 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	Ring Metric Connector
Shipping restrictions	Mouser does not currently sell this product.
Number of contacts	5 Contact
Thread size	M8
Termination type	Solder Cup
Current rating	3 A
IP rating	IP67
series	M Series
Subject type	Straight
Contact plating	Gold
Description/Function	M8 With Key Female Connector
Type	Female
Shell material	Nylon
length	18 mm
Housing type	Socket
shield	Unshielded
Installation style	Panel
Contact type	Socket (Female)
Insert/contact gender	Socket
Factory packaging quantity	1

Preview

Download Datasheet

View All

1

2

3

4

REV.

B

5

ECN NO.

LE31850076

6

DATE

2018/05/07

SIGN

Ethan

7

DESCRIPTION

Update Drawing

8

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A

F

12.0 (HEX)

18.00

8.9

B

10.0 (HEX)

E

13.9 (REF.)

11.5 (REF.)

7.00

10.00

QC

D

3.10

2.90

B

M8*0.5

PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY

T

A

L

W

CONFIDENTIAL

2018-05-07

C

7.1

+0.1

0

R&D DEPT.

5 O-Ring2

6 Screw Nut

1

4

Connector

2 Shield

3

With Liquid Glue

O-Ring1

1

5

3

8.1

4

B

2

Pin Assignment

Front View

Recommended

Panel Cut-Out

TITLE

Note:

* Important Dimension.

QC

* Waterproof Rate: IP67.

* Housing: Nylon+GF, Black.

* Female Pin: Copper Alloy, Gold Plated.

* Shield: Zinc Alloy, Nickel Plated.

* Screw Nut: Copper Alloy, Nickel Plated.

* O-Ring1: Viton, Green.

* O-Ring2: EPDM, Black.

* For Panel Thickness Max 4.5mm.

* Nut Torque: 4~6 kgf.cm.

* Nut Packing: 單獨包裝.

DRAWN BY

DATE

A

UNIT:mm

TOLERANCE

.X

# 0.25

.XX

# 0.1

.XXX

# 0.05

ANGLES

# 1 $

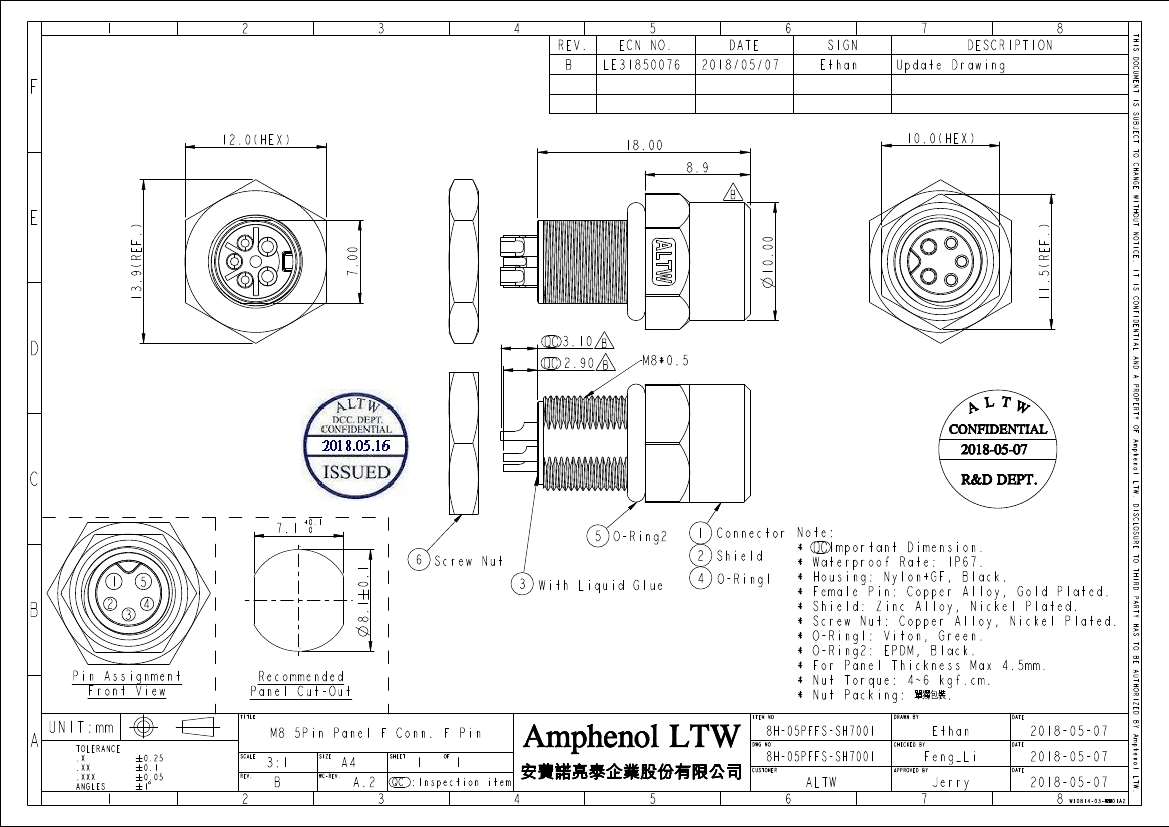

M8 5Pin Panel F Conn. F Pin

SCALE

3:1

B

SIZE

A4

A.2

3

SHEET

1

OF

Amphenol LTW

4

5

ITEM NO

8H-05PFFS-SH7001

DWG NO

CHECKED BY

Ethan

DATE

2018-05-07

DATE

Amphenol LTW.

1

8H-05PFFS-SH7001

CUSTOMER

Feng_Li

APPROVED BY

REV.

WC-REV.

QC :Inspection item

ALTW

6

7

Jerry

1

2

2018-05-07

8

WI0814-03-表單01A2
