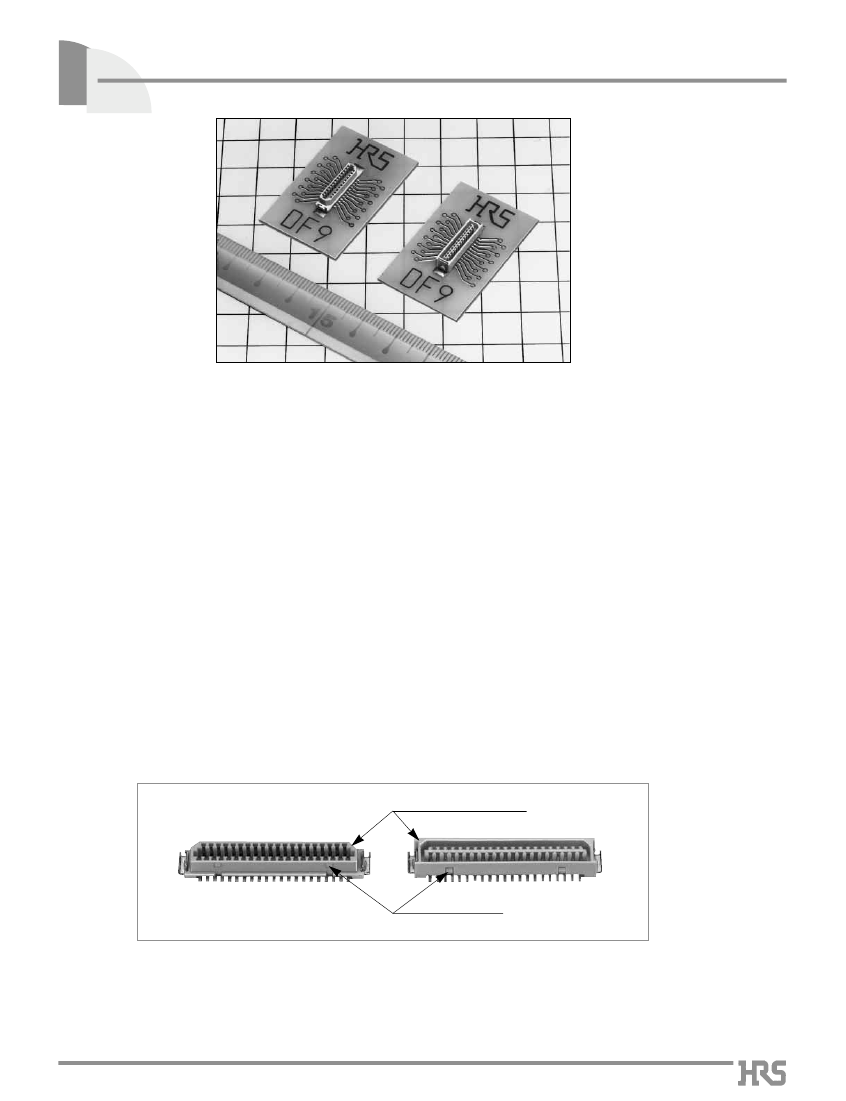

1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9 Series
sFeatures
1. Compliant with the VESA FPDI-1 Standard Interface Connector
The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which
U.S VESA. has selected as FPDI-1.
VESA: Video Electronics Standards Association
FPDI-1: Flat Panel Display Interface
2. Perfect Mis-insertion Prevention
The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size.
3. Equipped with Easy Lock Mechanism
The easy lock mechanism assures the firm insertion and extraction properties as well as the insertion/extraction feeling touch.
4. Smooth Insertion and Extraction Feeling
The contact is constructed without the material fragible surface in the contact portion, and provides a smooth insertion and
use feeling.
5. Setting Two Type Platings as Standard
Two type platings, tin plated and gold plated, are prepared, and either appropriate plating can be selected under cost and use
conditions.
Structure to Prevent Mis-insertion
Lock Mechanism
sApplications
LCD (Liquid Crystal Display), Mobile phone, Note PC
A135
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
SMT Board to Board Connector(Standard Interface Connector
search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF9 Seriesq1mm Pitch
or will be discontinued soon. Please check the products status on the Hirose website RoHS
Compliant with VESA FPDI-1)
sProduct
Specifications
Rating
Current rating 0.5A
Voltage rating150V AC
Operating Temperature Range
-45 to +125ç (Note
1) Storage Temperature Range
-10 to +60ç
(Note 2)
Operating Humidity Range 40
to
80%
Storage Humidity Range 40
to
70%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
6. Temperature Cycle
500M
ohms
min.
specification
100V DC
250V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
50m
ohms
max.
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max. Insulation resistance: 500M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
sMaterial
Product
Receptacle/Header
Part
Insulator
Contact
Metal fitting
Material
Polyamide
Phosphor copper
Brass
Finish
Beige
Tin plated or gold plated
Tin plating
Remarks
UL94V-0
–––––––
–––––––
Note:The gold plated product contact area is plated with gold, and lead plated with tin.
s
Ordering Information
Please determine the specific product. If needed, please select and order products from the product No. as listed on catalog
page A280~A284.
qReceptacle/Header
DF9
q
q
Series Name
w
Type
: DF9
#
-
*
S - 1 V
(**)
w
e
r
t
y
u
r
Connector Type
S: Receptacle
Fitting Boss
P: Header
t
Contact Pitch
y
Contact Type
V: Straight SMT
u
Contact Surface Finish/Packaging Type
(22)(32): Tin plated, embossed tape packaging
(69): Gold plated, embossed tape packaging
: 1mm
Blank
A
B
C
e
Number of Contacts
9 to 25,31,41,51
K
∞
K
∞
K
K
∞
∞
*Refer
to page A141 for the bottom entry type (DF9L).
A136
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF9 Seriesq1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

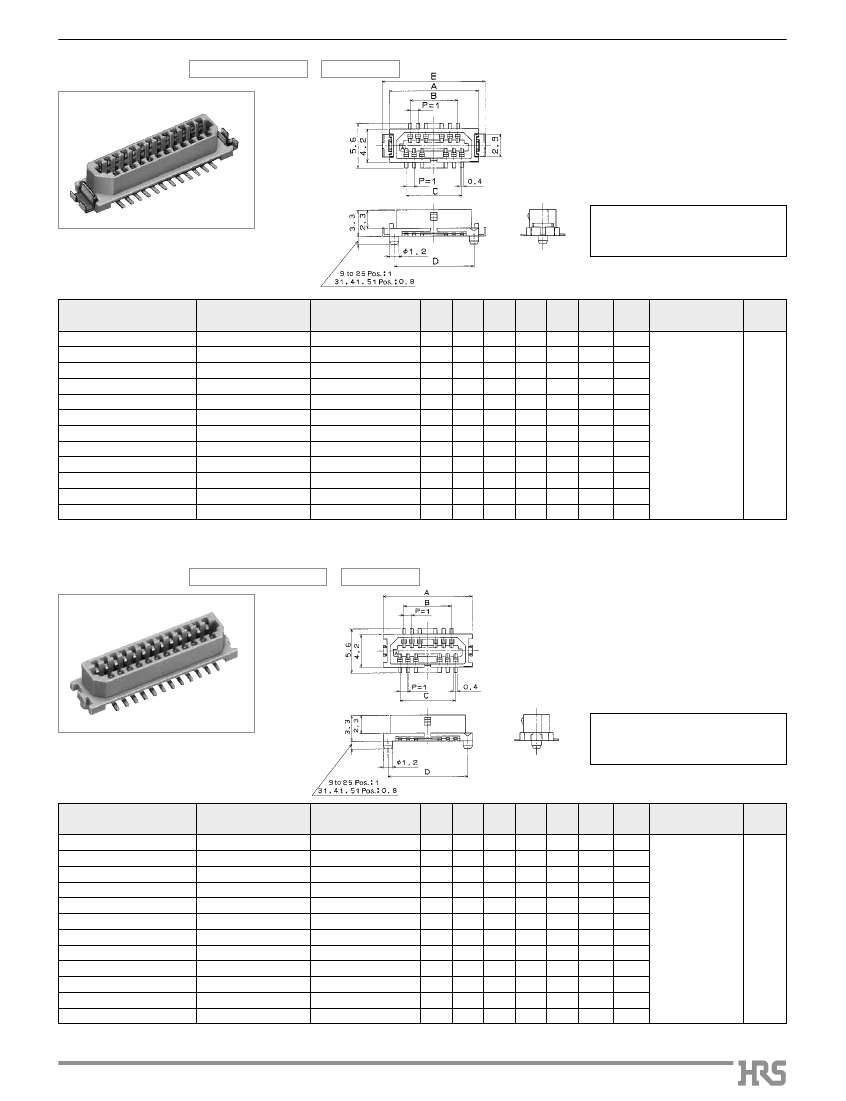

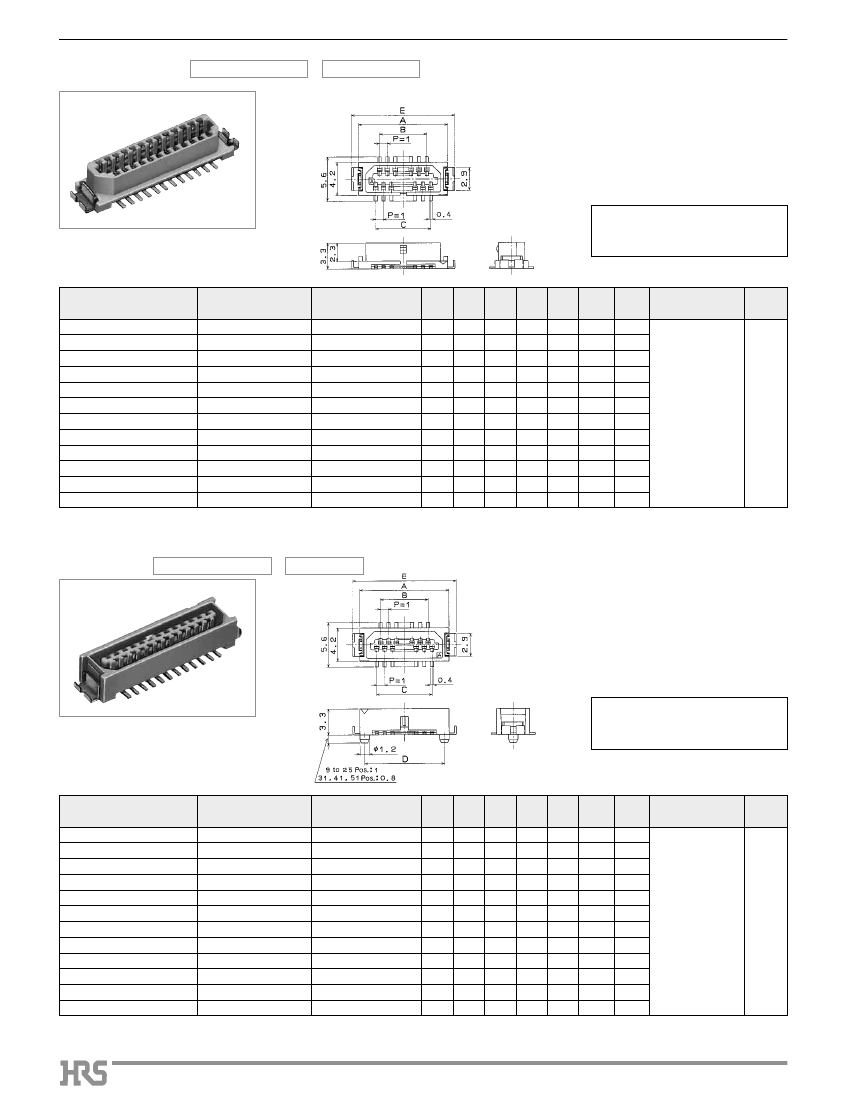

sReceptacle
With metal fitting
With boss
[Specific No.] _ **, (**)
(32)
: Tin plated, embossed tape packaging
(69)
: Gold plated, embossed tape packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
D
7.1
8.1
9.1
10.1
11.1
12.1
13.1
14.1
15.1
18.1
23.1
28.1
E
10.1
11.1
12.1
13.1
14.1
15.1
16.1
17.1
18.1
21.1
26.1
31.1
Spec. Spec.
(32) (69)
K
K
K
K
K
K
K
K
K
K
K
_
K
K
K
K
K
K
K
K
K
K
K
K
Remarks
RoHS
9
8.3
3
4
DF9- 9S-1V (**)
540-0054-0-**
11
9.3
4
5
DF9-11S-1V (**)
540-0055-2-**
13
10.3
5
6
DF9-13S-1V (**)
540-0056-5-**
15
11.3
6
7
DF9-15S-1V (**)
540-0057-8-**
17
12.3
7
8
DF9-17S-1V (**)
540-0058-0-**
19
13.3
8
9
DF9-19S-1V (**)
540-0059-3-**
21
14.3
9
10
DF9-21S-1V (**)
540-0060-2-**
23
15.3 10
11
DF9-23S-1V (**)
540-0061-5-**
25
16.3 11
12
DF9-25S-1V (**)
540-0062-8-**
31
19.3 14
15
DF9-31S-1V (**)
540-0063-0-**
41
24.3 19
20
DF9-41S-1V (**)
540-0213-1-**
51
29.3 24
25
DF9-51S-1V (**)
540-0064-3-**
Note 1 : Please order the embossed tape packaging product per reel. (1000 pcs. per reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal
fitting
With boss
With pick and
place tape
YES
sReceptacle
Without metal fitting
With boss
[Specific No.] _ **, (**)
(22): Tin plated, tube packaging
(69): Gold plated, embossed tape packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
4
5
6
7
8
9
10
11
12
15
20
25
D
7.1
8.1
9.1
10.1
11.1
12.1
13.1
14.1
15.1
18.1
23.1
28.1
E
_
_
_
_
_
_
_
_
_
_
_
_
Spec. Spec.
(22) (69)
K
K
K
K
K
K
K
K
K
K
K
_
_
_
K
K
_
_
K
_
K
K
K
K
Remarks
RoHS
9
8.3
3
DF9A-09S-1V (**)
540-0004-1-**
11
9.3
4
DF9A-11S-1V (**)
540-0005-4-**
13
10.3
5
DF9A-13S-1V (**)
540-0006-7-**
15
11.3
6
DF9A-15S-1V
(**)
540-0007-0-**
17
12.3
7
DF9A-17S-1V
(**)
540-0008-2-**
19
13.3
8
DF9A-19S-1V
(**)
540-0009-5-**
21
14.3
9
DF9A-21S-1V
(**)
540-0010-4-**
23
15.3 10
DF9A-23S-1V
(**)
540-0011-7-**
25
16.3 11
DF9A-25S-1V
(**)
540-0012-0-**
31
19.3 14
DF9A-31S-1V
(**)
540-0013-2-**
41
24.3 19
DF9A-41S-1V
(**)
540-0222-2-**
51
29.3 24
DF9A-51S-1V
(**)
540-0014-5-**
Note 1 : Please order the emboss packaging product per reel. (1000 pcs. per reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
Without metal
fitting
With boss
With pick and
place tape
YES
A137
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
SMT Board to Board Connector(Standard Interface Connector
search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF9 Seriesq1mm Pitch
or will be discontinued soon. Please check the products status on the Hirose website RoHS
Compliant with VESA FPDI-1)
sReceptacle
With metal fitting
Without boss
[Specific No.] _ **, (**)
(32): Tin plated, tube packaging
(69): Gold plated,
embossed tape
packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
D
_
_
_
_
_
_
_
_
_
_
_
_
E
10.1
11.1
12.1
13.1
14.1
15.1
16.1
17.1
18.1
21.1
26.1
31.1
Spec. Spec.
(32) (69)
K
K
K
K
_
_
K
K
K
K
K
_
K
_
K
K
K
K
K
_
_
K
K
K
Remarks
RoHS
09
08.3 03
04
DF9B-09S-1V
(**)
540-0125-6-**
11
09.3 04
05
DF9B-11S-1V
(**)
540-0126-9-**
13
10.3
05
06
DF9B-13S-1V
(**)
540-0127-1-**
15
11.3
06
07
DF9B-15S-1V
(**)
540-0128-4-**
17
12.3
07
08
DF9B-17S-1V
(**)
540-0129-7-**
19
13.3
08
09
DF9B-19S-1V
(**)
540-0247-3-**
21
14.3
09
10
DF9B-21S-1V
(**)
540-0131-9-**
23
15.3 10
11
DF9B-23S-1V
(**)
540-0132-1-**
25
16.3 11
12
DF9B-25S-1V
(**)
540-0133-4-**
31
19.3 14
15
DF9B-31S-1V
(**)
540-0143-8-**
41
24.3 19
20
DF9B-41S-1V
(**)
540-0216-0-**
51
29.3 24
25
DF9B-51S-1V
(**)
540-0145-3-**
Note 1 : Please order the embossed tape packaging product per reel. (1000 pcs. per reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal
fitting
Without boss
With pick and
place tape
YES

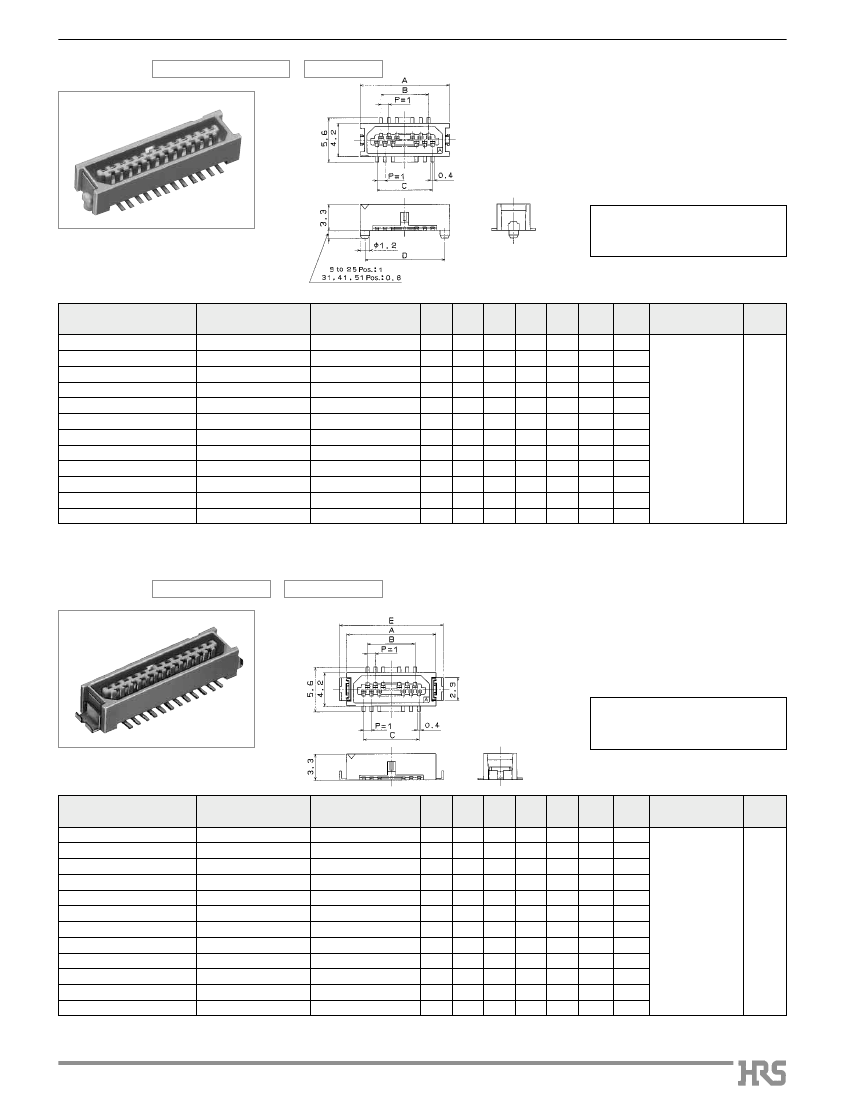

sHeader
