MAAL-011139-TR1000 is a radio frequency amplifier (RF Amplifier) from MACOM. It belongs to the MAAL-011139 series of products.
MAAL-011139-TR1000 amplifier core information:
The minimum operating temperature of MAAL-011139-TR1000 is - 40 C and the maximum operating temperature is + 85 C. The corresponding working power supply current is 85 mA
The amplifier gain of MAAL-011139-TR1000 can reach: 21.5 dB (The amplifier gain is the logarithm of the ratio of the amplifier output power to the input power, which is used to indicate the degree of power amplification. It also refers to the amplification factor of voltage or current. Similarly, decibels is the amplifier unit of gain).
MAAL-011139-TR1000 is a radio frequency amplifier (RF Amplifier) from MACOM. It belongs to the MAAL-011139 series of products.
MAAL-011139-TR1000 amplifier core information:
The minimum operating temperature of MAAL-011139-TR1000 is - 40 C and the maximum operating temperature is + 85 C. The corresponding working power supply current is 85 mA
The amplifier gain of MAAL-011139-TR1000 can reach: 21.5 dB (The amplifier gain is the logarithm of the ratio of the amplifier output power to the input power, which is used to indicate the degree of power amplification. It also refers to the amplification factor of voltage or current. Similarly, decibels is the amplifier unit of gain).
application, the amplifier provides 21.5 dB of flat
gain while biased from 3 to 5 volts. The amplifier
provides superior noise figure while maintaining
excellent return losses. Gain and current may be
optimized with adjustment of external component
values.
The MAAL-011139 provides high gain, low noise
and low distortion making it ideally suited as input
stage for fiber-to-the-home (FTTh) applications and
other 75 Ω infrastructure applications. It can support
both upstream (5 - 204 MHz) and downstream
(45 - 1218 MHz) CATV operation.
The MAAL-011139 can also be matched into a
50-ohm system. In a broadband 50 - 2000 MHz
application, the amplifier provides 17 dB of flat gain.
The MAAL-011139 offers 17 dB of available gain
beyond 4 GHz.
Pin Configuration
Pin No.
1
2
3
Pin Name
RF
IN
GND
RF
OUT
Function
RF Input
Ground
RF Output / V
DD
Ordering Information
1,2
Part Number
MAAL-011139-TR1000
MAAL-011139-TR3000
MAAL-011139-DSBSMB
MAAL-011139-USBSMB
MAAL-011139-050SMB
Package
1000 Part Reel
3000 Part Reel
Sample Board
45 - 1218 MHz
Sample Board
5 - 300 MHz
Sample Board,
5 - 2000 MHz
1. Reference Application Note M513 for reel size information.
2. All production sample boards include 5 loose parts.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0014477
MAAL-011139
Low Noise Amplifier
5 - 4000 MHz
Electrical Specifications: T
A
= 25°C, V
DD
= 5 V, Z
0
= 75 Ω, 45
- 1218
MHz Application
Parameter
Gain
Gain Flatness
Reverse Isolation
Input Return Loss
Output Return Loss
Noise Figure
Output IP2
Output IP3
P1dB
Composite Triple Beat, CTB
Composite Second Order, CSO
I
DD
Test Conditions
45 - 1218 MHz
45 - 1218 MHz
45 - 1218 MHz
45 - 1218 MHz
45 - 1218 MHz
45 MHz
1218 MHz
45 - 1200 MHz, tone spacing 6 MHz,
P
OUT
per tone = 0 dBm
45 - 1200 MHz, tone spacing 6 MHz,
P
OUT
per tone = 0 dBm
45 -1218 MHz
79 channels, 0 dB Tilt, 32 dBmV per
channel output, QAM to 1000 MHz
79 channels, 0 dB Tilt, 32 dBmV per
channel output, QAM to 1000 MHz
V
DD
= 5 V
Units
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBc
dBc
mA
Min.
20.5
—
—
—
—
—
—
—
—
—
—
—
Typ.
21.5
+/- 0.2
25
23
23
1.2
1.4
42
34
19
-68
-61
85
Max.
22.5
—
—
—
—
1.8
—
—
—
—
—
100
Rev. V1
Absolute Maximum Ratings
3,4,5
Parameter
Input Power
Voltage
Operating Temperature
Storage Temperature
Junction Temperature
6
Absolute Maximum
17 dBm
7 volts
-40°C to +85°C
-65°C to +150°C
150°C
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Integrated Circuits are sensitive to electrostatic
discharge (ESD) and can be damaged by static
electricity. Proper ESD control techniques should
be used when handling these Class 1C devices.
2
3. Exceeding any one or combination of these limits may cause
permanent damage to this device.
4. MACOM does not recommend sustained operation near these
survivability limits.
5. Operating at nominal conditions with T
J
≤ 150°C will ensure
MTTF > 1 x 10
6
hours.
6. Junction Temperature (T
J
) = T
C
+
Ө
JC
*(V*I)
Typical thermal resistance (Ө
JC
) = 63°C/W.
a) For T
C
= 25°C,
T
J
= 52°C @ 5 V, 85 mA
b) For T
C
= 85°C,
T
J
= 108°C @ 5 V, 72 mA
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0014477
MAAL-011139
Low Noise Amplifier
5 - 4000 MHz

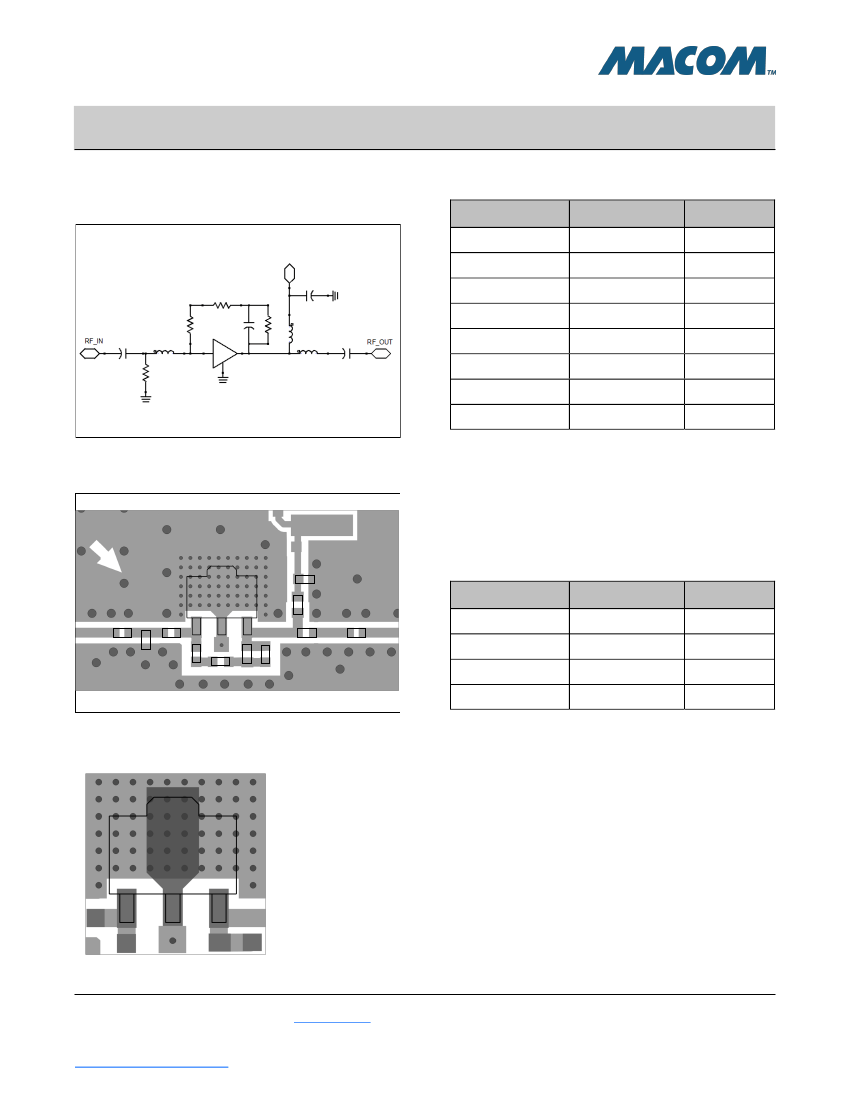

Schematic Including Off-Chip Components
45 - 1218 MHz Application
Parts List, V
DD
= 5 V, 85 mA
Component
C1 - C3
V
DD
C3
R2
R1
C1
L1
R3
C2
R4
L3
L2
C7
Rev. V1
Value
10 nF
270 pF
6.2 nH
3.3 nH
Ferrite Bead
7
510 Ω
10 kΩ
30.1 kΩ
Package
0402
0402
0402
0402
0402
0402
0402
0402
C4
L1
L2
L3
R1 - R2
R3
R4
C4
7. Murata, part number BLM15HD182SN.
Recommended PCB Layout
V
DD
The bias current can be adjusted to support lower
noise figure and lower power consumption by re-
moving external bias resistor R4 and replacing R3
as detailed below.
I
DD
C4
C3
L3
U1
C1
L1
R1
C2
R2
R4
R3 Value
Do Not Install
75 kΩ
39 kΩ
27 kΩ
Package
0402
0402
0402
0402
R3
L2
55 mA
40 mA
30 mA
20 mA
Recommended PCB Land Pattern
62 vias beneath package
0.012 in. via diameter
3
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0014477
MAAL-011139
Low Noise Amplifier
5 - 4000 MHz

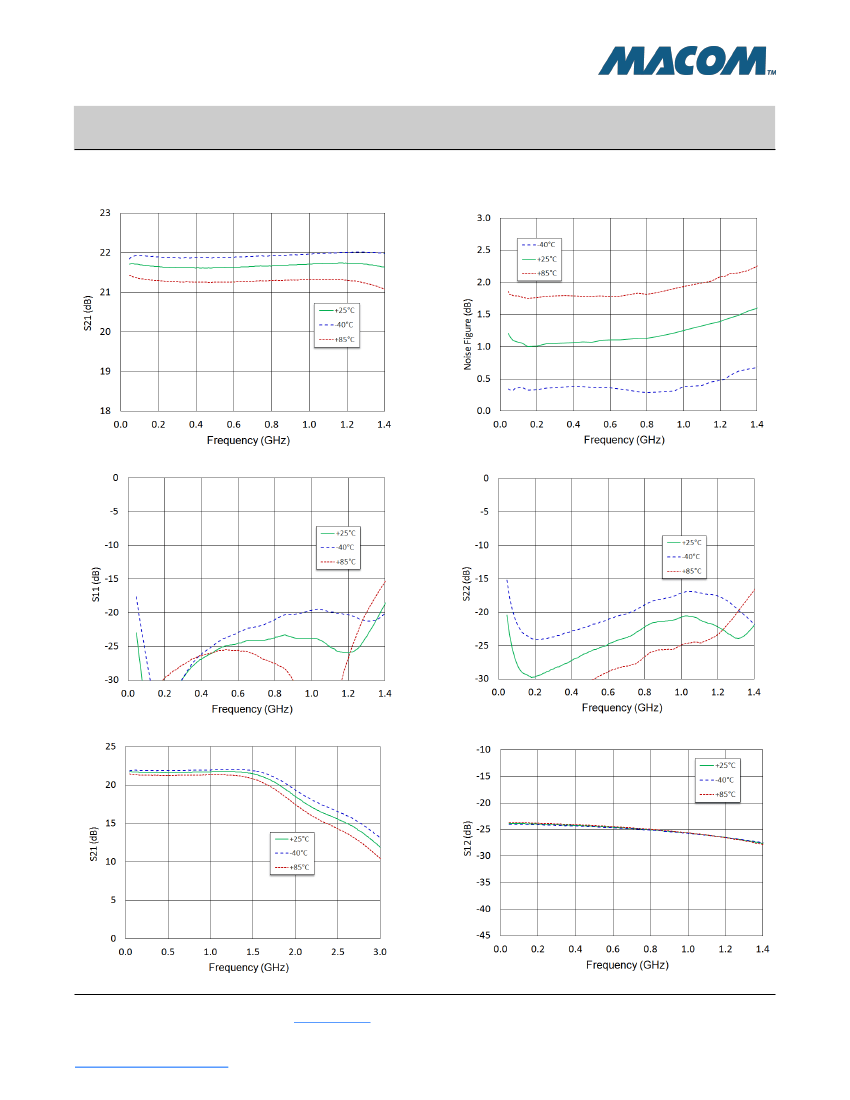

Typical Performance Curves: V
DD
= 5 V, 85 mA, +25°C, Z
0
= 75 Ω, 45 - 1218 MHz
Gain
Noise Figure
Rev. V1
Input Return Loss
Output Return Loss
Gain to 3 GHz
Reverse Isolation
4
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0014477
MAAL-011139
Low Noise Amplifier
5 - 4000 MHz

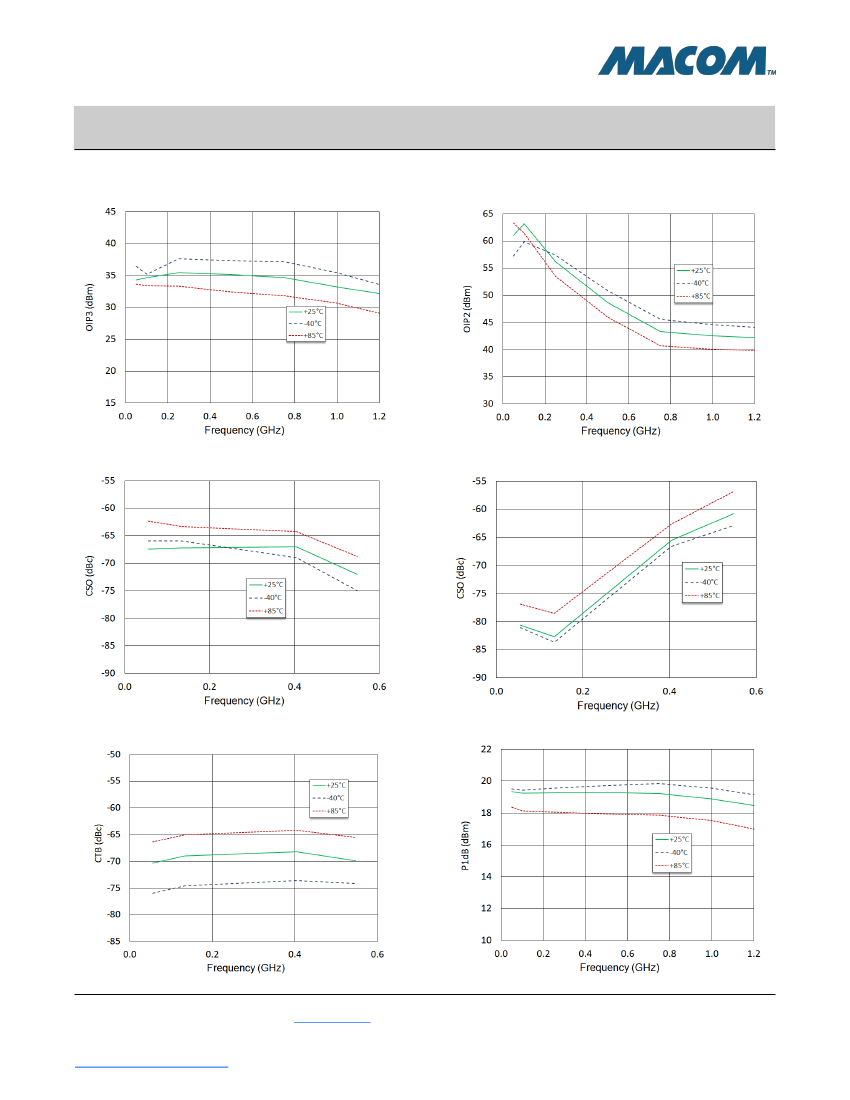

Typical Performance Curves: V
DD
= 5 V, 85 mA, +25°C, Z
0
= 75 Ω, 45 - 1218 MHz
OIP3, P
OUT
= +0 dBm/tone
OIP2, P
OUT
= +0 dBm/tone
Rev. V1
CSO Lower, 79 channels + QAM to 1 GHz,
0 dB tilt, 32 dBmV per channel
CSO Lower, 79 channels + QAM to 1 GHz,
0 dB tilt, 32 dBmV per channel
CTB Lower, 79 channels + QAM to 1 GHz,
0 dB tilt, 32 dBmV per channel
P1dB
5
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
