CYPD3175-24LQXQT Overview

USB interface integrated circuit

CYPD3175-24LQXQT Parametric

Parameter NameAttribute value
MakerCypress Semiconductor
Product CategoryUSB interface integrated circuit
Installation styleSMD/SMT
Package/boxQFN-24
seriesCCG3PA
productControllers
typeUSB Type-C
port typeDFP
standardUSB 3.0
data rate1 Mb/s
Supply voltage - min.2.7 V
Supply voltage - max.5.5 V
Working power current10 mA
EncapsulationReel
Interface TypeSerial
Number of ports1 Port
coreARM Cortex M0
Working power voltage2.7 V to 5.5 V
Factory packaging quantity2500
EZ-PD™ CCG3PA Datasheet
USB Type-C Port Controller
General Description
EZ-PD™ CCG3PA is Cypress’ highly integrated USB Type-C port controller that complies with the latest USB Type-C and PD
standards and is targeted for PC power adapters, mobile chargers, car chargers, and power bank applications. In such applications,
CCG3PA provides additional functionalities and BOM integration advantages. CCG3PA uses Cypress’ proprietary M0S8 technology
with a 32-bit Arm
®
Cortex™-M0 processor, 64-KB flash, a complete Type-C USB-PD transceiver, all termination resistors required for
a Type-C port, an integrated feedback control circuitry for voltage (VBUS) regulation and system-level ESD protection. It is available
in 24-pin QFN and 16-pin SOIC packages.

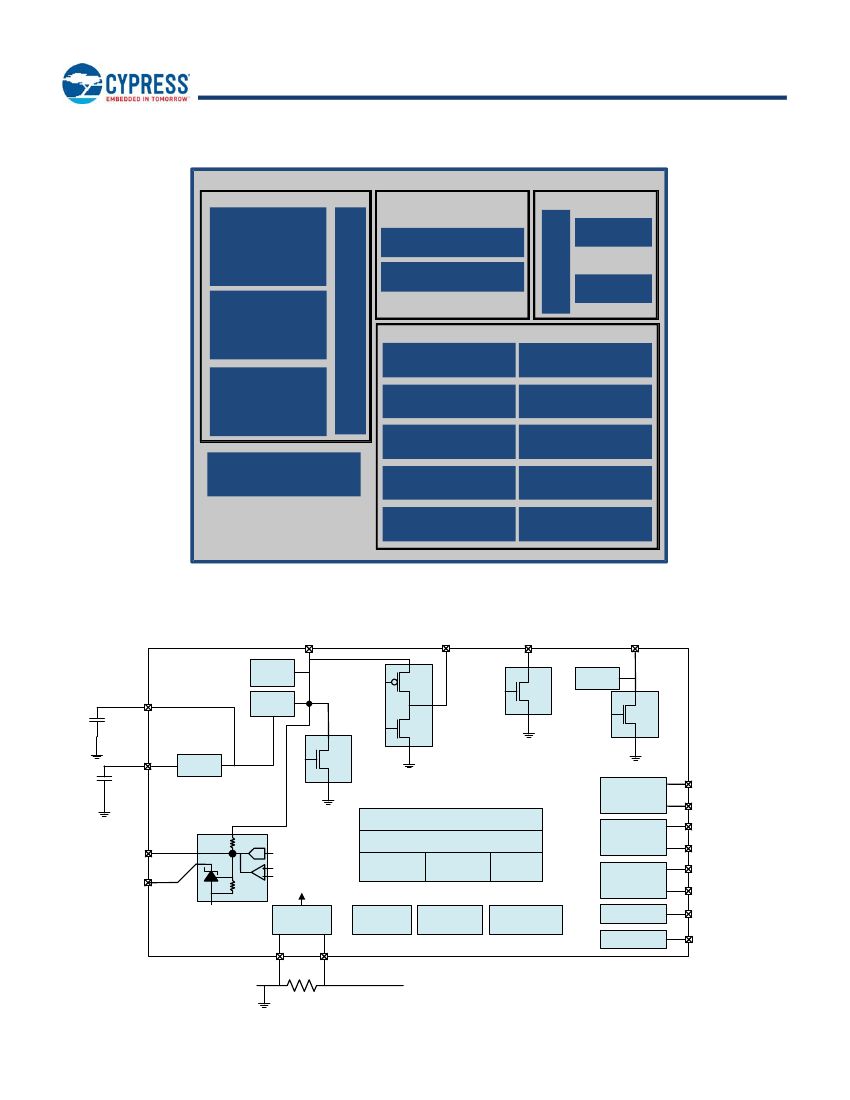

Features
Type-C Support and USB-PD Support
Supports USB PD3.0 Version 1.1 Spec including Program-
mable Power Supply Mode
Configurable resistors R
P
and R
D
Supports one USB Type-C port and one Type-A port
32-bit MCU Subsystem
Arm Cortex-M0 CPU
64-KB Flash
8-KB SRAM
Integrated oscillator eliminating the need for external clock
Clocks and Oscillators
2x Legacy/Proprietary Charging Blocks
Power
Supports QC 4.0, Apple charging 2.4A, AFC, BC 1.2
Integrates all required terminations on DP/DM lines
3.0-V to 24.5-V operation (30-V tolerant)
On CC, VBUS_C_MON_DISCHARGE, DP0, DM0, P2.2, and
P2.3 pins
± 8-kV Contact Discharge and ±15-kV Air Gap Discharge based
on IEC61000-4-2 level 4C
24-pin QFN and 16-pin SOIC
Supports extended industrial temperature range
(–40 °C to +105 °C)
System-Level ESD Protection
Integrated Voltage (VBUS) Regulation and Current
Sense Amplifier
Analog regulation of secondary side feedback node (direct
feedback or opto coupler)
Integrated shunt regulator function for VBUS control
Constant current or constant voltage mode
Supports low-side current sensing for constant current control
Packages
System-Level Fault Protection
VBUS to CC Short Protection
On-chip OVP, OCP, UVP, and SCP
Supports OTP through integrated ADC circuit
Cypress Semiconductor Corporation
Document Number: 002-16951 Rev. *F
198 Champion Court
San Jose
,
CA 95134-1709
408-943-2600
Revised March 2, 2018
