MGA-A
Solid State, Thin Film, SMD 1206, Super-Quick-Acting FF, 125 VAC, 125 VDC, 150 °C
UL 248-14 · 125 VAC · 125 VDC · Super-Quick-Acting FF
Description
See below:
Approvals and Compliances
Applications
-
-
-
-
Industrial grade space application
Avionics
Medical equipment
Defense
- Highest Breaking Capacity Rating for a 1206 on the market:
300A@125VDC
Unique Selling Proposition
-
-
-
-
No tin whiskers, no tin dendrites
No leaded coating (RoHS conform)
Similar fuse qualification as in MIL-PRF 23419
Hermetically sealed and robust construction
Other versions on request
- Different Up Screenings
- Extensive Test Reports
- Visual Inspection according MIL-PRF 55342
References
Weblinks
Packaging Details
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product, Landing
Page
Technical Data
Rated Voltage
Rated current
Breaking Capacity
Characteristic
Mounting
Max. Non-Operating Temp.
Admissible Ambient Air Temp.
Climatic Category
Material: Housing
Material: Terminals
Unit Weight
Storage Conditions
Product Marking
32 - 125 VAC, 125 VDC
0.2 - 5 A
50 A
Super-Quick-Acting FF
PCB,SMT
+150 °C
-55 °C to 125 °C
55/125/56 acc. to IEC 60068-1
Ceramic
Tin-Plated Nickel
0.03 g
0 °C to 60 °C, max. 70% r.h.
none
Soldering Methods
Solderability
Resistance to Soldering Heat
Life Test
Load Humidity Test
Moisture Resistance Test
Terminal Strength
Thermal Shock
Reflow, Wave
Soldering Profile
245 °C / 3 sec acc. to IEC 60068-2-58,
Test Td
260 °C / 10 sec acc. to IEC 60068-2-58
Test TD, Level 1
2000h @ 0.63 x In @ 125°C
MIL-STD-202, Method 103B
0.1 x In @ 0.85 r.H. @ 85°C
MIL-STD-202, Method 106E
(50 cycles in a temp./mister chamber)
EIA/IS-722, Test 4.5.5
(Deflection of board 1 mm for 1 minute)
IEC 60068-2-14
(200 air-to-air cycles from -55 to
+150°C)
IEC 60068-2-27
(12 shocks, 1600 g, 0.5 ms)
IEC 60068-2-78
(40 °C, 93% RH, 56 days)
IEC 60068-2-6
Shock 20 g, 20 min, 0.01-2 kHz, 12
cyc.
JEDEC JS-001-2014, Class 1B
(500 to < 1000 V)
Cleaning with common solvents
Mechanical Shock
Damp heat, steady state
Vibration, High Frequency
ESD classification
Resistance to Solvents
Approvals and Compliances
Fuses
1
MGA-A
https://www.schurter.com /PG01_2
Fuses
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 134485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-
ments by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: MGA-A
Approval Logo
Certificates
UL Approvals
Certification Body
UL
Description
UL File Number: E41599
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
UL 248-14
CSA22.2 No. 248.14
Description
Low voltage fuses - Part 14: Additional fuses
Low-Voltage Fuses - Part 14: Supplemental Fuses
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
RoHS
China RoHS
REACH
Initiator
SCHURTER AG
SCHURTER AG
SCHURTER AG
Description
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Dimension [mm]
3.2 mm
Reflow soldering pads
1.55
0.5
3.2
1.55
1.5
1.1
2
Fuses
2
Fuses
https://www.schurter.com /PG01_2
MGA-A

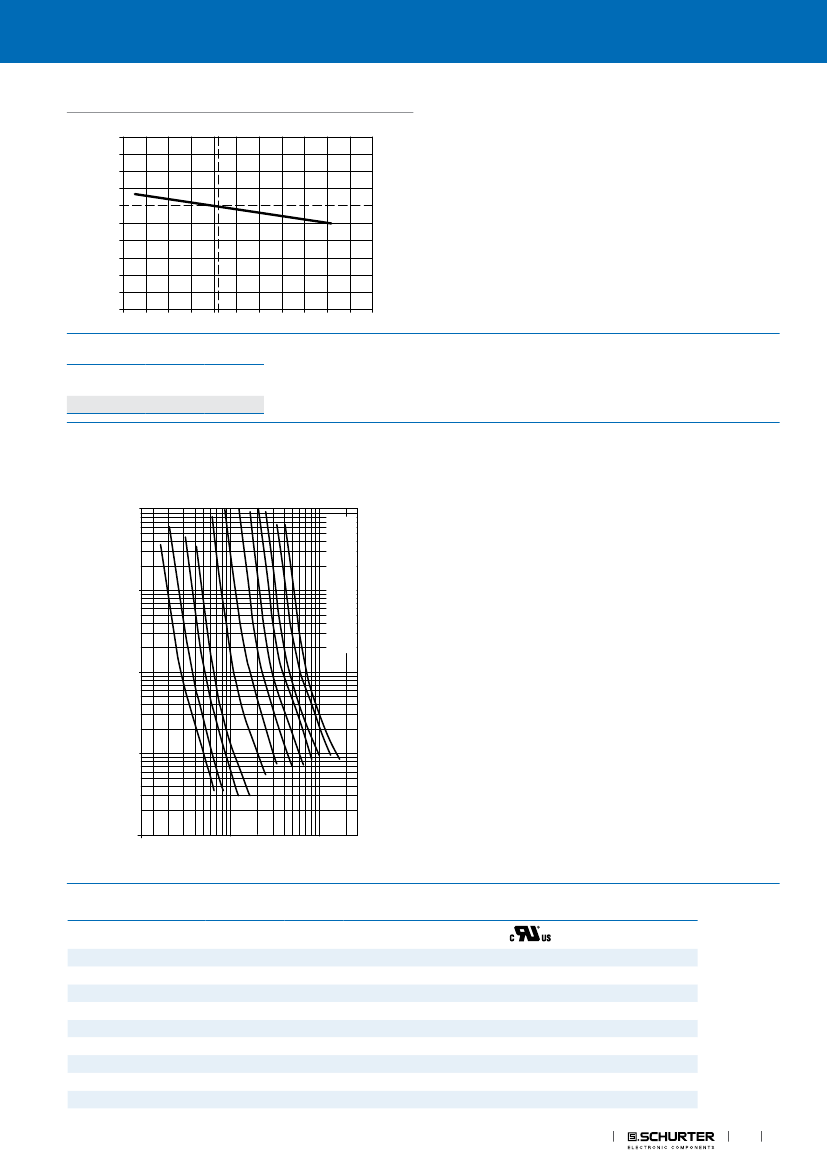

Derating Curves
140
130
120
110
100
90
80
70
60
50
40
-60
-40
-20
0
20
23
40
60
80
100
120
140
160
Pre-Arcing Time
Rated Current In
0.2 A - 5 A
1.0 x In min.
4h
2.5 x In max.
5s
Time-Current-Curves
0.1
200
250
375
500
750
1
1.5
2
2.5
3
4
5
mA
mA
mA
mA
mA
A
A
A
A
A
A
A
0.01
Time in Seconds
0.001
0.0001
0.00001
0.3
3
30
Current in Amperes
All Variants
Rated Cur-
rent [A]
0.2
0.2
0.2
0.2
0.25
0.25
0.25
0.25
0.375
Rated Voltage
[VAC]
125
125
125
125
125
125
125
125
125
Rated Voltage
[VDC]
125
125
125
125
125
125
125
125
125
Breaking
Capacity
1)
1)
1)
1)
1)
1)
1)
1)
1)
Voltage Drop 1.0 In
typ. [mV]
219
219
219
219
200
200
200
200
132
Melting I²t 10.0 In
typ. [A²s]
0.0001
0.0001
0.0001
0.0001
0.00013
0.00013
0.00013
0.00013
0.00035
l
l
l
l
l
l
l
l
l
Packaging
[PCS]
100
750
3000
10000
100
750
3000
10000
100
Order Number
3-103-085
3-103-086
3-103-087
3-103-088
3-103-089
3-103-090
3-103-091
3-103-092
3-103-093
█
█
█
Fuses
3
MGA-A
Rated Cur-
rent [A]
0.375
0.375
0.375
0.5
0.5
0.5
0.5
0.75
0.75
0.75
0.75
1
1
1
1
1.5
1.5
1.5
1.5
2
2
2
2
2.5
2.5
2.5
2.5
3
3
3
3
4
4
4
4
5
5
5
5
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) 50 A @ 125 VAC / 300 A @ 125 VDC
2) 50 A @ 63 VAC / 50 A @ 125 VDC / 300 A @ 32 VDC
3) 50 A @ 32 VAC / 50 A @ 125 VDC / 300 A @ 32 VDC
Rated Voltage
[VAC]
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
63
63
63
63
32
32
32
32
Rated Voltage
[VDC]
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
63
63
63
63
32
32
32
32
Breaking
Capacity
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
2)
2)
2)
2)
3)
3)
3)
3)
Voltage Drop 1.0 In
typ. [mV]
132
132
132
120
120
120
120
80
80
80
80
105
105
105
105
84
84
84
84
78
78
78
78
72
72
72
72
70
70
70
70
67
67
67
67
70
70
70
70
Melting I²t 10.0 In
typ. [A²s]
0.00035
0.00035
0.00035
0.0004
0.0004
0.0004
0.0004
0.003
0.003
0.003
0.003
0.008
0.008
0.008
0.008
0.014
0.014
0.014
0.014
0.025
0.025
0.025
0.025
0.055
0.055
0.055
0.055
0.09
0.09
0.09
0.09
0.15
0.15
0.15
0.15
0.205
0.205
0.205
0.205
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
https://www.schurter.com /PG01_2
Fuses
Packaging
[PCS]
750
3000
10000
100
750
3000
10000
100
750
3000
10000
100
750
3000
10000
100
750
3000
10000
100
750
3000
10000
100
750
3000
10000
100
750
3000
10000
100
750
3000
10000
100
750
3000
10000
Order Number
3-103-094
3-103-095
3-103-096
3-103-097
3-103-098
3-103-099
3-103-100
3-103-101
3-103-102
3-103-103
3-103-104
3-103-105
3-103-106
3-103-107
3-103-108
3-103-109
3-103-110
3-103-111
3-103-112
3-103-113
3-103-114
3-103-115
3-103-116
3-103-117
3-103-118
3-103-119
3-103-120
3-103-121
3-103-122
3-103-123
3-103-124
3-103-125
3-103-126
3-103-127
3-103-128
3-103-129
3-103-130
3-103-131
3-103-132
█
█
█
█
█
█
█
█
█
Packaging Unit
Taped in plastic bag (100 pcs.)
Blister Tape 18 cm Reel (750 pcs.)
Blister Tape 33 cm Reel (3000 pcs.)
Blister Tape 33 cm Reel (10000 pcs.)
4
Fuses
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
04.12.2018
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Schurter
:
3-103-099 3-103-116 3-103-118 3-103-091 3-103-124 3-103-125 3-103-126 3-103-121 3-103-123 3-103-132 3-
103-092 3-103-093 3-103-111 3-103-090 3-103-095 3-103-097 3-103-106 3-103-120 3-103-129 3-103-130 3-
103-107 3-103-128 3-103-085 3-103-119 3-103-087 3-103-089 3-103-098 3-103-103 3-103-112 3-103-114 3-
103-110 3-103-086 3-103-100 3-103-101 3-103-102 3-103-117 3-103-115 3-103-122 3-103-131 3-103-094 3-
103-108 3-103-109 3-103-127 3-103-096 3-103-105 3-103-088 3-103-104 3-103-113
