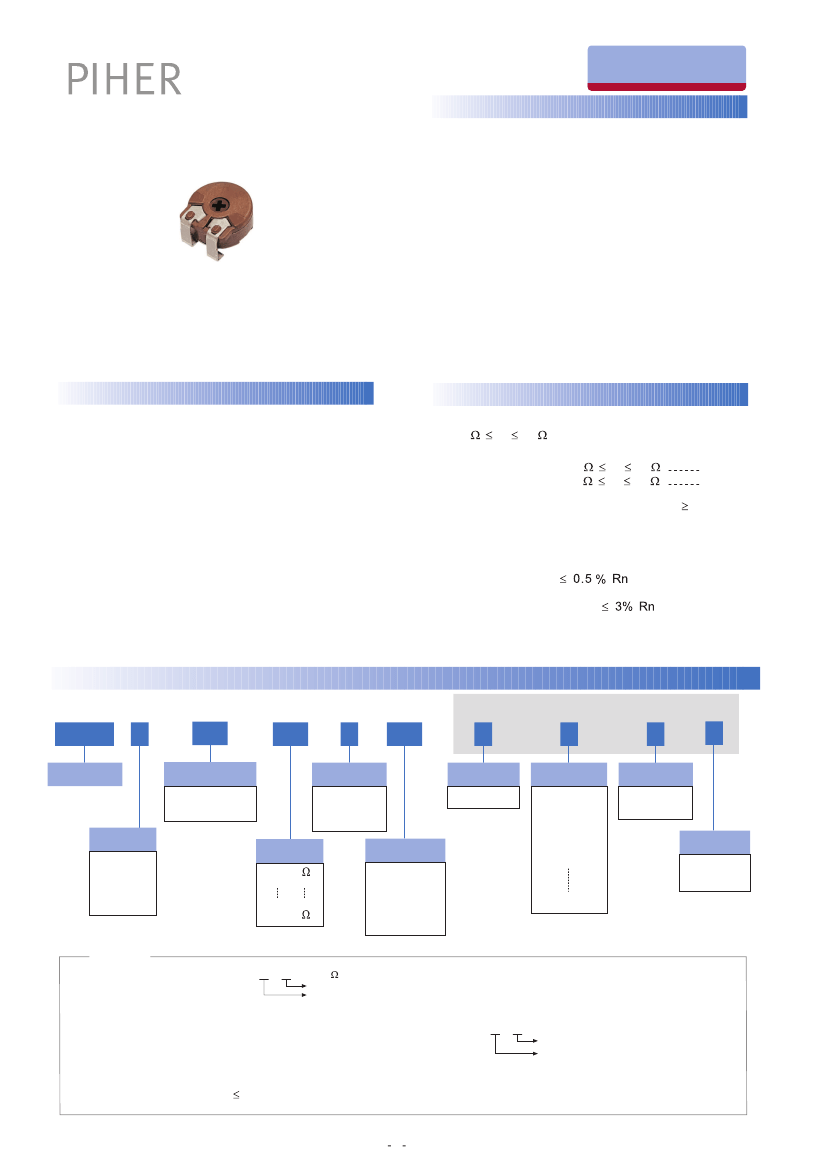

PSC-10
MAIN FEATURES
10mm SMD cermet
Potentiometer
Specifically designed for leadfree reflow soldering processes
(excellent performance).
Cermet resistive element.
IP54 protection according to IEC 60529.
Plastic material according to UL94V-0.
Alumina substrate.
Full traceability.
Also upon request:
- Long life model for low cost control potentiometer
applications.
- Mechanical detents.
- Low torque version.
- Centering pins.
- Wiper positioned at initial, 50% or fully clockwise.
MECHANICAL SPECIFICATIONS
Mechanical life*:
Mechanical rotation angle:
Electrical rotation angle:
Torque:
Up to 10K cycles.
235° ± 5°
220° ± 20°
0.4 to 2 Ncm.
(0.6 to 2.7 in-oz)
> 5 Ncm. ( >7 in-oz)
ELECTRICAL SPECIFICATIONS
Range of values*:
100
Rn 5M
(Decad. 1.0 - 2.0 - 2.2 - 2.5 - 4.7 - 5.0)
Rn 1M
Rn 5M
± 20%
± 30%
Standard tolerance*: 100
1M
Tapers*: Lin, Log, Alog (Log and Alog. only Rn 1K).
Nominal power: 0.33W @ 70°C (158°F)
Stop torque:
Operating temperature*: 40°C + 90°C
Residual resistance:
Equivalent noise resistance:
Max. voltage: 200 VDC
* Others upon request
HOW TO ORDER
STANDARD
PSC- 10
L
V50
102
A
Taper
A = Lin.
B = Log.
C = Alog.
OPTIONAL EXTRAS
2020
Series
Mounting
V50 = Standard
V60 = Centering pins
Life
E= 10K cycles
(See note 3)
Detents
PAI
PAM
PAF
P1I
P1F
P02
Wiper position
PM = 50%
PF = Final
Rotors
G
L
M
K
R
Value
101 = 100
Tolerance
3030 = ± 30%
2020 = ± 20%
1010 = ± 10%
0505 = ± 5%
(See note 2)
Torque
= Standard
L = Low torque
(See note 4)
P16
See detent configurations
505 = 5M
(See note 1)
NOTES:
(1)
Value Example: 10
2
= 1K
Number of zeros
First two digits of the value.
(2)
Non standard tolerance, upon request.
Example: +17%
-15%
17
15
negative tolerance
positive tolerance
(3)
(4)
Others upon request.
Low torque:
1.5Ncm. No detent option available for low torque models.
www.piher.net
1
HOW TO ORDER CUSTOM DRAWING
PSC10MV50
+ DRAWING NUMBER
This way of ordering should be used for options which are not included
in the "How to order" standard and optional extras.
STANDARD OPTIONS
Mechanical life
.......................................
1000 cycles
Detents
..............................................
.......................................
None
Brown
Brown
Initial
Standard
Rotor colour
Housing colour
......................................
Wiper position
......................................
Torque
................................................
Packaging
.........................................
Reel
ROTORS (collector side view)
0.8
2.0
5
2.05
2.2
2
0.7
2.1
2.2
L
= Screwdriver
thru hole
M
= Hexagonal
thru hole
G
= Hexagonal
thru hole
K
= Cross slot
thru hole
1.6
R
= thru hole
Note: wipers shown positioned at 50%

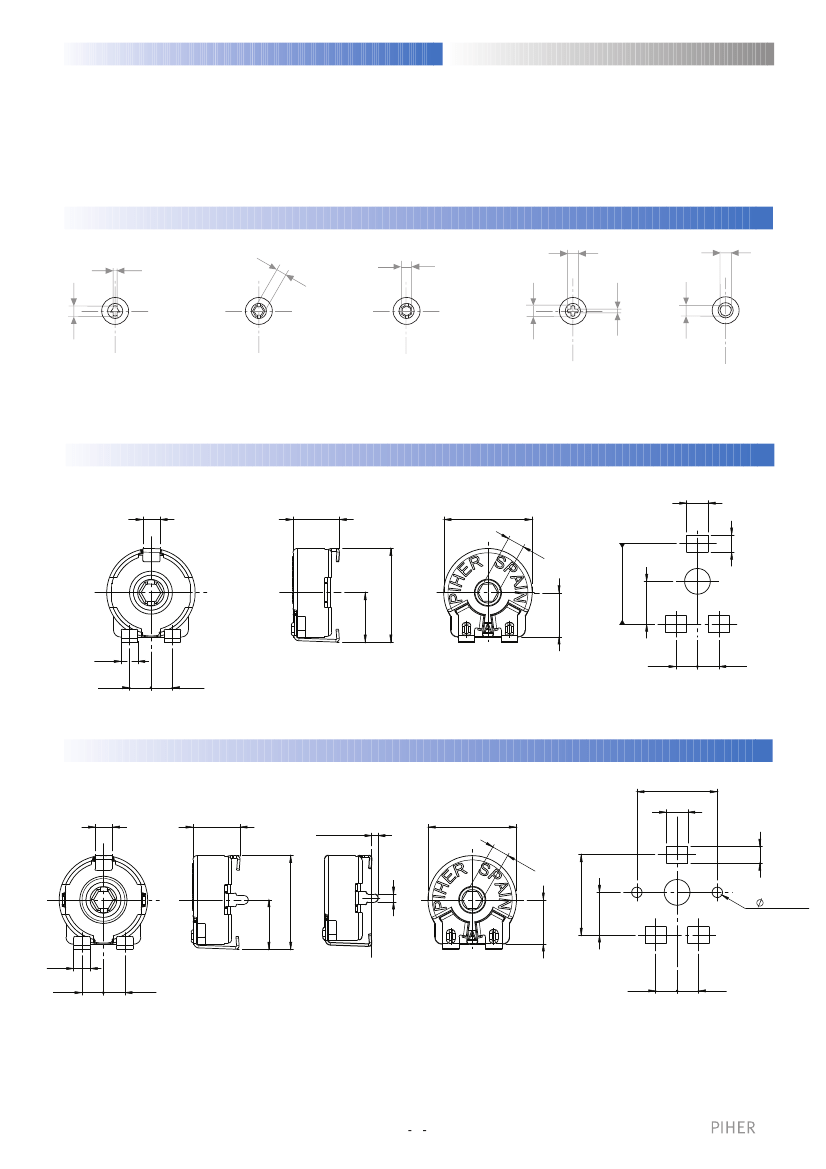

DIMENSIONS (V50 version)
2.5
2
5.7
10.3
2.0
5
10.9
9.4
5.75
2
2.5
2.5
5.15
5
2.5
DIMENSIONS (V60 version - with centering pins)
9.4
2.5
2
5.7
0.85
10.3
2
2.5
2.0
5
10.9
9.4
1
2
1.2 (x2)
2
2.5
2.5
2.5
2.5
www.piher.net
5.75
2
5.15
5
OPTIONS
Positioning (Std. Position = CCW)
RECOMMENDED REFLOW PROFILE
Heat used to
melt solder
paste
Max. temp 250ºCs
P.M.
50% +20º
200ºC*
Preheat temp. 150ºC*
30-45 s
P.F.
INITIAL
CCW
FINAL
CW
Between 60-120 s
Room temp.
* Melting point temp. depends on solder properties
TESTS
ELECTRICAL LIFE
MECHANICAL LIFE (CYCLES)
TEMPERATURE COEFFICIENT
THERMAL CYCLING
DAMP HEAT
VIBRATION (for each plane X,Y,Z)
NOTE: Out of range values may not comply these results.
TYPICAL VARIATIONS
1000 h. @ 70°C; 0.33 W
1000 @ 10 CPM ...15 CPM
40°C; +90°C
16 h. @ 90°C; 2h. @ 40°C
500 h. @ 40°C @ 95% HR
2 h. @ 10 Hz. ... 55 Hz.
±5 %
±3 % (Rn < 1 M
W)
±100 ppm (Rn <100 K)
±2.5 %
±5 %
±2 %

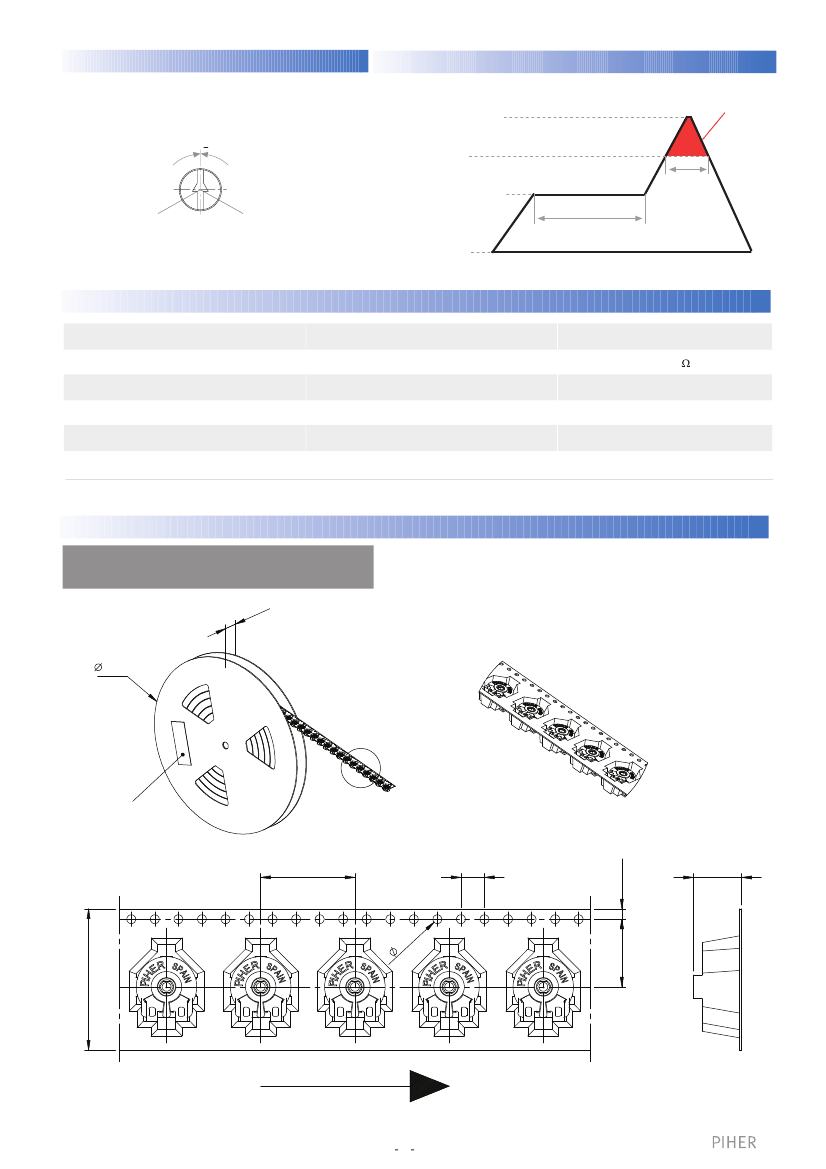

PACKAGING
BULK: 500pcs / per Box (80 x 85 x 185 mm.)
EMBOSSED TAPE: 500pcs / Reel
29
330
A
A
Label
24
Direction of unreeling
www.piher.net
3
11.5
1.
5
1.75
16
4
8.2
STANDARD VALUES AND TOLERANCES
Resistance
How to order code
Standard tolerance
(Others upon request )
100 200 220 250 470 500 1K
2K
2.2K 2.5K 4.7K 5K
472
10K 20K 22K 25K 47K 50K 100K 200K 220K 250K 470K 500K
204
224
254
474
504
20%
1M
105
2M 2.5M 4.7M
205 255
475
30%
5M
505
101 201 221 251 471 501 102 202 222 252
502 103 203 223 253 473 503 104
TAPERS
A = Linear
B = Log.
C = Alog.
100% Rn
Standard
C
A
B
Special
custom
taper example.
(contact at sales@piher.net)
R 2
+ 5%

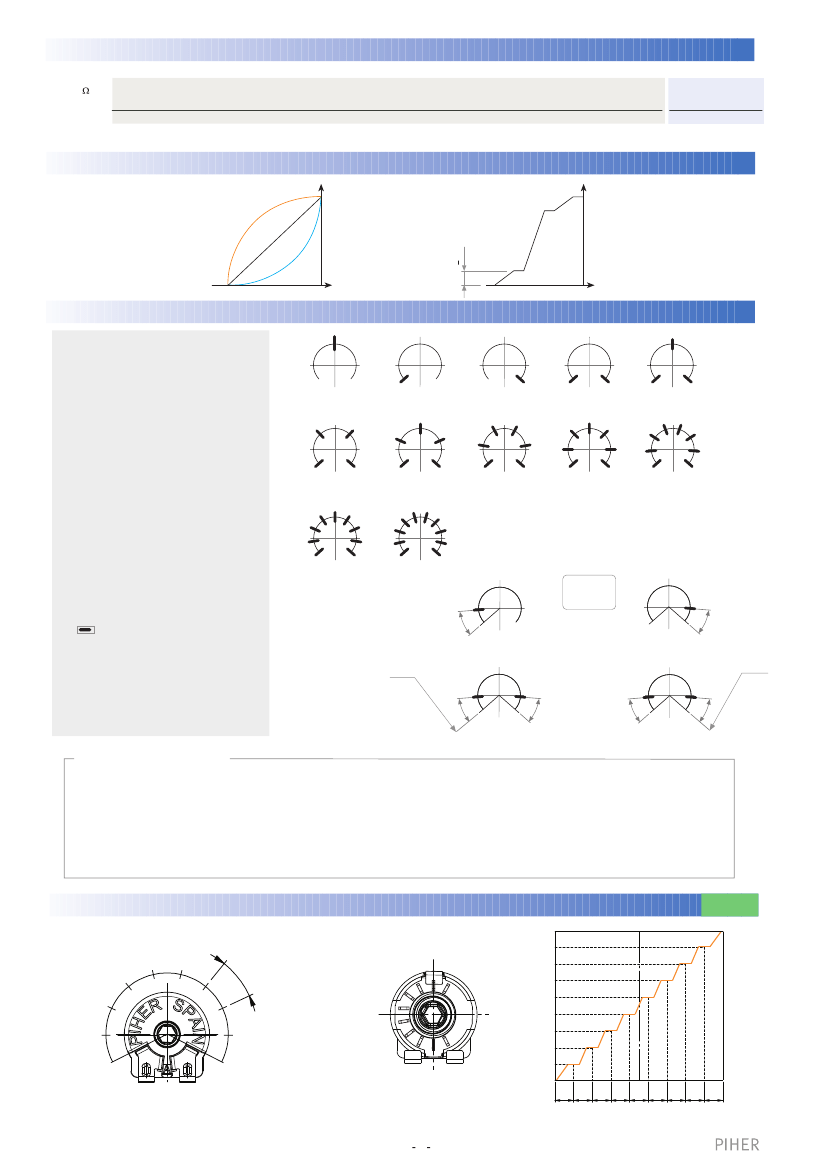

DETENT CONFIGURATIONS
EXAMPLES
-
Stepped
potentiometers.
This innovative product family has been
specifically developed to allow the
integration of otherwise large and
expensive external mechanisms into the
body of the majority of the 10 & 15 mm.
PS/PSX/PSC/PT/PTC potentiometer series,
thus allowing a high range of
configurations: special tapers, tolerances,
linearity, etc.
This detent design not only adds a "click"
sensation of position, but also offers
enormous savings in both cost and space
for any given application.
Strong and weak detents can be mixed as
per cutomer´s request.
Detent number and positions can be made
or fitted to the customer needs or
preferences.
PAM
P1
I
P1F
P02
P03
P04
P05
P06
P07
P08
P09
P10
A= 26º
B= 27.5º
Relative detent (steps)
positions along the total
mechanical travel.
Unless otherwise
specified the detents
are evenly spaced
(using the end points
as reference)
A
PID
Wiper
position
A
PFD
Wiper
position
B
PAI
B
B
PAF
B
(wiper positioned at initial)
(wiper positioned at final)
NOTES FOR DETENTED VERSIONS:
(1)
Some
configurations
may have a longer leadtime.
(2)
Standard mechanical life is 500 cycles.
(5)
Please consult your nearest Piher supplier if unique
(3)
Long life versions are available under request and have the
(4)
Detent torque can vary from 1.2 to 2.5 times the standard
potentiometer torque.
following characteristics at Tª:
- Potentiometers with 1 to 3 detents:
up
to 10K cycles
- Potentiometers with 4 and more detents: up to 5K cycles
non-overlapping values at each detent position or
LOG/ALOG tapers are required.
(6)
Different output voltage values can be matched at each
detent position (under request).
PSC-10 with 10 detents and silver zones
Detents can be matched with constant value zones when required.
100% Un
88.9% Un
upon
request
d4
d3
d2
d1
d5
26
°
77.7% Un
d6
66.6% Un
55.5% Un
d7
d8
44.4% Un
33.3% Un
22.2% Un
11.1% Un
0º
234º
0% Un / 0º
50%
100%
=
=
=
=
A
=
=
=
=
=
E
d1
d2
d3
d4
d5
d6
d7
d8
www.piher.net
4

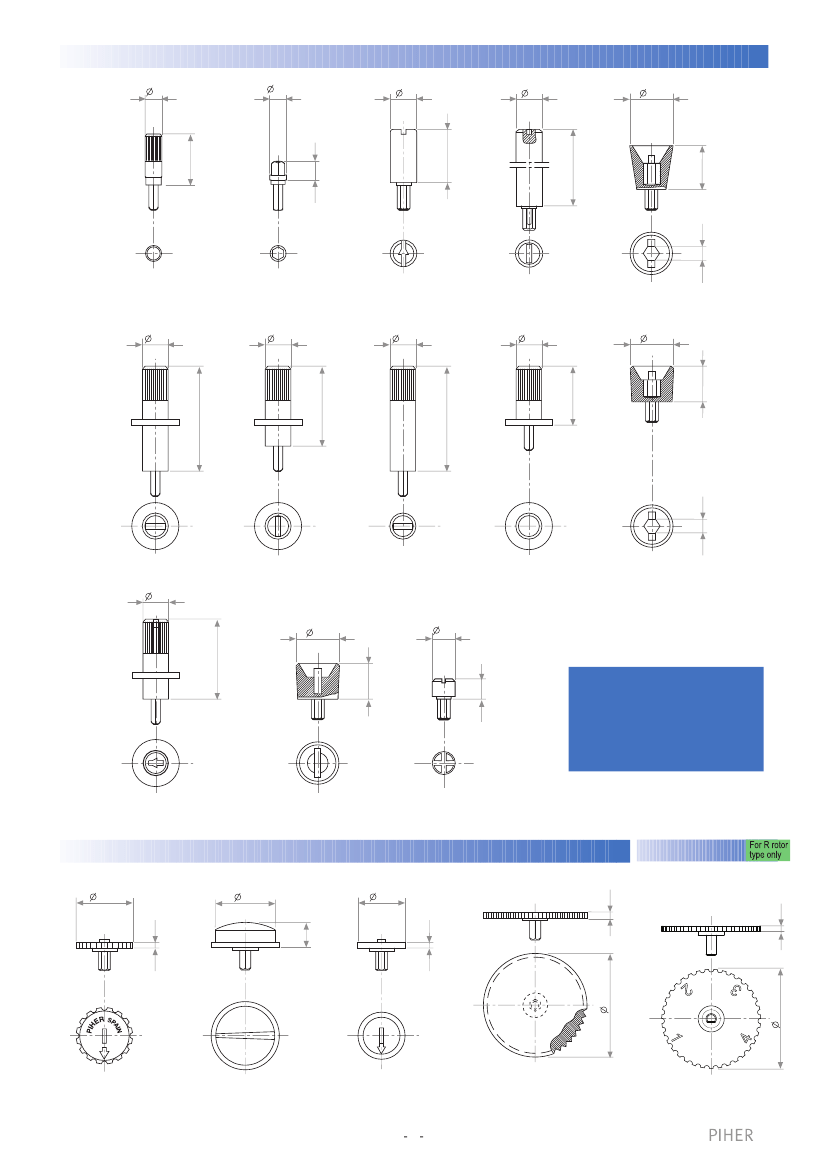

SHAFTS (for G and M rotor types, top view)
3
3.1
5
5
8.1
10.4
10
34
3.7
Fig. 1 / Ref. 5016
Fig. 2 / Ref. 5053
Fig. 3 / Ref. 5012
Fig. 4 / Ref. 6053
Fig. 6 / Ref. 5035
4.9
4.9
4.9
4.9
8.1
25.5
15.2
25.5
12.5
Fig. 7 / Ref. 5115
4.9
Fig. 8 / Ref. 5116
Fig. 9 / Ref. 5119
Fig. 10 / Ref. 5120
Fig. 11 / Ref. 5027
8.1
4.5
15.2
6.75
Shafts, kobs and thumbwheels
are delivered unassembled.
If you wish to use your own
custom plastic shaft/knob/actuator
please contact Piher for advice
about compatible materials.
Fig. 12 / Ref. 6052
Fig. 13 / Ref. 5121
Fig. 14 / Ref. 5055
THUMBWHEELS (for G and M rotor types, top view)
11.5
12
9.5
3.3
THUMBWHEEL
Marking: configurable number of positions.
Example of four positions marking:
1.5
2.6
6.75
2.6
8.4
1
5
1
21
Fig. 5 / Ref. 5034
Fig. 15 / Ref. 6008
Fig. 16 / Ref. 5039
Fig. 17 / Ref. 5062
Upon request
www.piher.net
5
19
1
